Thumper Lithium Jumpstart Hub 100AH REDARC + Bluetooth

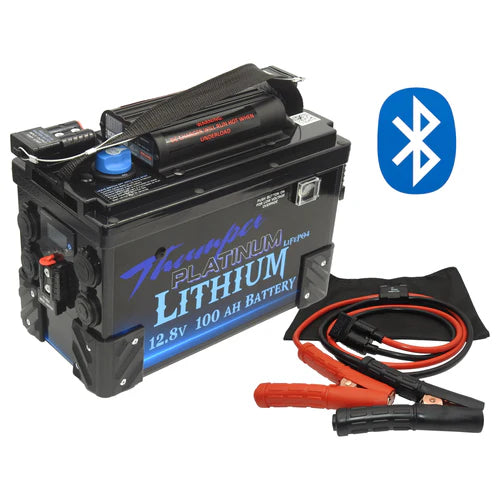

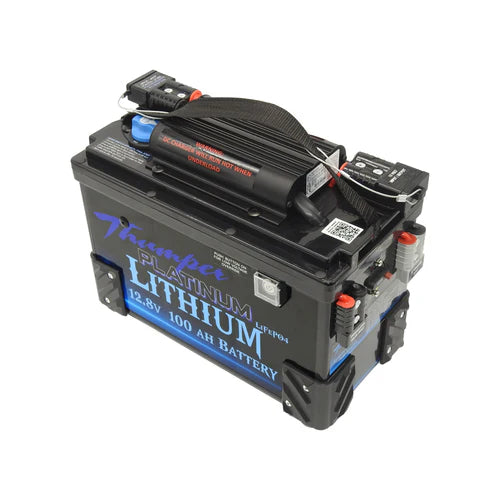

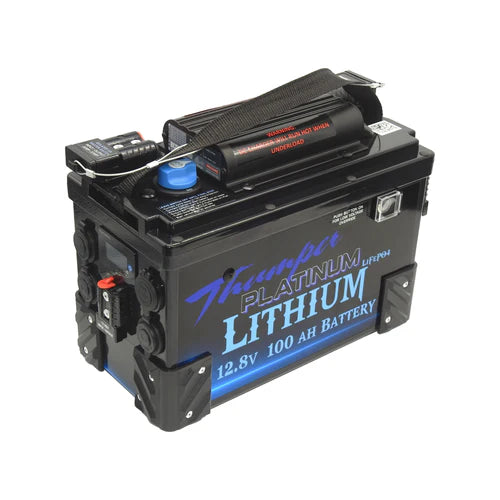

🔋 Thumper Lithium Battery Hub – Jump Start + Bluetooth (TBH100RD-JS)

Game changer! The Thumper Lithium Battery Hub is not just a compact, portable, and reliable independent battery system — it JUMP STARTS vehicles too! Equipped with Bluetooth technology, you can monitor battery capacity, cell temperature, control power remotely, and now, safely start your car, truck, or 4WD with spike and polarity-protected leads.

✅ Bluetooth monitoring – Capacity, voltage, temperature, and power control at your fingertips
✅ Jump Start capable – Safe and protected leads for everyday emergencies
✅ Lightweight & compact – Perfect for vehicles, boats, or off-grid setups
✅ Heavy-duty output – 200A BMS for appliances, plus 900A starting current
✅ Multiple charging options – DC vehicle, MPPT solar, and 240V AC included

⚡ Key Benefits

• Run a 60L compressor fridge for 3+ days independently

• Charge from any vehicle make, model, or year via DC charger

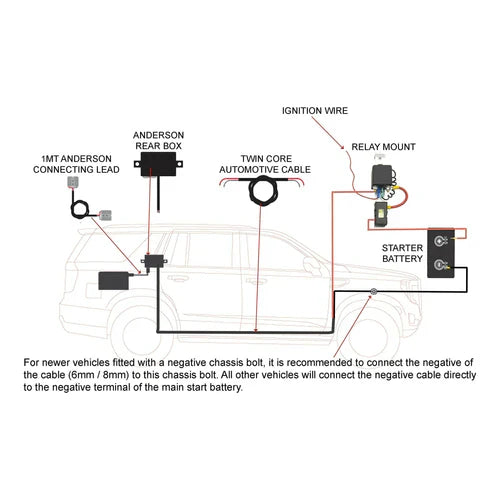

• Sophisticated vehicle charging with complete wiring loom included

• MPPT Solar Ready – 25A (400–450W) solar charging

• 240V AC lithium charger included

• Spike and polarity-protected jump leads included for safe vehicle jump-starting

• 5-year battery warranty | 2-year Redarc DC charger warranty

• 200A BMS for running heavy appliances

With 100% usable capacity down to 12.4V and full Bluetooth monitoring, this is the ultimate independent battery solution.

🌟 Perfect For

🚐 Vanlife & Campervans – power fridges, lights, and electronics

🛻 4WD & Off-Road Adventures – dual battery + jump start capability

⛺ Camping & Outdoor Activities – run compressors, heaters, and gadgets

🛥 Boating & Marine Use – compact, durable, and water-resistant

⚡ Emergency & Roadside Power – jump start vehicles safely

📦 Package Contents

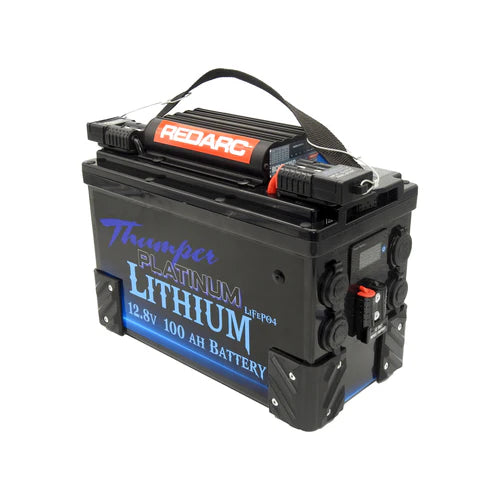

• Thumper Lithium Battery Hub 100AH (100% usable power down to 12.4V)

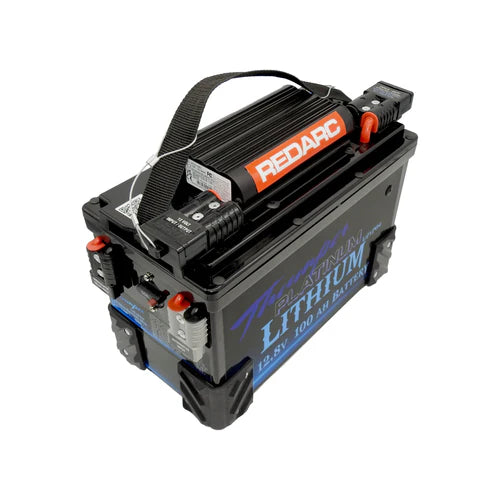

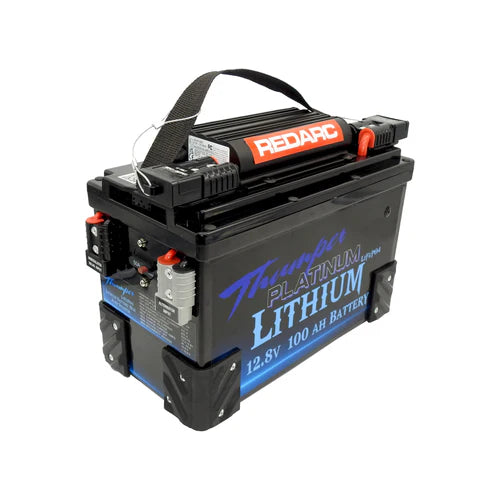

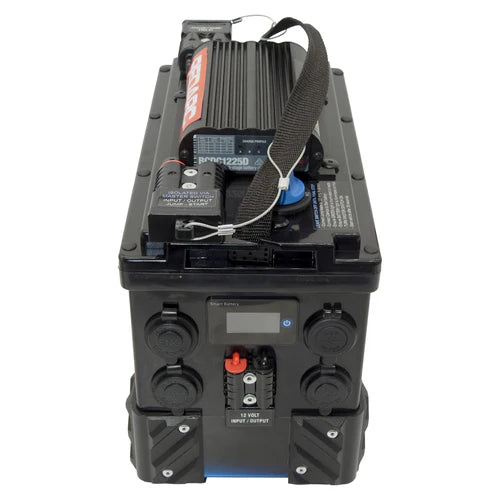

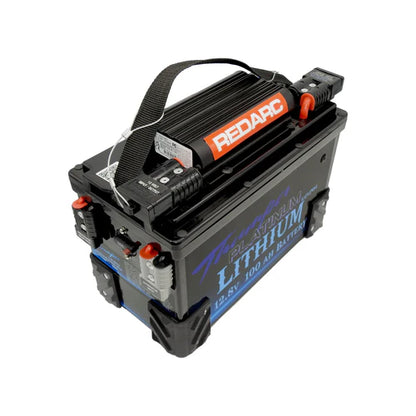

• Redarc BCDC1225D DC Battery Charger (hardwired)

• Complete vehicle wiring loom with 8B&S cable

• LiFePO4 240V 10A Battery Charger fitted with 50A Anderson

• FREE Bluetooth APP for full battery monitoring

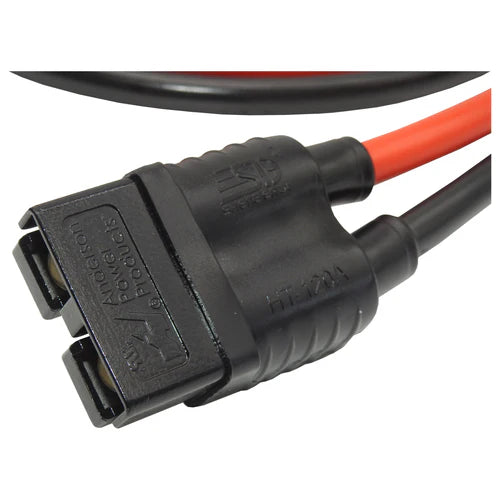

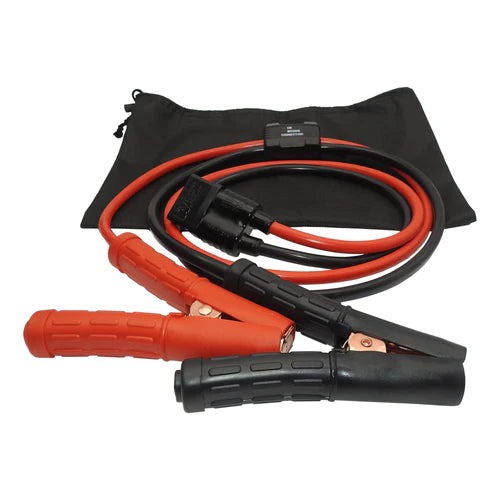

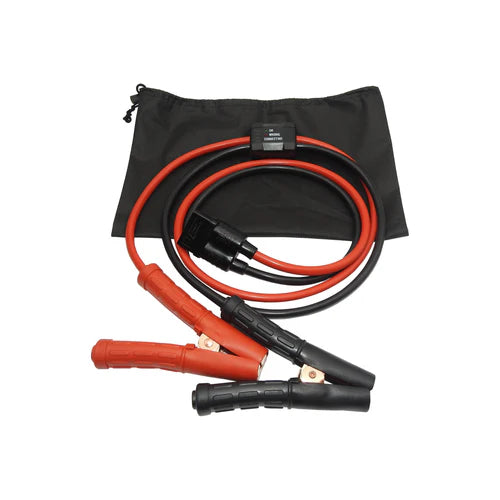

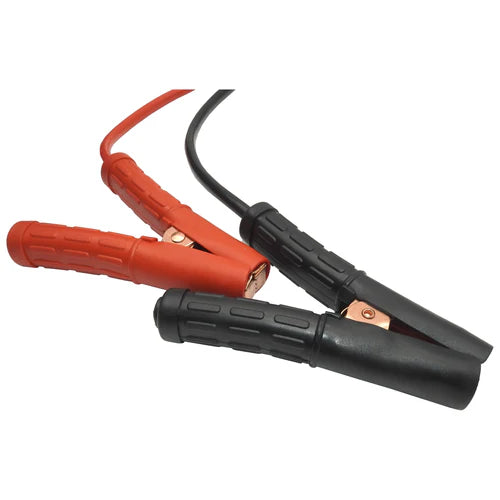

• 1.5m Spike & Polarity Protected Jump Leads (120A Anderson to clamps) + storage pouch

• Secure battery mounting tray with strap

• 5-year warranty on battery | 2-year warranty on DC charger

🔧 Specifications

Dimensions & Weight:

• 355mm L x 180mm W x 260mm H | 12.15kg

Operating Temperature:

• Charge: -3°C ~ 80°C | Discharge: -23°C ~ 80°C | Storage: -20°C ~ 45°C

Charging & Discharge:

• Recommended Charge Current: 25–50A | Max: 200A

• Recommended Voltage: 14.2 ±0.2V | Max: 14.8 ±0.2V

• Max Discharge: 200A (2400W) | Efficiency: >99.5%

• Cycle Life: 6000 cycles at 80% DOD, 4000 cycles at 100% DOD

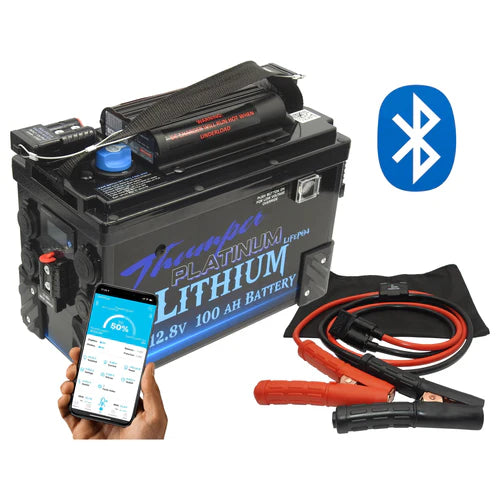

📱 Bluetooth App Features

Monitor & control with the Thumper App (FREE download):

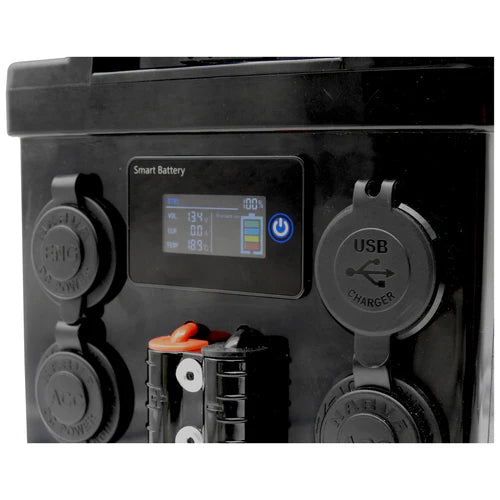

• Battery capacity, voltage & % remaining

• Charge & discharge current

• Remote power ON/OFF (charge/discharge loads)

• Auto cell calibration & protection

• Estimated time remaining & AH capacity

• Total cell balancing

• Dual battery sensor monitoring

• Parallel linking & AH reprogramming (passcode required)

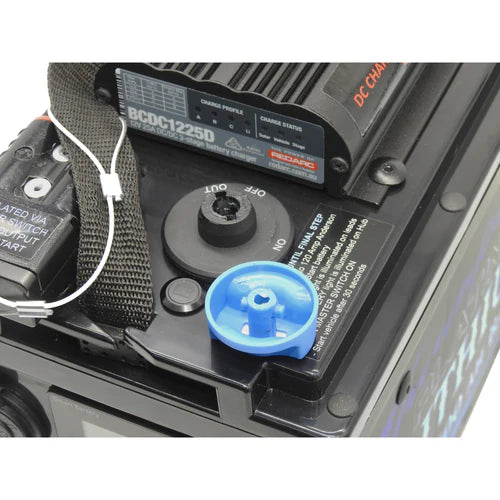

Charge/Discharge switches let you safely isolate the battery for storage.

🔌 Charging Options

1. 240V AC Charger – Fully regulated, 10A, connects directly to 50A Anderson. Red = charging, Green = fully charged.

2. DC Vehicle Charging (Redarc BCDC1225D) – Hardwired, 25A output, operates 9–32V DC, solar input 375–420W, ignition override available.

3. MPPT Solar Input – Up to 25A (400–450W) via Anderson connector, dual battery monitoring supported.

🛠 Installation Made Easy

• Complete mounting tray & strap included

• Full vehicle wiring loom and instructions included


🔒 Safety & Reliability

• Thermal stability & short-circuit protection

• Over-voltage & under-voltage protection

• Dual temperature sensors

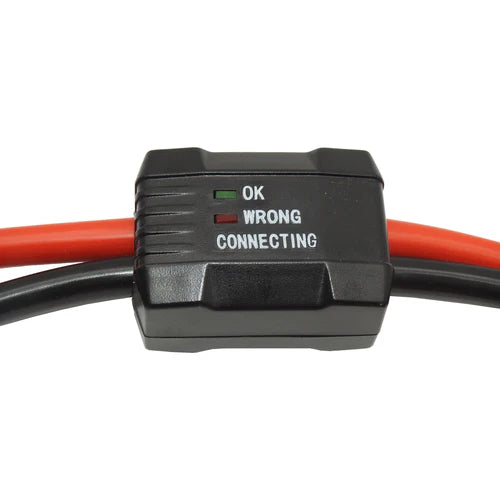

• Spike & polarity-protected jump leads

• Virtually maintenance-free LiFePO4 technology

The Thumper TBH100RD-JS is the most compact, powerful, and intelligent independent battery system with jump-start capability, perfect for adventures, emergencies, and off-grid living.
