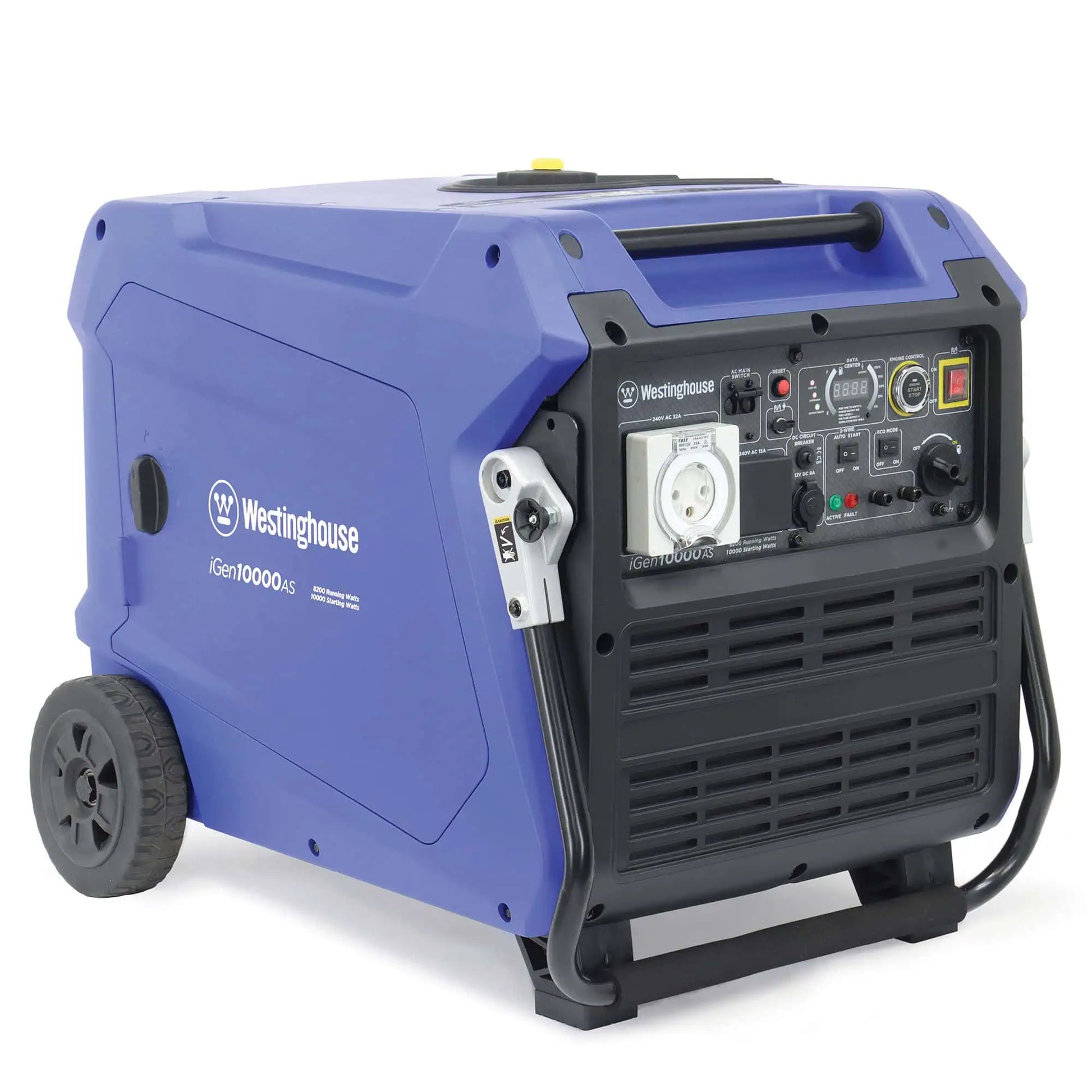

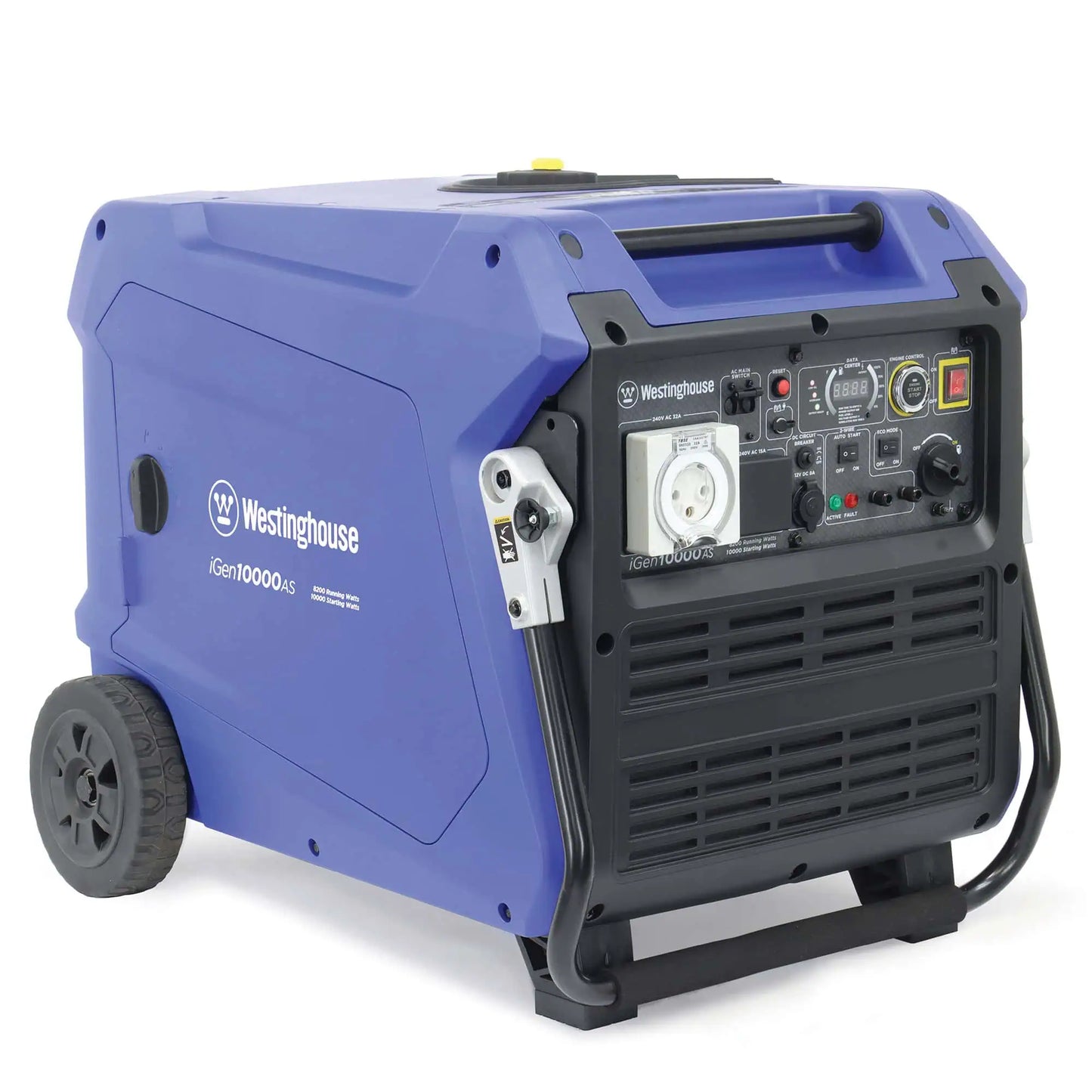

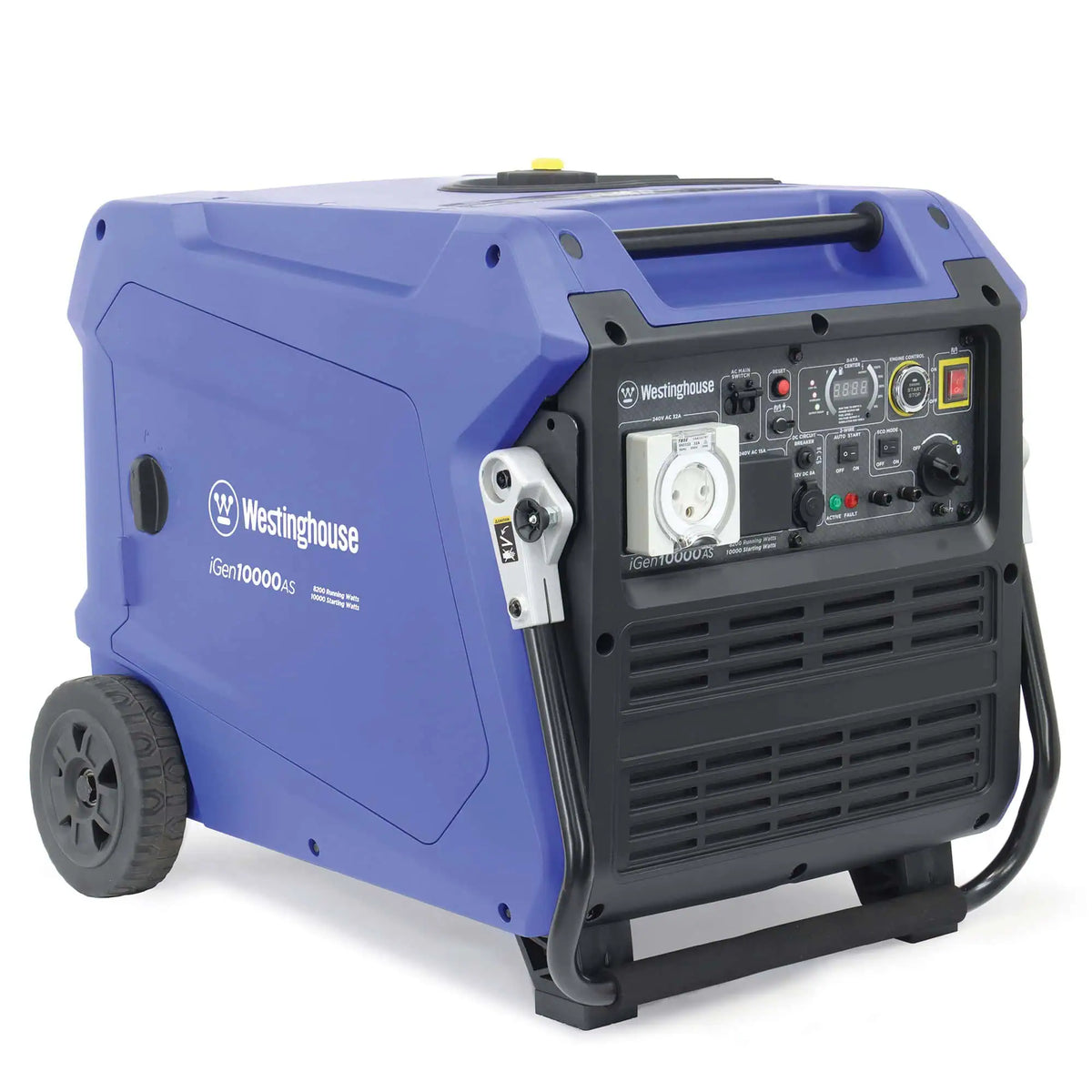

WESTINGHOUSE IGEN10000AS GENERATOR

WESTINGHOUSE IGEN10000AS GENERATOR

IGEN10000AS

$4,999.00
$4,999.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

The iGen10000AS is the new top-of-the-line Westinghouse inverter generator with 2-wire
automatic remote start, run and stop control.

Its massive electrical output enables it to support large off-grid solar power systems, mains backup standby power supplies, food vans and other big loads while emitting lower noise and using less fuel than a traditional generator.

The 32-Amp outlet can essentially deliver the unit’s full output via a single plug and socket connection.

  • Powerful 10,000 Starting Watts / 8,200 Running Watts
  • Electric start with wired and wireless remote controls
  • 2-wire automatic start, run and stop control system
  • Super quiet for food van, off-grid solar or mains backup use
  • Up to 30 hours run time on a single 30-litre tank of fuel
  • Pure sine wave electricity safe to power your electronics
  • 457 cc Westinghouse 4-stroke OHV petrol engine

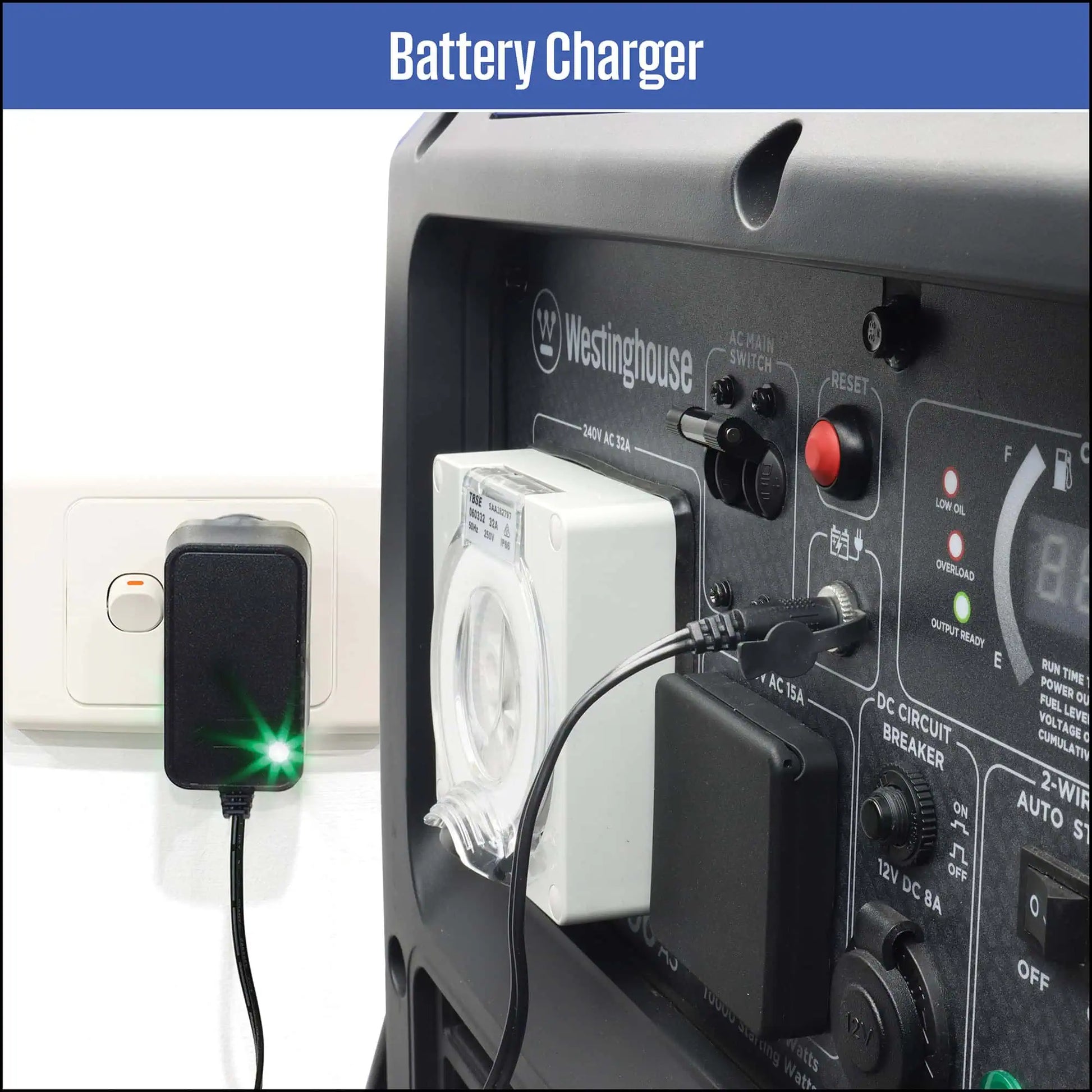

  • 240 Volt AC plug-in charger to maintain onboard battery

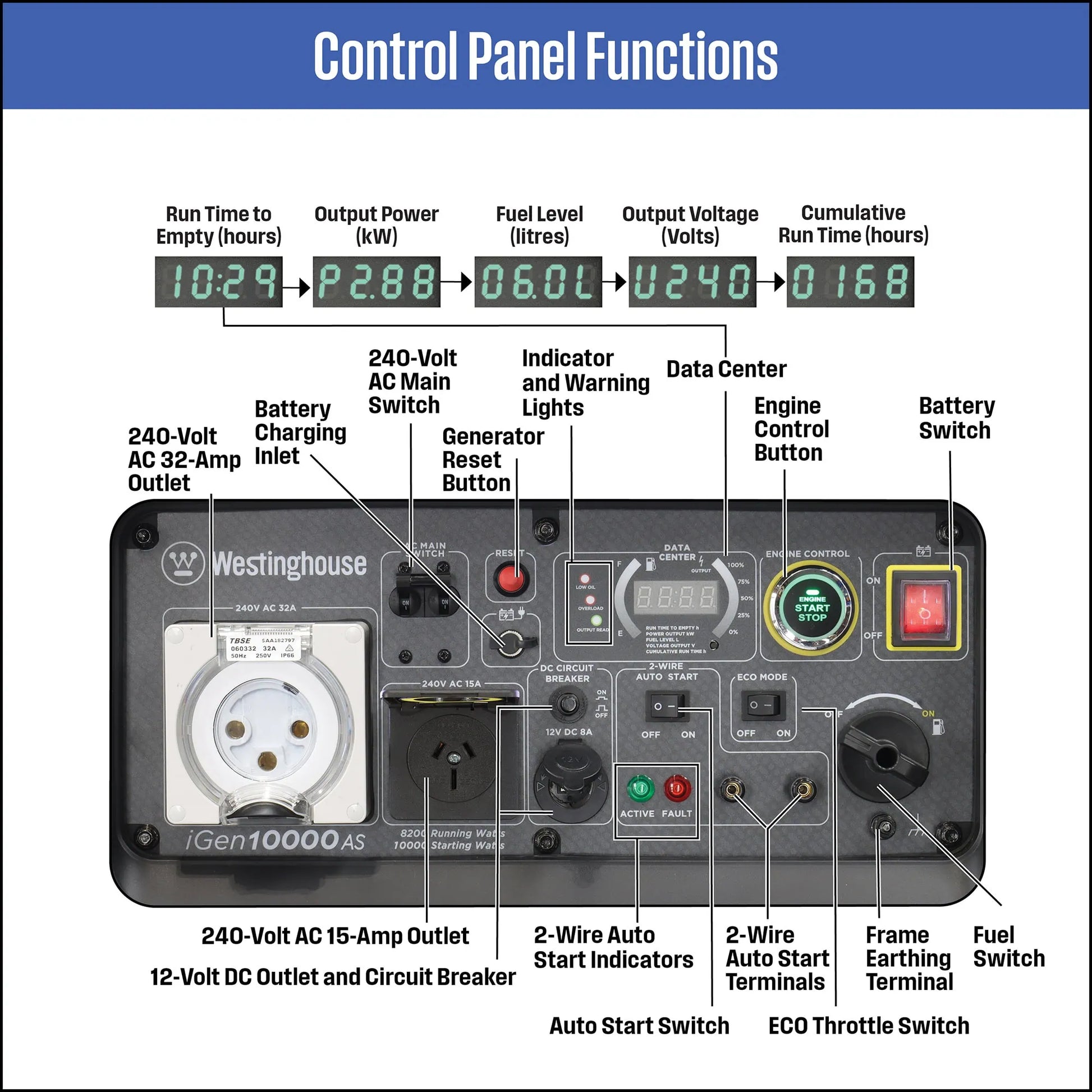

  • 240 Volt AC and 12 Volt DC outlets plus digital data center
  • 2-year domestic use warranty (conditions apply)
ENGINE
Type 1-Cylinder, 4-Stroke, Overhead Valve, Air Cooled
Displacement (cc) 457
Maximum Speed (rpm) 3,600
Oil Capacity (L) 1.1
Oil Viscosity SAE 10W-30
Low Oil Shutdown Yes
Low Oil Alarm Indicator Yes
Spark Plug Torch F7RTC
Fuel Unleaded Petrol (91, 95 or 98 RON)
Fuel Tank Capacity (L) 30
Fuel Shutoff Valve Yes, Independent
Starting Method Local / Remote Electric and Recoil
2-Wire Auto Start/Run/Stop Yes
Battery 12V, Lithium-Ion
Run Time @ 1/4 / Full Load 19.8 / 7.3 hours
Noise Level @ 1/4 / Full Load 58 / 68 dB(A) @ 7m



DIMENSIONS
Length (mm)  767
Width (mm) 630
Height (mm) 675
Weight - Dry (kg) 85
Weight - Wet (kg) 109



240 VOLT AC ELECTRICAL
Voltage (V) 240
Frequency (Hz) 50
Number of Phases 1
Continuous Running Power (W) 8,200
Maximum Starting Power (W) 10,000
Continuous Running Current (A) 34.2
Voltage & Waveform Control Digital Inverter, Pure Sine Wave Output
Total Harmonic Distortion (THD) < 2.5%
Receptacle 1 x 32 A, IP66 & 1 x 15 A, IP44
Main Switch Yes, Independent
Overload Indicator Yes
Overload Reset Push Button
Overload Protection Electronic
Alternator Brushless, Permanent Magnet
Output Ready Indicator Yes

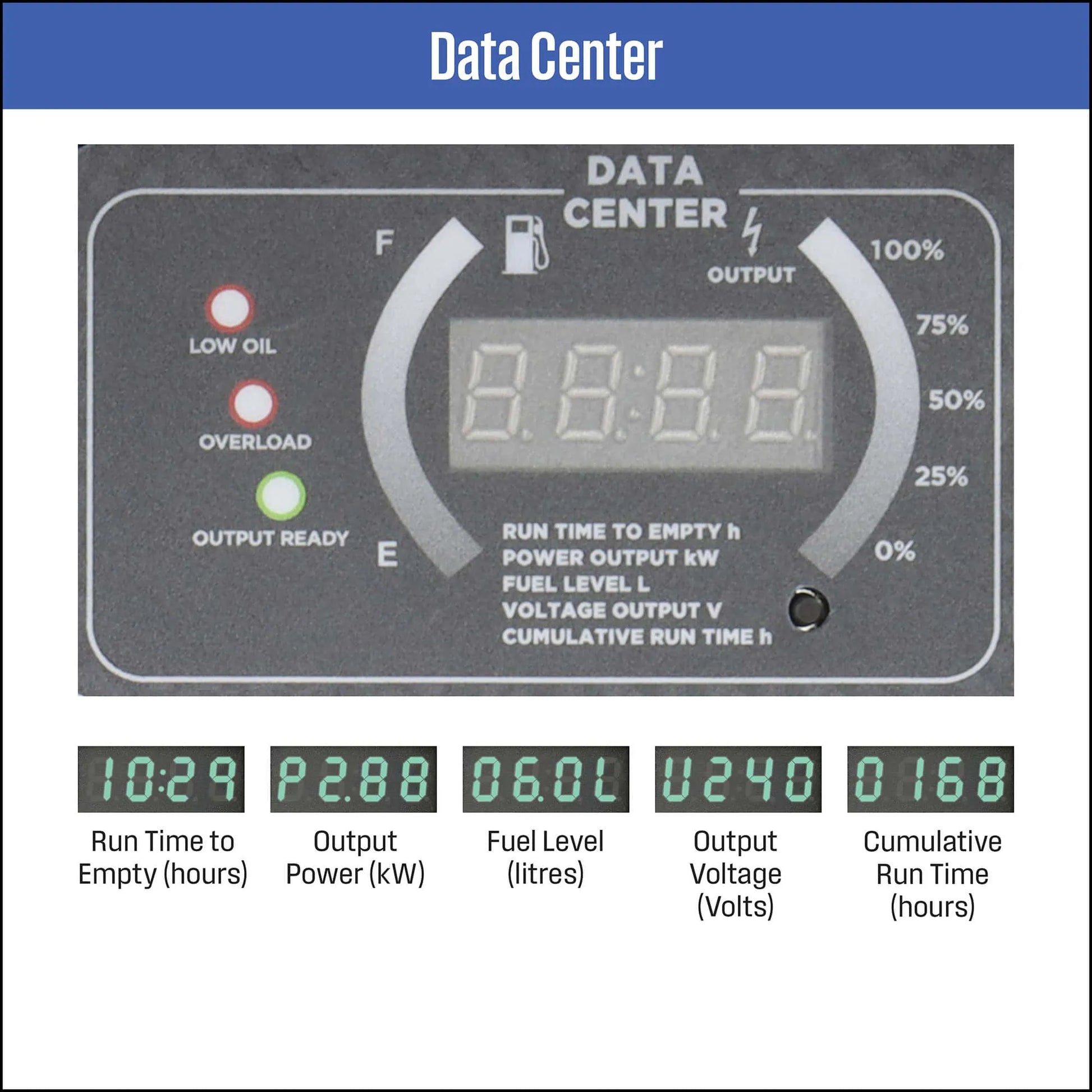

Data Centre Display Output Power & Voltage, Fuel Level,
Fuel & Cumulative Run Times
Control Panel Lights LED, Operable At All Times



12 VOLT DC ELECTRICAL
Voltage (V) 12
Maximum Current (A) 8
Maximum Power (W) 100
Receptacle 8 A, IP44
