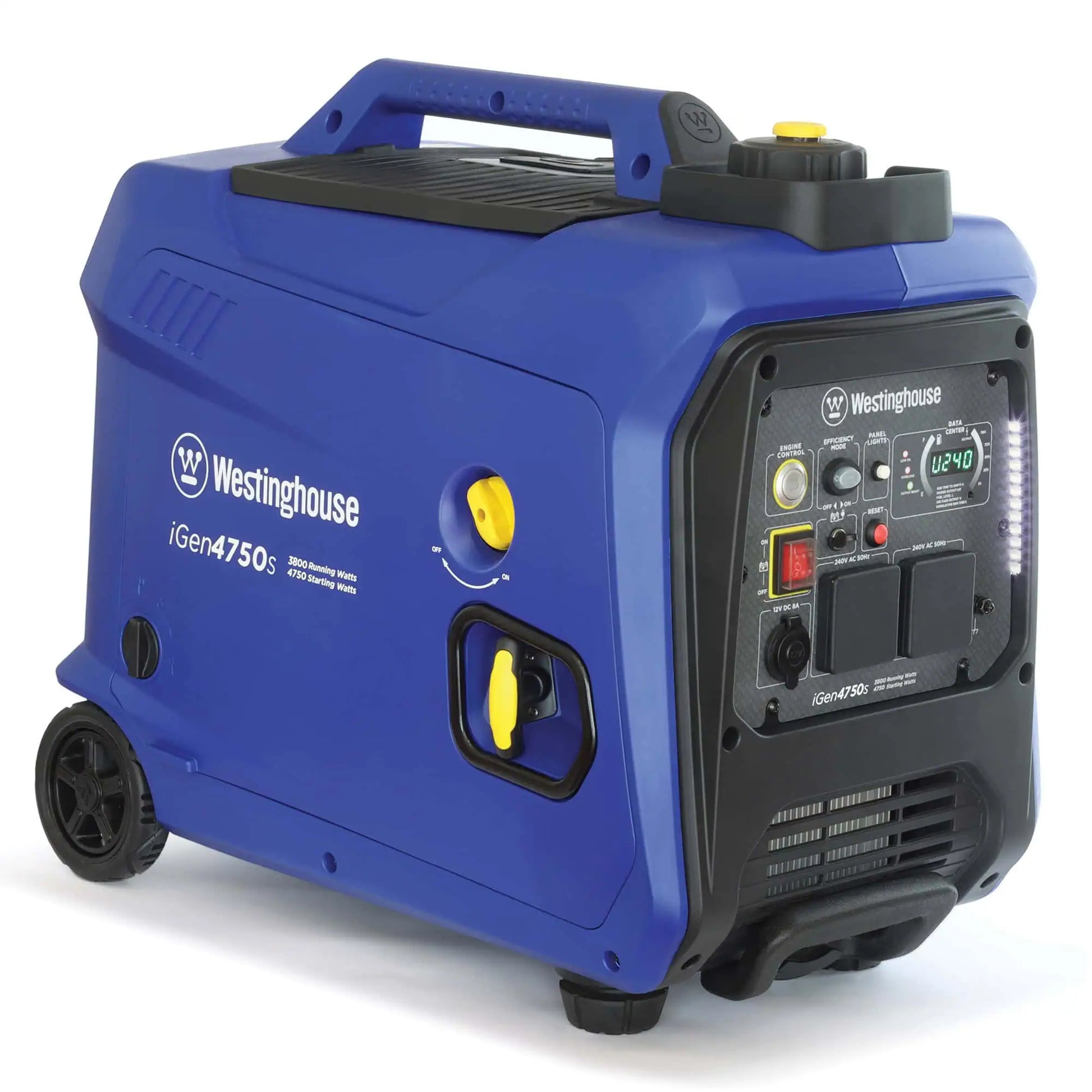

The new Westinghouse iGen4750s redefines the best standard for the 4 kVA inverter generator class.
Whether in terms of its high-power output, comprehensive and unique suite of features, and unrivalled compactness and light weight, the iGen4750s has got the lot.

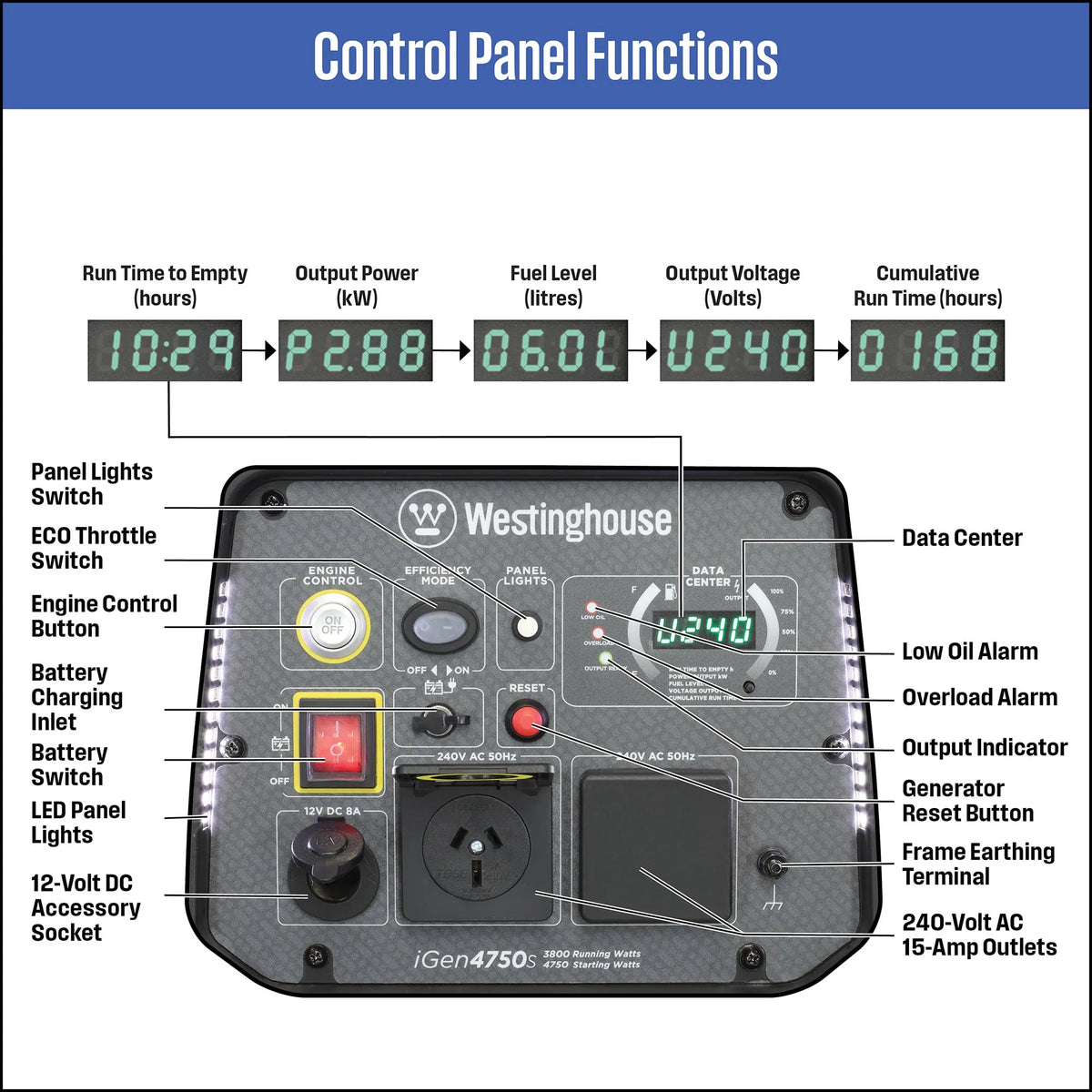

The product designers have placed great emphasis on user convenience as evidenced by the control panel lights, plug-in mains-powered charger, tool-free maintainability and other mindful innovations.
High output 4,750 Starting Watts / 3,800 Running Watts
Push-button electric start with wireless remote control
Super quiet noise level for large RV or mains backup use
Up to 28 hours run time on a single 12-litre tank of fuel
Pure sine wave electricity safe to power your electronics
190 cc Westinghouse 4-stroke OHV petrol engine

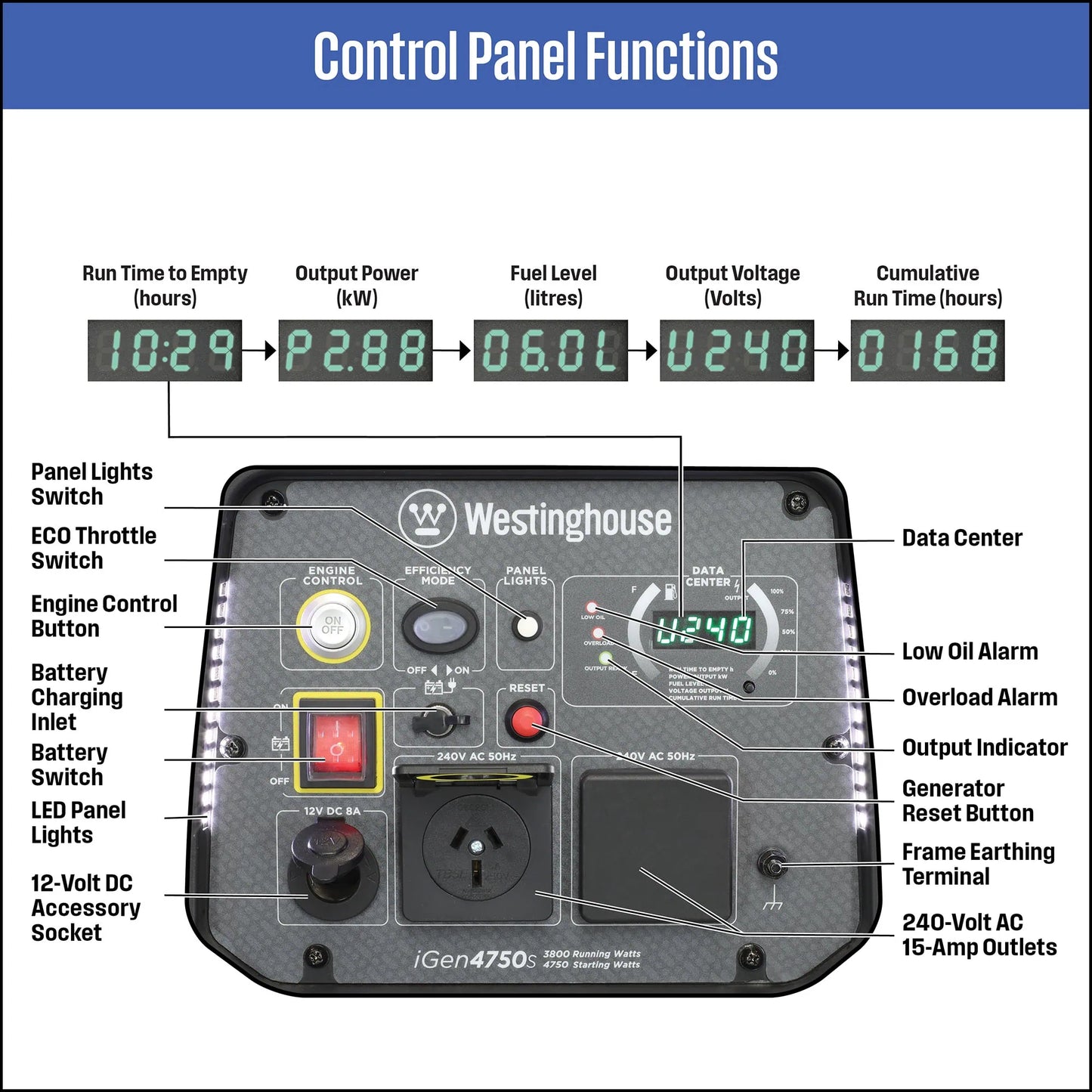

LED lights illluminate control panel for use at night-time

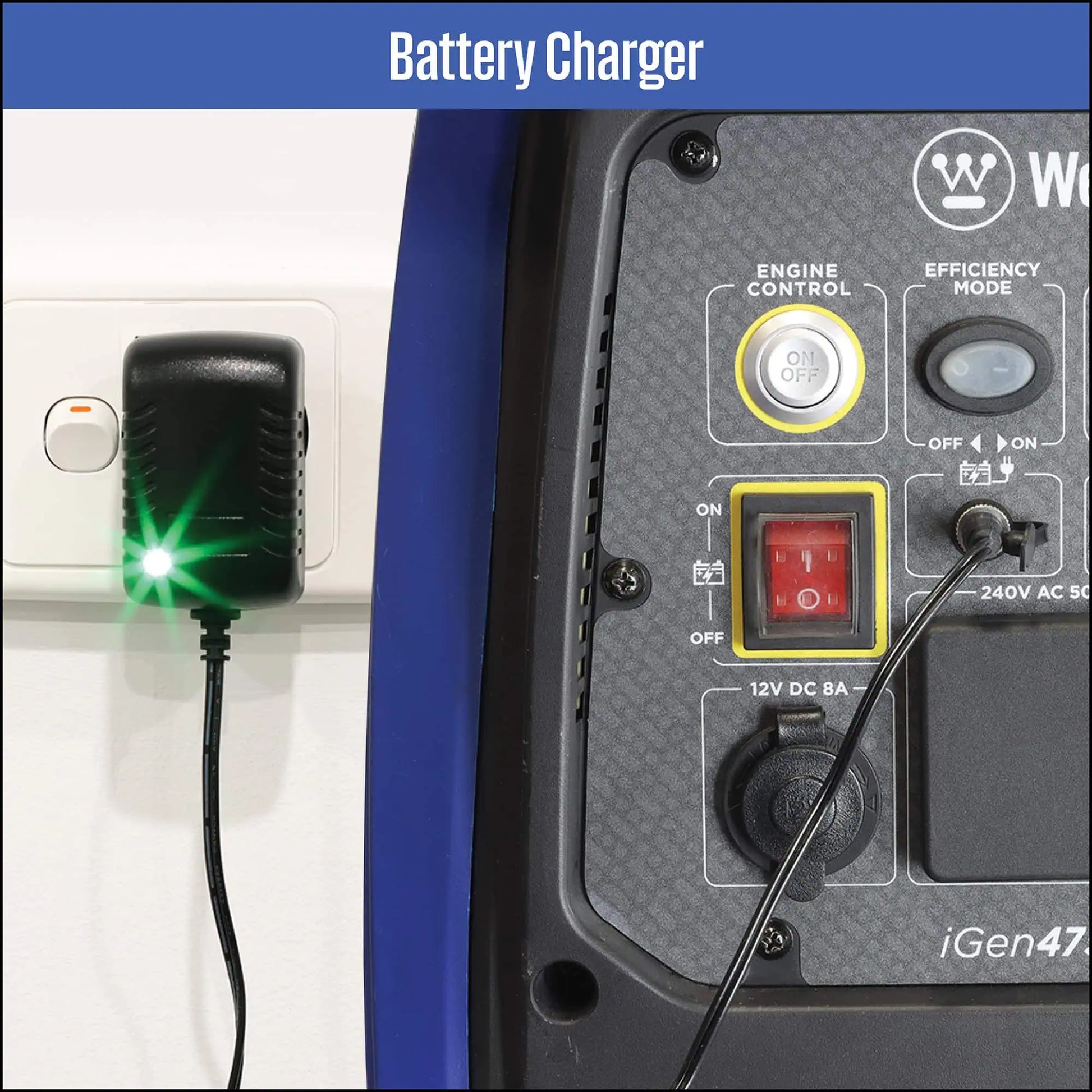

240 Volt AC plug-in charger to maintain onboard battery
240 Volt AC and 12 Volt DC outlets plus data center
2-year domestic use warranty (conditions apply)
ENGINE
Type
1-Cylinder, 4-Stroke, Overhead Valve, Air Cooled
Displacement (cc)
190
Maximum Speed (rpm)
4,800
Oil Capacity (mL)
600
Oil Viscosity
SAE 10W-30
Low Oil Shutdown
Yes
Low Oil Alarm Indicator
Yes
Spark Plug
Torch F7RTC
Fuel
Unleaded Petrol (91, 95 or 98 RON)
Fuel Tank Capacity (L)
12
Fuel Shutoff Valve
Yes, Independent
Starting Method
Local / Remote Electric and Recoil
Battery
12V, Maintenance Free
Run Time @ 1/4 / Full Load
14 / 4.2 hours
Noise Level @ 1/4 / Full Load
57 / 67 dB(A) @ 7m
DIMENSIONS
Length (mm)
643
Width (mm)
374
Height (mm)
574
Weight - Dry (kg)
36
Weight - Wet (kg)
46
240 VOLT AC ELECTRICAL
Voltage (V)
240
Frequency (Hz)
50
Number of Phases
1
Continuous Running Power (W)
3,800
Maximum Starting Power (W)
4,750
Continuous Running Current (A)
15.8
Voltage & Waveform Control
Digital Inverter, Pure Sine Wave Output
Total Harmonic Distortion (THD)
< 2.5%
Receptacle
2 x 15 A, IP44
Overload Indicator
Yes
Overload Reset
Push Button
Overload Protection
Electronic
Alternator
Brushless, Permanent Magnet
Output Ready Indicator
Yes

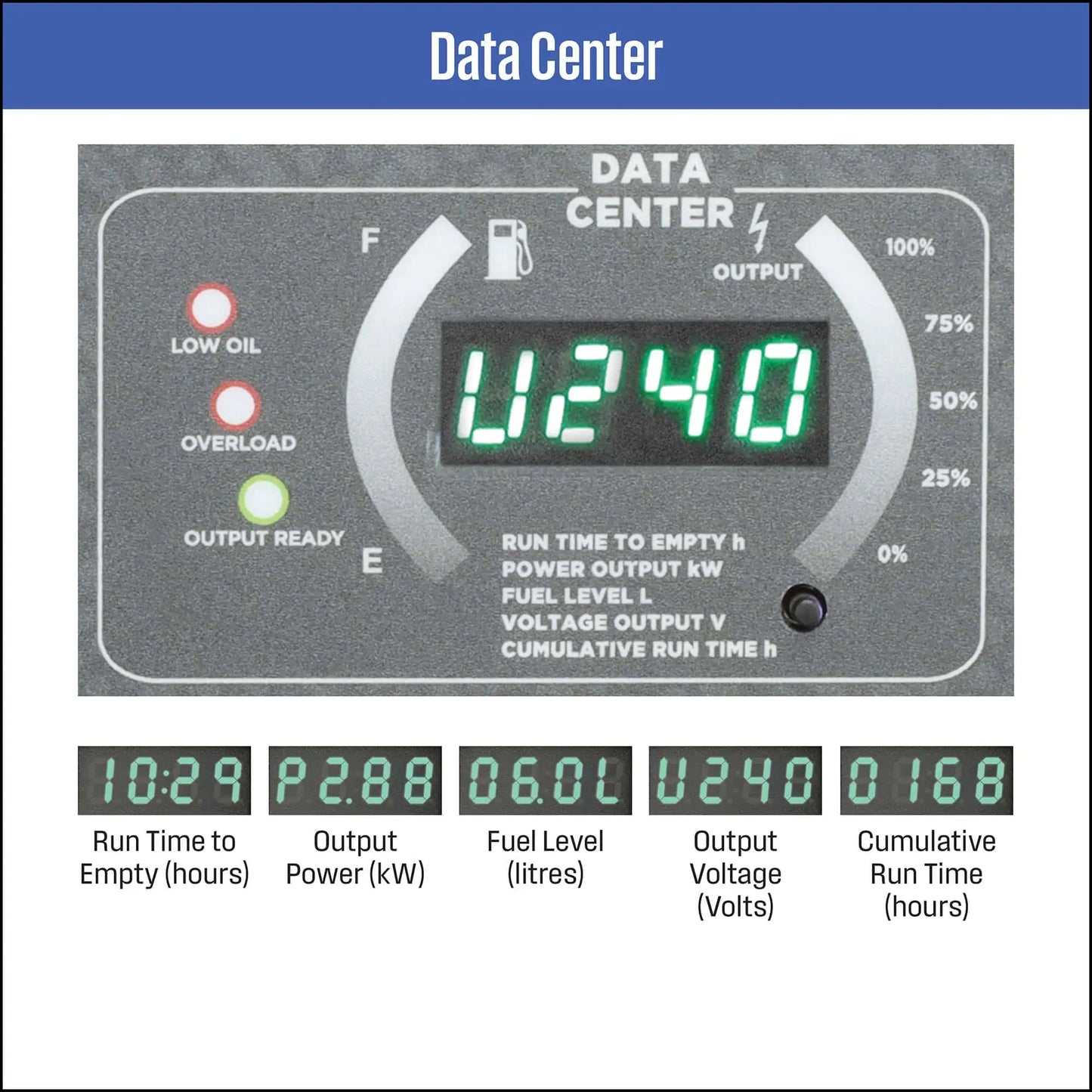

Data Centre Display
Output Voltage & Frequency, Current & Cumulative Run Times
