WESTINGHOUSE

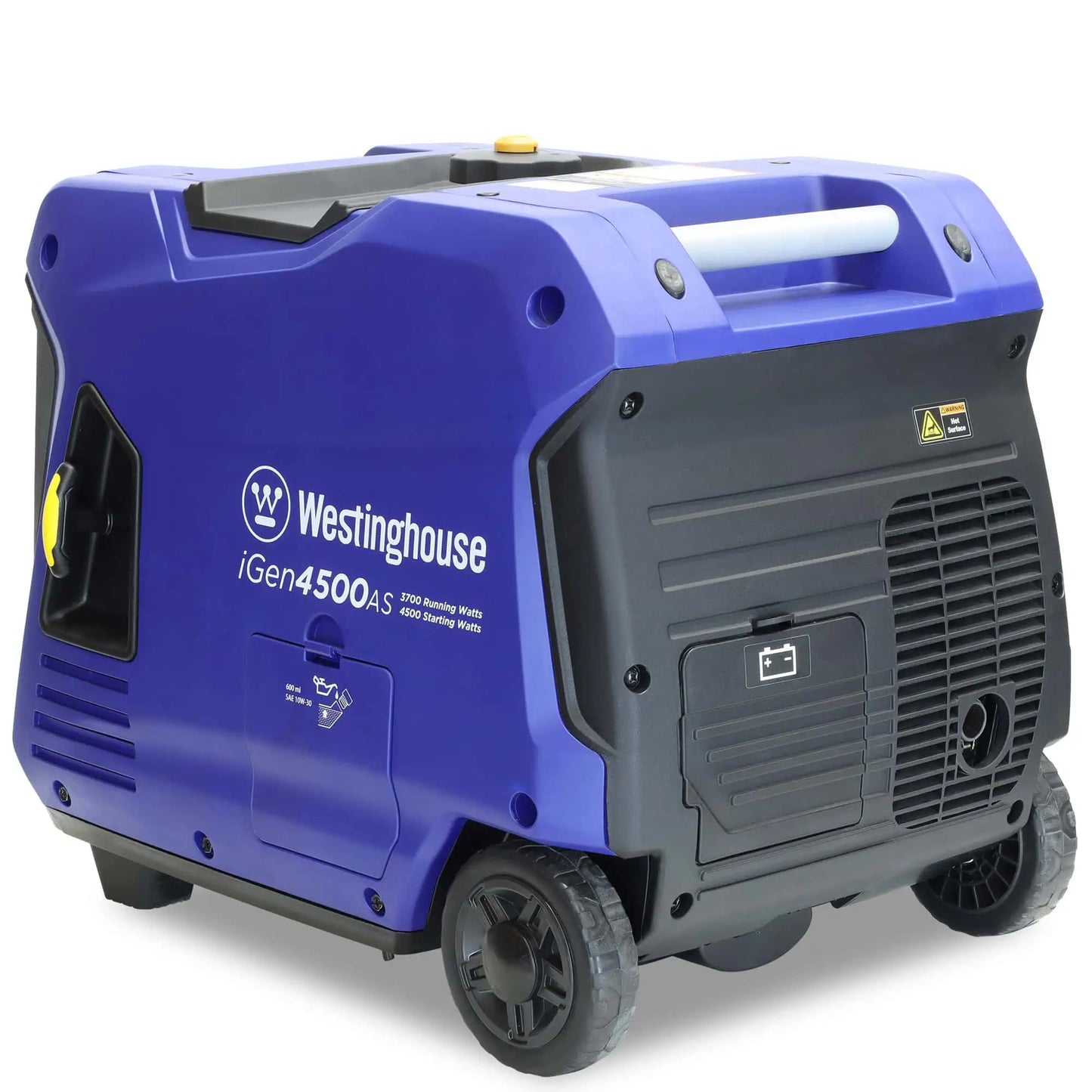

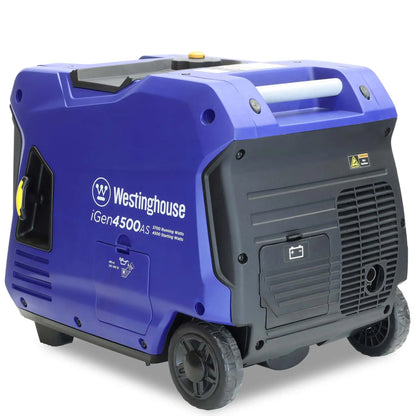

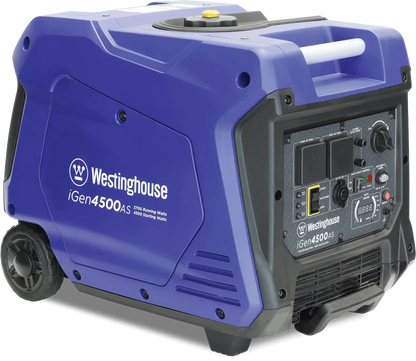

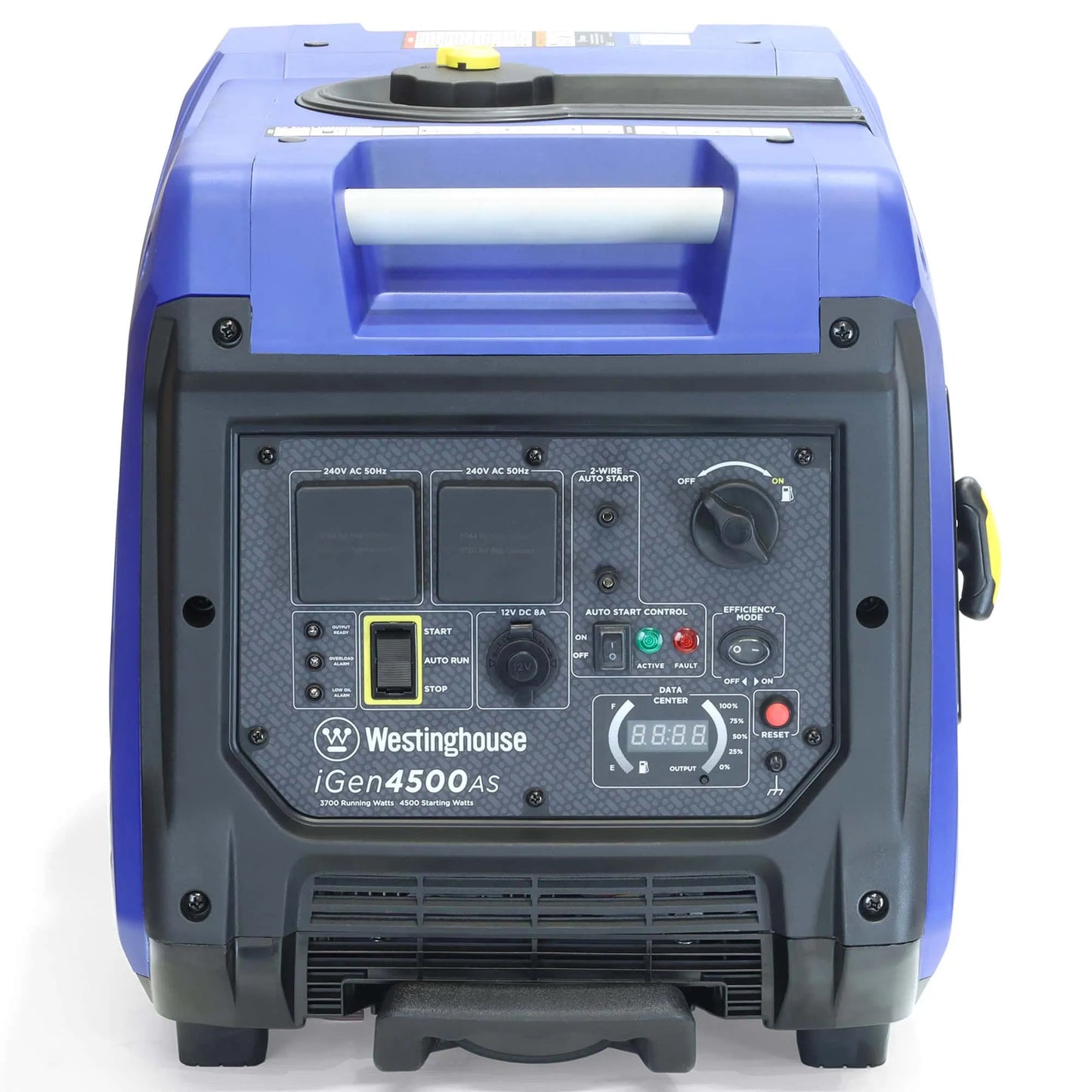

WESTINGHOUSE IGEN4500AS GENERATOR

WESTINGHOUSE IGEN4500AS GENERATOR

IGEN4500AS

$2,999.00
$2,999.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

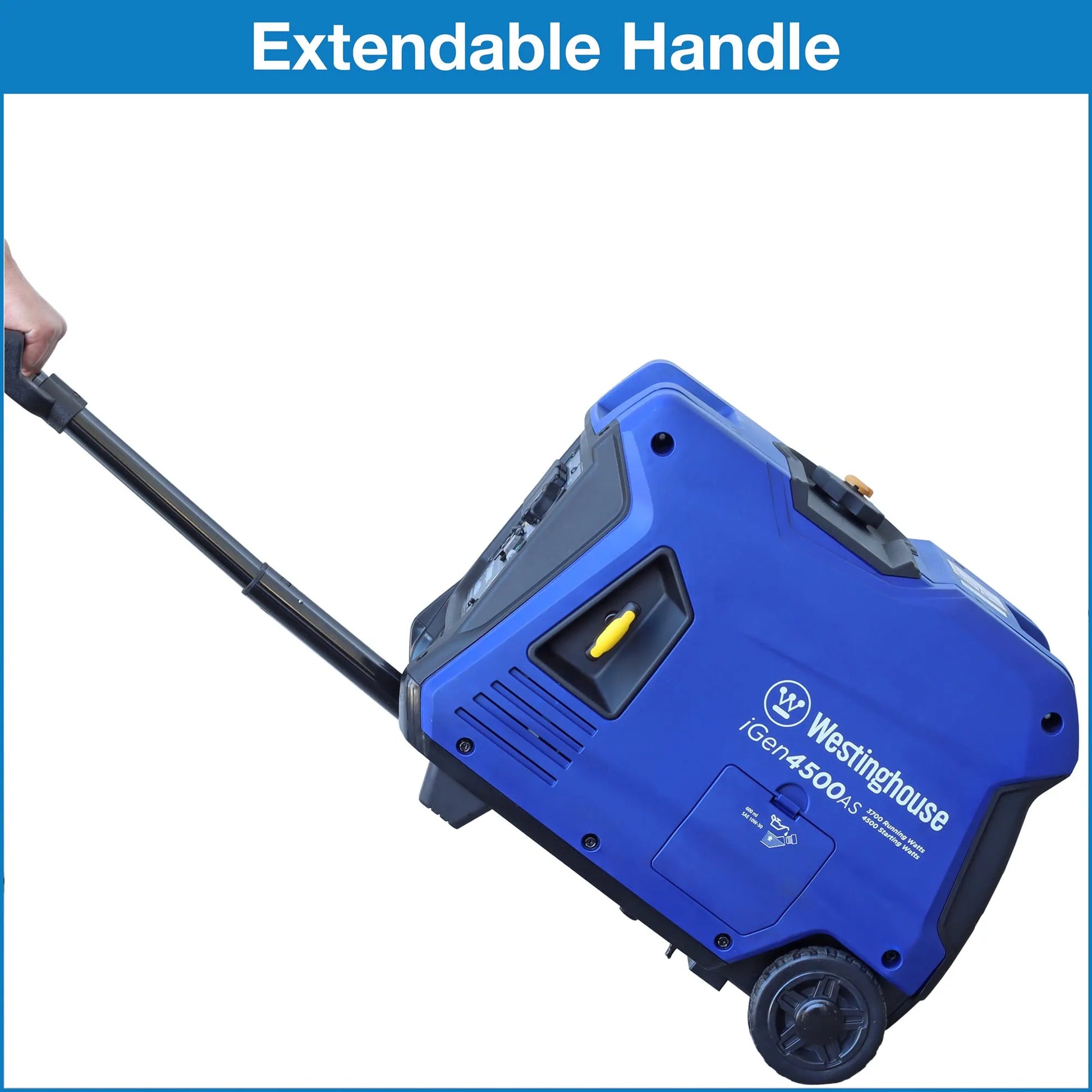

The iGen4500AS provides you with all the benefits of a well-equipped Westinghouse inverter generator including lightweight portability, fuel efficiency and quiet running all in a compact package.

It also offers the unique capability of integrating with o-grid solar power systems, mains backup standby power supplies and other applications that require connection to a generator with intelligent 2-wire automatic remote start, run and stop control functionality.

  • Powerful 4,500 Starting Watts / 3,700 Running Watts
  • Push-button electric start with wired remote control
  • 2-wire automatic start, run and stop control system
  • Super quiet noise level for off-grid solar or mains backup use
  • Up to 24 hours run time on a single 13.5-litre tank of fuel
  • Pure sine wave electricity safe to power your electronics
  • 224 cc Westinghouse 4-stroke OHV petrol engine
  • Compliant with Australian and US emissions standards
  • 240 Volt AC and 12 Volt DC outlets plus digital data center
  • 2-year domestic use warranty (conditions apply)
ENGINE
Type 1-Cylinder, 4-Stroke, Overhead Valve, Air Cooled
Displacement (cc) 224
Maximum Speed (rpm) 3,600
Oil Capacity (mL) 600
Oil Viscosity SAE 10W-30
Low Oil Shutdown Yes
Low Oil Alarm Indicator Yes
Spark Plug Torch E6RTC
Fuel Unleaded Petrol (91, 95 or 98 RON)
Fuel Tank Capacity (L) 13.5
Fuel Shutoff Valve Yes, Independent
Auto Speed Eco Throttle Yes
Starting Method Local / Remote Electric and Recoil
Battery 12V, Maintenance Free
Run Time @ 1/4 / Full Load 17.8 / 5.7 hours
Noise Level @ 1/4 / Full Load 53 / 66 dB(A) @ 7m



DIMENSIONS
Length (mm)  650
Width (mm) 480
Height (mm) 520
Weight - Dry (kg) 49.5
Weight - Wet (kg) 60



240 VOLT AC ELECTRICAL
Voltage (V) 240
Frequency (Hz) 50
Number of Phases 1
Continuous Running Power (W) 3,700
Maximum Starting Power (W) 4,500
Continuous Running Current (A) 15.4
Voltage & Waveform Control Digital Inverter, Pure Sine Wave Output
Total Harmonic Distortion (THD) < 2.5%
Receptacle 2 x 15 A, IP44
Overload Indicator Yes
Overload Reset Push Button
Overload Protection Electronic
Alternator Brushless, Permanent Magnet
Output Ready Indicator Yes

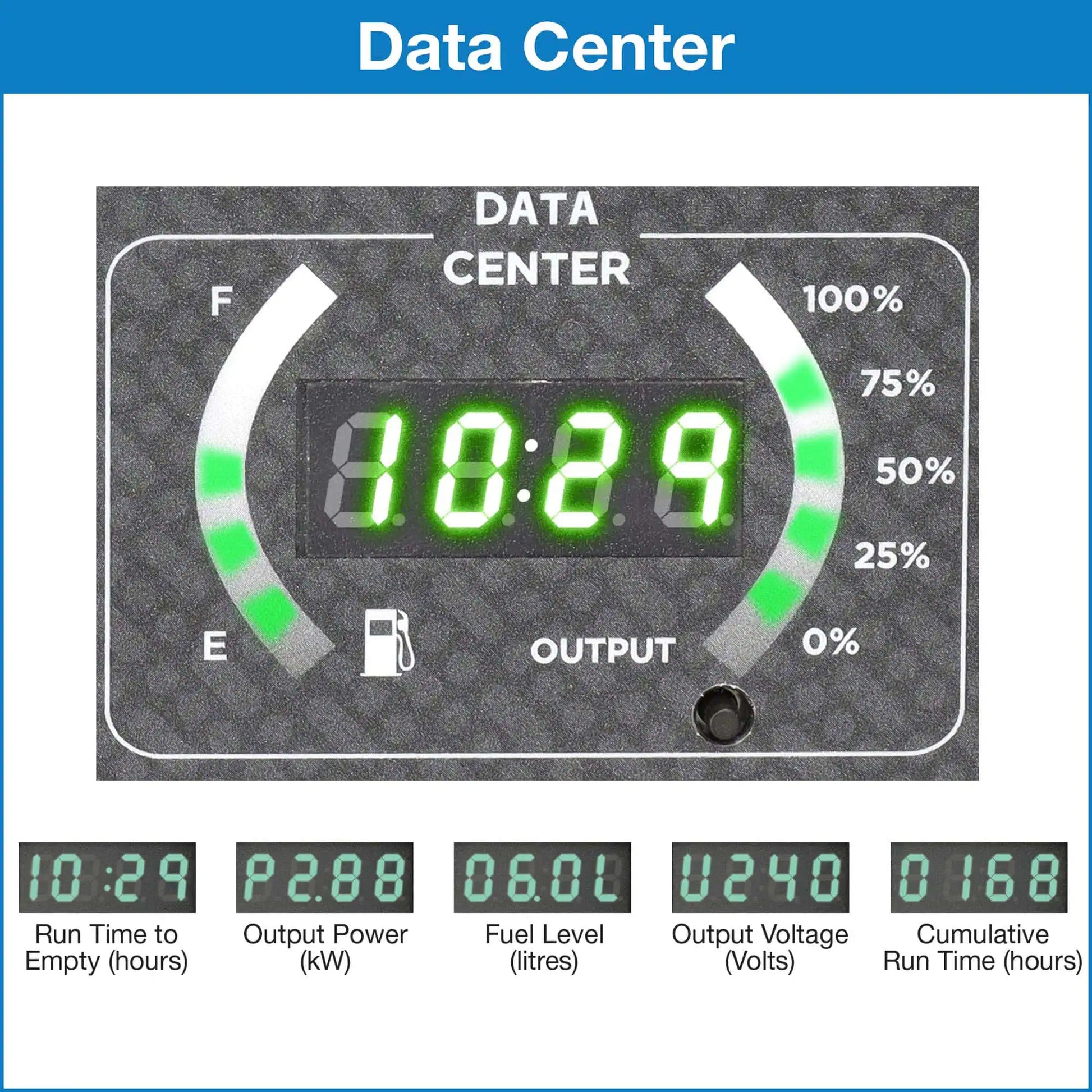

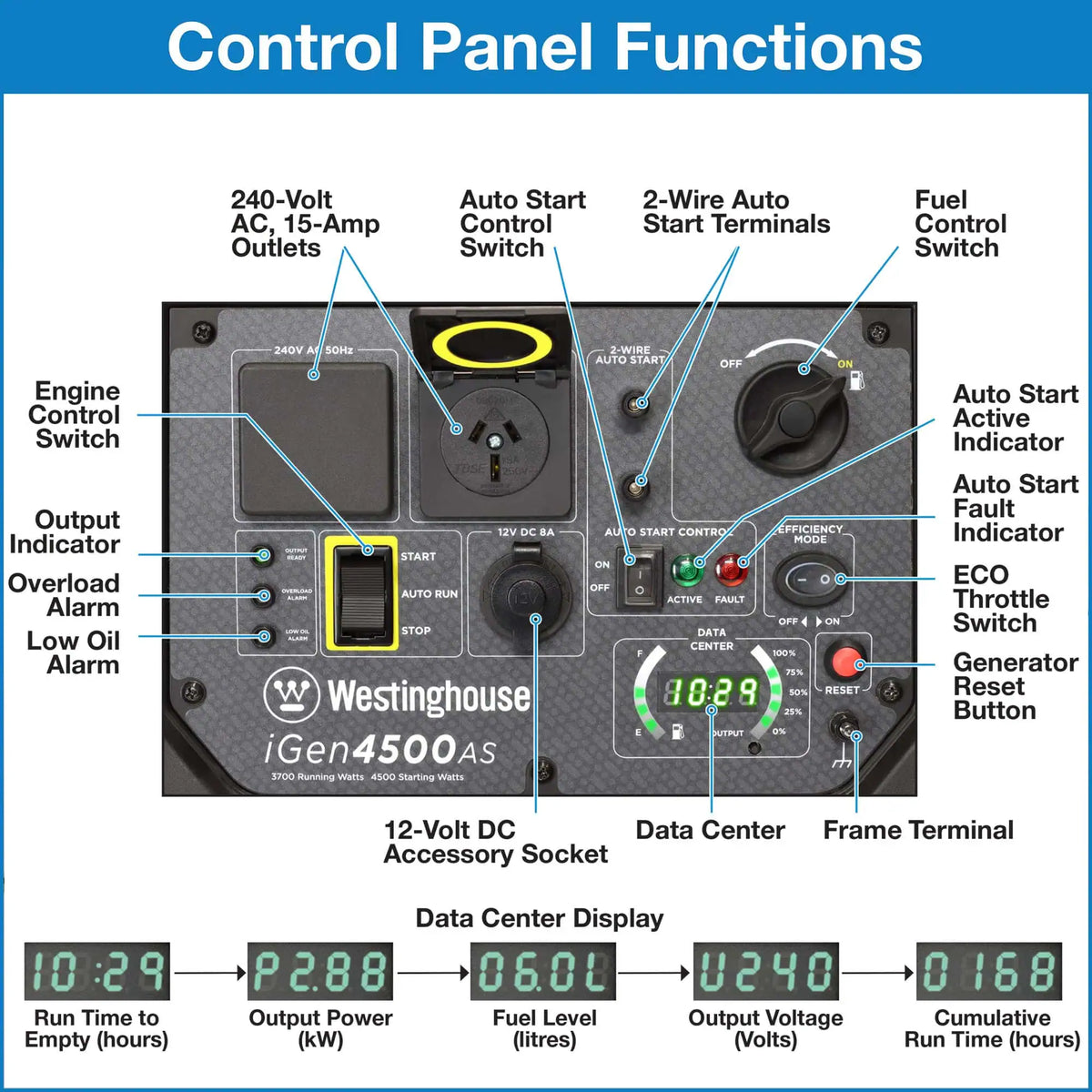

Data Centre Display Output Voltage & Frequency, Current & Cumulative Run Times



12 VOLT DC ELECTRICAL
Voltage (V) 12
Maximum Current (A) 8
Maximum Power (W) 100
Receptacle 8 A, IP44
