WESTINGHOUSE

WESTINGHOUSE IGEN10000ASPRO GENERATOR

WESTINGHOUSE IGEN10000ASPRO GENERATOR

IGEN10000ASPRO

$4,999.00
$4,999.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

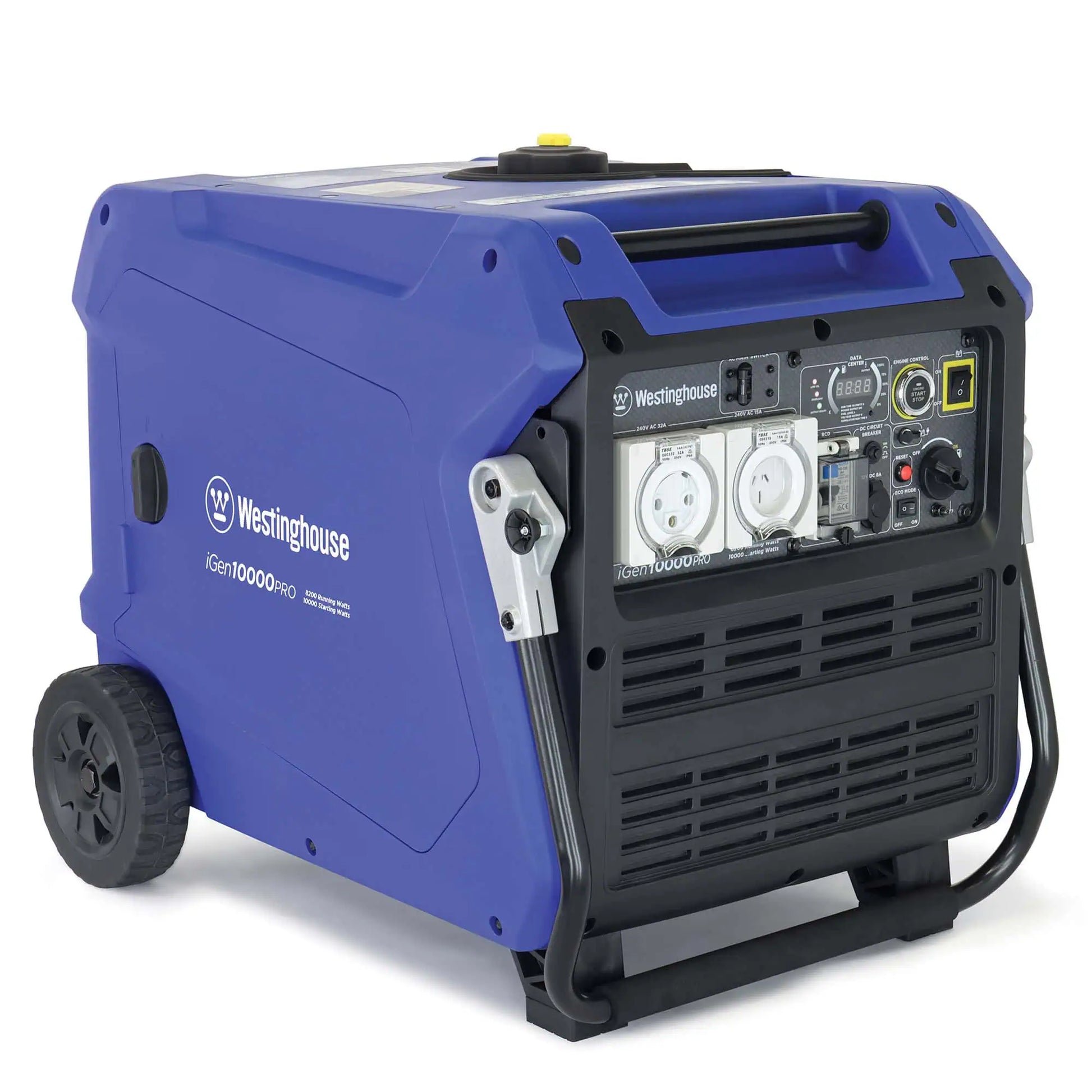

The new iGen10000PRO is the largest Westinghouse inverter generator with an inbuilt RCD
electrical safety switch approved for workplace use.

It is ideal for standalone plug and socket connection to large or multiple items of portable electric equipment.

The benefits of compact size, light weight, low fuel consumption, quiet running and mains quality power are now available for 8 kVA class applications instead of using a traditional fixed-speed generator.

  • Powerful 10,000 Starting Watts / 8,200 Running Watts
  • Push-button electric start with wireless remote control
  • RCD safety switch WH&S approved for electrical protection
  • Super quiet for hearing safe use at the workplace or job site
  • Up to 30 hours run time on a single 30-litre tank of fuel
  • Pure sine wave electricity safe to power your electronics
  • 457 cc Westinghouse 4-stroke OHV petrol engine

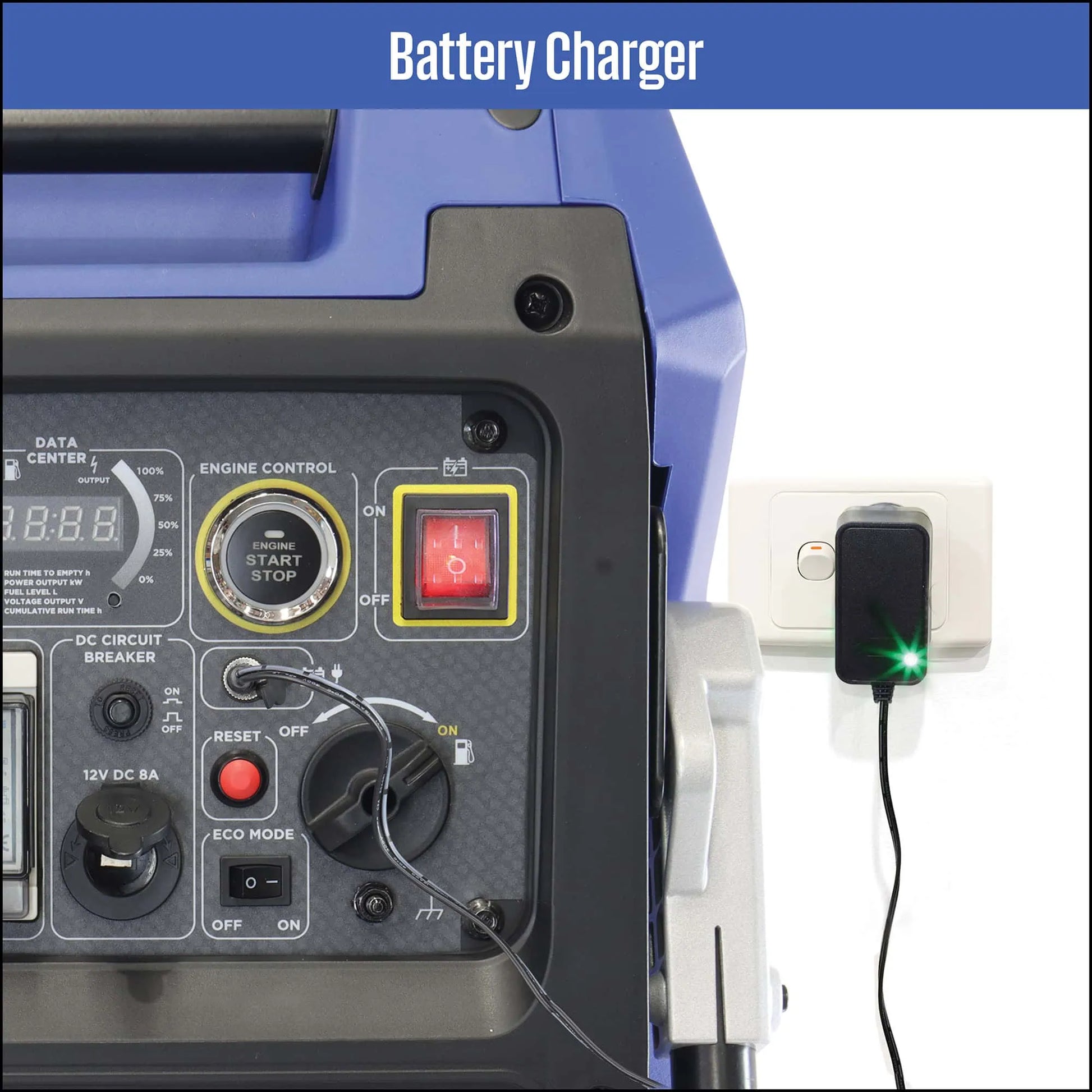

  • 240 Volt AC plug-in charger to maintain onboard battery

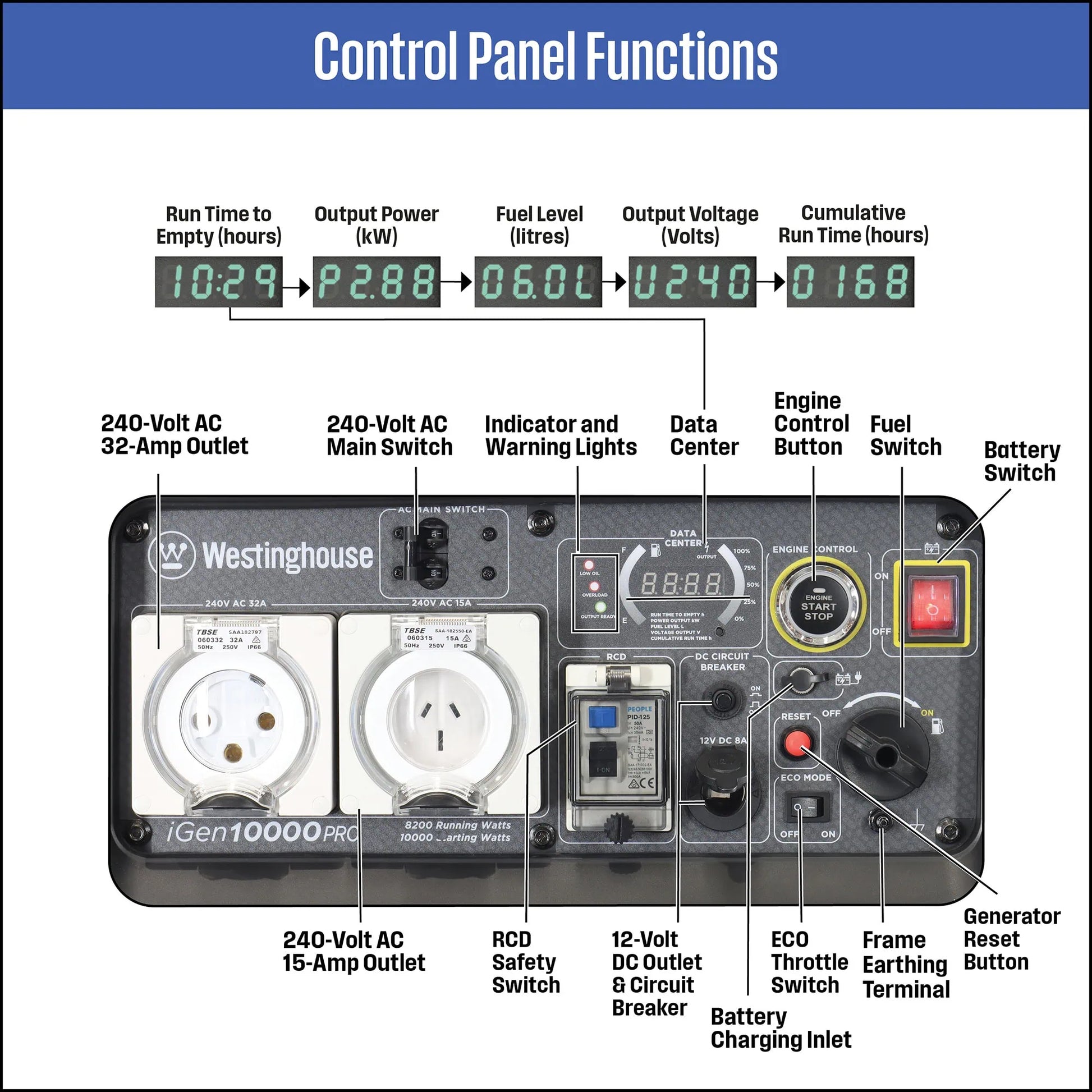

  • 240 Volt AC and 12 Volt DC outlets plus digital data center
  • 2-year domestic use warranty (conditions apply)
ENGINE
Type 1-Cylinder, 4-Stroke, Overhead Valve, Air Cooled
Displacement (cc) 457
Maximum Speed (rpm) 3,600
Oil Capacity (L) 1.1
Oil Viscosity SAE 10W-30
Low Oil Shutdown Yes
Low Oil Alarm Indicator Yes
Spark Plug Torch F7RTC
Fuel Unleaded Petrol (91, 95 or 98 RON)
Fuel Tank Capacity (L) 30
Fuel Shutoff Valve Yes, Independent
Starting Method Local / Remote Electric and Recoil
2-Wire Auto Start/Run/Stop Yes
Battery 12V, Lithium-Ion
Run Time @ 1/4 / Full Load 19.8 / 7.3 hours
Noise Level @ 1/4 / Full Load 58 / 68 dB(A) @ 7m



DIMENSIONS
Length (mm)  767
Width (mm) 630
Height (mm) 675
Weight - Dry (kg) 85
Weight - Wet (kg) 109



240 VOLT AC ELECTRICAL
Voltage (V) 240
Frequency (Hz) 50
Number of Phases 1
Continuous Running Power (W) 8,200
Maximum Starting Power (W) 10,000
Continuous Running Current (A) 34.2
Voltage & Waveform Control Digital Inverter, Pure Sine Wave Output
Total Harmonic Distortion (THD) < 2.5%
Receptacle 1 x 32 A, IP66 & 1 x 15 A, IP44
Main Switch Yes, Independent
Overload Indicator Yes
Overload Reset Push Button
Overload Protection Electronic
Alternator Brushless, Permanent Magnet
Output Ready Indicator Yes

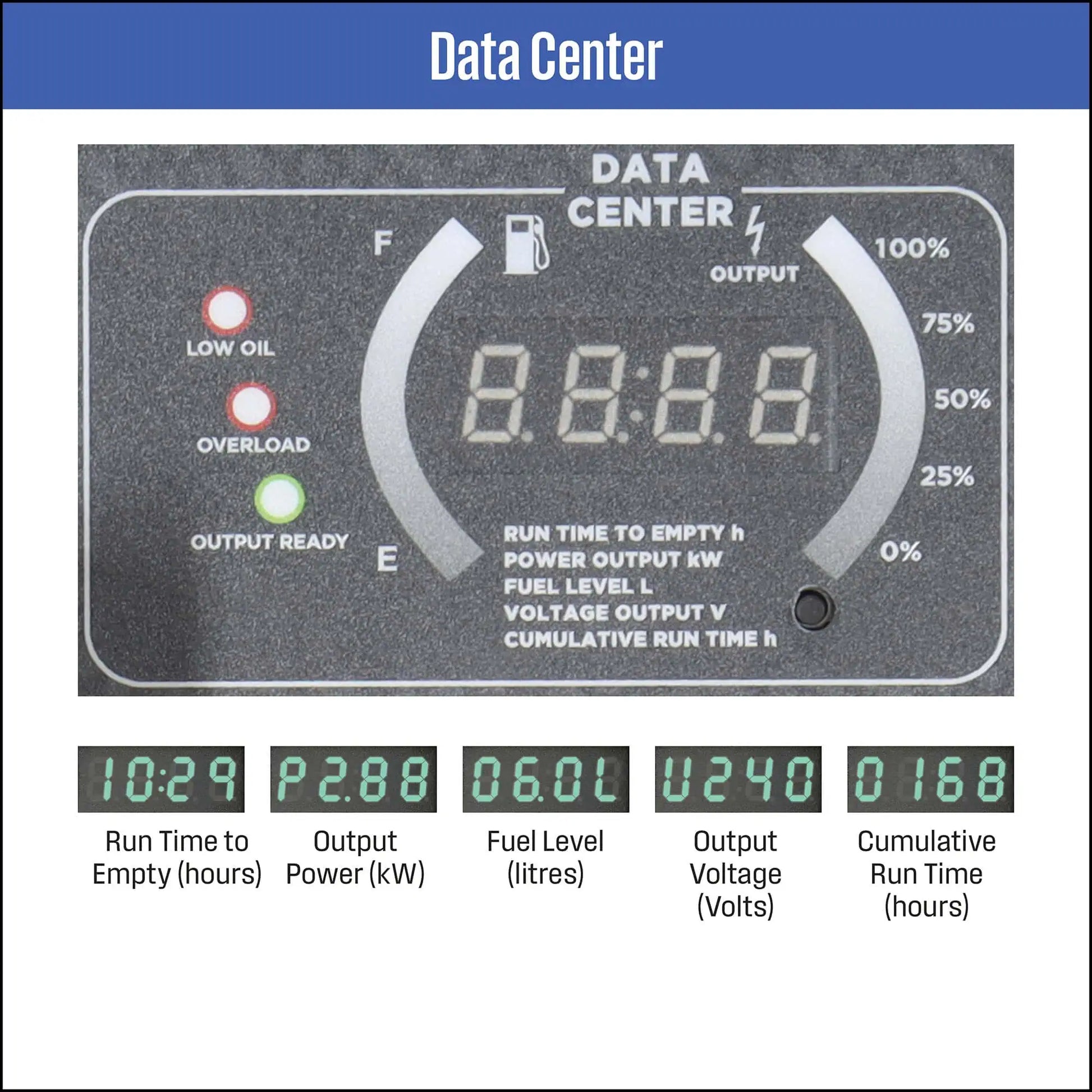

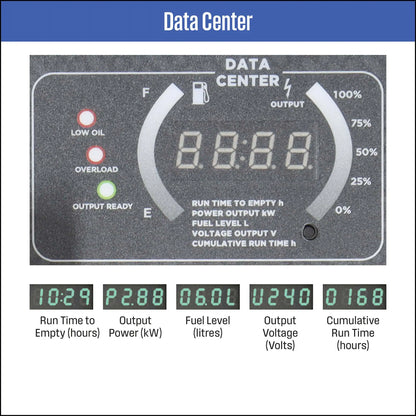

Data Centre Display Output Power & Voltage, Fuel Level,
Fuel & Cumulative Run Times
Control Panel Lights LED, Operable At All Times



12 VOLT DC ELECTRICAL
Voltage (V) 12
Maximum Current (A) 8
Maximum Power (W) 100
Receptacle 8 A, IP44
