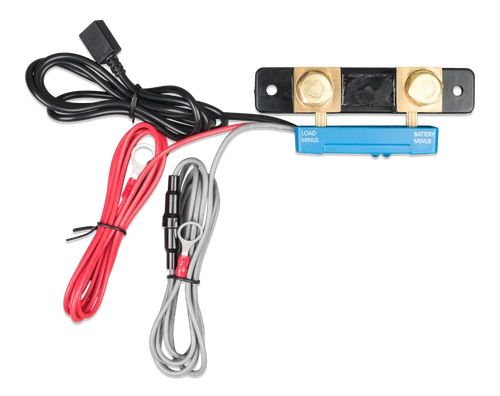

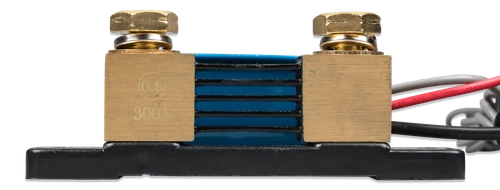

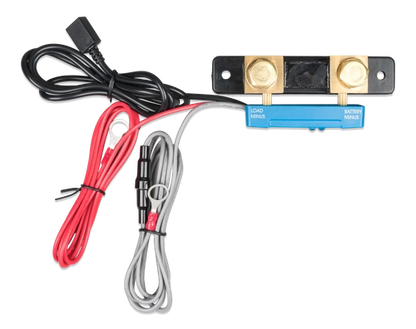

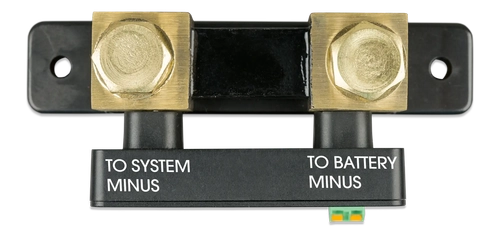

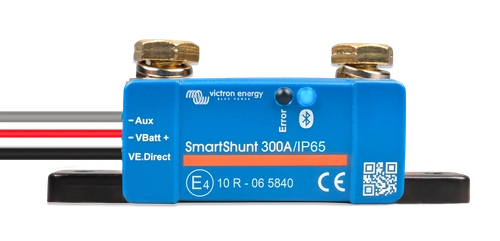

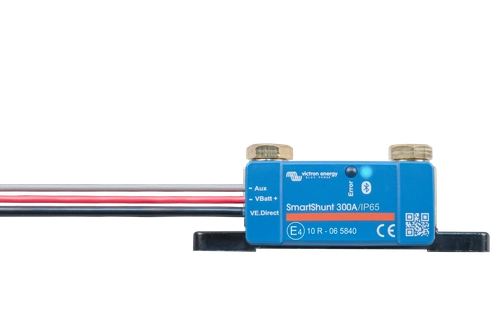

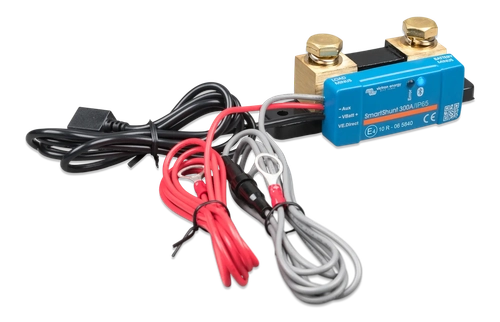

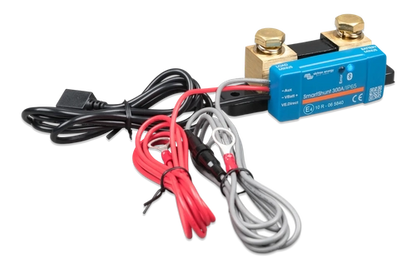

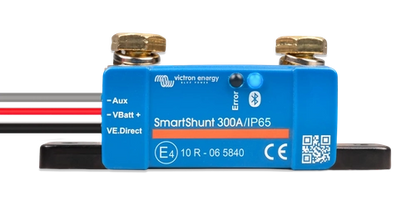

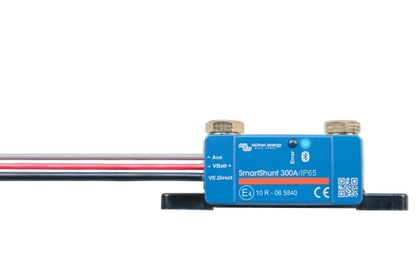

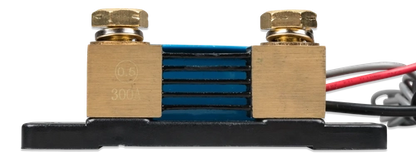

The Victron SmartShunt IP65 300A/50mV is a sophisticated battery monitoring solution that eliminates the need for a dedicated display unit.
This water-resistant device leverages your smartphone or tablet as its interface, connecting seamlessly via Bluetooth to the VictronConnect app.
Monitor critical battery parameters in real-time including state of charge, time to go, and comprehensive historical data all from your mobile device.
The 300A rating makes it ideal for substantial off-grid systems, caravan setups, and marine applications where reliable battery management is essential.
Compact, durable, and intelligently designed for remote monitoring.
SmartShunt IP65
300 A
Supply voltage range
6.5 - 70 VDC
Current draw
< 1 mA
Input voltage range, auxiliary battery
6.5 - 70 VDC
Battery capacity (Ah)
1 - 9999 Ah
Operating temperature range
-40 +50 °C
Measures voltage of second battery, or temperature, or midpoint
Yes
Temperature measurement range
-20 +50 °C
VE.Direct communication port
Yes
RESOLUTION & ACCURACY
Current
± 0.01 A
Voltage
± 0.01 V
Amp hours
± 0.1 Ah
State of charge
(0 – 100 %) ± 0.1 %
Time to go
± 1 min
Temperature (if optional temperature sensor connected)
