Victron Smart Touring Package

⚡ VICTRON SMART TOURING PACKAGE – THE SMART SYSTEM

150Ah Lithium • 50A Smart DC-DC Charging • Dedicated MPPT Solar • Victron Pure Sine Wave Power

If you've got around $2,000 to put into your 12V setup, this is where you can move beyond a basic battery-and-charger system and build a smarter touring power setup.

The Victron Smart Touring Package – The Smart System combines a Thumper 150Ah LiFePO4 battery with Victron's Orion XS 50A DC-DC charger, SmartSolar MPPT 100/30 and Phoenix 12/1200VA inverter, together with a 200W Exotronic Fusion solar panel.

The result is a powerful and highly configurable system designed to charge faster, monitor smarter and keep your essential gear running for longer.

📦 PACKAGE INCLUDES

• 🔋 Thumper TLS-150 150Ah LiFePO4 Lithium Battery
• ⚡ Victron Energy Orion XS 12V 50A DC-DC Battery Charger
• ☀️ Victron Energy SmartSolar MPPT 100/30 Solar Controller
• ☀️ Exotronic 200W Fusion N-Type TOPCon Solar Panel
• 🔌 Victron Energy Phoenix 12/1200VA VE.Direct Inverter

🔥 WHY CHOOSE THE SMART SYSTEM?

⚡ Up to 50A DC-DC Charging
The Victron Orion XS provides adjustable charging from 1A to 50A, allowing the system to be configured around the vehicle, alternator and battery.

📲 VictronConnect Bluetooth Control
Configure and monitor the Orion XS and SmartSolar MPPT from a compatible smartphone or tablet through the VictronConnect App.

☀️ Dedicated SmartSolar MPPT
A separate Victron MPPT 100/30 manages solar charging independently, providing advanced solar harvesting and greater flexibility for future panel upgrades.

🔋 150Ah / 1920Wh Lithium Storage
The Thumper TLS-150 provides substantial usable capacity with a 150A BMS and Bluetooth monitoring through the Thumper App.

☀️ 200W N-Type TOPCon Solar
The Exotronic Fusion panel provides 200W of solar generation from a compact high-efficiency 25.2% TOPCon cell design.

🔌 Victron Pure Sine Wave Inverter
The Phoenix 12/1200VA provides clean 230V pure sine wave output with strong start-up capability for compatible appliances, tools and electronics.

📡 Expandable Victron Ecosystem
VE.Direct connectivity allows compatible Victron equipment to be integrated into larger monitoring systems using optional GX devices and VRM remote monitoring.

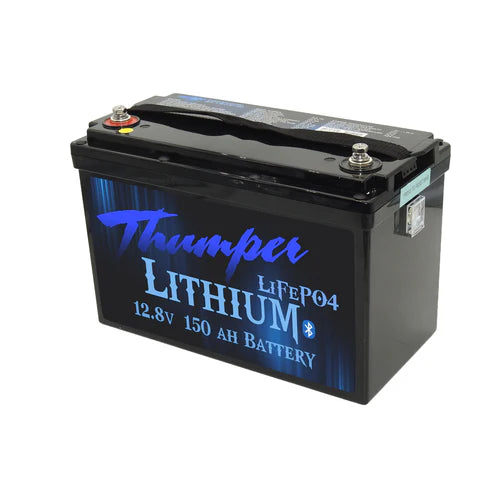

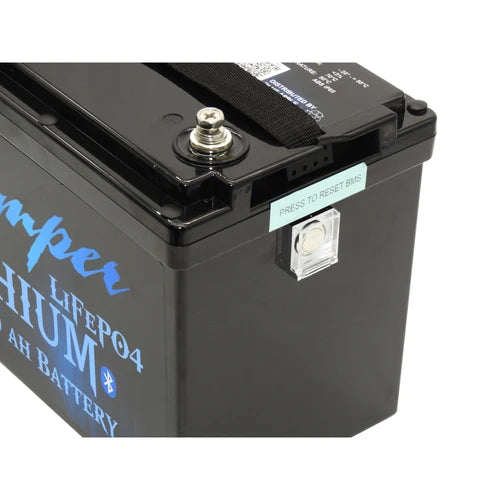

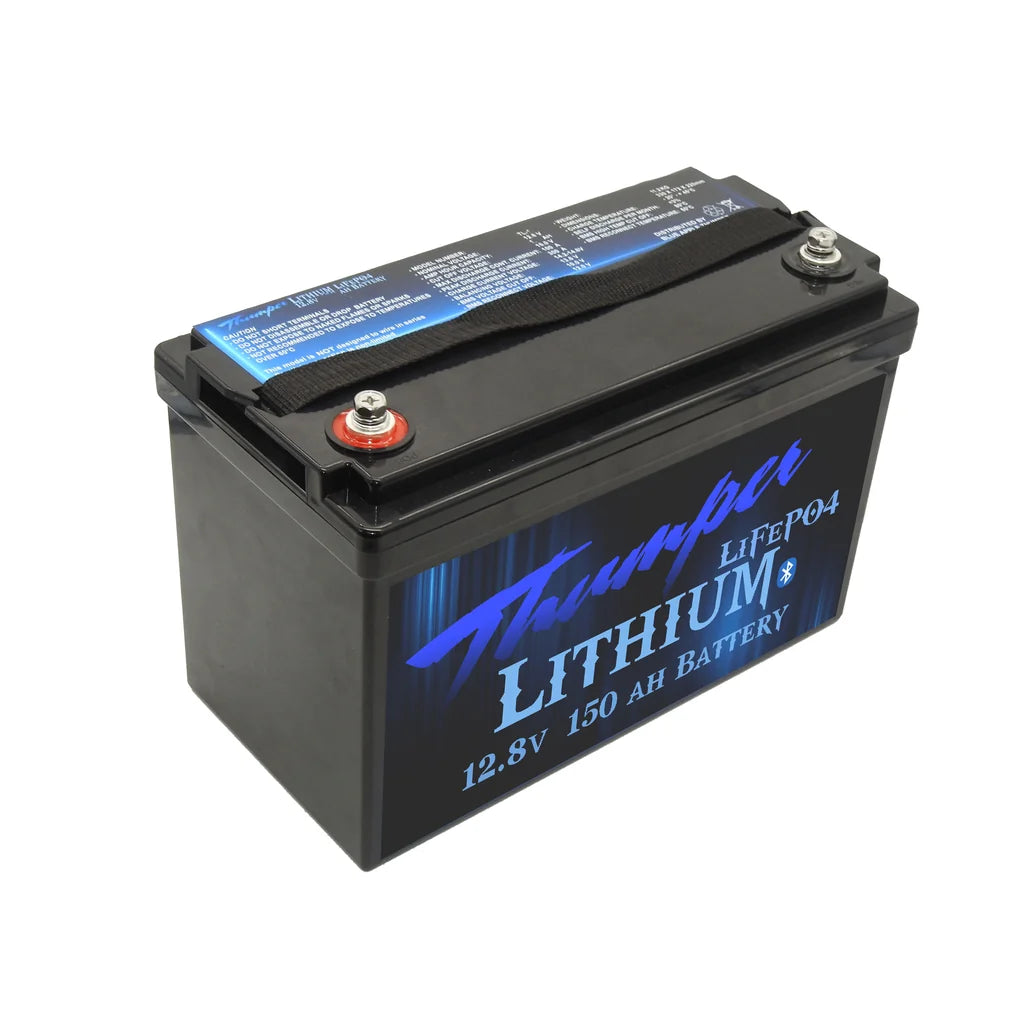

🔋 THUMPER TLS-150 150Ah LITHIUM BATTERY

The Thumper TLS-150 provides 150Ah / 1920Wh of LiFePO4 battery capacity in a compact 13.55kg package.

Nominal Voltage: 12.8V

Capacity: 150Ah / 1920Wh

Chemistry: LiFePO4

Bluetooth: Yes – Thumper App

BMS: 150A

Recommended Charge Current: 10–50A

Maximum Charge Current: 100A

Recommended Charge Voltage: 14.2–14.6V

Maximum Continuous Discharge: 150A

Peak Discharge: 300A for 1–3 Seconds

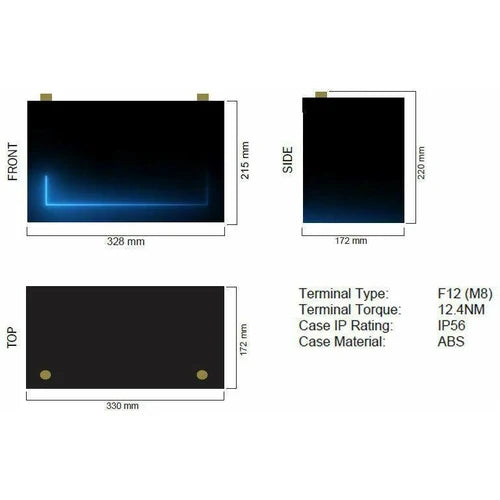

Dimensions: 328 × 172 × 220mm

Weight: 13.55kg

Warranty: 3 Years

⚠️ The TLS-150 is not designed for engine starting or under-bonnet installation.

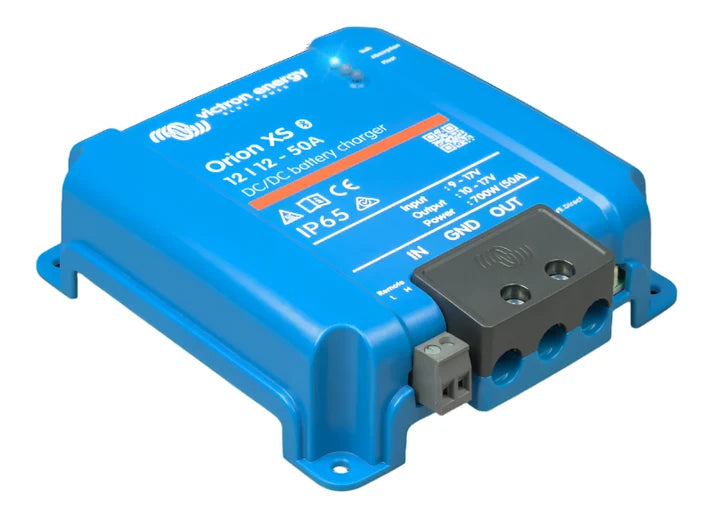

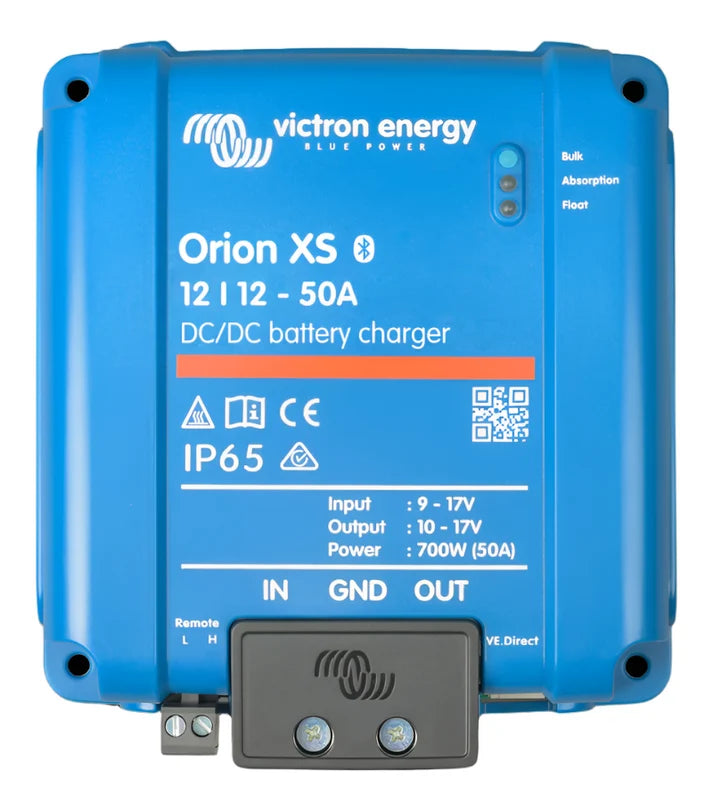

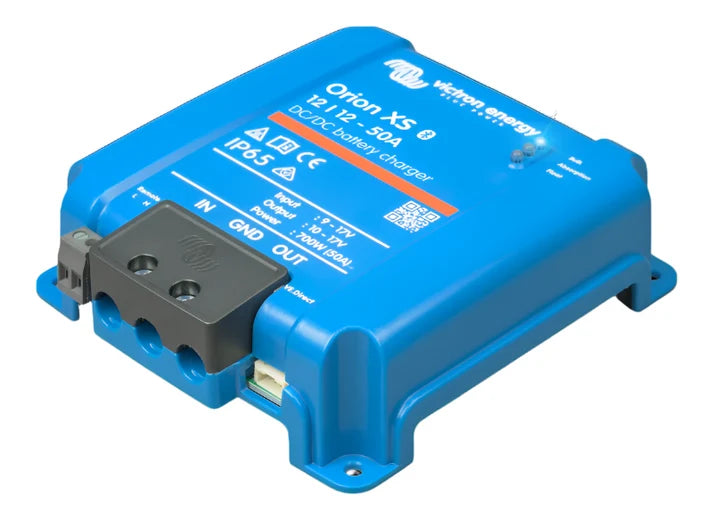

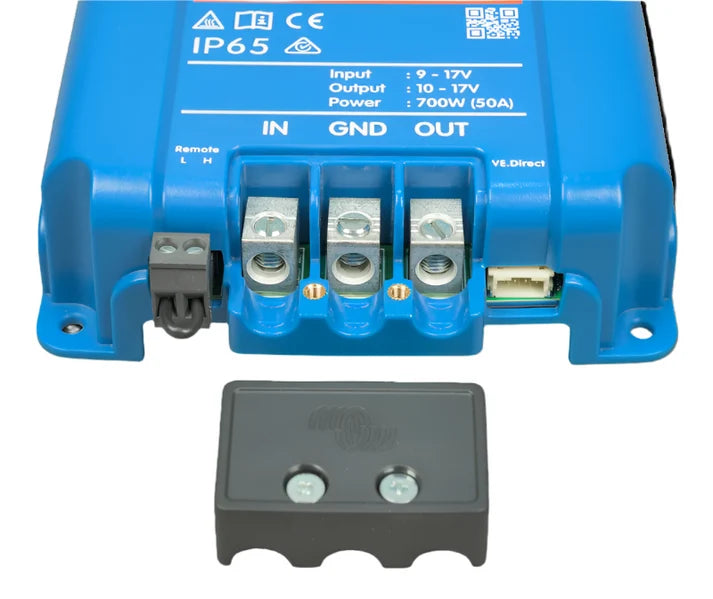

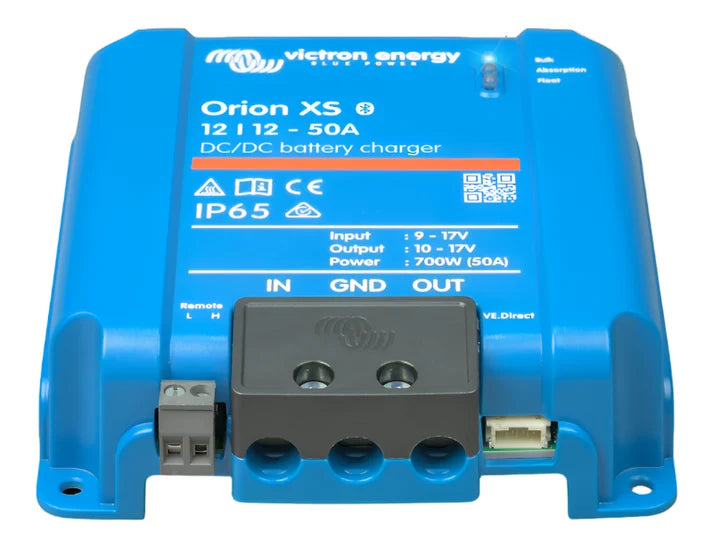

⚡ VICTRON ORION XS 12V 50A DC-DC CHARGER

The Orion XS is a compact, high-output DC-DC charger designed for modern dual-battery and touring systems.

Input Voltage: 9–17V

Output Voltage Adjustment: 10–17V

Charge Current: Adjustable 1–50A

Continuous Output: Up to 700W at 40°C

Maximum Efficiency: 98.5%

Smart Alternator Compatible: Yes

Bluetooth: Yes

VictronConnect: Yes

VE.Direct: Yes

Charge Algorithm: Adaptive Four Stage

Protection: IP65

Dimensions: 137.3 × 123.1 × 40mm

Weight: 0.33kg

The 50A adjustable output matches the upper end of the TLS-150 battery's recommended 10–50A charge-current range, allowing the charger to be configured to suit the installation.

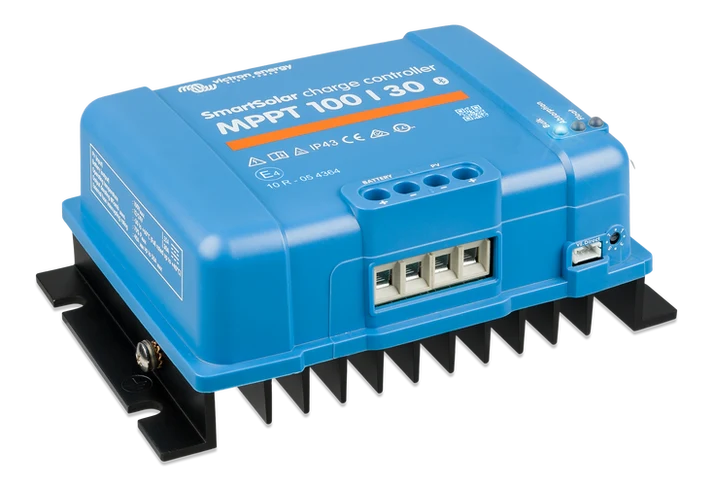

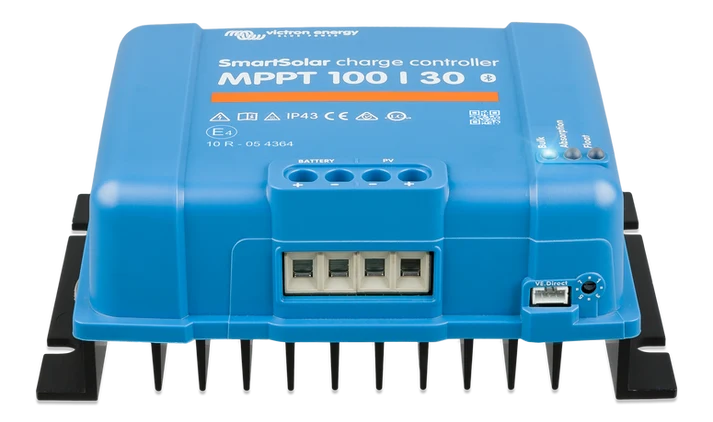

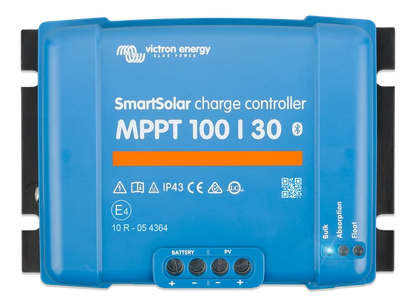

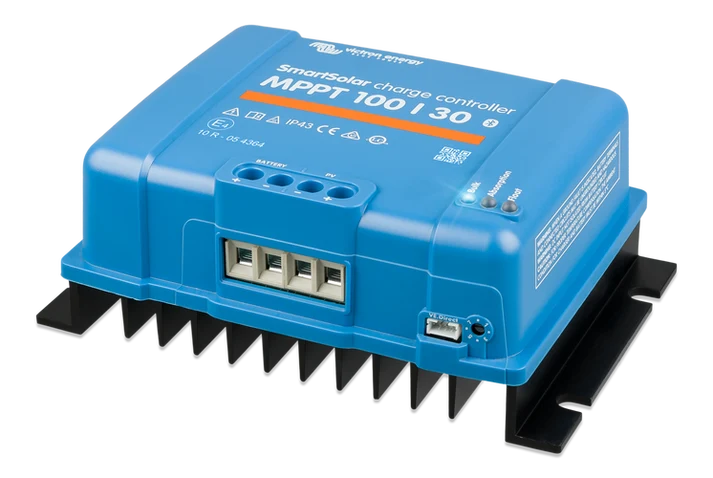

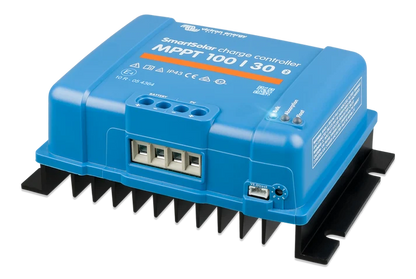

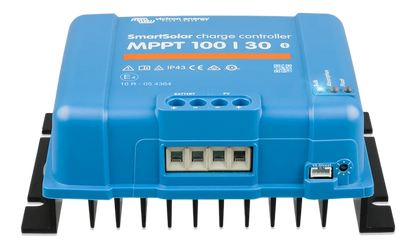

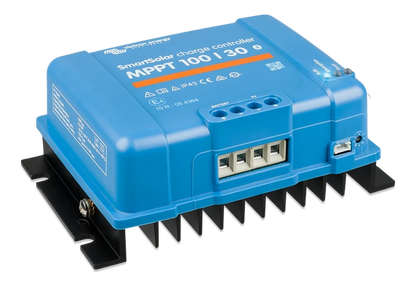

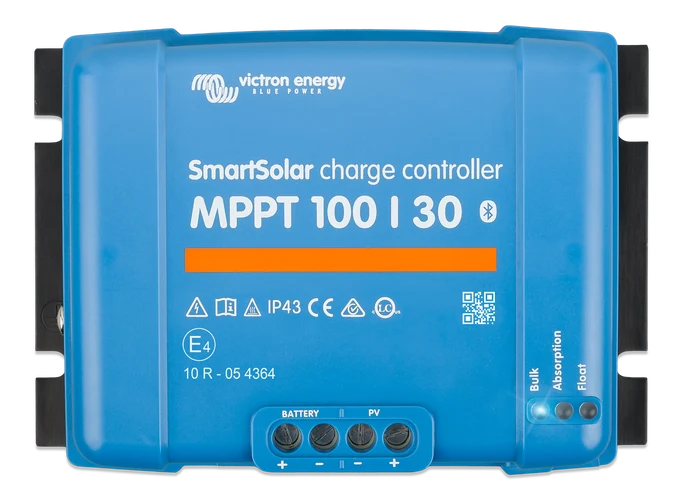

☀️ VICTRON SMARTSOLAR MPPT 100/30

The Victron SmartSolar MPPT 100/30 manages solar charging independently from the vehicle charging system and uses Maximum Power Point Tracking to maximise available solar harvest.

Battery Voltage: 12V / 24V Auto Select

Rated Charge Current: 30A

Nominal PV Power @ 12V: 440W

Nominal PV Power @ 24V: 880W

Maximum PV Open-Circuit Voltage: 100V

Maximum PV Short-Circuit Current: 35A

Peak Efficiency: 98%

Bluetooth: Built In

VE.Direct: Yes

Charge Algorithm: Multi-Stage Adaptive

Dimensions: 130 × 186 × 70mm

Weight: 1.3kg

With a 440W nominal PV rating on a 12V system, the controller also provides useful capacity for future solar expansion beyond the supplied 200W panel, subject to all PV voltage and current limits being observed.

☀️ EXOTRONIC 200W FUSION TOPCon SOLAR PANEL

The Exotronic Fusion panel combines compact dimensions with high-efficiency N-Type TOPCon solar technology.

Power: 200W

Cell Technology: N-Type TOPCon

Cell Efficiency: 25.2%

Vmp: 21.6V

Imp: 9.26A

Voc: 25.2V

Isc: 10.1A

Dimensions: 1320 × 670 × 25mm

Weight: 8.9kg

Frame: Black Anodised Aluminium

Front: 3.2mm Tempered Glass

Junction Box: IP65

Connectors: MC4 Compatible

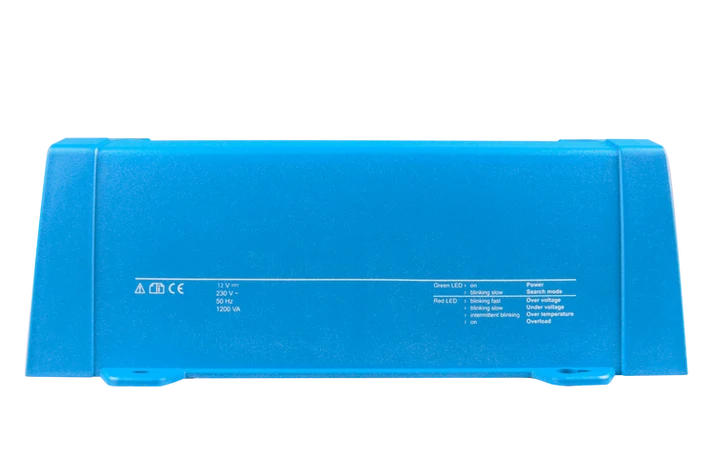

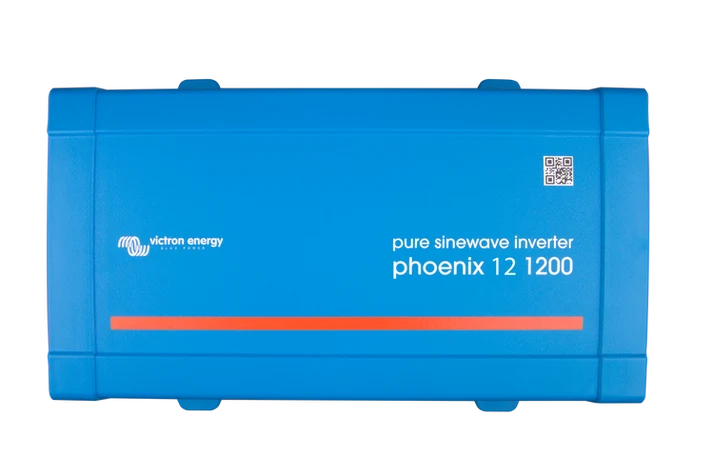

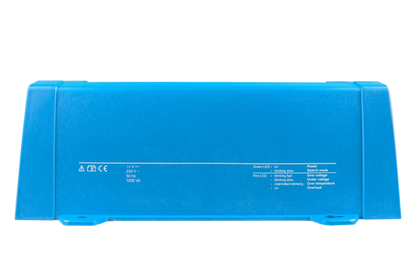

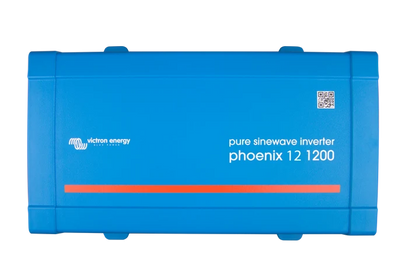

🔌 VICTRON PHOENIX 12/1200VA VE.DIRECT INVERTER

The Victron Phoenix inverter converts your 12V battery supply into clean 230V AC power for compatible appliances and electronics.

Model: Phoenix 12/1200VA VE.Direct

Continuous Power @ 25°C: 1000W

Continuous Power @ 40°C: 850W

Peak Power: 2200W

Output: 230VAC / 50Hz or 60Hz Adjustable

Input Voltage Range: 9.2–17V

Maximum Efficiency: 91%

Zero-Load Power: 7W

ECO Mode: Yes

VE.Direct: Yes

Remote On/Off: Supported

Dimensions: 117 × 232 × 362mm

Weight: 7.4kg

🚙 IDEAL FOR

• 🚙 4WD touring systems
• 🛻 Ute canopy electrical systems
• 🚐 Caravans & camper trailers
• 🏕️ Extended camping & off-grid touring
• ❄️ Fridges, lighting & 12V accessories
• 💻 Electronics, chargers & selected 230V appliances
• 📲 Customers wanting app-based monitoring and configuration
• ⚡ Systems with future Victron expansion in mind

❓ QUICK FAQ

What makes this different from a basic touring system?

The Smart System uses separate high-performance Victron DC-DC and solar chargers, both with advanced configuration and monitoring features, giving greater control over how the system charges and operates.

Can the Orion XS be adjusted below 50A?

Yes. Its input and output current can be configured from 1A to 50A, allowing the charging system to be tailored to the vehicle and battery.

Can I add more solar later?

Yes. The SmartSolar MPPT 100/30 is rated for up to 440W nominal PV power on a 12V battery system, provided the panel array remains within the controller's voltage and current limits.

Can I monitor the system from my phone?

Yes. The Orion XS and SmartSolar MPPT support VictronConnect. The Thumper battery also has its own Bluetooth monitoring through the Thumper App.

Is this a complete installation kit?

The package includes the five major system components. Vehicle-specific battery cable, solar cable, fuses, circuit protection, isolators, mounting hardware and other installation components may still be required depending on the vehicle and system layout.

⚡ SMARTER CHARGING. SMARTER MONITORING. SERIOUS TOURING POWER.

The Victron Smart Touring Package gives you 150Ah of lithium storage, up to 50A DC-DC charging, dedicated MPPT solar control, 200W of TOPCon solar and Victron pure sine wave inverter power in one highly configurable touring system.

Charge while you drive. Charge while you're camped. Monitor your system from your phone. And build on it as your power requirements grow.
