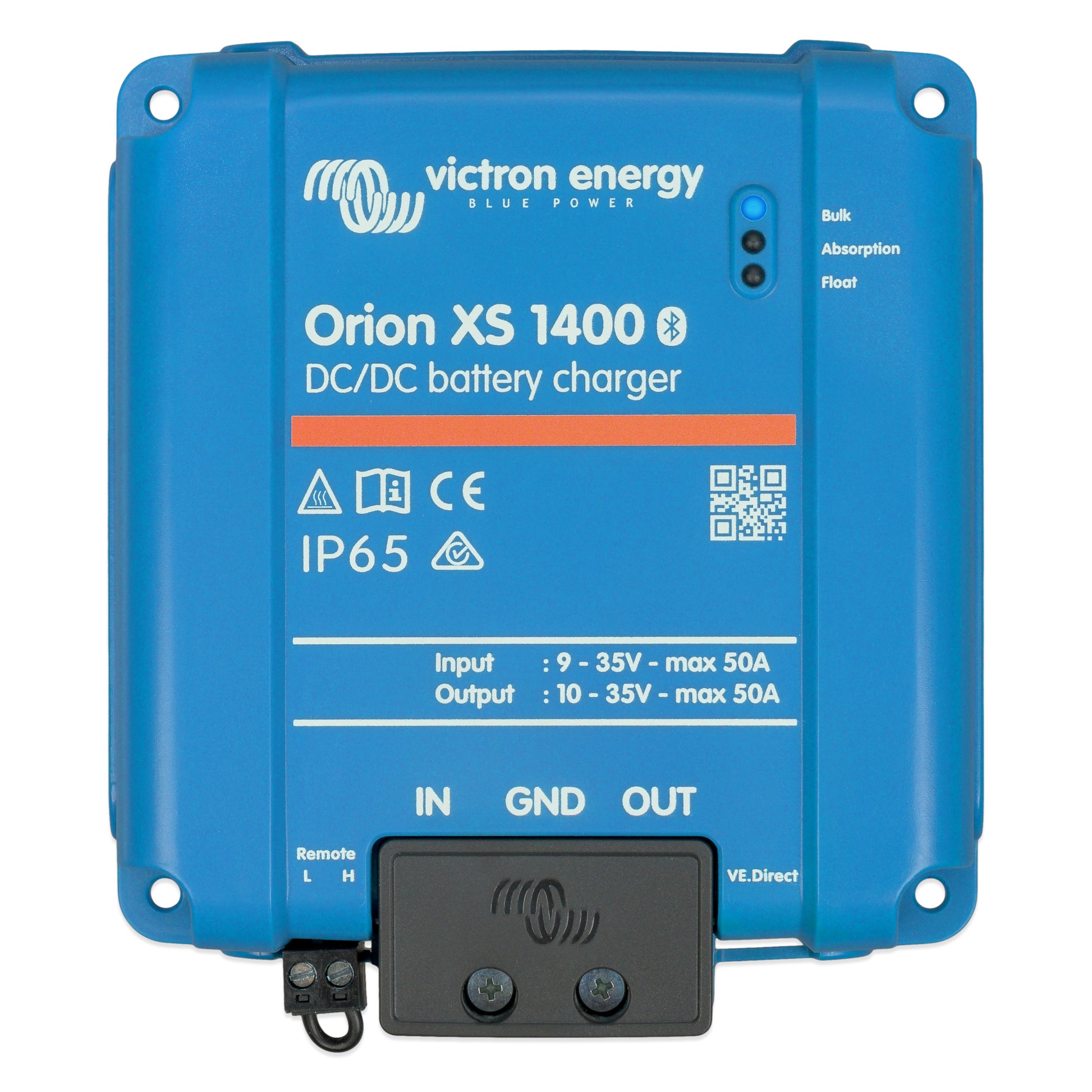

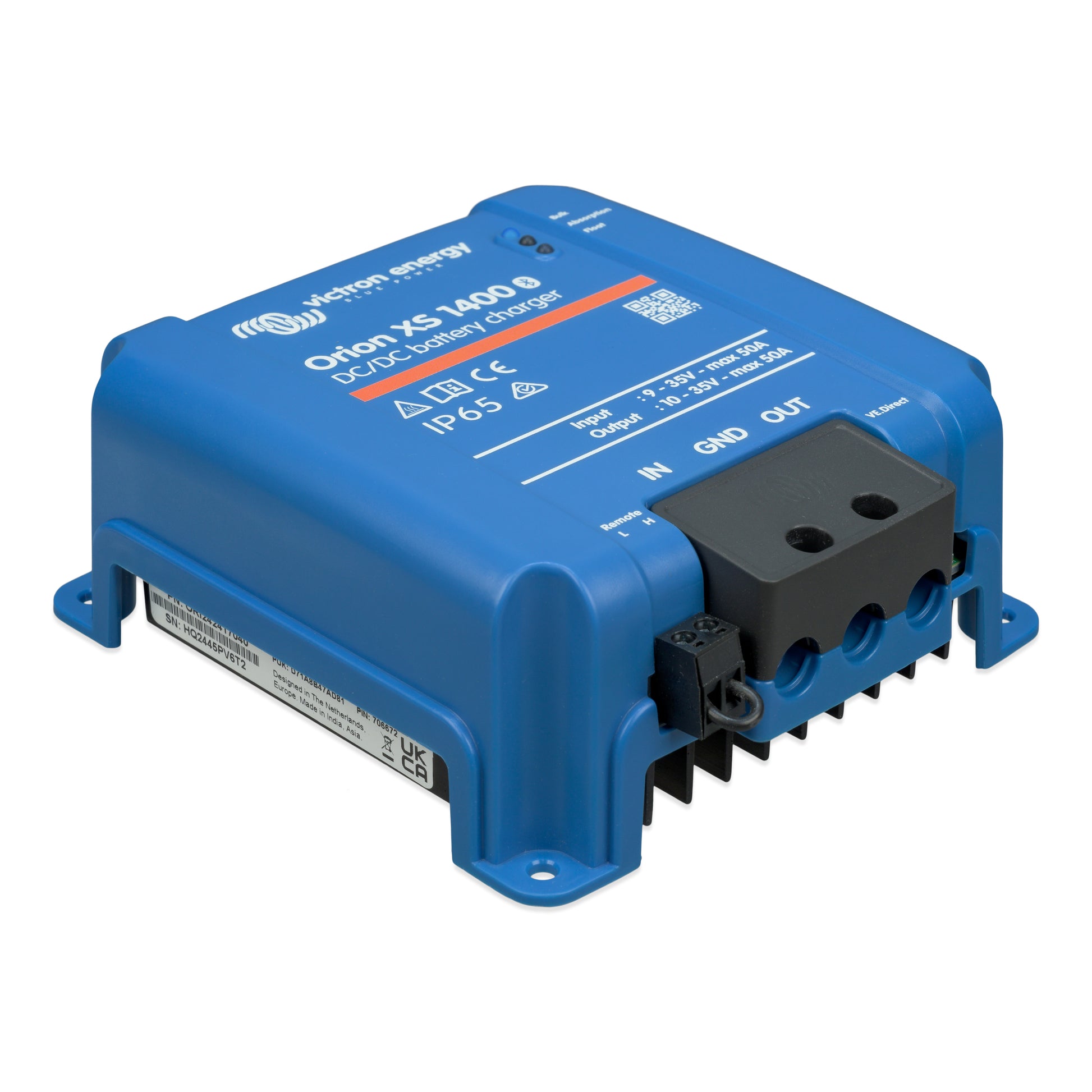

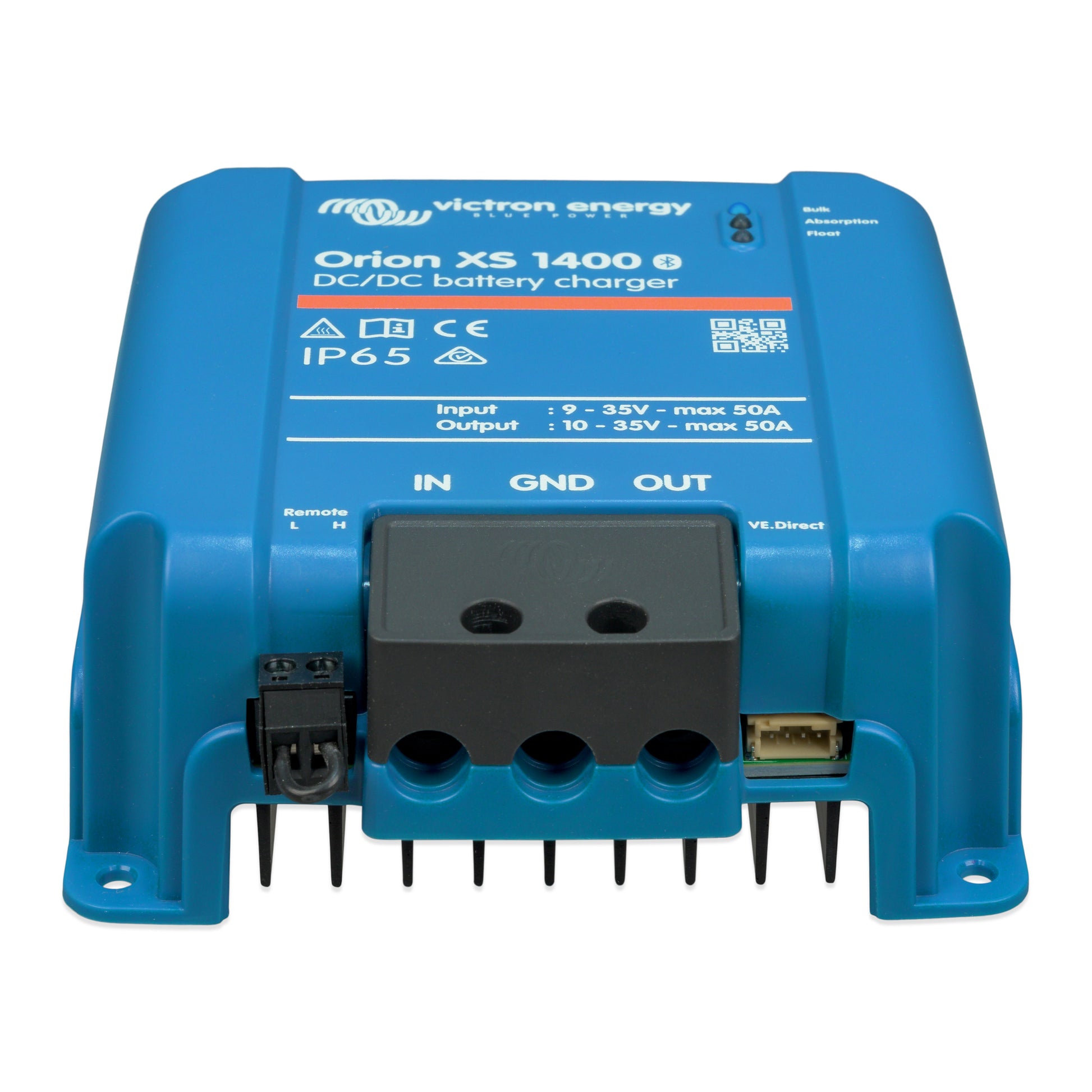

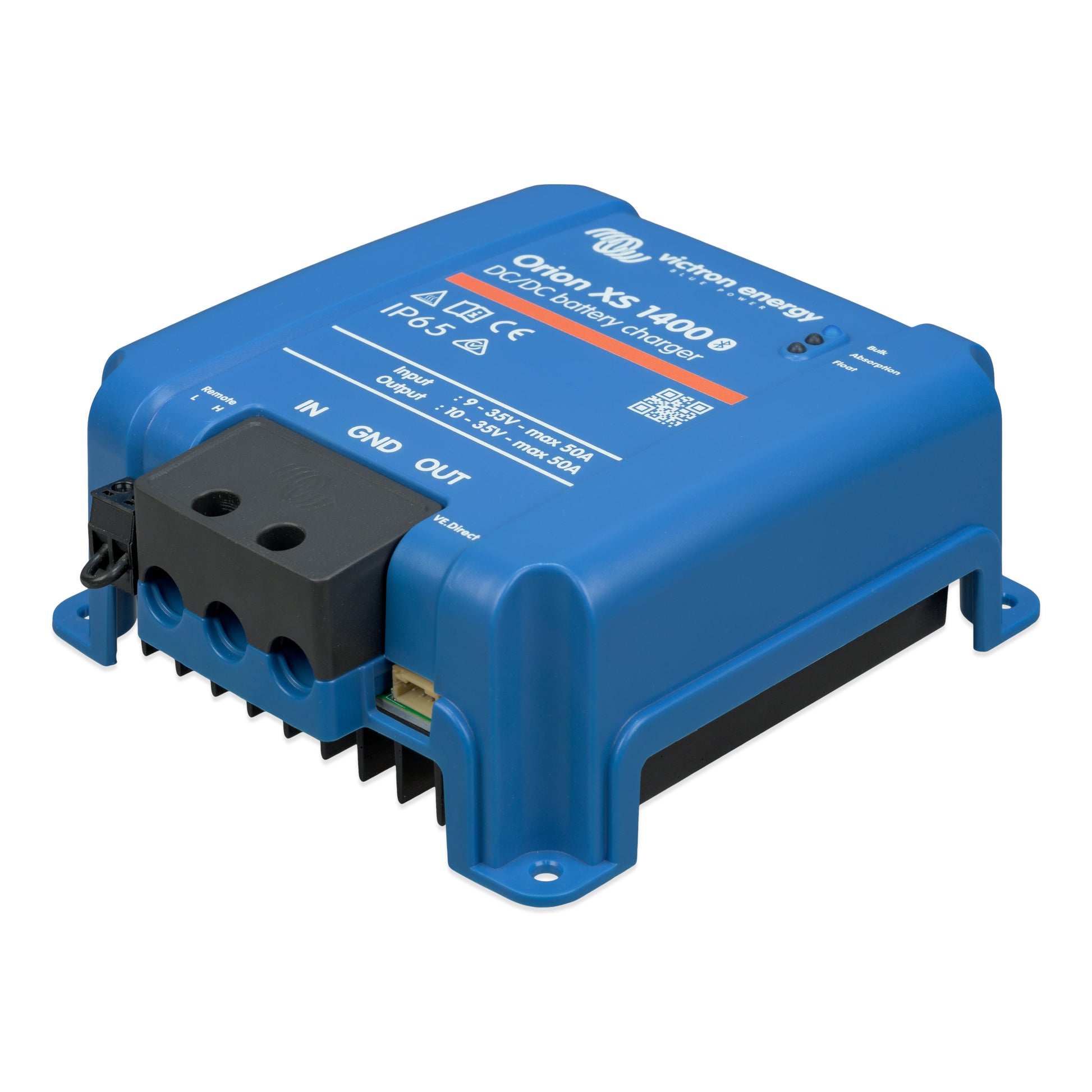

Orion XS 1400 DC-DC battery charger
Orion XS 1400 DC-DC battery charger
SKU:ORI242417040
Couldn't load pickup availability
⚡ Victron Orion XS 1400 12V/24V to 12V/24V 50A DC-DC Battery Charger
Ultra-compact high-power DC-DC battery charger with 12V/24V input and output support, up to 1400W continuous output, 1–50A adjustable current, Bluetooth Smart, VE.Direct, smart alternator compatibility, IP65-rated electronics, adaptive four-stage charging, and up to 98.5% efficiency.
The Victron Orion XS 1400 12V/24V to 12V/24V DC-DC Battery Charger is designed to charge a service or auxiliary battery from engine power while providing precise control, high efficiency, and flexible voltage conversion.
With support for 12V to 12V, 12V to 24V, 24V to 12V, and 24V to 24V systems, the Orion XS 1400 is a powerful solution for modern dual battery setups, recreational vehicles, professional vehicles, marine systems, and off-grid power installations.
Delivering up to 1400W continuous output power up to 40°C and up to 98.5% efficiency, the Orion XS 1400 combines high-output charging with a compact, rugged design built for tight spaces, demanding conditions, and smart alternator vehicles.
✅ Key Benefits
⚡ High-Power DC-DC Charging
Delivers up to 1400W continuous output power up to 40°C.
🔋 12V & 24V System Support
Supports 12V and 24V input and output systems, including voltage conversion between 12V and 24V.
🔁 12V to 24V / 24V to 12V Conversion
Can be configured for step-up or step-down charging and power supply applications.
📲 Bluetooth Smart Enabled
Configure, monitor, and update the charger using the VictronConnect App.
🚗 Smart Alternator Compatible
Built-in engine running detection prevents charging when the engine is off and supports Euro 5 and Euro 6 smart alternator systems.
🔧 Fully Configurable Charging
Charging voltage and current can be adjusted to suit lithium, AGM, gel, flooded, and other battery chemistries.
🧠 Adaptive Four-Stage Charging
Smart charging algorithm adjusts to shallow or deep discharges to help support battery life.
🛡️ SafetyShield+ Protection
Includes safeguards against overload, short circuits, overcharging, and overheating.
❄️ Low Temperature Shutdown
Helps protect lithium batteries by stopping charging at sub-zero temperatures.
🔌 Power Supply Mode
Can be used as a DC power supply, with output voltage set via VictronConnect.
📡 VE.Direct Monitoring
Connect to a GX communication device for remote monitoring through the Victron VRM portal.
🌡️ Full Output up to 40°C
Designed to maintain full rated output up to 40°C before thermal derating begins.
🚐 Suitable Applications
🚐 Recreational vehicles
🚙 4WD dual battery systems
🛻 Ute canopies and service vehicles
🚚 Professional and commercial vehicles
🚑 Emergency and specialist vehicle systems
⛵ Marine auxiliary battery systems
🏕️ Camping and touring setups
🔋 Lithium auxiliary battery charging
🔧 AGM, gel, and flooded lead acid battery charging
⚡ 12V to 24V or 24V to 12V conversion
🏜️ Off-grid and remote travel power systems
⚡ High-Efficiency DC-DC Charging
The Orion XS 1400 is designed to deliver high power with low heat and low power loss.
| Charging Feature | Details |
|---|---|
| Input Voltage Range | 9V to 35V |
| Output Voltage Adjustment Range | 10V to 35V |
| Input Current Setting Range | 1A to 50A |
| Output Current Setting Range | 1A to 50A |
| Maximum Constant Short-Circuit Current | 50A |
| Continuous Output Power up to 40°C | 1400W |
| Maximum Efficiency | 98.5% |
| Output Voltage Tolerance | ±0.25% maximum |
| Output Voltage Noise | 10mV RMS |
🔋 Battery Compatibility
The Victron Orion XS 1400 supports common auxiliary battery chemistries and can be configured through VictronConnect.
| Battery Type | Supported |
|---|---|
| Lithium | Yes |
| AGM | Yes |
| Gel | Yes |
| Flooded Lead Acid | Yes |
| Custom Charge Profiles | Yes |
The charger includes eight battery presets, with fully customisable settings available through the VictronConnect App.
🔁 12V & 24V Conversion Flexibility
The Orion XS 1400 supports flexible system design across 12V and 24V battery systems.
| System Configuration | Supported |
|---|---|
| 12V to 12V | Yes |
| 12V to 24V | Yes |
| 24V to 12V | Yes |
| 24V to 24V | Yes |
| Power Supply Mode | Yes, output voltage set via VictronConnect |
This makes it suitable for mixed-voltage vehicle, marine, commercial, and off-grid systems.
🧠 Adaptive Four-Stage Charge Algorithm
The Orion XS uses a smart adaptive charging algorithm to suit different battery discharge conditions.
| Charging Stage | Function |
|---|---|
| Bulk | High current charging to restore battery capacity |
| Absorption | Controlled voltage stage to complete charging |
| Float | Maintains battery once charging is complete |
| Storage / Adaptive Control | Helps optimise long-term battery care depending on usage |
The adaptive algorithm adjusts charging behaviour based on shallow or deep discharges, helping support battery service life.
🚗 Smart Alternator Support
The Orion XS 1400 is suitable for vehicles with smart alternators, including many Euro 5 and Euro 6 systems.
| Smart Alternator Feature | Details |
|---|---|
| Engine Running Detection | Prevents charging when the engine is off |
| Starter Battery Protection | Helps prevent unwanted starter battery discharge |
| Input Current Limiting | Allows input current to be limited to help prevent alternator overload |
| Smart Alternator Support | Helps retrieve suitable charge current from intelligent alternators |
📲 Communication & Monitoring
| Communication Feature | Details |
|---|---|
| VictronConnect App | Yes |
| Bluetooth Smart | Yes |
| VE.Smart Networking | Yes |
| VE.Direct | Yes, including DVCC support |
| Remote Monitoring | Via GX device and VRM portal |
| Configurable Output | Yes, via VictronConnect App |
The VE.Direct port allows the Orion XS 1400 to connect to a Victron GX communication centre for remote monitoring through the online VRM portal.
🛡️ SafetyShield+ Protection
The Orion XS 1400 is engineered for demanding professional, recreational, and marine applications.
| Protection Feature | Details |
|---|---|
| Protection Category | IP65 / IP20 connection area |
| Overload Protection | Yes |
| Short Circuit Protection | Yes |
| Overcharging Protection | Yes |
| Overheating Protection | Yes |
| Low Temperature Shutdown | Yes |
| Undervoltage Protection | Yes |
| Temperature-Compensated Charging | Yes |
🌡️ Operating Conditions
| Operating Feature | Details |
|---|---|
| Operating Temperature Range | -20°C to +60°C |
| Thermal Derating | 1.5% per °C above 40°C |
| Humidity | 95%, non-condensing |
| Maximum Altitude | 2000m |
| Pollution Degree | PD2 |
| Overvoltage Category | OVC 1 |

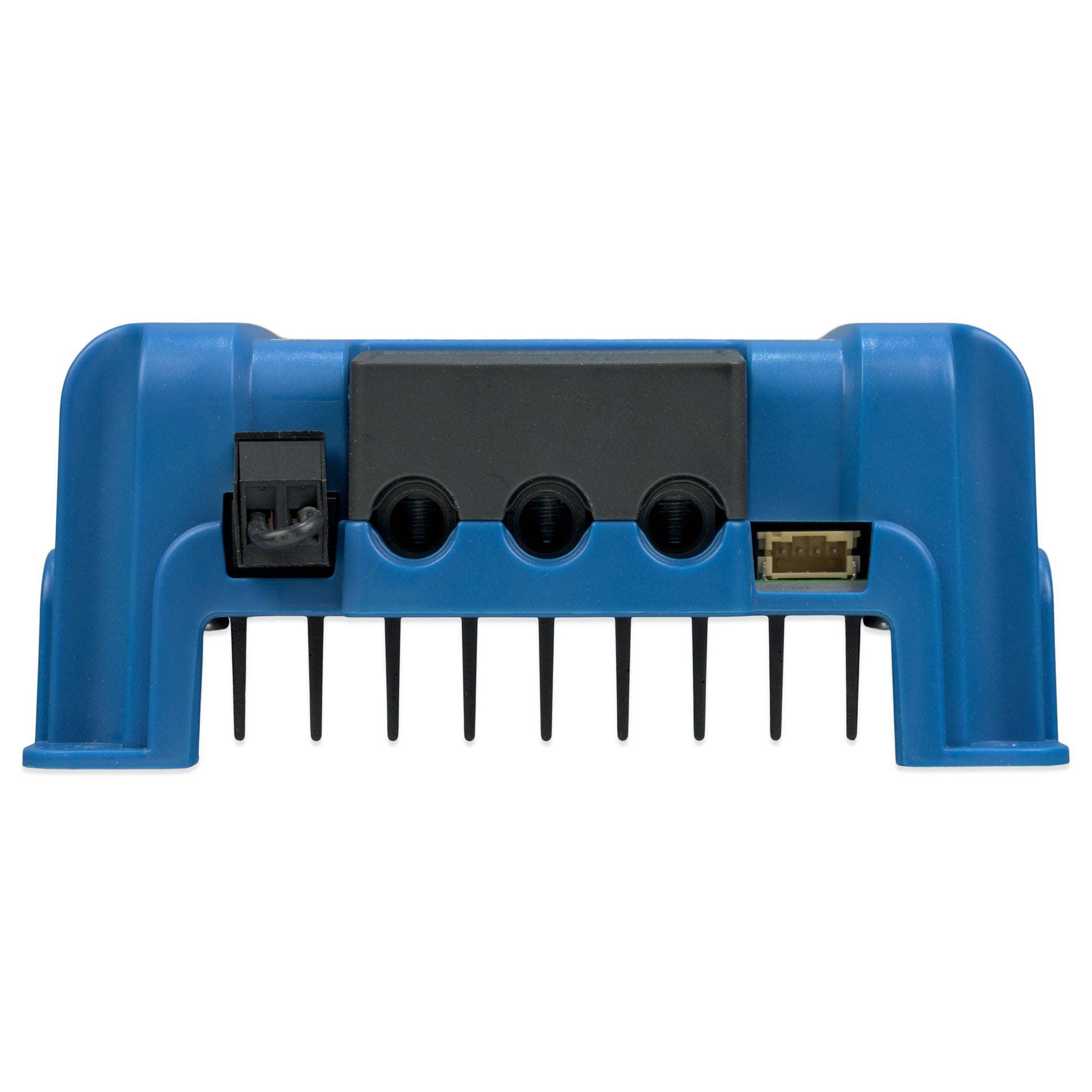

🔌 Installation Details
| Installation Feature | Details |
|---|---|
| DC Connection | Screw terminals |
| Maximum Cable Cross-Section | 4 AWG / 21.2mm² |
| Power Supply Mode | Yes, output voltage set via VictronConnect App |
| Enclosure Protection | IP65-rated electronics enclosure |
| Connection Area Protection | IP20 |
📏 Technical Specifications
| Specification | Details |
|---|---|
| Product | Victron Orion XS 1400 12V/24V to 12V/24V DC-DC Battery Charger |
| Charger Type | DC-DC battery charger / DC power supply |
| Input Voltage Range | 9V to 35V |
| Output Voltage Adjustment Range | 10V to 35V |
| Output Voltage Tolerance | ±0.25% maximum |
| Output Voltage Noise | 10mV RMS |
| Input Current Setting Range | 1A to 50A |
| Output Current Setting Range | 1A to 50A |
| Maximum Constant Short-Circuit Current | 50A |
| Continuous Output Power up to 40°C | 1400W |
| Maximum Efficiency | 98.5% |
| No-Load Current Consumption | <100mA |
| Standby Current Consumption | <1.5mA |
| Battery Presets | 8 presets |
| Bluetooth Smart | Yes |
| VE.Smart Networking | Yes |
| VE.Direct | Yes, including DVCC |
| Operating Temperature | -20°C to +60°C |
| Protection Category | IP65 / IP20 connection area |
| DC Connection | Screw terminals |
📐 Dimensions & Weight
| Measurement | Details |
|---|---|
| Height | 138.1mm |
| Width | 124.4mm |
| Depth | 53mm |
| Weight | 0.520kg |
📋 Standards
| Standard Type | Details |
|---|---|
| Safety | IEC 62477-1 |
| EMC | EN 300 328, EN 301 489-1, EN 301 489-17, FCC 15B, ICES-003 |
| Automotive Directive | ECE R10-6, ECE R10-7 |
⚠️ Fitment & Installation Note
Please confirm your required system voltage, battery chemistry, battery capacity, charge current, alternator output, input current limit, cable sizing, fuse protection, mounting location, ventilation, communication requirements, and VictronConnect configuration before purchase or installation.
Important:
✅ Supports 12V and 24V input and output systems
✅ Supports 12V to 24V and 24V to 12V conversion
✅ Up to 1400W continuous output power up to 40°C
✅ Up to 98.5% efficiency
✅ Bluetooth Smart enabled
✅ VictronConnect configuration and monitoring
✅ VE.Direct with DVCC support
✅ Smart alternator compatible
✅ Adjustable input and output current
✅ Suitable for lithium, AGM, gel, and flooded batteries
✅ Can be used as a DC power supply
✅ IP65-rated electronics enclosure
⛔ Confirm battery manufacturer charge limits before installation
⛔ Ensure cable and fuse sizing suit the configured current
⛔ Confirm voltage conversion requirements before setup
⛔ Professional installation is recommended for vehicle, marine, caravan, and auxiliary power systems
🔎 Why Choose the Victron Orion XS 1400?
The Victron Orion XS 1400 12V/24V to 12V/24V DC-DC Battery Charger is designed for users who need powerful, efficient, and flexible DC-DC charging across mixed 12V and 24V systems.
With up to 1400W output, 12V/24V conversion support, up to 98.5% efficiency, Bluetooth Smart, VE.Direct, smart alternator compatibility, low temperature lithium protection, SafetyShield+ protection, and configurable battery presets, it is a premium choice for recreational vehicles, professional vehicles, marine systems, and demanding off-grid electrical setups.
📦 What’s Included
⚡ 1 x Victron Orion XS 1400 12V/24V to 12V/24V DC-DC Battery Charger
🛒 Order with Confidence
Choose the Victron Orion XS 1400 DC-DC Battery Charger for high-power charging, 12V/24V system flexibility, smart alternator compatibility, configurable battery profiles, remote monitoring capability, and dependable Victron power management.
