ATX970 6.6dBi Heavy-Duty UHF Radome Antenna Kit | Black

📡 UNIDEN ATX970 6.6dBi HEAVY-DUTY RADOME UHF ANTENNA KIT – BLACK

1200mm Ground-Independent UHF Antenna with Heavy-Duty Stainless Steel Barrel Spring

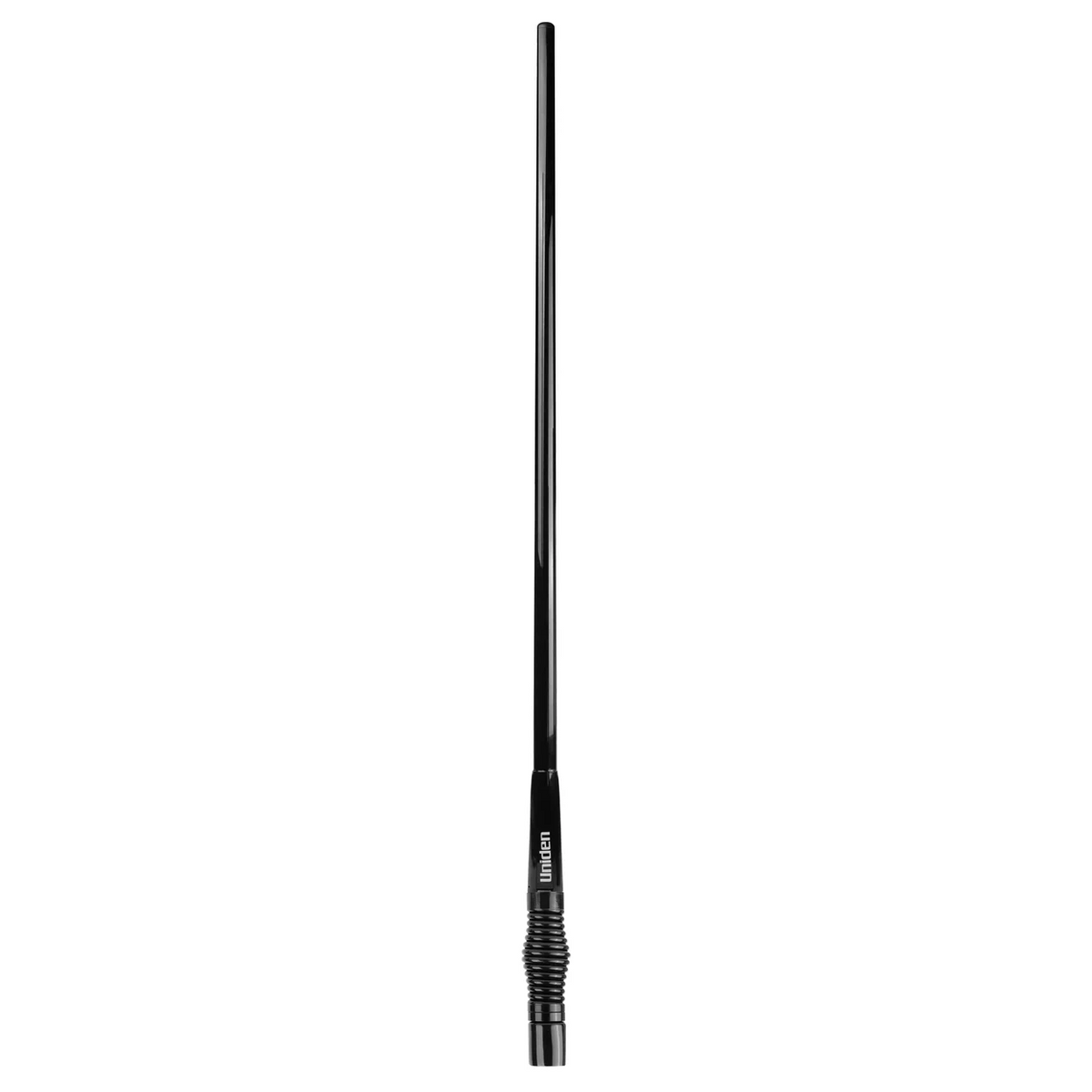

The Uniden ATX970 is a rugged heavy-duty fibreglass radome UHF antenna designed for 4WDs, trucks, touring vehicles and demanding commercial applications.

Featuring a ground-independent design, aluminium ferrule, heavy-duty stainless steel barrel spring and substantial 1200mm mounted height, the ATX970 is built for tough vehicle installations where durability and high-gain UHF performance are required.

⚡ KEY FEATURES

📡 High-Gain UHF Performance
The ATX970 is identified as a 6.6dBi antenna, making it particularly suited to flatter and more open terrain.

🚙 Ground-Independent Design
Provides greater flexibility when selecting a suitable vehicle mounting position.

🛡️ Heavy-Duty Fibreglass Radome
Rugged antenna construction designed for demanding 4WD, transport and touring environments.

〰️ Heavy-Duty Stainless Steel Spring
Large barrel-style spring helps the antenna cope with vibration and movement in harsh vehicle applications.

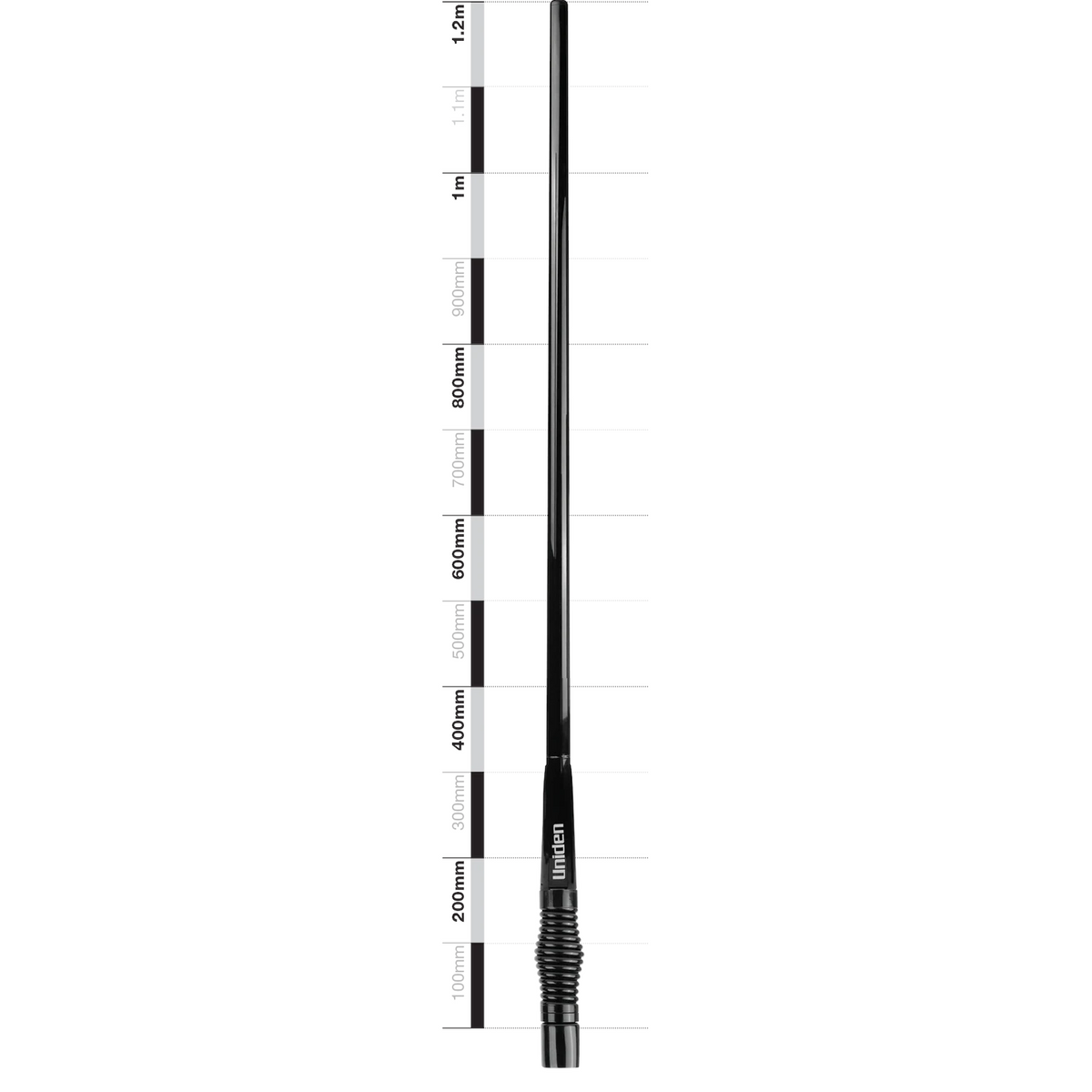

📏 1200mm Mounted Height
Features a 1068mm whip with an overall mounted height of approximately 1.2 metres.

🔩 Aluminium Ferrule & Ø8mm Thread
Heavy-duty construction incorporating an aluminium ferrule and 8mm threaded connection.

🔌 5m Low-Loss Coaxial Cable
Supplied with 5 metres of low-loss coaxial cable for routing through the vehicle.

🔧 FME Female Connector & PL259 Adaptor
Cable is terminated with an FME female connector and supplied with a PL259 adaptor for connection to compatible UHF CB radios.

🔑 Locking Key & Weather Cap
Includes a locking key and weather cap for added practicality when the antenna is removed.

📦 PACK FEATURES

• 📡 Heavy-Duty Black Fibreglass Radome Antenna
• 🛡️ Aluminium Ferrule
• 〰️ Heavy-Duty Stainless Steel Barrel Spring
• 🔌 5m Low-Loss Coaxial Cable
• 🔧 FME Female Connector
• 🔌 PL259 Adaptor
• 🔑 Locking Key
• 🌦️ Weather Cap

📋 TECHNICAL SPECIFICATIONS

Model: ATX970

Type: Heavy-Duty UHF Radome Antenna Kit

Operating Frequency: 477MHz

Product Gain Rating: 6.6dBi

Ground Independent: Yes

Colour: Black

Whip Length: 1068mm

Mounted Height: 1200mm

Ferrule: Aluminium

Spring: Heavy-Duty Stainless Steel Barrel Style

Spring Style: Ø44-55-44mm Barrel

Thread: Ø8mm

Coaxial Cable: 5m Low-Loss

Connector: FME Female

Adaptor: PL259 Included

Locking Key: Included

Weather Cap: Included

⚠️ The supplied product name states 6.6dBi gain, while the supplied key-feature specification lists 6dBi. Confirm the exact rated gain if this specification is critical to your application.

⚠️ Antenna gain does not guarantee a specific communication range. Actual UHF performance depends on terrain, antenna position, installation quality, surrounding obstacles and radio conditions.

🚙 IDEAL FOR

• 🚛 Trucks & transport vehicles
• 🚙 4WD & touring vehicles
• 🛻 Work utes & commercial vehicles
• 🏜️ Flat & open terrain
• 🏕️ Remote & off-road touring

❓ QUICK FAQ

Is the ATX970 ground independent?

Yes. The ATX970 is specified as a ground-independent UHF antenna, providing greater flexibility when selecting a suitable mounting location.

How tall is the antenna?

The whip measures 1068mm, with an overall mounted height of approximately 1200mm.

Does it include the antenna cable?

Yes. It includes 5m of low-loss coaxial cable terminated with an FME female connector, plus a PL259 adaptor.

What terrain is this antenna suited to?

Its higher-gain design is generally best suited to flatter and more open terrain, although actual performance will depend on installation and surrounding conditions.

📡 HEAVY-DUTY UHF PERFORMANCE FOR TRUCKS & 4WDS

With its 1200mm mounted height, ground-independent design, heavy-duty fibreglass radome and large stainless steel barrel spring, the Uniden ATX970 is built for demanding touring, transport and commercial UHF installations.
