📻 ORICOM UHF390R4X4 4X4 OFFROAD PACK – UHF390R + ANU856 3dBi ANTENNA

5 Watt UHF CB Package with 10-Minute Instant Replay & Detachable 3dBi Off-Road Antenna

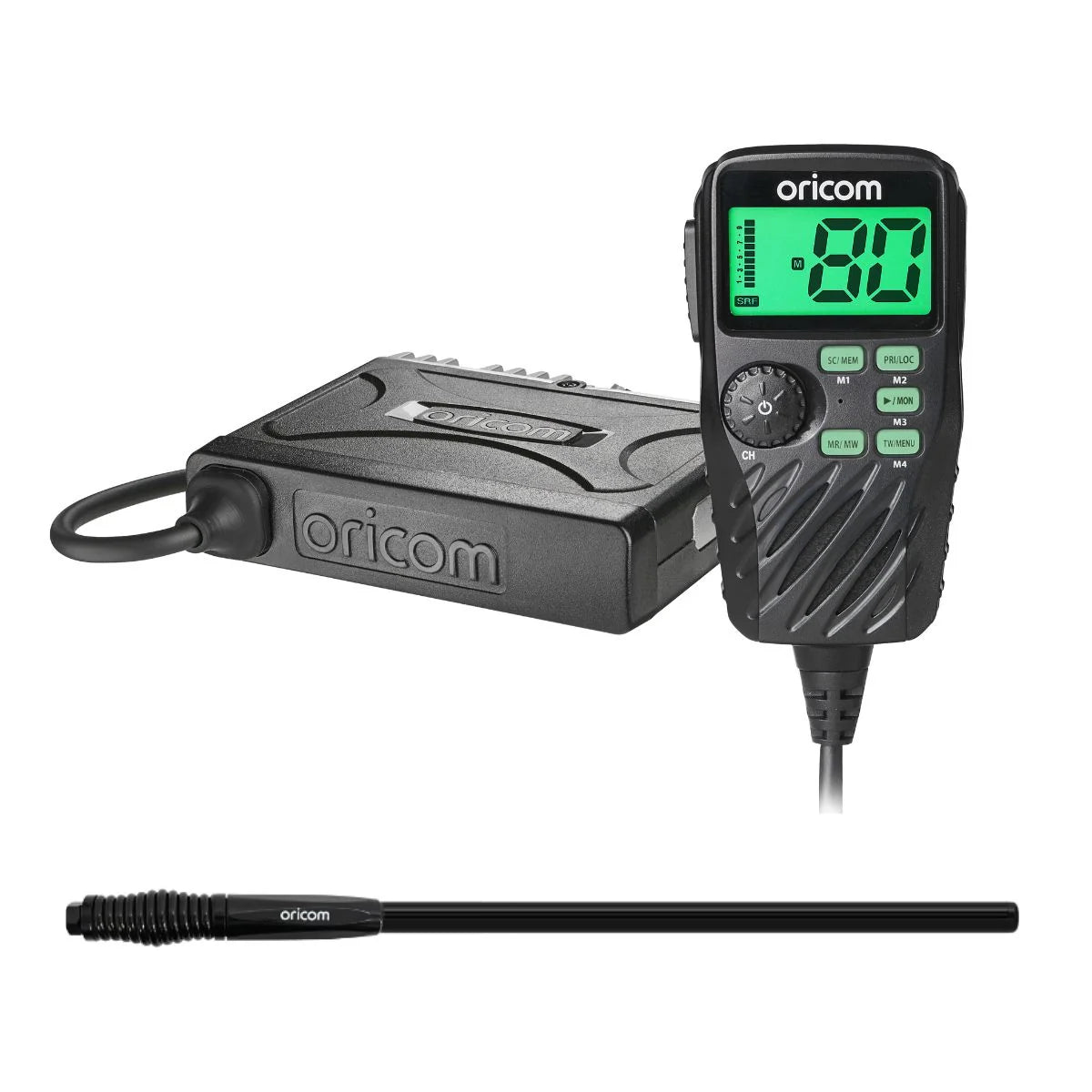

📡 The Oricom UHF390R4X4 combines the UHF390R 5 Watt UHF CB Radio with the ANU856 3dBi UHF CB Antenna for a practical communication package designed for 4WD touring and off-road use.

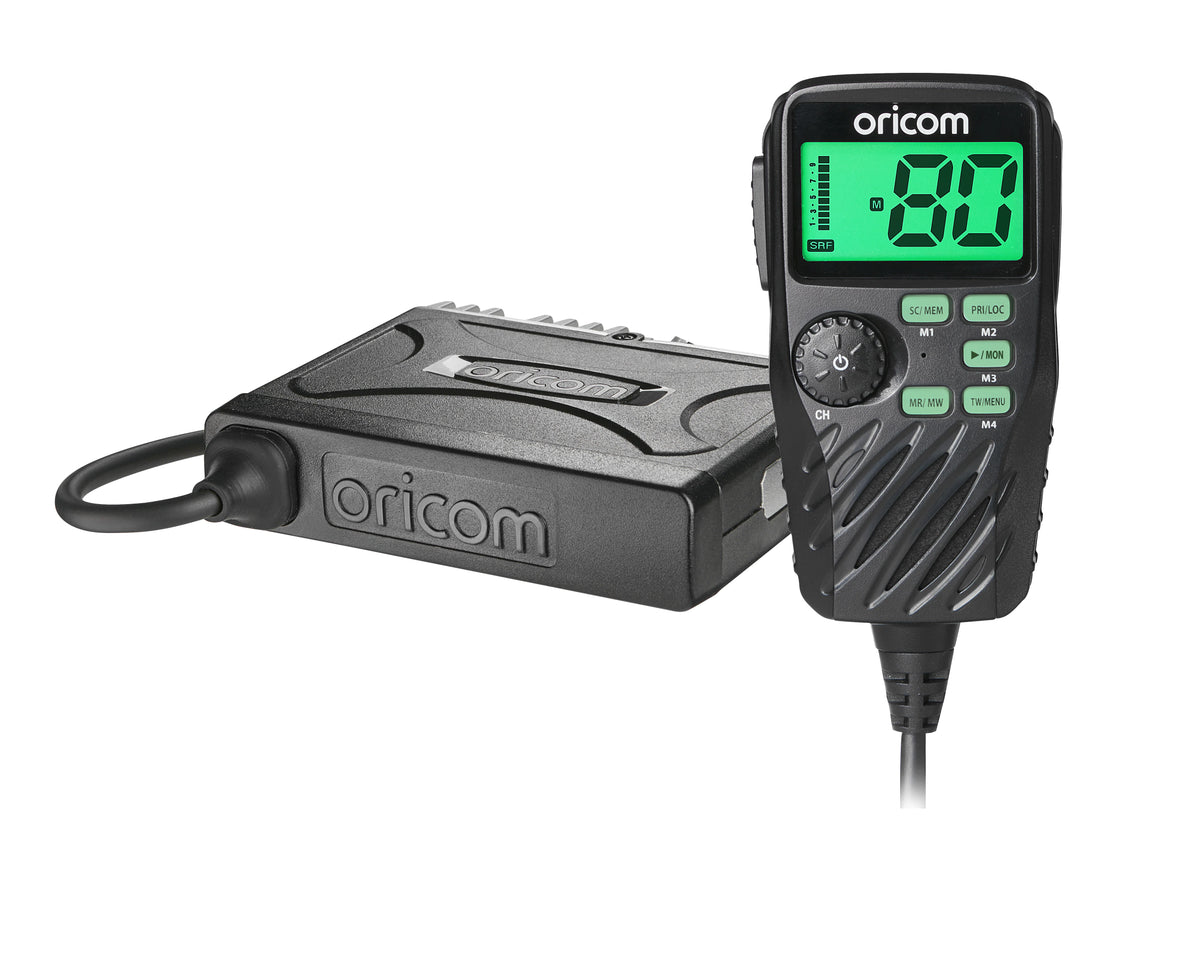

The UHF390R features a heavy-duty controller speaker microphone, compact hideaway transceiver and Instant Replay with up to 10 minutes of recording, allowing recently received transmissions to be replayed if you miss an important message.

The included ANU856 is a 665mm detachable fibreglass 3dBi antenna with 4.5m of low-loss coaxial cable, offering a broader radiation pattern well suited to hilly, undulating and changing terrain.

⚡ KEY FEATURES

⏪ 10-Minute Instant Replay
Replay recently received transmissions when you miss them the first time.

📻 Full 5 Watt UHF CB Output
Maximum 5 Watt transmit power across the Australian 80-channel UHF CB system.

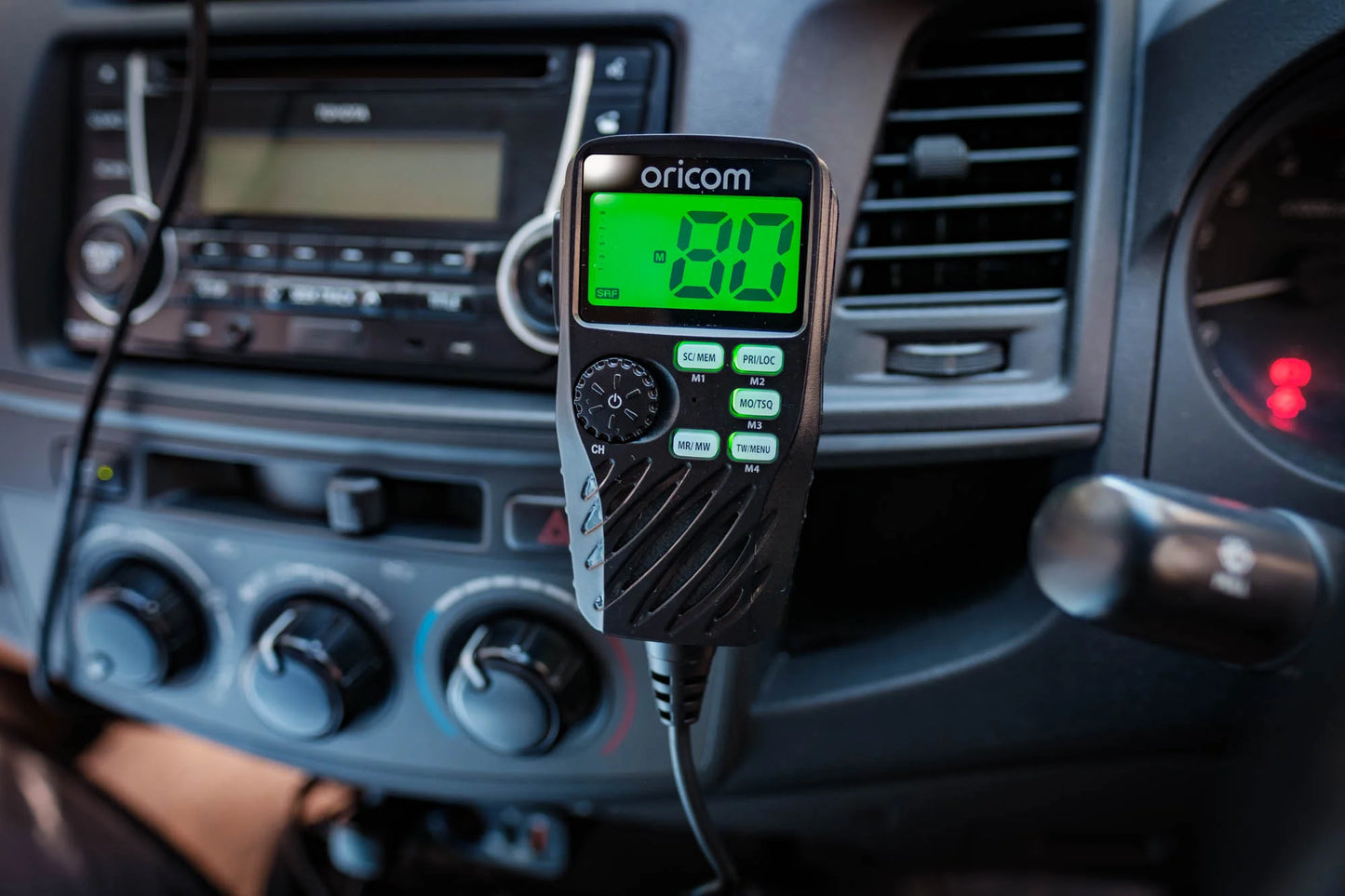

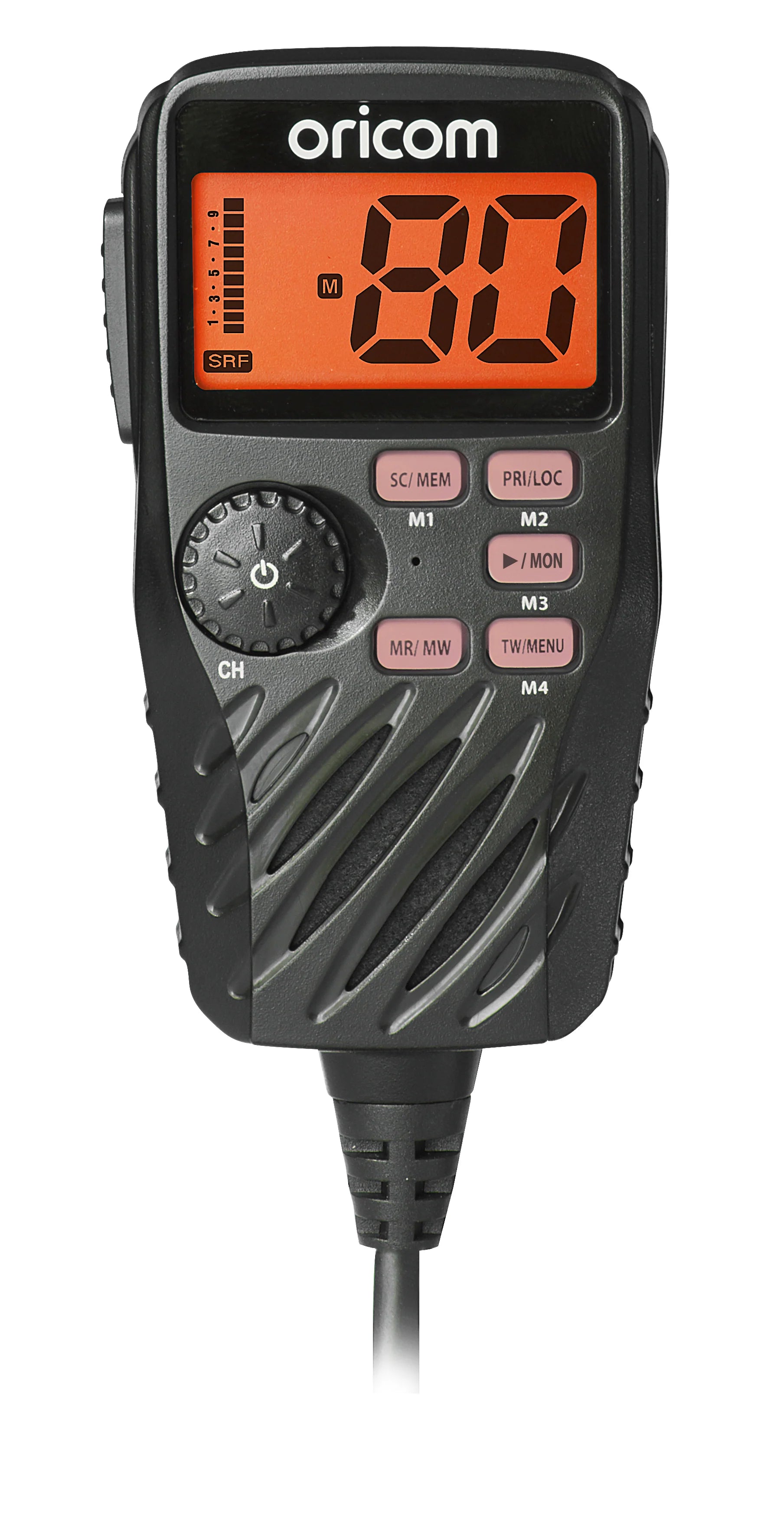

🎙️ Controller Speaker Microphone
Heavy-duty microphone keeps the radio controls, display and audio within easy reach.

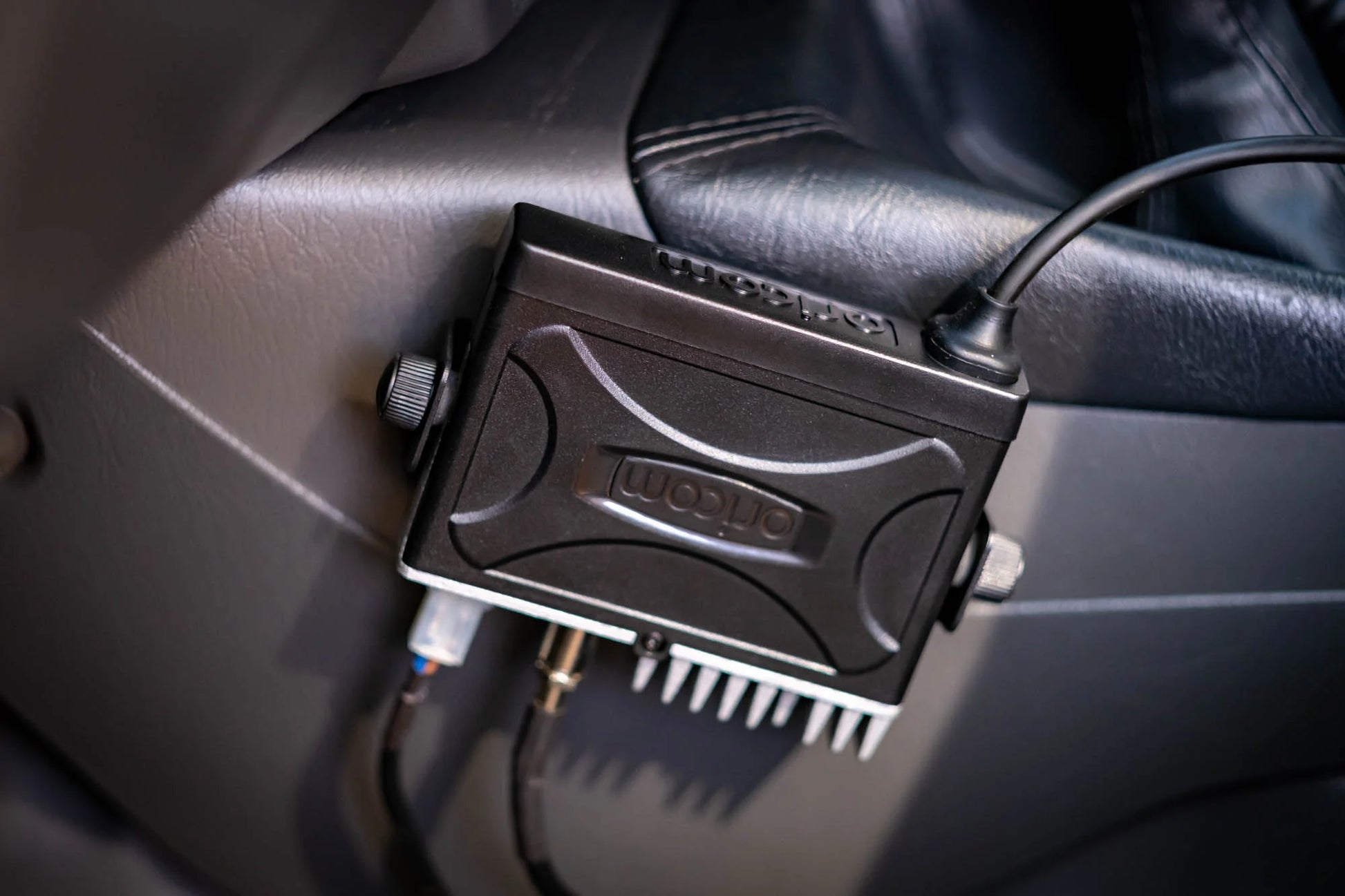

📏 Compact Hideaway Transceiver
Only 27 × 102 × 85mm for discreet installation.

📡 ANU856 3dBi Antenna Included
665mm detachable fibreglass antenna suited to mixed and undulating terrain.

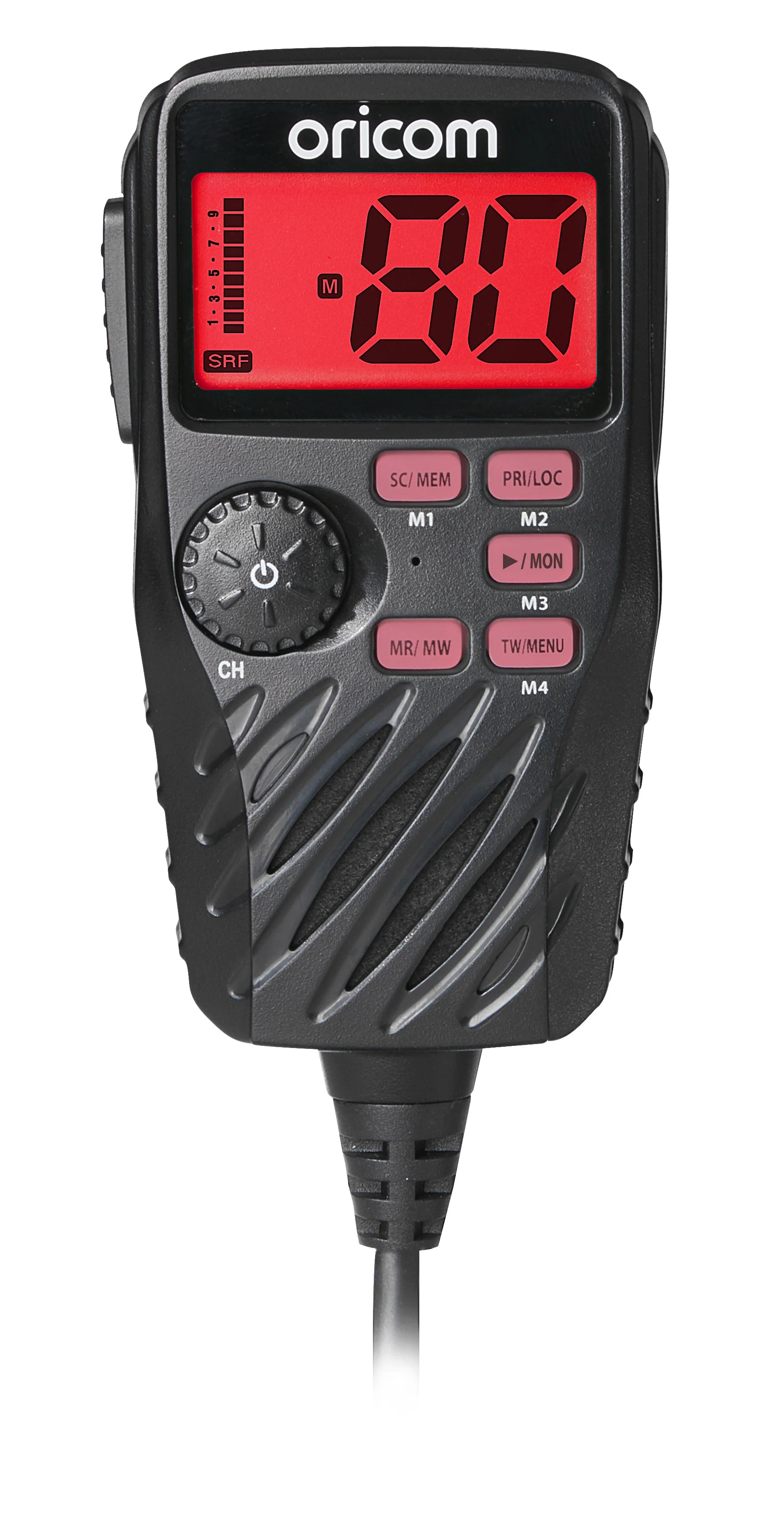

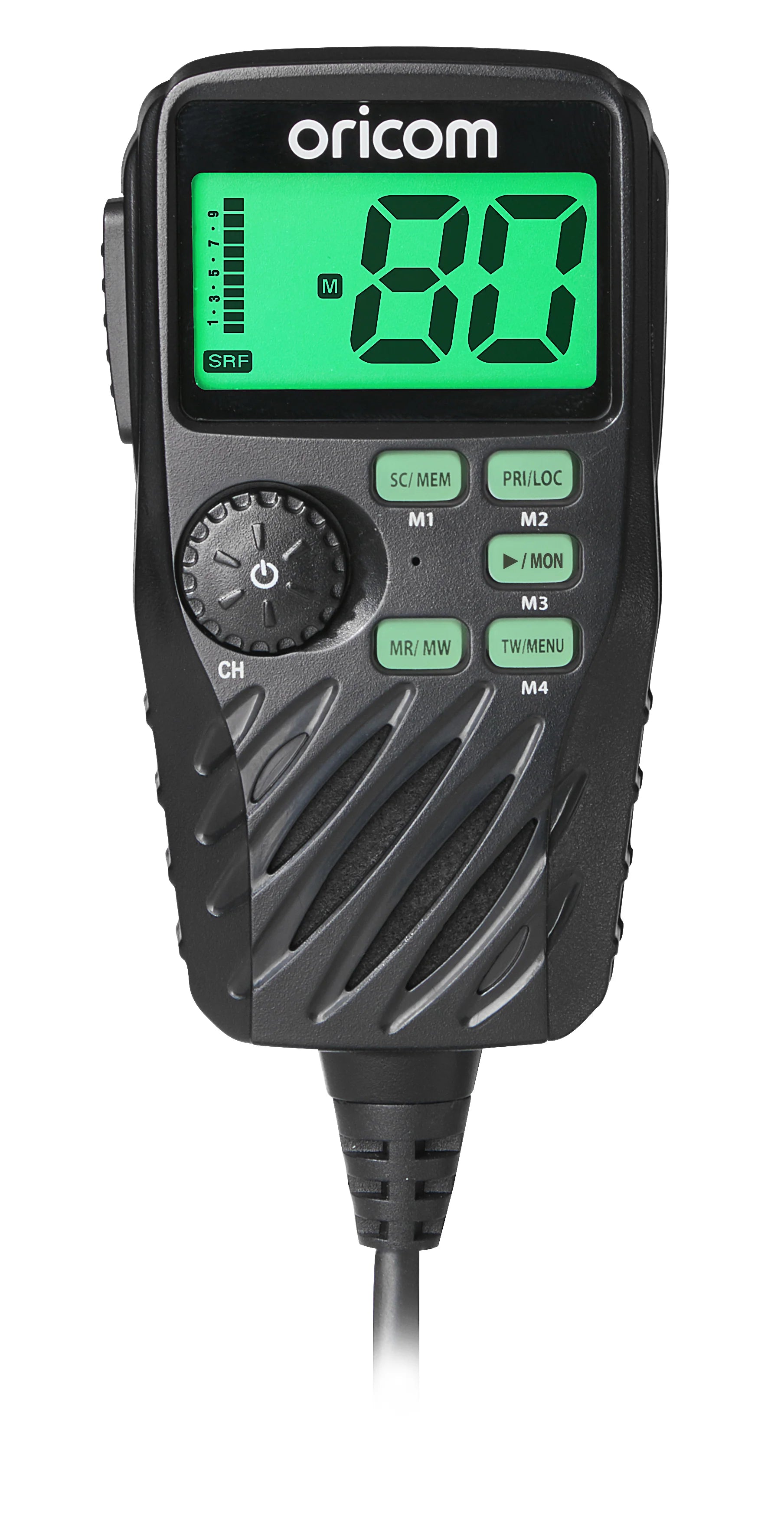

🌈 Tri-Colour LCD Display
Selectable Amber, Red or Green backlighting.

🔊 Automatic Level Control
Helps maintain consistent transmitted audio levels.

🔍 Open & Priority Scan
Includes a dedicated priority-channel function.

🔐 38 CTCSS & 104 DCS Codes
Selective-squelch options for compatible group communications.

📶 Duplex Repeater Capability
Supports compatible UHF CB repeater operation.

🔊 External Speaker Jack
3.5mm connection for a compatible optional external speaker.

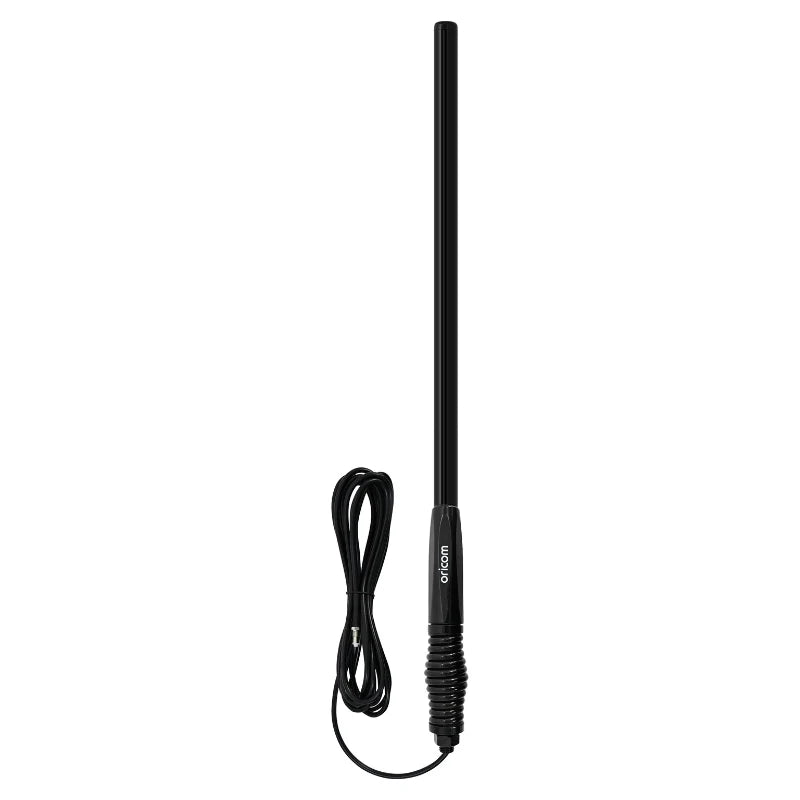

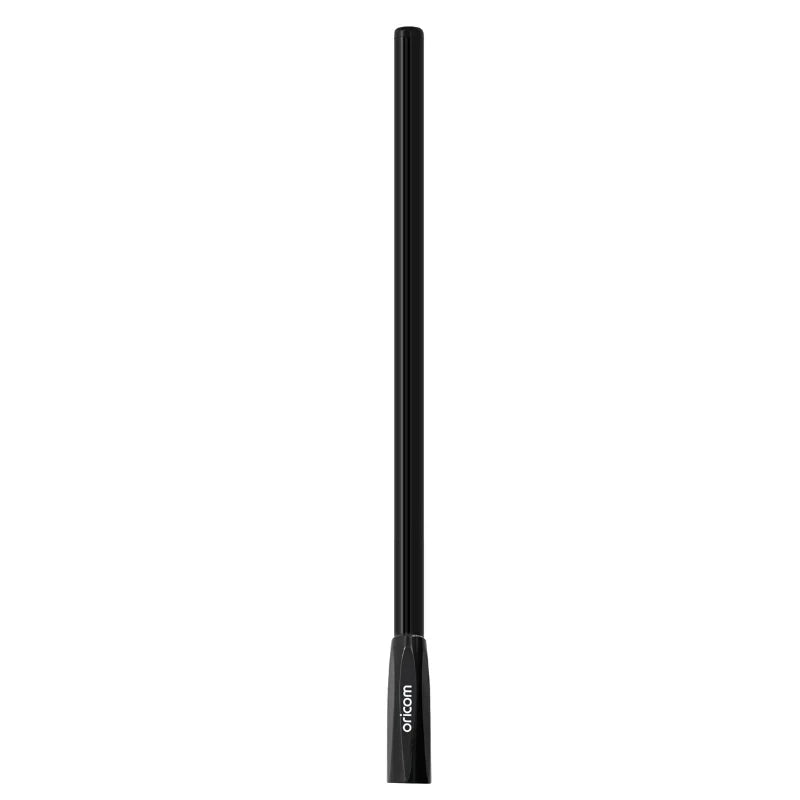

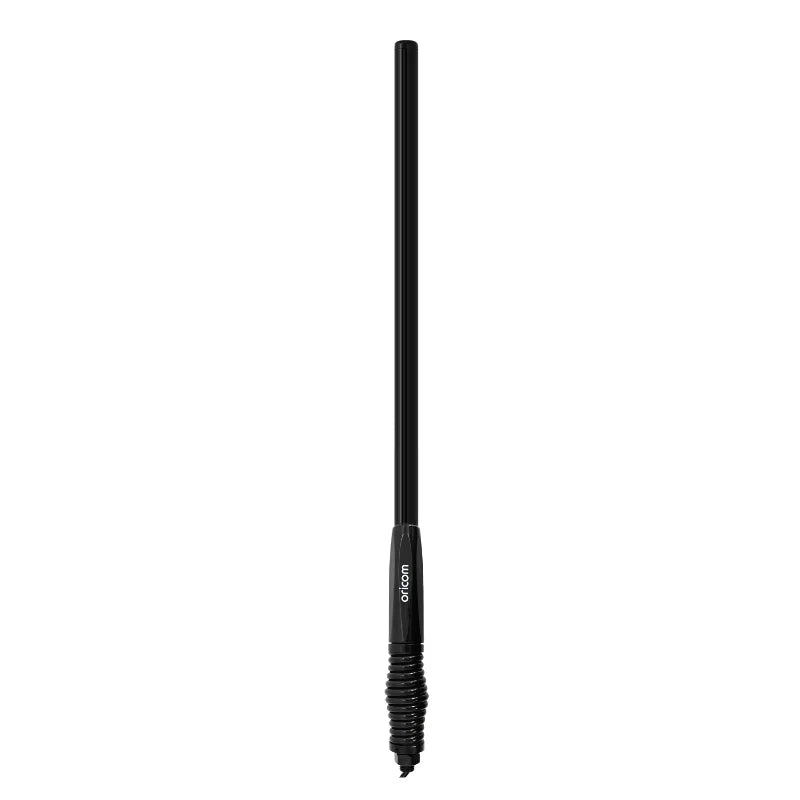

📡 ANU856 3dBi OFF-ROAD ANTENNA

The ANU856's 3dBi gain provides a broader radiation pattern than higher-gain touring antennas, making it particularly attractive for hills, undulating tracks and mixed off-road terrain.

• 📡 Gain: 3dBi
• 📏 Antenna Length: 665mm
• 📡 Detachable Fibreglass Pole

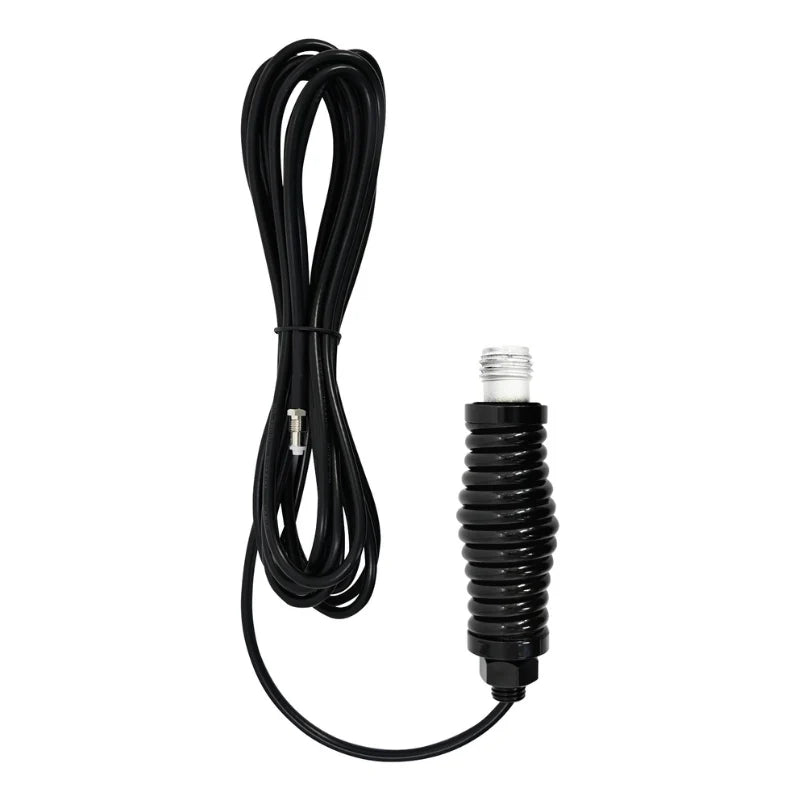

• 🔌 4.5m Low-Loss Coaxial Cable
• 🔌 Pre-Terminated FME Connector
• 🔧 PL259 Adaptor
• 🛡️ 3 Year Antenna Warranty

⚠️ Antenna gain does not guarantee communication distance. Actual range depends on terrain, mounting position, installation quality, surrounding obstacles and repeater availability.

📦 PACKAGE CONTENTS

• 📻 Oricom UHF390R 5 Watt UHF CB Radio
• 🎙️ Heavy-Duty Controller Speaker Microphone
• 🔌 2 × Microphone Extension Cables
• 📡 Oricom ANU856 3dBi UHF CB Antenna
• 🔌 4.5m Low-Loss Coaxial Cable
• 🔌 Pre-Terminated FME Connector
• 🔧 PL259 Adaptor

📋 TECHNICAL SPECIFICATIONS

Pack Model: UHF390R4X4

Radio Model: UHF390R

RF Output Power: 5 Watts Maximum

Instant Replay: Up to 10 Minutes Recording

UHF CB Channels: 80 – 75 Voice Channels

Frequency Range TX/RX: 476.425–477.4125MHz

Channel Spacing: 12.5kHz

Operating Modes: Simplex / Repeater

Repeater TX Offset: +750kHz

Scanning: Open / Priority

Scanning Speed: 130ms Per Channel

Priority Channel: Yes

CTCSS / DCS: 38 / 104

Display: Tri-Colour LCD – Amber / Red / Green

Automatic Level Control: Yes

External Speaker Connection: 3.5mm Jack

Antenna Impedance: 50 Ohms

Nominal Operating Voltage: 13.8V DC

Operating Voltage Range: 10–15V DC

Over-Voltage Protection: Voltage Regulator System

Over-Current Protection: 2A Fuse

Reverse-Polarity Protection: Shunt Diode

Frequency Stability: ±2.5ppm

Transmit Current: Approximately 1.7A with 50-Ohm Antenna Termination

Receiver Type: Direct Conversion via Single DSP Chip

Maximum Usable Sensitivity: Less Than -122dBm at 12dB SINAD

Maximum Audio Output: 3 Watts

Transceiver Dimensions (H × W × D): 27 × 102 × 85mm

Transceiver Weight: 420g

Antenna Model: ANU856

Antenna Gain: 3dBi

Antenna Length: 665mm

Coaxial Cable Length: 4.5m

Antenna Warranty: 3 Years

Compliance: AS/NZS 4365:2011

Designed For: Australian Conditions

Radio Made In: Korea

🔧 BEFORE YOU BUY

• Designed for compatible nominal 12V systems within the stated 10–15V DC range
• Do not connect directly to a nominal 24V electrical system
• Confirm the 27 × 102 × 85mm transceiver fits your intended mounting location
• Allow sufficient clearance for the 665mm detachable antenna
• Plan the 4.5m antenna cable and microphone-extension routes before installation

❓ QUICK FAQ

What does Instant Replay do?

It allows recently received transmissions to be replayed if you miss or don't clearly hear them the first time.

What terrain suits the ANU856 3dBi antenna?

Its broader 3dBi radiation pattern makes it particularly suitable for hilly, undulating and mixed off-road terrain.

Can the fibreglass antenna be removed?

Yes. The ANU856 is described as having a detachable fibreglass pole.

Can this radio run directly from 24V?

No. The UHF390R is specified for 10–15V DC operation, so a suitable 24V-to-12V conversion solution is required in a nominal 24V vehicle.

What should I check before ordering?

Check the radio mounting space, vehicle supply voltage, antenna clearance and whether the ANU856's 3dBi configuration suits the terrain you normally travel through.

🏕️ BUILT FOR 4X4 TRACKS & CHANGING TERRAIN

The Oricom UHF390R4X4 combines full 5 Watt UHF performance, 10-minute Instant Replay and a compact controller-microphone installation with the ANU856 3dBi detachable antenna.

For 4WD tracks, hills and mixed off-road touring, it's a practical communication package designed to keep the installation compact and the conversation clear.
