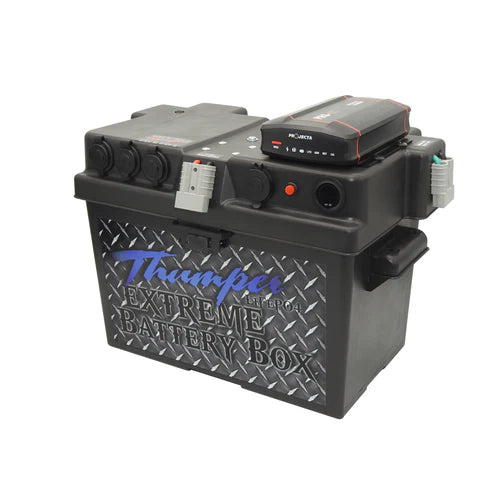

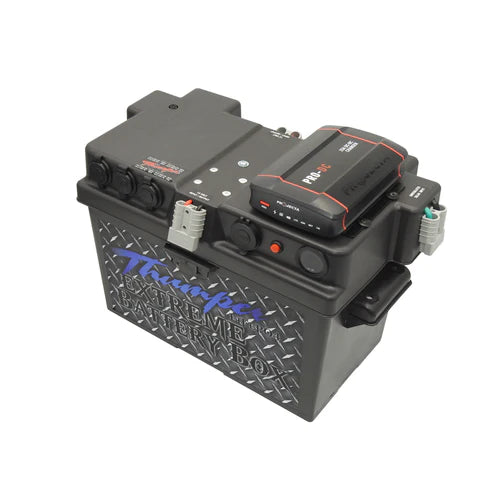

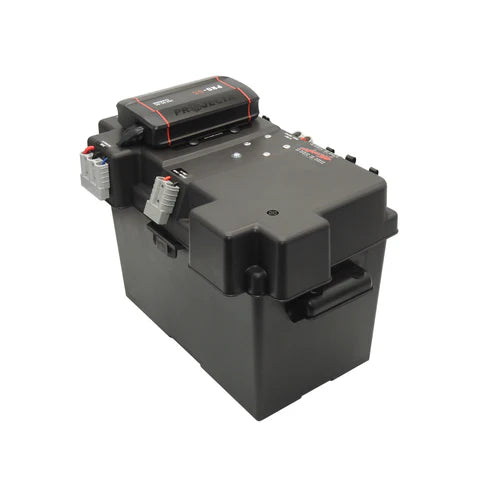

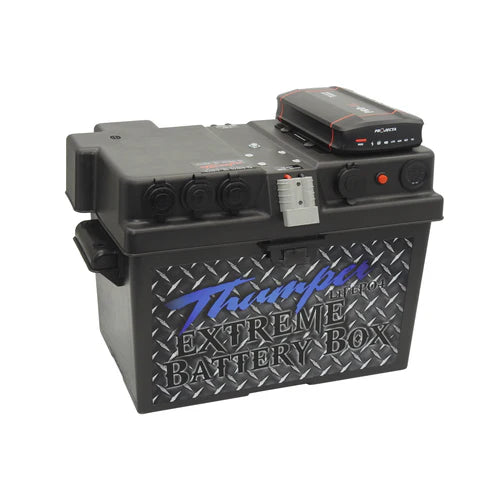

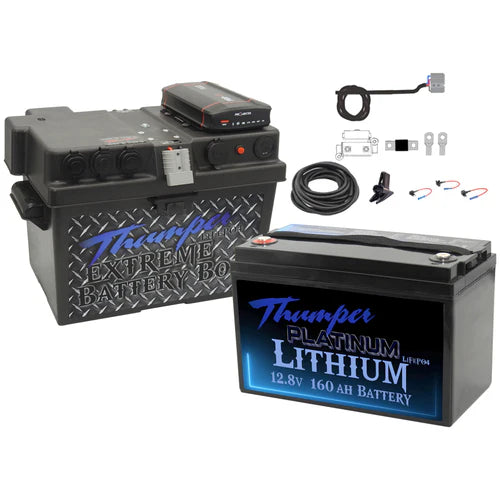

THUMPER MULTI CHEMISTRY PROJECTA PROCHARGE DC-DC BATTERY BOX

This unique battery box design is packed with numerous features and outlet sockets to accommodate for every individual.

This model battery box has been designed to suit all battery chemistries.

Altering the charging profile from AGM / GEL to LITHIUM is now as simple as pushing the small mode button on the front of the DC Charger.

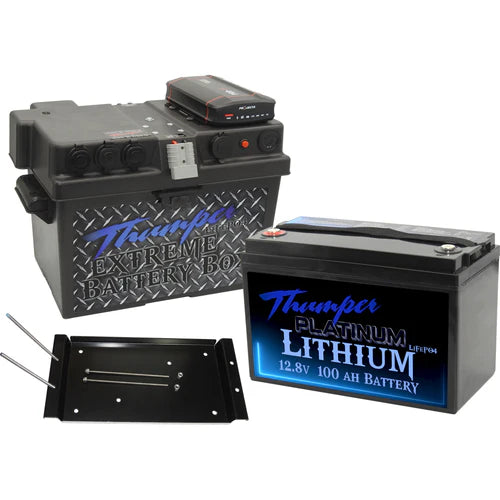

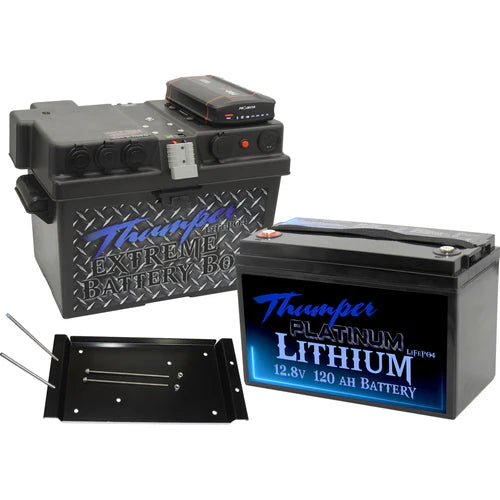

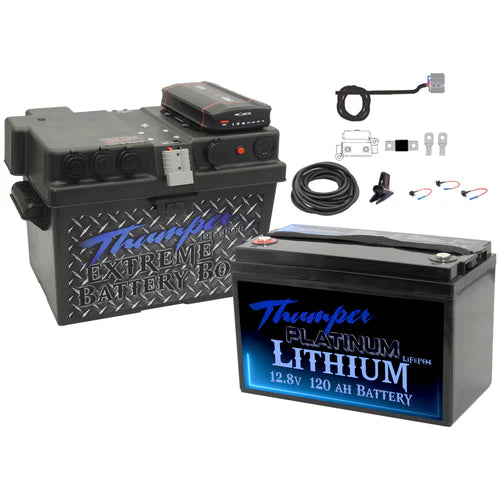

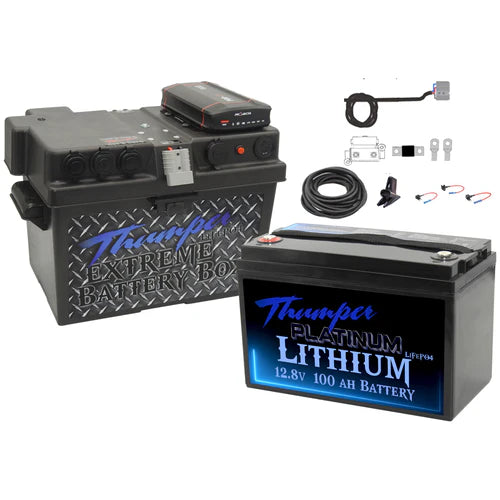

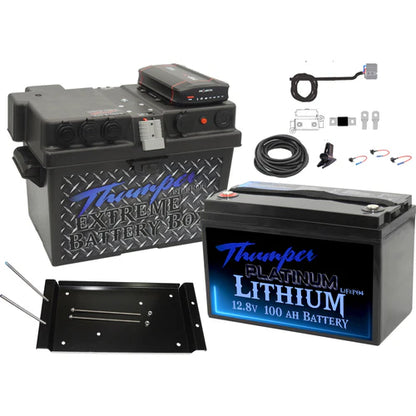

Available to purchase in multiple packages such as the DC box only, or packages to include Lithium or AGM batteries!

Key Features:

Built with the Projecta PDC25 DC Battery Charger (5 Year warranty)

Suits new model vehicles with smart / variable alternators

Compatible with older model vehicles

Increases low voltage output from vehicle to allow AUX battery to reach 100%

Acts to Isolate vehicle's main battery from AUX Battery once ignition has been switched off

Designed with dedicated Anderson for vehicle connection
Fitted with low voltage over-ride wire to suit low output vehicles.

Designed with an independent Anderson connector for solar panel input (suits unregulated Solar Panel - up to 400-450watts of solar)

Internally wired and protected with circuit breaker protection, allowing for an easy connection direct to the battery

Equipped with multiple outlet sockets for running 12 Volt appliances

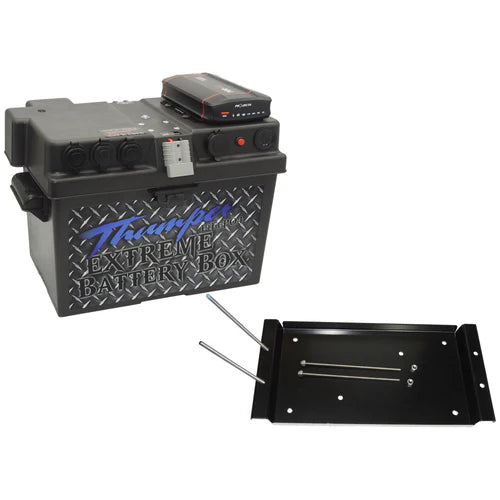

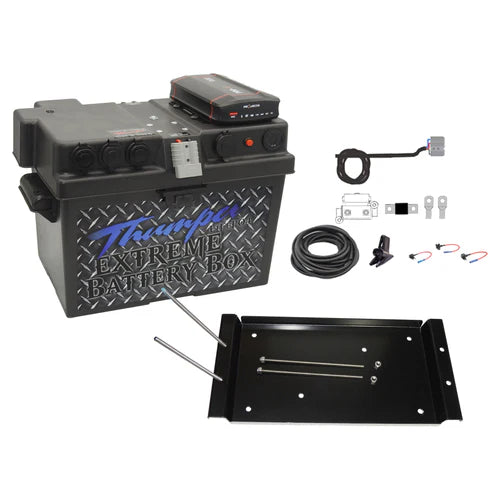

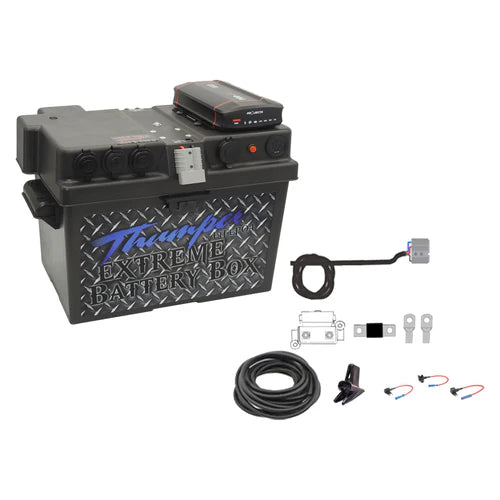

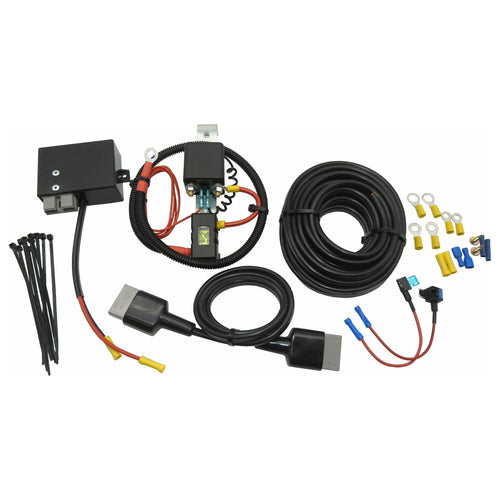

Available in multiple packages with and without wiring looms / mounting trays and battery.

This particular model suits a DUAL CHEMISTRY of both Lithium & AGM:

Comprising of:

1 x	Projecta PDC25 25Amp DC Battery charger (solar and vehicle compatible charge) - suitable for Lithium / Gel / AGM / Calcium
2 x	Marine grade Cigarette socket - rated to 16 Amps Includes rubber cap design to protect all sockets
1 x	Engel Fridge type socket (2 prong design) - rated to 16 Amps
1 x	Dual USB socket - rated to 2.5Amp (min rating)

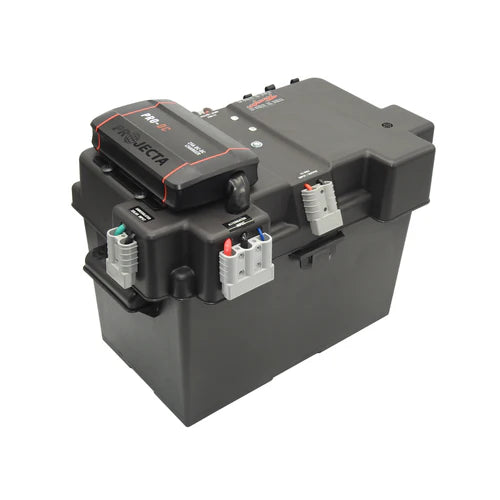

2 x	50 Amp Anderson connectors \| Bi-directional INPUT / OUTPUT connectors (one fitted on front of box and one fitted to rear)
1 x	50 Amp Anderson connector - dedicated for solar panel input - labelled "Unregulated solar input"
1 x	3 way 50 Amp Anderson connector - dedicated for vehicle (alternator) input - labelled "Alternator input"
	Internal cabling to allow you to simply connect straight to the battery terminals

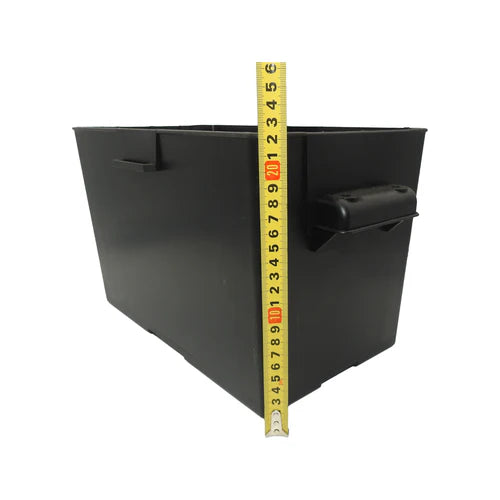

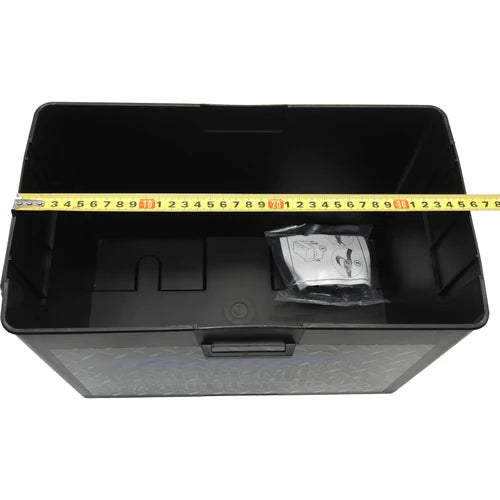

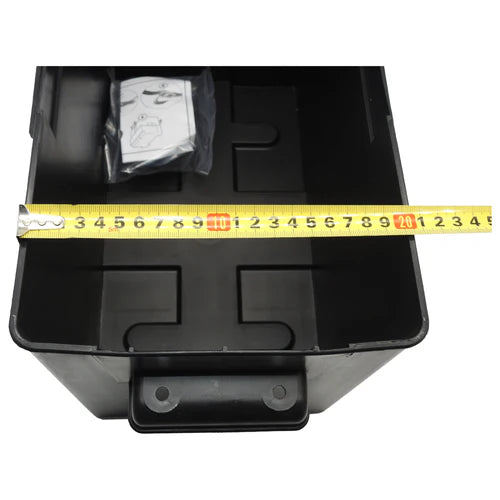

Internal Dimensions:

Length	352 mm
Width	200 mm
Height	220 mm (base only - lid allows for further height)

External Dimensions:

Length	410 mm
Width	260 mm
Height	315 mm

Dimensions includes all protruding outlet sockets

Specifications of DC Battery Charger

Part No.	PDC25
Warranty	5 years from date of purchase
Alternator Input voltage	9 - 32 Volts
Solar Input voltage	28Vdc
Solar Regulator	Yes - MPPT 25 Amp
IP rating	IP67
Output Current	Input 9-11Vdc 20A \| Input 11V-32dc 25A
Charge control	142V(Lithium), 14.4V(AGM), 14.7(WET), 14.7V(CAL)
Smart Alternator	12V Vehicle: Turn On: 12.2 - 20V Turn Off: <11.9V
	24V Vehicle: Turn On >24.4 - 32V, Turn Off <24V

Conventional Alternator	12V Vehicle: Turn On: 13.4 - 20V Turn Off: <12.8V
	24V Vehicle: Turn On >26.8 - 32V, Turn Off <25.6V

The Thumper Lithium batteries are completely serviceable! That's right! We are so confident in our range of Lithium batteries that you can remove the lid and service the battery or even upgrade the BMS capacity at any stage!

Need to run larger loads from just the one battery? No problem. With the ability to upgrade the BMS, the Thumper 100 AH can allow for a 200 Amp Discharge capacity to supports loads up to 2400 watts!

Thumper Lithium LiFePO4 batteries are fully sealed and are designed to be mounted on any angle for easy application.

Equipped with an internal battery management system (BMS), the Thumper Lithium offers safe charging and discharging with over temperature protection, under and over voltage cut off protection and also internal short circuit protection.

The LiFePO4 range of batteries are less than half the weight of a traditional AGM battery, whilst still offering all of the benefits of a heavy duty deep cycle.

These batteries are designed to hold the terminal voltage higher throughout each cycle, resulting in an increase depth of discharge and a longer overall run time with heavier draw appliances.

These batteries are quality! Check out the internal BMS on this battery compared to cheaper brands

Features:

• Less than half the weight of a traditional lead acid battery
• Higher voltage maintained for longer run times with appliances
• Proven quality and reliability
• Compatible with chargers with an AGM or lithium setting
• For best results: Use of a lithium charger is recommended
• 5 year warranty
• Increased cycles compared to traditional lead acid
• Designed to be wired parallel
• Parallel connection is non-limited
• This battery is NOT designed for series linking
• This battery is NOT designed for starting purposes or under bonnet applications
• In built Bluetooth monitoring system!

*Please note that all upgrade options to BMS are modified after purchase and will incur 24 hours delay in dispatch time

Technical Specifications:

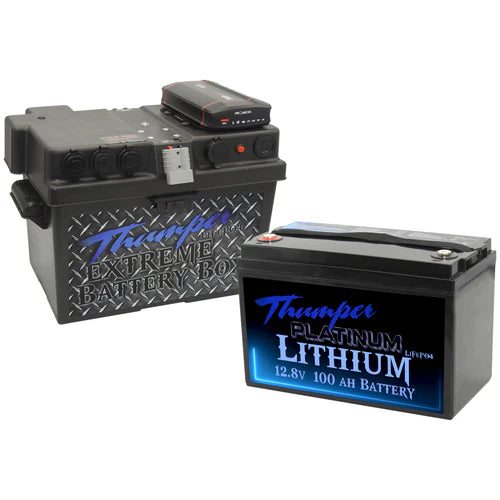

Model No.	TL-100BT
Nominal Voltage	12.8 V
Rated Capacity	100 AH
Cell Type / Chemistry	Prismatic / LiFePO4
Bluetooth	Yes

Dimensions and Weight:

Length	328 mm
Width	172 mm
Height (Total)	220 mm
Weight	9.75 Kg

Operating Temperature Range:

BMS High temp cut out / Reconnect	80˚C / 50˚C
Discharge	-20˚C ~ 60˚C
Charge	-20˚C ~ 45˚C
Storage	-5˚C ~ 35˚C

Charging Methods:

Recommended Charge Current	10 ~ 50 Amps
Max Charge Current	70 Amps

Discharge:

Max discharge current (continuous)	100 Amps *upgrade available
Peak discharge current (1-3 seconds)	300 Amps
BMS Current cut off	>100.5A 10s
BMS Current cut off	>120.0A 3s
BMS Current cut off	>150.0A 1s
BMS Voltage cut off / Reconnect	10.0V / 12.0V
Self Discharge per month:	≤3%
Warranty	5 years from date of purchase \| as of June 2023

Bluetooth APP:

The App offers the ability to monitor and control:

Battery capacity
Battery Voltage
Percentage remaining capacity (Example: 0% - 100%)
Battery charging current
Battery discharge current
Battery output disconnect
Battery charge disconnect
Number of cycles consumed
Auto cell calibration
Auto cell protection

Estimated time remaining
Estimated charging time
AH capacity - Including remaining AH & AH consumed
Total cell balancing
High cell voltage
Low cell voltage
Cell voltage difference
Monitoring of dual battery sensors
Ability to parallel link and re-program AH capacity

The Thumper Lithium batteries are completely serviceable! That's right! We are so confident in our range of Lithium batteries that you can remove the lid and service the battery or even upgrade the BMS capacity at any stage!

Need to run larger loads from just the one battery? No problem. With the ability to upgrade the BMS, the Thumper 100 AH can allow for a 200 Amp Discharge capacity to supports loads up to 2400 watts!

See video here for more information on the BMS:

Thumper Lithium LiFePO4 batteries are fully sealed and are designed to be mounted on any angle for easy application.

Equipped with an internal battery management system (BMS), the Thumper Lithium offers safe charging and discharging with over temperature protection, under and over voltage cut off protection and also internal short circuit protection.

The LiFePO4 range of batteries are less than half the weight of a traditional AGM battery, whilst still offering all of the benefits of a heavy duty deep cycle.

These batteries are designed to hold the terminal voltage higher throughout each cycle, resulting in an increase depth of discharge and a longer overall run time with heavier draw appliances.

These batteries are quality! Check out the internal BMS on this battery compared to cheaper brands

Features:

• Less than half the weight of a traditional lead acid battery
• Higher voltage maintained for longer run times with appliances
• Proven quality and reliability
• Compatible with chargers with an AGM or lithium setting
• For best results: Use of a lithium charger is recommended
• 5 year warranty
• Increased cycles compared to traditional lead acid
• Designed to be wired as parallel OR series
• Parallel connection is non-limited
• Max series voltage is 48 Volt (max 4 series)
• This battery is NOT designed for starting purposes or under bonnet applications
• In built Bluetooth monitoring system!

*Please note that all upgrade options to BMS are modified after purchase and will incur 24 hours delay in dispatch time

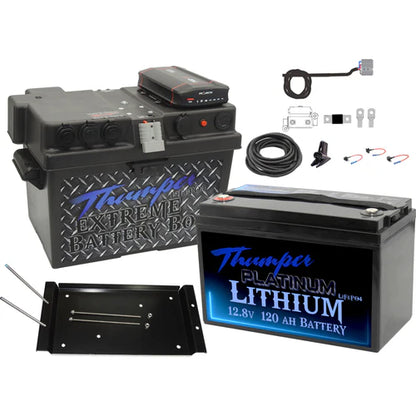

Technical Specifications:

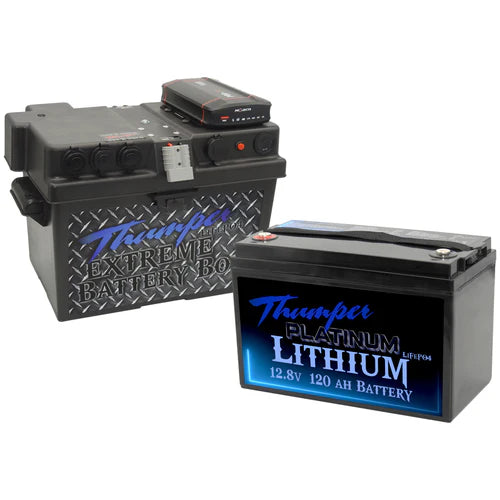

Model No.	TL-120BT
Nominal Voltage	12.8 V
Rated Capacity	120 AH
Cell Type / Chemistry	Prismatic / LiFePO4
Bluetooth	Yes

Dimensions and Weight:

Length	328 mm
Width	172 mm
Height (Total)	220 mm
Weight	10.95 Kg

Operating Temperature Range:

BMS High temp cut out / Reconnect	80˚C / 50˚C
Discharge	-20˚C ~ 60˚C
Charge	-20˚C ~ 45˚C
Storage	-5˚C ~ 35˚C

Charging Methods:

Recommended Charge Current	10 ~ 50 Amps
Max Charge Current	80 Amps

Discharge:

Max discharge current (continuous)	120 Amps *upgrade available
Peak discharge current (1-3 seconds)	300 Amps
BMS Current cut off	>100.5A 10s
BMS Current cut off	>120.0A 3s
BMS Current cut off	>150.0A 1s
BMS Voltage cut off / Reconnect	10.0V / 12.0V
Self Discharge per month:	≤3%
Warranty	5 years from date of purchase \| as of June 2023

Bluetooth APP:

The App offers the ability to monitor and control:

Battery capacity
Battery Voltage
Percentage remaining capacity (Example: 0% - 100%)
Battery charging current
Battery discharge current
Battery output disconnect
Battery charge disconnect
Number of cycles consumed
Auto cell calibration
Auto cell protection

Estimated time remaining
Estimated charging time
AH capacity - Including remaining AH & AH consumed
Total cell balancing
High cell voltage
Low cell voltage
Cell voltage difference
Monitoring of dual battery sensors
Ability to parallel link and re-program AH capacity

The Thumper Lithium batteries are completely serviceable! That's right! We are so confident in our range of Lithium batteries that you can remove the lid and service the battery or even upgrade the BMS capacity at any stage!

Need to run larger loads from just the one battery? No problem. With the ability to upgrade the BMS, the Thumper 100 AH can allow for a 200 Amp Discharge capacity to supports loads up to 2400 watts!

See video here for more information on the BMS:

Thumper Lithium LiFePO4 batteries are fully sealed and are designed to be mounted on any angle for easy application.

Equipped with an internal battery management system (BMS), the Thumper Lithium offers safe charging and discharging with over temperature protection, under and over voltage cut off protection and also internal short circuit protection.

The LiFePO4 range of batteries are less than half the weight of a traditional AGM battery, whilst still offering all of the benefits of a heavy duty deep cycle.

These batteries are designed to hold the terminal voltage higher throughout each cycle, resulting in an increase depth of discharge and a longer overall run time with heavier draw appliances.

These batteries are quality! Check out the internal BMS on this battery compared to cheaper brands

Features:

• Less than half the weight of a traditional lead acid battery
• Higher voltage maintained for longer run times with appliances
• Proven quality and reliability
• Compatible with chargers with an AGM or lithium setting
• For best results: Use of a lithium charger is recommended
• 5 year warranty
• Increased cycles compared to traditional lead acid
• Designed to be wired as parallel OR series
• Parallel connection = No limit
• Max series voltage is 51.2 Volt (max 4 series)
• This battery is NOT designed for starting purposes
• This battery is NOT designed for under bonnet application

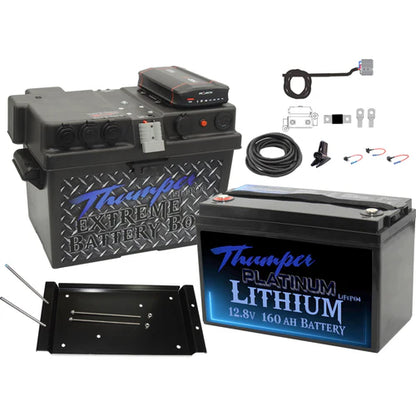

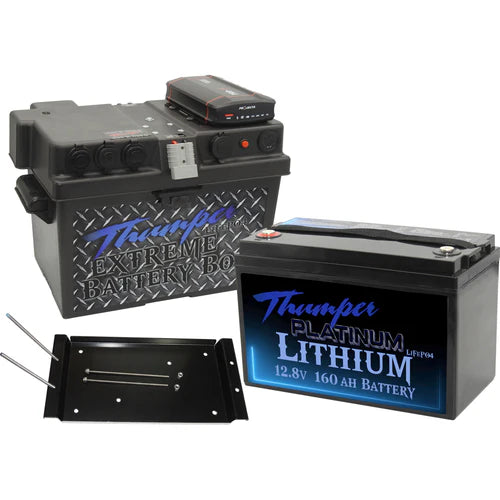

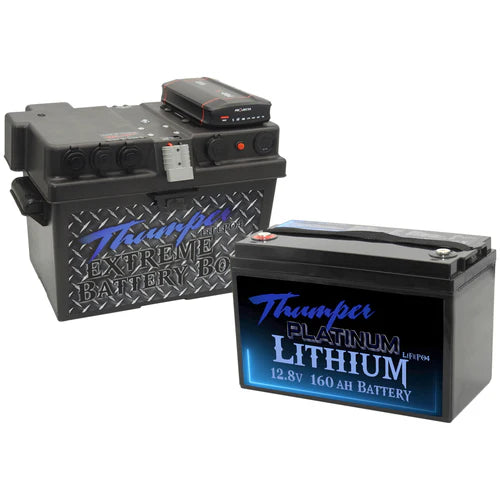

Technical Specifications:

Model No.	TL-160BT
Nominal Voltage	12.8 V
Rated Capacity	160 AH
Cell Type / Chemistry	Prismatic / LiFePO4
Case Material	ABS - Sealed
Case IP rating	IP65
Terminal type	M8
BMS Build in	Yes - Bluetooth
Series connection	Max 51.2V (4 cells)
Parallel connection	No limit
Warranty	5 years from date of purchase

Dimensions and Weight:

Length	330 mm
Width	172 mm
Height (Total)	215 mm (total height with terminals 230mm)
Weight	14.7 ±0.2 Kg

Operating Temperature Range:

BMS High temp cut out / Reconnect	65˚C ± 3˚C / 50˚C
Discharge	-20˚C ~ 60˚C ± 25% Relative Humidity
Charge	0˚C ~ 45˚C ± 25% Relative Humidity
Storage	-10˚C ~ 40˚C ± 25% Relative Humidity

Charge Specifications:

Recommended Charge Current	10 ~ 50 Amps
Rec Charge Current	≤ 150 Amps
Float Charge Voltage	≤ 13.8V
Boost Charge Voltage	≤ 14.2V
Charge current (0 to -10˚C)	< 0.1C
Charger current (-20 to -10˚C)	< 0.05C

Discharge Specifications:

BMS rated capacity	150 A ± 10%
Max discharge current (continuous)	160 Amps
Rec discharge current	≤ 150 Amps
Low Voltage Protection	9.0 ± 0.4V
Self Discharge per month:	≤3%

BMS Specifications:

BMS rated capacity	150 A ± 10%
Max discharge current (continuous)	160 A
Balancing Voltage	13.2± 0.2V
Balancing Current	200 ± 500mA
Shortage Current	1800 ± 400A
BMS Voltage cut off	8.8 ± 0.4V
BMS Reconnect	10.40 ± 0.4V
High Voltage Protection	15± 0.2V 2S±1S
High Voltage Reconnect	14.4 V
BMS High temp cut out / Reconnect	65˚C ± 3˚C / 50˚C

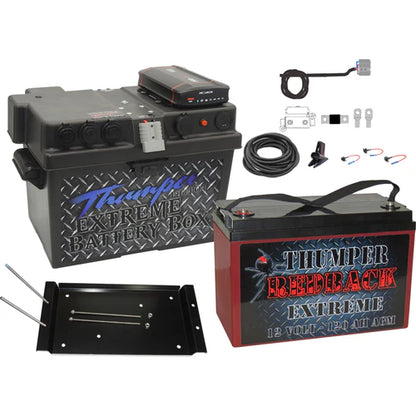

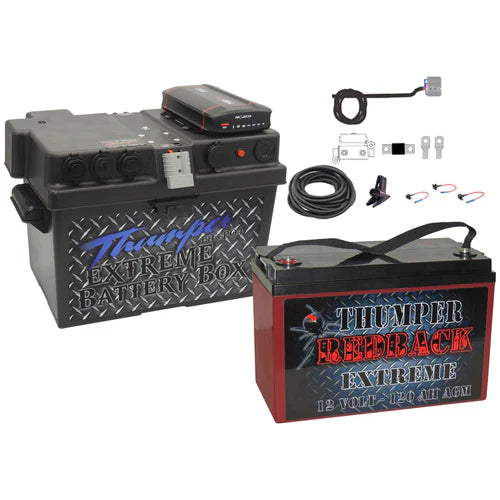

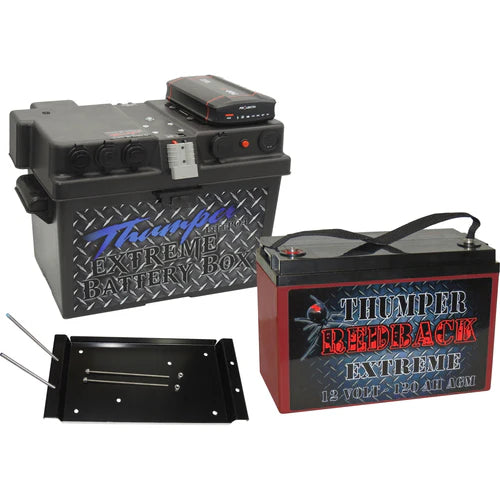

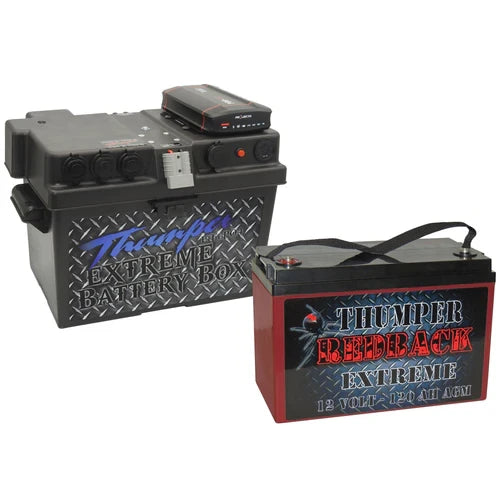

This heavy duty AGM battery is the perfect option for the use in Caravans, Battery Boxes, Motor homes, Camper trailers or even as a second under bonnet battery.

The Redback Extreme takes the technology of an AGM battery to a whole new level! Built with heavier internal lead plates, this battery is designed for continual discharge for heavy draw appliances. Its bonded element design allows for strength against corrugated or rough terrain, making it vibration resistant and the perfect choice for an off road battery!

Whilst the Redback Extreme is not designed as a primary cranking battery it does still hold the capacity to start up to a 10Lt diesel engine. The Extreme is designed as a secondary battery rather than a primary starting battery.

Due to design of the heavier internal plates within the Extreme battery, it allows for rapid discharge and recharge of heavy draw appliances to be continually used.

Due to the internal characteristics of the battery, the Redback Extreme will allow for longer life over that of a standard AGM battery.

Maintenance Free
Leak Proof
Rapid recharge rate due to a low internal resistance
Can reach full recharge within 2 – 3 hours from alternator
Excellent standby use
Excellent long term storage
Heat resistant
Vibration resistant due to bonded element design

The Thumper Redback has a self discharge of less than 5 % per year

(wet cell batteries discharge approx 3 – 4 % per week)

Maximum discharge current - 1250 Amp 5 seconds

Maximum charging current - 36 Amps

Float charging voltage – 13.6 – 13.8 Volts @ 25⁰C

Heavy Duty ABS case suitable for under bonnet use

Completely sealed – can be mounted on any side
Can be mounted in sealed compartment
Under bonnet use
Superior discharge ability compared to a wet cell
High CA output
Up to 5 times faster recharge than a wet cell battery
Full 2 year manufacturer warranty!

Discharge Rate                  Ah Capacity

20 Hour Rate                        128 Ah

10 Hour Rate                        120 Ah

    5 Hour Rate                        104 Ah

    1 Hour Rate                          85 Ah

Weight – 32.5kg

Length – 330mm

Height – 220mm

Width – 175mm

2 Year Warranty

This loom kit is designed for easy DIY install

Kit Includes

6M 8mm twin core cable with a 3 socket Anderson Plug to plug into battery box
1x midi fuse holder
1x 40A midi fuse
2x 10-8 cable lugs (for connection onto battery)
3x add a circuit (1 of each type for connection to ignition fuse)

Thumper have now released a mounting tray designed specifically to the fit the Thumper range of battery boxes.

The Tray has been designed with several mounting holes at the bottom of the tray to allow for a secure fit to the vehicle or camper trailer.

The set up comes equipped with 4 x steel 'hold down rods' and locking nuts, which perfectly secure through the side handles of the Thumper box.

As the Thumper box is designed with the 'Quick connect' lid to secure the lid to the battery base, this tray now offers a secure way to fasten your battery base to the vehicle with complete safety in mind.

This introduction to the range allows for a complete set up, which remains easy to remove if and when the need arises.

Designed by Blue Apple Thumper for the Thumper battery boxes.

* Note: This listing does not include the battery box

Item Specifications

Code:	BB-TRAY
Weight:	686 grams
Package Includes:	1x Battery tray 4x Steel rods 4x Adjustable lock nuts
Battery Box dimensions to suit box	Length = 332mm Width = 188mm
