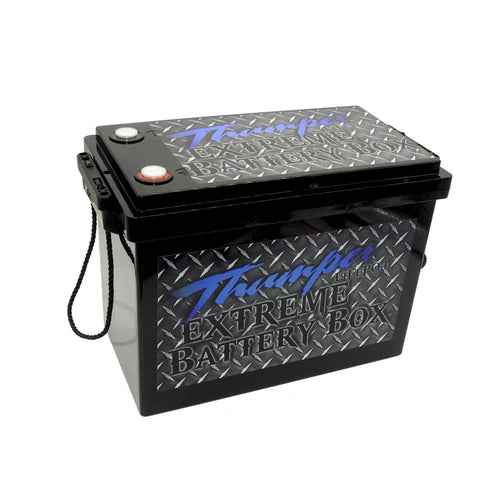

The Thumper Lithium Storage Box is specifically designed for safely housing Lithium LiFePO4 batteries in caravans and motorhomes. It complies with all current Australian lithium installation standards, making battery installation quick, safe, and stress-free.
Key Features
Safe and Compliant: Built to meet Australian Lithium installation requirements.
Durable Construction: Sealed ABS container with an external vent for optimal airflow.
Compact and Versatile: Can be mounted directly to your vehicle via the bottom of the box, or optionally on a mounting tray with hold-down bolts.
Fits Popular Battery Sizes: Designed for batteries measuring 335 x 175 x 250mm, including Thumper 100AH, 120AH, and 160AH models.

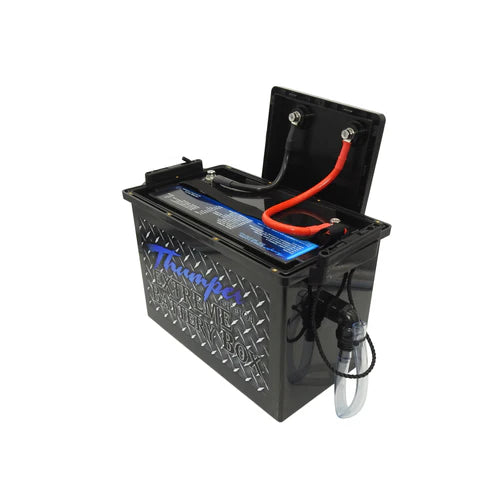

Pre-Fitted Cables: Comes with 25mm² internal cables ready for connection to battery terminals.
Easy Installation
Mount the storage box to your caravan or motorhome using the fastening points at the bottom, or via an external mounting tray (optional).

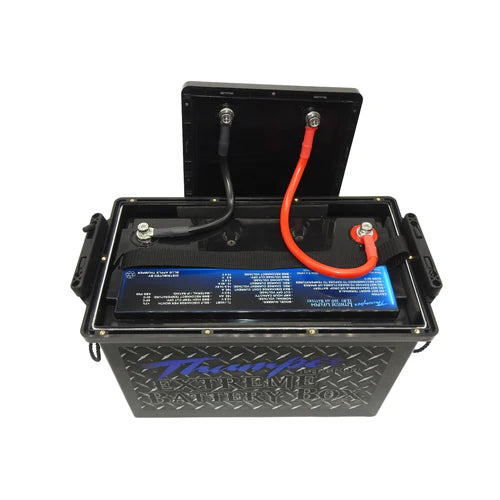

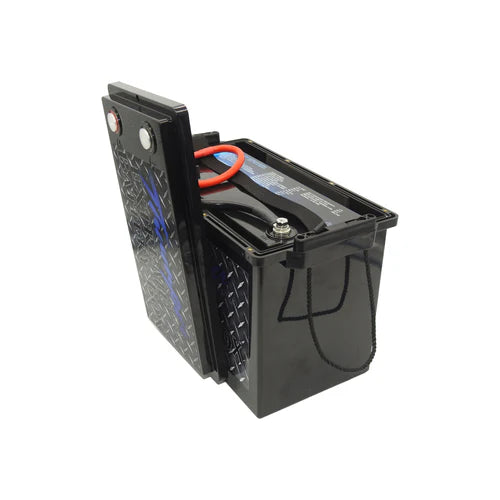

Place the Lithium battery inside, with terminals at the rear of the box (vent on right-hand side).

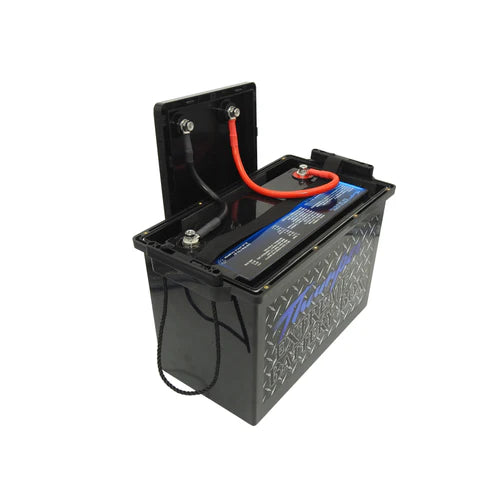

Connect your battery terminals to the pre-fitted cables (RED = positive, BLACK = negative).

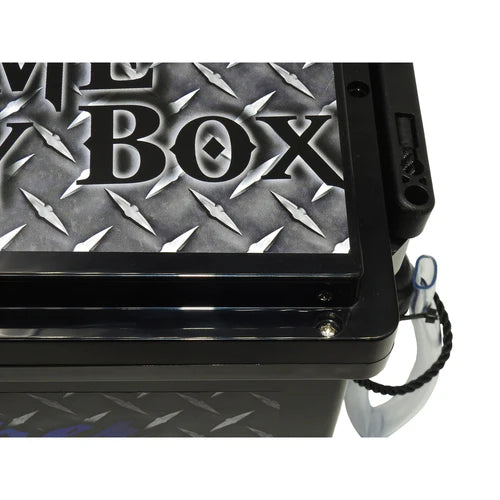

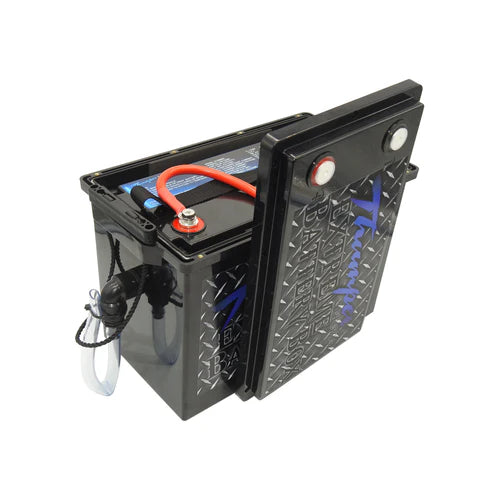

Run the vent externally to ensure proper airflow.
Specifications
Part Number: TL-SB
Material: ABS Plastic
External Dimensions: 384mm L (including vent) x 205mm W x 270mm H

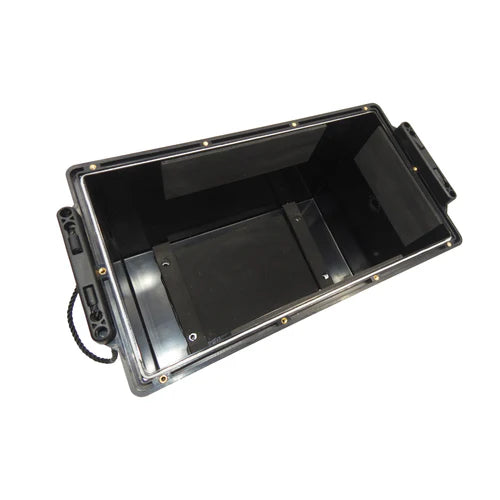

Internal Dimensions: 335mm L x 175mm W x 250mm H (with lid)
Weight: 2.35kg (without battery)
Pre-Fitted Cables: Yes, 25mm²
Hose Size: 13mm
Warranty: 3 years
Why Buy From Home of 12 Volt Northern?
We not only supply genuine Thumper Lithium Storage Boxes, but also offer professional installation services in our workshop. Our team can safely mount and connect your Lithium batteries, ensuring compliance and optimal performance for your caravan or motorhome.
