THUMPER

THUMPER LITHIUM BATTERY LINK HUB 100AH + BLUETOOTH

THUMPER LITHIUM BATTERY LINK HUB 100AH + BLUETOOTH

SKU:TBH100-LK-BT

Regular price $1,049.00
Regular price Sale price $1,049.00
Sale Sold out

Tax included. Shipping calculated at checkout.

Need more power?

What do you do if you have purchased a Thumper Lithium Battery Hub already, however, now you need more power?

No problem! Thumper now offer a simple solution of a Thumper Battery Link Hub.

The Link Hub is designed in two models in both 100 AH and 120 AH capacity, to include an option with and without sockets. The Link Hub simply 'BINDS' with the Master Hub to increase both Amp Hour capacity and discharge capacity to offer the ability to run larger discharge appliances for a longer duration.

The Thumper Lithium Battery Hub can be linked to either a 100 AH or 120 AH Link Hub, and you can even link a 100 AH with a 120 AH!

The Bluetooth App will allow the option to reset the total Amp Hour capacity to monitor both Hub's together, or instead, the user can continue to monitor each battery separately.

The App will provides the ability to either run both Hub's in parallel with one another, equally sharing the discharge or charge load between the two, or, instead the user may choose to keep the Thumper Link Hub as a reserve battery and activate it only when they wish to start using. All of this and more is available from the FREE Bluetooth App!

This particular model Link Hub is designed without sockets and is designed to be charged and maintained through the use of any of the Thumper Battery Master Hub's.

The Thumper Battery Hub has been designed to offer both portability and reliability with its light weight and compact design. Now equipped with Bluetooth technology for remote battery monitoring of capacity, cell temperature and remote power shut down; The features of the Thumper Lithium Battery Hub Bluetooth are truly second to none.

Available in several models, including a 100 AH or 120 AH capacity and with the option of a DC battery charger, the Thumper Battery Hub includes everything required for an independent battery system.

The Thumper Lithium Battery Hub is the smallest, most compact, independent battery system available today. It offers the largest usable battery capacity compared to any rival product available on the market with 100% usable capacity down to 12.4 volts and is 100% Bluetooth monitored.

 This package includes the following items:

  • Thumper Lithium Battery Hub 100AH LINK HUB (No DC / No sockets)
  • Secure battery mounting tray with strap

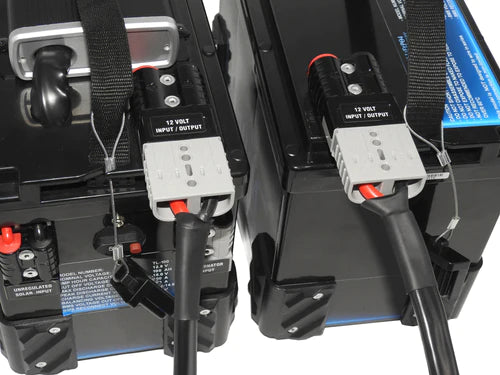

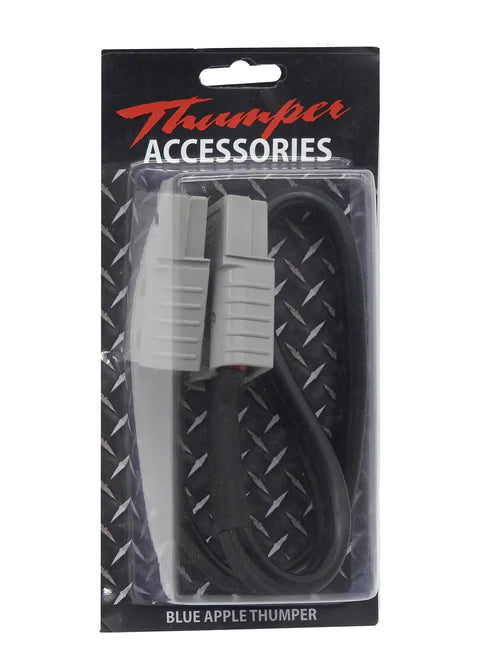

  • 120 Amp Anderson to 120 Amp Anderson link lead
  • Complete in built Bluetooth APP
  • 5 year warranty on battery



**Note: This particular model does not include a 240 volt battery charger or vehicle wiring loom as these items are provided with the Master Hub options **

 Bluetooth

The Thumper Lithium Battery Hub is fitted with one of the most comprehensive Bluetooth monitoring Apps available on the market.

The App offers the ability to monitor and control:

  • Battery capacity
  • Battery Voltage
  • Percentage remaining capacity (Example: 0% - 100%)
  • Battery charging current
  • Battery discharge current
  • Battery output disconnect
  • Battery charge disconnect
  • Number of cycles consumed
  • Auto cell calibration
  • Auto cell protection
  • Estimated time remaining
  • Estimated charging time
  • AH capacity - Including remaining AH & AH consumed
  • Total cell balancing
  • High cell voltage
  • Low cell voltage
  • Cell voltage difference
  • Monitoring of dual battery sensors
  • Ability to parallel link and re-program AH capacity



Thumper offer a number of videos to help explain in more detail the operation of the Bluetooth App, however, a few key points are covered in this listing (videos to be uploaded soon).

For any technical advice regarding the App, we recommending contacting our team direct directly.

 Bluetooth App | Home screen - explained:

  Bluetooth App | Control Screen - Explained:

The Bluetooth app offers the ability to control the charge or discharge loads from the battery by remotely switching ON / OFF the power via the Bluetooth App.

Simply go into the CONTROL panel of your Bluetooth App and press:

CHARGE SWITCH  - to remotely disconnect all charge loads from the battery. Turning this particular switch OFF will prevent the battery from taking a charge load from any charging source.

DISCHARGE SWITCH  - to remotely disconnect all discharge loads from the battery. Turning this particular switch OFF will prevent the battery from running any appliance as it disconnects all loads from the battery. This is the perfect option to use when storing the battery.
