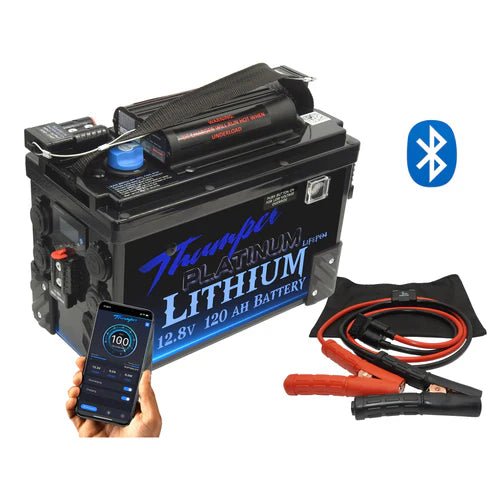

⚡ Thumper Lithium Battery Hub 120AH – Jump Start Edition
The Lithium Battery Hub That Can Jump Start Your Vehicle
🚨 This is a game changer.
The Thumper Lithium Battery Hub 120AH Jump Start Edition is the world’s first fully integrated portable lithium battery hub with built-in jump-start capability, combining massive lithium power, ultra-fast charging, smart Bluetooth monitoring, and emergency vehicle starting — all in one ultra-compact unit.
Designed for tourers, campers, tradies, and off-road adventurers, this powerhouse delivers true independence, ultimate safety, and unmatched versatility.
🔥 Why This Is A Game Changer
✔ Jump start petrol & diesel vehicles
✔ 120AH lithium – 100% usable power
✔ Built-in Bluetooth monitoring & control
✔ Redarc BCDC 25A DC-DC charger fitted
✔ MPPT solar charging built in
✔ 240V lithium charger included
✔ Full vehicle wiring loom supplied
✔ 200A high-output BMS
✔ Ultra-lightweight & compact
✔ True plug & play design
🚀 Performance
❄️ Run a 60L compressor fridge for 3–4 days
🚗 Jump start up to 6L petrol / 4–5L diesel engines
☀️ Charge via solar, alternator or 240V
⚡ Run inverters, compressors, pumps & appliances
📱 Full Bluetooth monitoring & remote control
🌟 Perfect For
🚙 4WD Touring & Off-Road Adventures
🚐 Caravans & Motorhomes
⛺ Remote Camping & Overlanding
🛠 Tradies, Mobile Workshops & Field Work
🛥 Marine & Boating Applications
🏕 Emergency Backup Power
🚨 Vehicle jump starting in remote locations
🔋 Built-In Jump Start System – True Emergency Protection
Unlike ordinary power stations, the TBH120RD-JS-25A includes dedicated jump start circuitry, delivering:
⚡ Up to 900A starting current

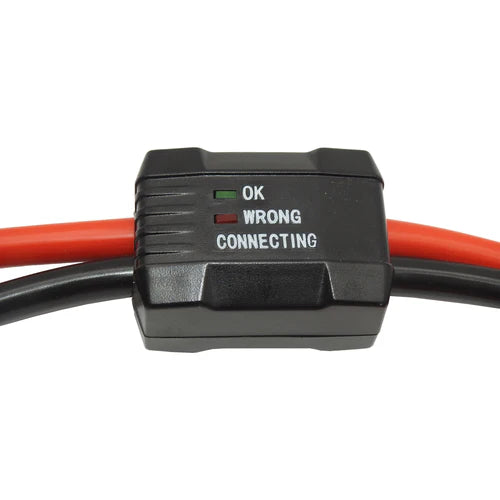

⚡ Spike & surge protected jump leads included
⚡ Reverse polarity protection

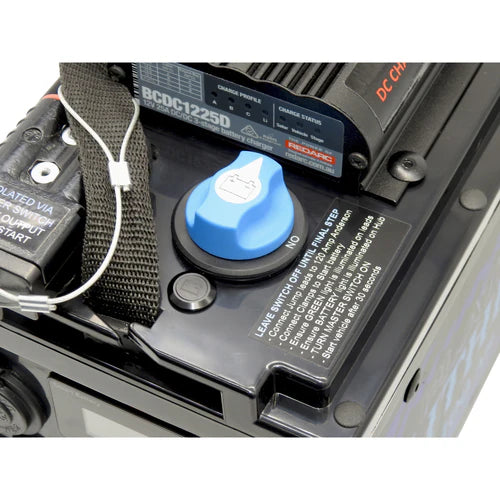

⚡ Master jump-start safety switch
✔ Safely jump start petrol engines up to 6.0L
✔ Safely jump start diesel engines up to 4–5L
📱 Smart Bluetooth Monitoring & Control
Control and monitor everything from your smartphone:
- Battery capacity (%)
- Voltage & current
- Charge & discharge status
- Remaining runtime
- Estimated charging time
- Individual cell monitoring
- Load disconnect control
- Charge source control
- Cell balancing
- Fault & protection alerts
- Parallel linking & AH reprogramming
🎯 Remote ON / OFF control of charge & discharge loads
⚡ Massive Output – 200A Smart BMS
The integrated 200A Battery Management System delivers:
⚡ 2400W continuous output
⚡ 2000A peak discharge
⚡ Safely powers inverters, compressors, pumps & heavy appliances
⚡ >99.5% efficiency
☀️ Multi-Source Charging – Power Anywhere
✔ Vehicle Charging: Redarc BCDC 25A DC-DC Charger
✔ Solar Charging: MPPT regulator – up to 450W input
✔ 240V Charging: Dedicated lithium charger included
Charge while driving, parked, or plugged into mains — even while powering appliances.

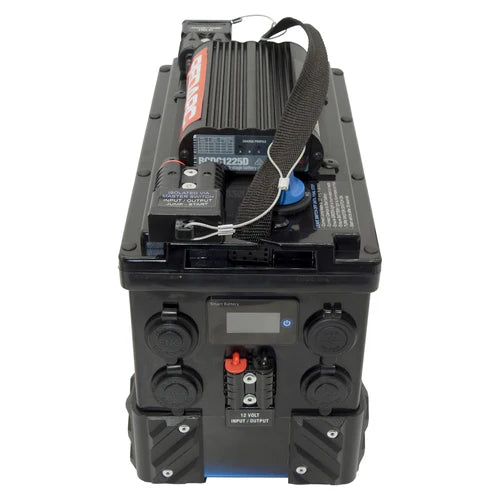

🔌 Extensive Connection Options
- USB fast charge ports
- Cigarette accessory socket
- Engel fridge socket
- 50A Anderson (12V input/output)
- 50A Anderson – alternator input
- 50A Anderson – solar input

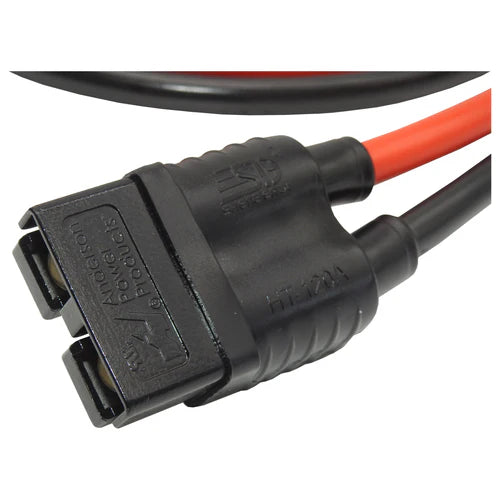

- Dual 120A Anderson connectors
- Manual circuit breaker

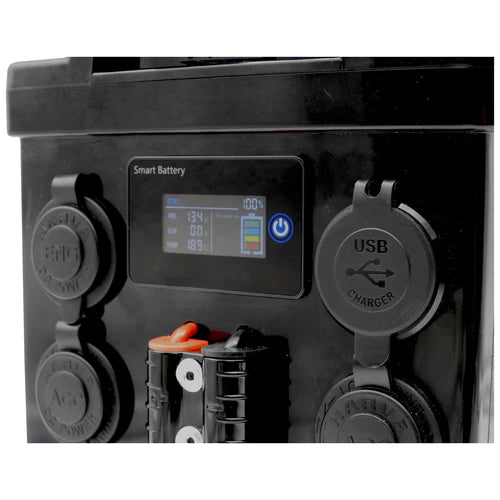

- Digital voltage display
- Low voltage override switch
📦 What’s Included – Complete Plug & Play Kit

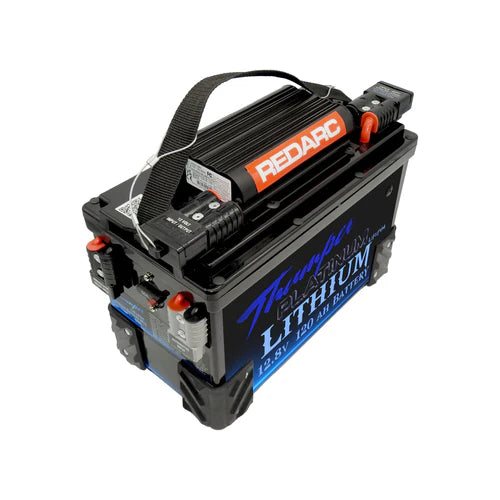

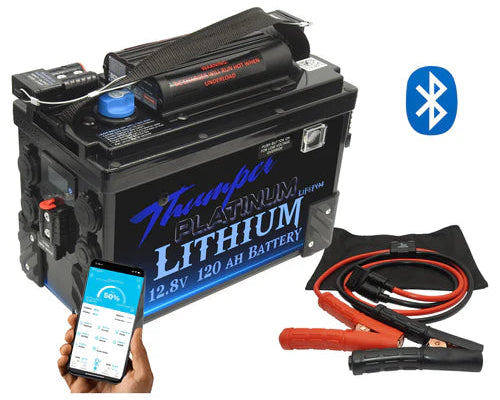

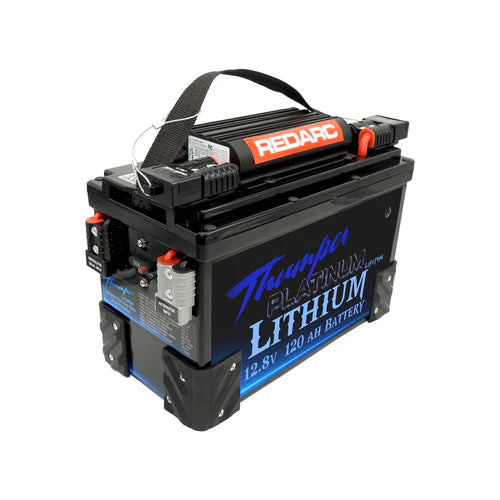

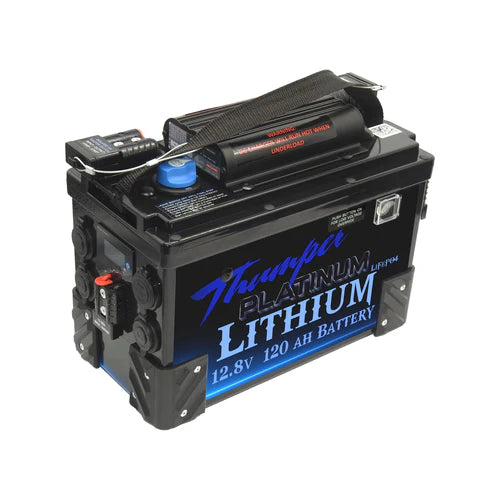

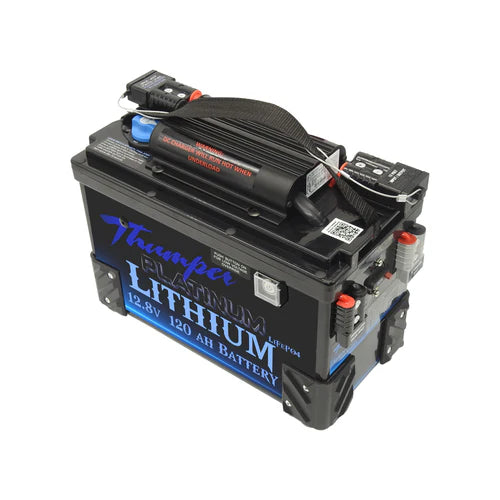

✔ Thumper Lithium Battery Hub 120AH Jump Start Edition

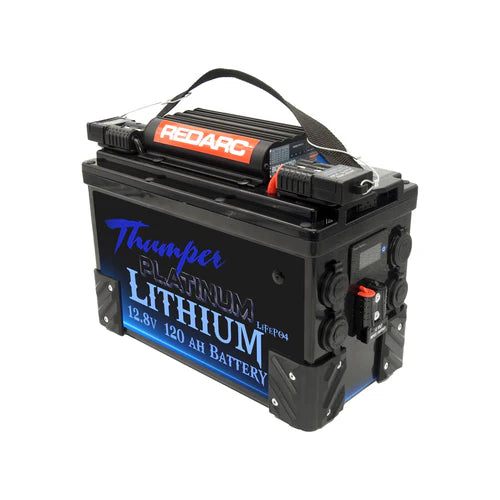

✔ Redarc BCDC 25A DC-DC Charger (pre-installed)

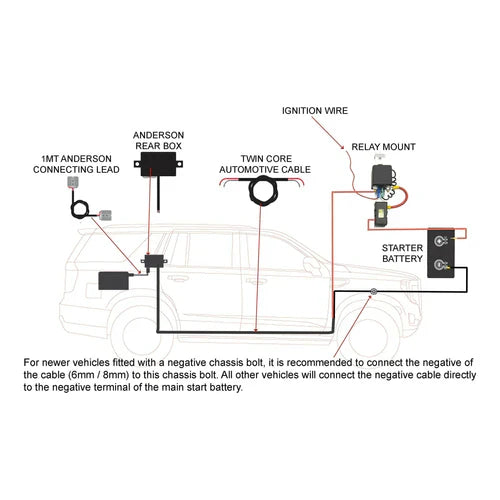

✔ Complete 8B&S vehicle wiring loom
✔ Dedicated 240V 10A lithium charger

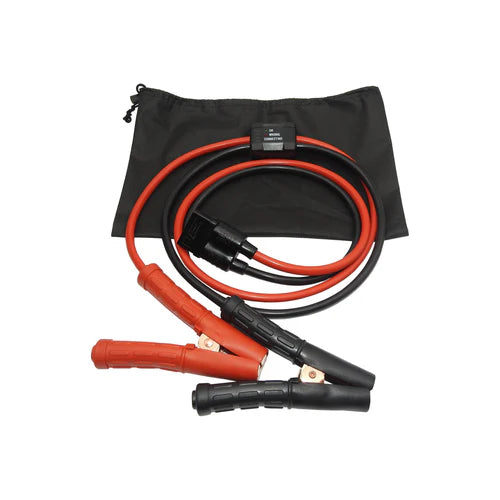

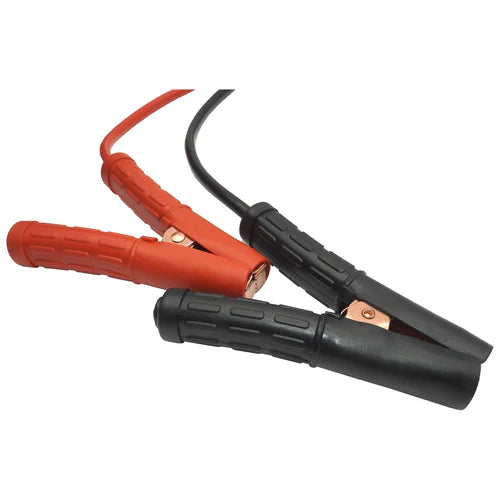

✔ Spike & surge protected jump start leads + storage pouch
✔ Secure mounting tray & strap
✔ FREE Bluetooth monitoring app
✔ Full installation support
🏗 Premium Lithium Construction
- High-grade Prismatic LiFePO4 cells
- Intelligent 200A smart BMS
- Dual temperature monitoring
- IP64 water & dust resistance
- Heavy-duty ABS casing
- Extreme vibration resistance
Built specifically for harsh Australian conditions.
📐 Dimensions & Weight
| Length |
355mm |
| Width |
180mm |
| Height |
260mm |
| Weight |
13.45kg |
📊 Technical Specifications
| Capacity |
120AH usable |
| Chemistry |
LiFePO4 Lithium |
| BMS |
200A (2400W cont) |
| Jump Start |
900A |
| Solar Input |
MPPT – 25A |
| Max Solar |
450W |
| AC Charging |
240V 10A |
| IP Rating |
IP64 |
| Efficiency |
>99.5% |
| Cycle Life |
6000 @ 80% DOD |
| Self Discharge |
≤ 3% / month |
🛡 Warranty
🔒 5 Year Warranty – Battery Hub
🔒 2 Year Warranty – Redarc BCDC 25A DC Charger
🔗 Expandable Power – Add a Link Hub
Need even more runtime?
Add a Thumper Link Hub to:
⚡ Double capacity
⚡ Increase discharge output
⚡ Extend off-grid runtime
All managed directly from the Bluetooth App.
🏆 Why Customers Choose Thumper
- Industry-leading Australian engineering
- Extreme off-road durability
- Smart lithium safety systems
- Real-world performance
- Proven reliability
