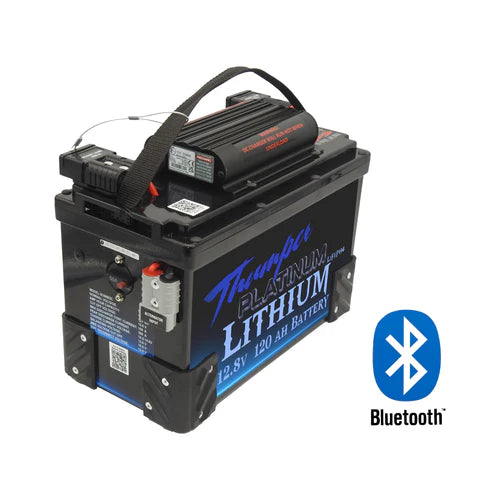

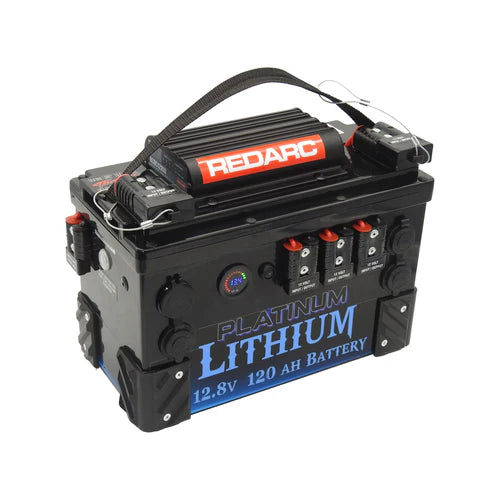

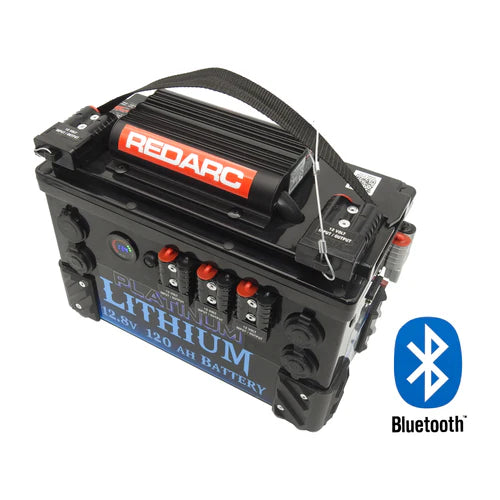

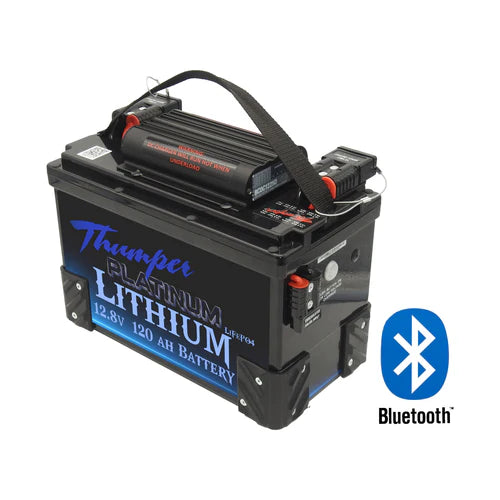

Thumper Lithium Battery Hub 120AH REDARC Front Mount + Bluetooth

🔋 TBH-FM120RD – Bluetooth Front Mount Lithium Battery Hub (120Ah)

The ultimate compact dual battery solution for serious touring, off-road adventures & mobile power.

Engineered specifically for rear ute mounting and tight installations under roller shutters (Ford Ranger, etc.), the Thumper Lithium Battery Hub delivers maximum power, intelligent Bluetooth control, and unmatched reliability — all in one compact, lightweight system.

With 120Ah of true usable lithium power, integrated Redarc DC charging, solar MPPT, 240V charging, and full Bluetooth monitoring, this is the most advanced all-in-one lithium battery system available today.

🚀 Why Choose the Thumper Lithium Battery Hub?

✔ 120Ah TRUE usable capacity
✔ 100% Bluetooth monitored & controlled
✔ Ultra-compact, lightweight & portable design
✔ Industry-leading power output – 1440W continuous
✔ Run fridges, inverters, lighting & accessories with ease
✔ Vehicle, solar & 240V charging – all included

This complete plug-and-play package provides unmatched versatility, letting you power your setup anywhere, anytime.

🔥 Performance

⚡ Run a 60L compressor fridge for 3–4 days independently
⚡ Charge from any vehicle using integrated Redarc DC charger
⚡ Solar-ready MPPT charging – up to 450W panels
⚡ 240V fast charging at home or campsite
⚡ Designed for extreme off-road conditions

🎯 Perfect For:

✅ Touring & long-distance travel
✅ 4WD, camping & overlanding builds
✅ Tradies requiring mobile power
✅ Canopy & drawer system installations
✅ Ute trays & under-roller-shutter installs
✅ Caravan & camper trailer power systems
✅ Remote & off-grid work setups

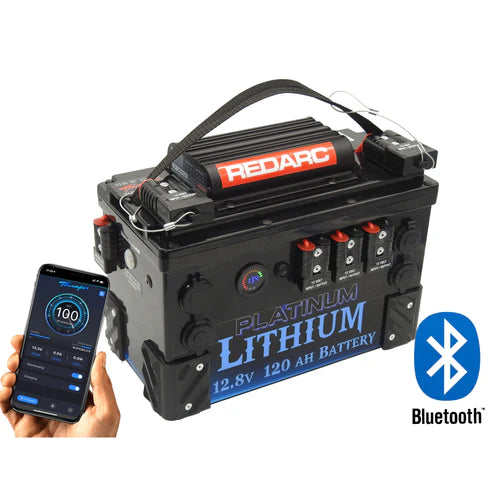

🧠 Smart Bluetooth Control – Total Power at Your Fingertips

Monitor and control your entire power system via the Thumper Bluetooth App:

📱 Live battery percentage
📊 Voltage, current & power flow
⏱ Estimated runtime & charge time
🔋 Cell balancing & protection status
🔒 Remote charge & discharge shut-off
🔗 Parallel linking control

One of the most advanced battery monitoring apps on the market.

⚙️ Key Features

✔ 120Ah Lithium LiFePO₄ battery
✔ 100% usable power down to 12.4V
✔ Built-in Bluetooth BMS
✔ Ultra lightweight – only 13kg
✔ 1440W continuous discharge
✔ MPPT solar charging – up to 450W
✔ Redarc BCDC1225D DC charger integrated
✔ 240V lithium charger included
✔ Parallel linking capability
✔ Heavy-duty ABS case – IP64 rated
✔ Secure mounting tray included
✔ Advanced protection systems
✔ 5-year battery warranty

🔌 Outlets & Connectivity

🔹 2 × Cigarette sockets
🔹 1 × Engel fridge socket
🔹 1 × Dual USB outlet

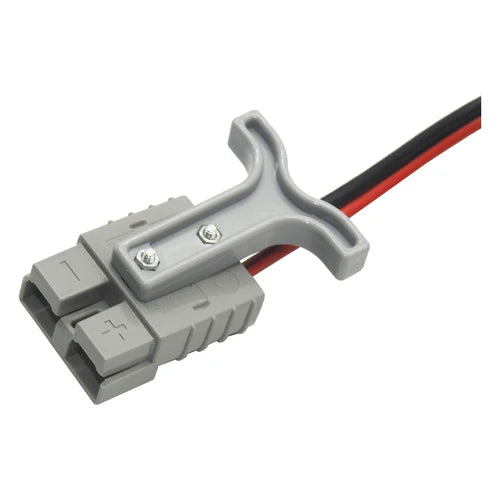

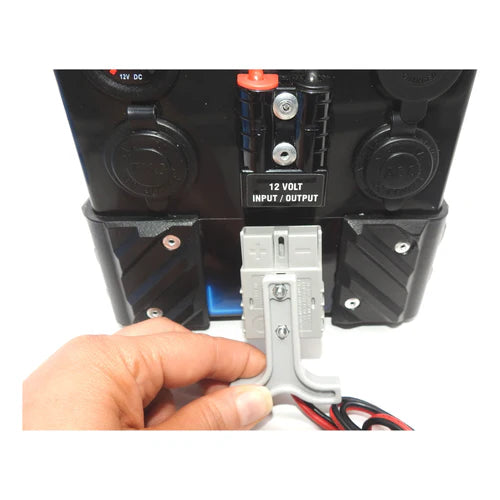

🔹 3 × 50A Anderson connectors
🔹 2 × 120A Anderson connectors
🔹 Dedicated solar input Anderson
🔹 Dedicated alternator input Anderson
🔹 Digital voltmeter display

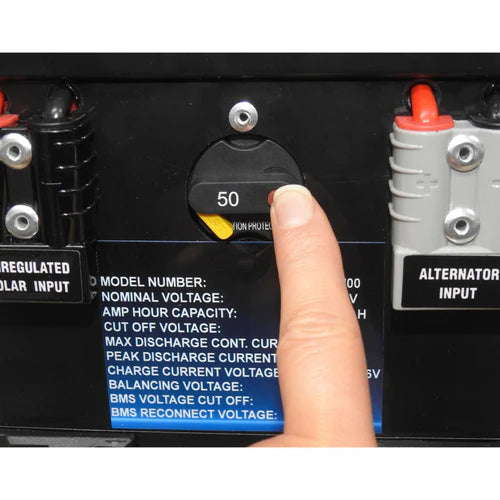

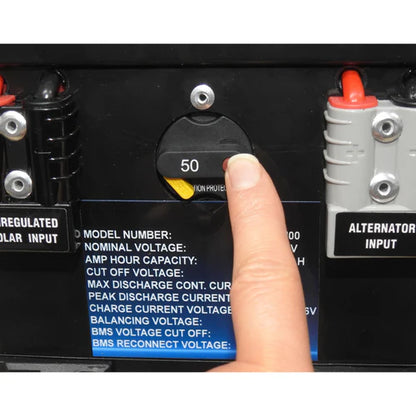

🔹 Manual isolation switch
🔹 Remote Bluetooth power shut-off

📦 What’s Included

✔ Thumper Lithium Battery Hub 120Ah
✔ Redarc BCDC1225D DC Charger (installed)

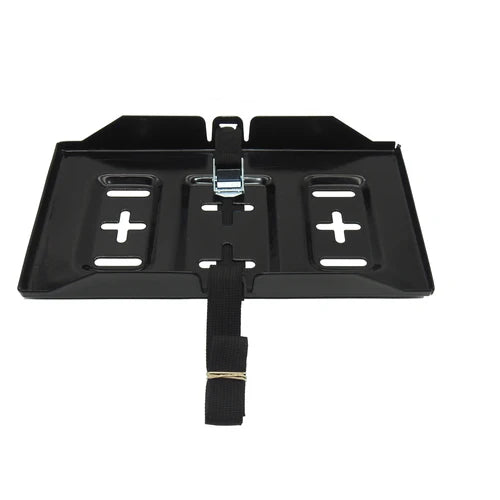

✔ Secure mounting tray & strap
✔ Heavy-duty 8mm vehicle wiring loom

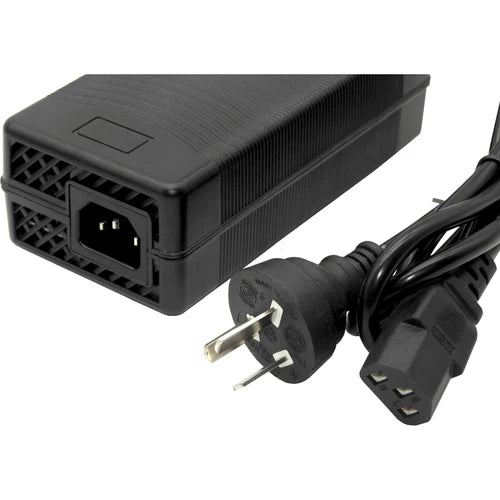

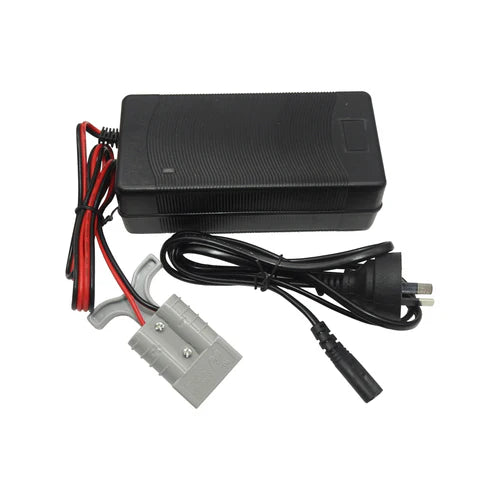

✔ 240V 10A lithium battery charger
✔ Built-in Bluetooth monitoring system
✔ Full installation instructions
✔ 5-year battery warranty
✔ 2-year Redarc charger warranty

📐 Dimensions & Weight

📏 Length: 355mm
📏 Width: 190mm
📏 Height: 260mm
⚖ Weight: 13kg

🔋 Battery Specifications

🔹 Capacity: 120Ah usable
🔹 Chemistry: LiFePO₄ Prismatic
🔹 Continuous discharge: 120A (1440W)
🔹 BMS: 120A intelligent protection
🔹 Cycle life:
  • 100% DOD: ~3000 cycles
  • 80% DOD: 4000–6000 cycles
🔹 Efficiency: >99.5%
🔹 Self-discharge: ≤3% per month

🌡 Thermal & Safety Protection

✔ Dual temperature sensors (cells + BMS)
✔ Over-voltage protection
✔ Under-voltage protection
✔ Overload protection
✔ Short-circuit protection
✔ Thermal cut-out safety

Built tough for Australian heat, dust, vibration & off-road abuse.

🔌 Charging Methods

⚡ Vehicle Charging: Redarc BCDC1225D DC charger
🌞 Solar Charging: MPPT up to 450W
🏠 240V Charging: Included lithium smart charger

Charge anywhere, anytime — vehicle, solar, or mains.

🚙 Designed for Easy Installation

✔ Plug & play wiring loom included
✔ Secure mounting tray supplied
✔ Front-mount design fits under roller shutters
✔ Installation video available

Fast installation – professional results.

🔗 Need More Power?

Expand your system instantly using the Thumper LINK HUB — available in 100Ah, 120Ah & 160Ah models.

✔ Parallel linking
✔ Combined Bluetooth monitoring
✔ Massive capacity expansion
✔ Increased discharge power

Build your power system as big as your adventures.
