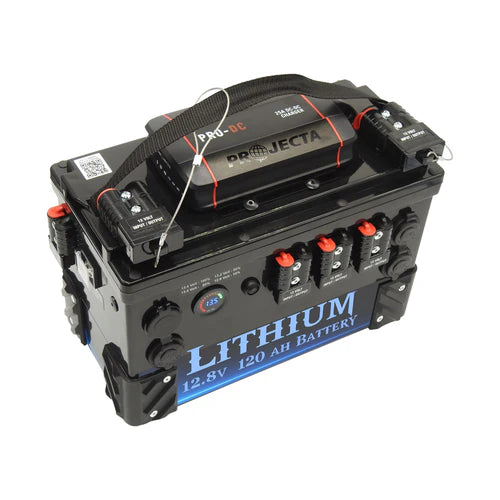

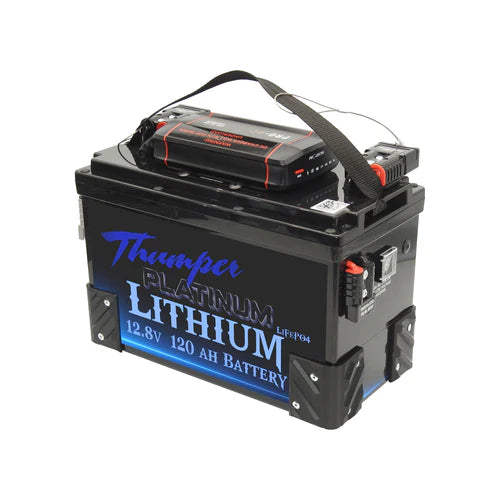

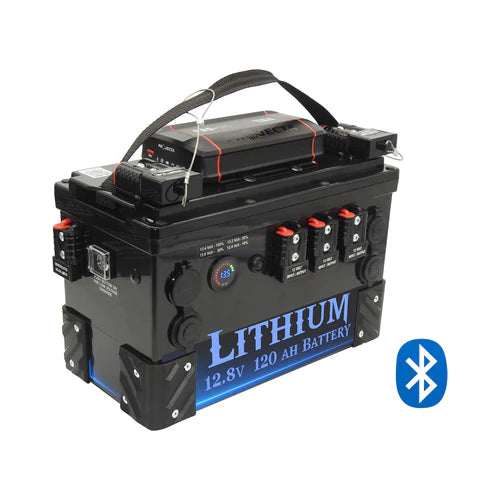

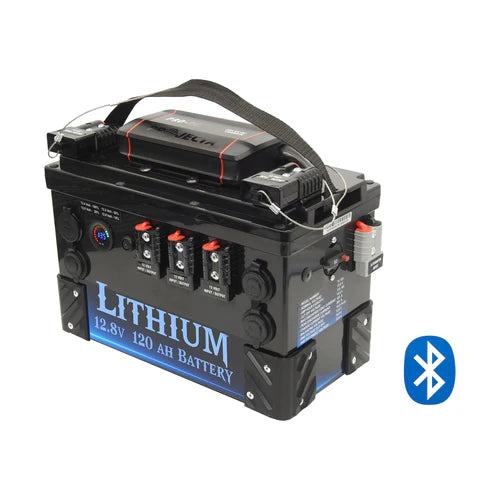

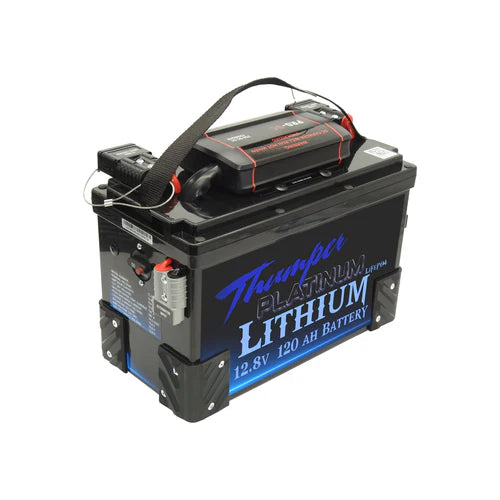

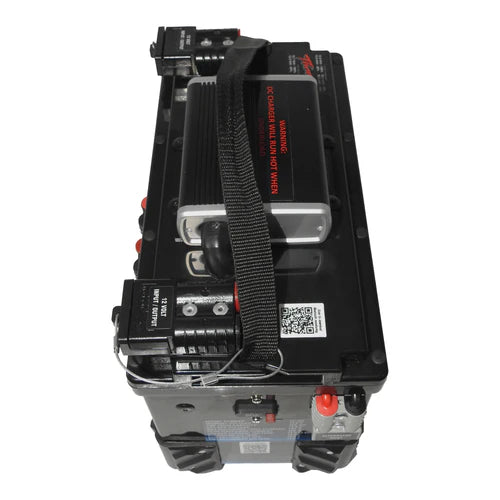

🔋 FM-TBH120-PDC – Bluetooth Front Mount Lithium Battery Hub (120Ah) with Projecta PDC25 DC Charger
The ultimate compact, all-in-one lithium power solution for ute, touring & off-grid setups.

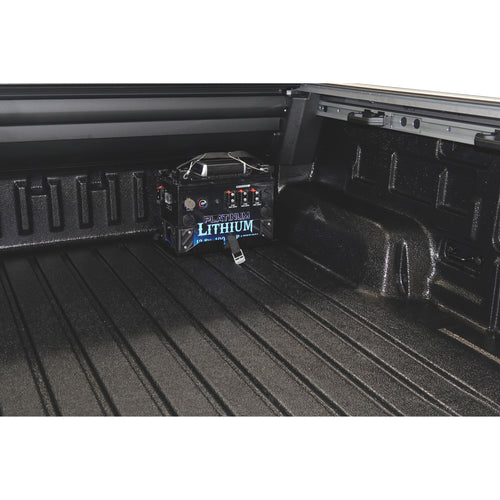

Designed specifically for rear ute mounting and tight installs under roller shutters (Ford Ranger, etc.), the Thumper Lithium Battery Hub delivers power, intelligence, reliability and portability in one fully integrated package.
With 100% usable lithium capacity, integrated Projecta DC charging, MPPT solar control, 240V charging, and full Bluetooth monitoring, this is one of the most advanced compact dual battery systems available today.
🚀 Why Choose the Thumper Lithium Battery Hub?
✔ Ultra-compact, space-saving front-mount design
✔ 100% usable lithium power
✔ Fully integrated Projecta DC charger
✔ Advanced MPPT solar charging
✔ Smart Bluetooth monitoring & control
✔ Complete plug-and-play wiring system
✔ Industry-leading safety & protection systems
This system eliminates complex wiring, multiple components, and guesswork — everything is engineered, built and integrated for maximum performance and reliability.
⚡ Performance
🔋 Run a 60L compressor fridge for 3–4 days independently
🚗 Charge from any make, model or year vehicle
🌞 Solar charging via MPPT – up to 450W panels
🏠 Rapid 240V charging included
🛠 Complete vehicle wiring loom supplied
🎯 Perfect For:
✅ Touring & long-distance travel
✅ 4WD & off-road adventure builds
✅ Ute tray & canopy installations
✅ Under-roller-shutter mounting
✅ Tradies needing mobile power
✅ Camping & overlanding setups
✅ Camper trailers & caravan power systems
🧠 Smart Bluetooth Monitoring & Control
The Thumper Bluetooth App puts total power control in the palm of your hand.
📱 Battery percentage & voltage
📊 Charge & discharge current
⏱ Runtime & charging time estimates
🔒 Remote charge & discharge shut-off
🔗 Parallel linking control
⚙ Cell balancing & system diagnostics
One of the most advanced lithium battery monitoring apps available.
🔥 Key Features
✔ 120Ah Lithium LiFePO₄ battery
✔ 100% usable capacity down to 12.4V
✔ Integrated Projecta PDC25 DC charger
✔ Built-in Bluetooth BMS
✔ 1440W continuous discharge power
✔ MPPT solar charging – 25A
✔ Ultra-compact & lightweight – only 13kg
✔ IP64 sealed enclosure
✔ Secure mounting tray included
✔ Heavy-duty internal circuit protection
✔ 5-year warranty on battery & charger

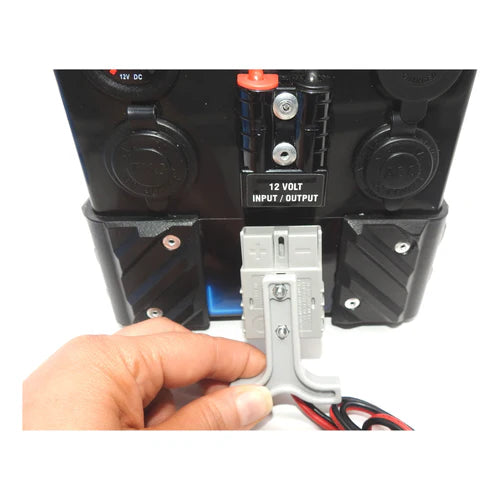

🔌 Outlets & Connections
🔹 2 × Cigarette sockets
🔹 1 × Engel fridge socket
🔹 1 × Dual USB outlet
🔹 3 × 50A Anderson connectors
🔹 2 × 120A Anderson connectors
🔹 Dedicated solar input Anderson
🔹 Dedicated alternator input Anderson
🔹 Digital voltmeter display
🔹 Manual isolation switch
🔹 Low-voltage override switch
📦 What’s Included
✔ Thumper Lithium Battery Hub 120Ah
✔ Projecta PDC25 DC-DC Charger (installed)
✔ Secure mounting tray & strap
✔ Heavy-duty 8mm vehicle wiring loom
✔ 240V 10A lithium battery charger
✔ Built-in Bluetooth monitoring system
✔ Installation instructions
✔ 5-year battery warranty
✔ 5-year Projecta charger warranty
📐 Dimensions & Weight
📏 Length: 355mm
📏 Width: 190mm
📏 Height: 260mm
⚖ Weight: 13kg
🔋 Battery Specifications
🔹 Capacity: 120Ah usable
🔹 Chemistry: LiFePO₄ Prismatic
🔹 BMS: 120A
🔹 Continuous discharge: 120A (1440W)
🔹 Cycle life:
• 100% DOD: ~3000 cycles
• 80% DOD: 4000–6000 cycles
🔹 Efficiency: >99.5%
🔹 Self-discharge: ≤3% per month
🌡 Thermal & Safety Protection
✔ Dual temperature sensors
✔ Thermal cut-out protection
✔ Over-voltage protection
✔ Under-voltage protection
✔ Overload protection
✔ Short-circuit protection
Built tough for Australian heat, dust, vibration and harsh off-road use.
🔌 Charging Methods
🚗 Vehicle Charging: Projecta PDC25 DC-DC charger
🌞 Solar Charging: MPPT up to 450W
🏠 240V Charging: Included lithium smart charger
Charge anywhere — driving, camping, or at home.
🛠 Simple Installation – Professional Results
✔ Plug & play wiring loom included
✔ Secure mounting tray supplied
✔ Designed for under-roller-shutter installs
✔ Installation video available
Fast installation. Clean professional finish.
🔗 Need More Power?
Add a Thumper LINK HUB (100Ah, 120Ah) to instantly expand:
✔ Total battery capacity
✔ Discharge power
✔ Runtime
All seamlessly controlled via the Bluetooth App.
