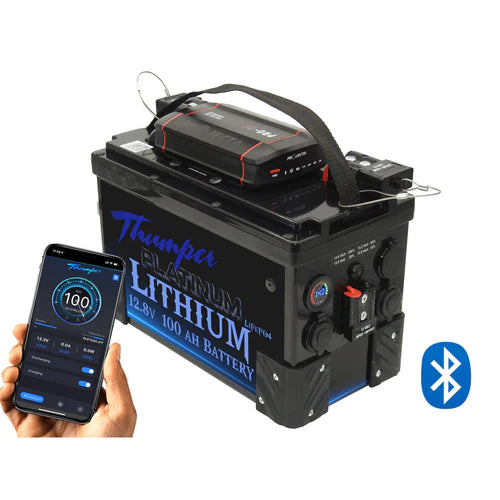

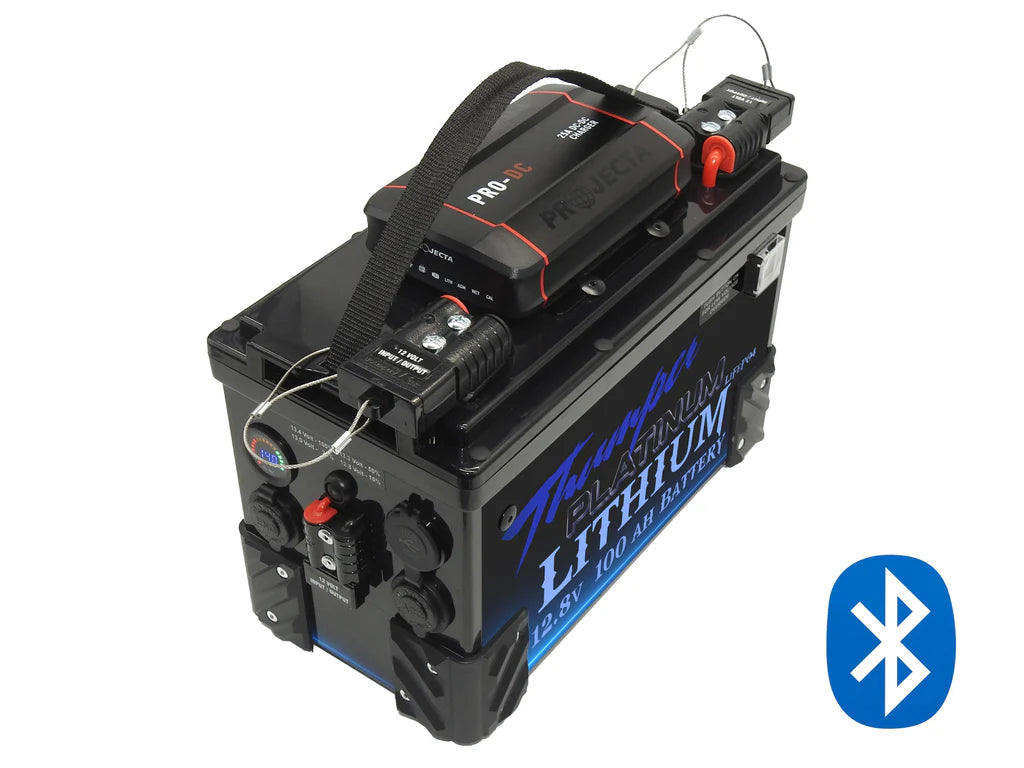

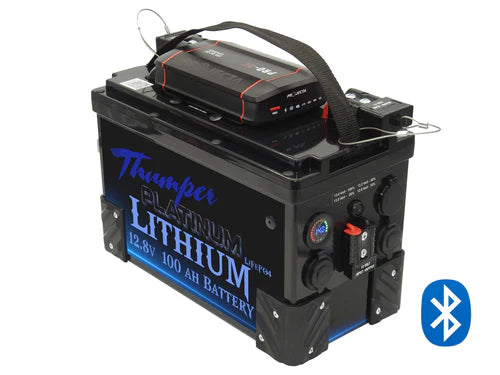

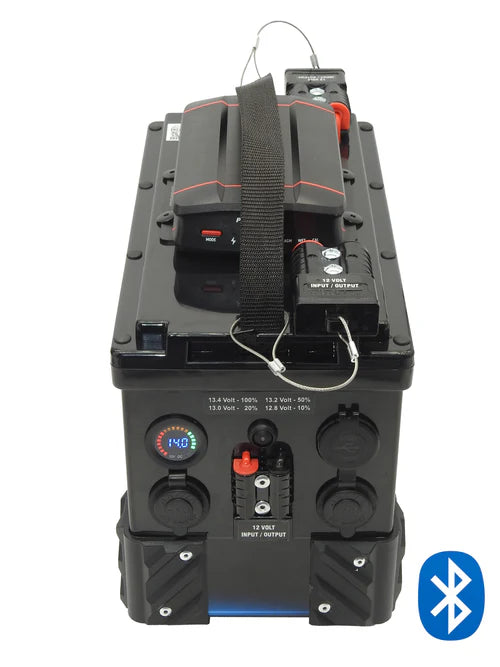

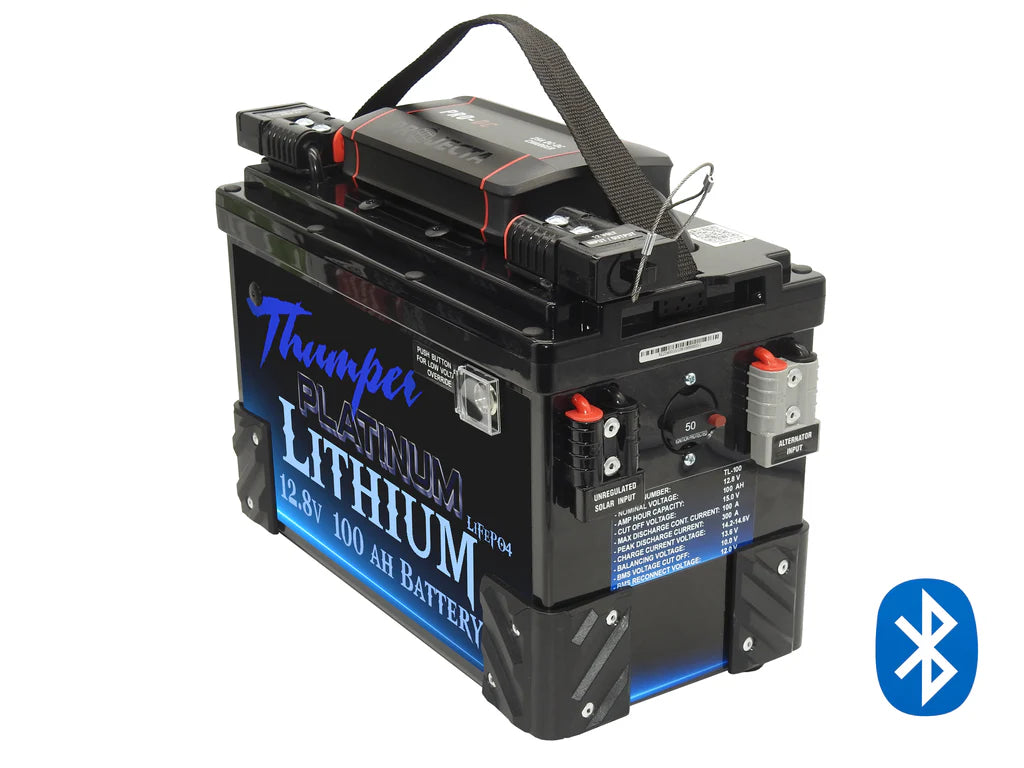

🔋 Thumper Lithium Battery Hub – 100Ah with Projecta DC Charger (TBH100-PDC)
Portable Power | Bluetooth Monitoring | DC + Solar + 240V Charging
The Thumper Lithium Battery Hub has been designed to deliver maximum portability, performance, and reliability in a lightweight and compact all-in-one power system. Now equipped with advanced Bluetooth technology, it allows real-time monitoring of battery capacity, cell temperature, and remote power shut down — delivering total control at your fingertips.
This is the ultimate everyday power solution, perfect for camping, touring, caravanning, remote work, and off-grid adventures.
⚡ Serious Power, Anywhere You Go
✔ Run a 60L compressor fridge for 3+ days independently
✔ Charge from any make / model / year vehicle
✔ Advanced DC vehicle charging – complete wiring loom included
✔ MPPT solar charging – 25A (400–450W)
✔ Dedicated 240V lithium battery charger included
✔ 5 Year Warranty on Battery & DC Charger
🚙 Compact. Powerful. Intelligent.
The Thumper Lithium Battery Hub is the smallest and most compact independent battery system available, while offering the highest usable battery capacity compared to rival products.
✔ 100% usable capacity down to 12.4V
✔ Ultra-lightweight & compact design
✔ 100% Bluetooth monitored
✔ Fully integrated charging system
📦 What’s Included – Complete Power Package
✔ Thumper Lithium Battery Hub – 100Ah
✔ Projecta PDC25 DC-DC Charger (hardwired)

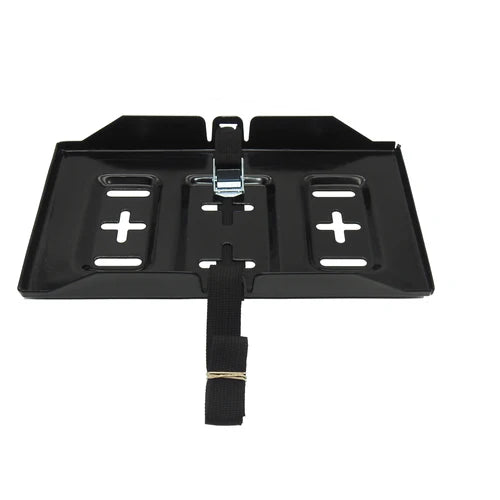

✔ Secure mounting tray with strap
✔ Complete vehicle wiring loom

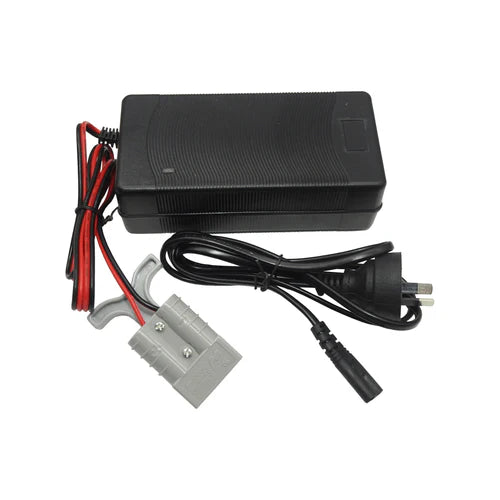

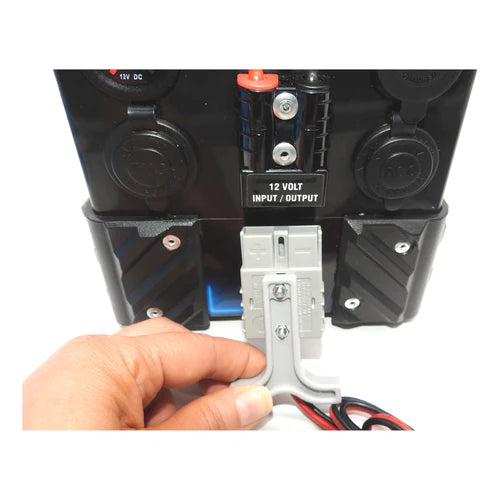

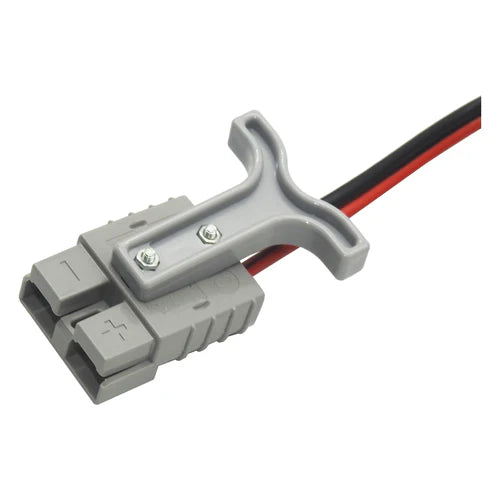

✔ Dedicated 240V 10A LiFePO4 charger with 50A Anderson plug
✔ Built-in Bluetooth monitoring system
✔ 5 Year Warranty – Battery + DC Charger
📊 Technical Specifications – TBH100-PDC
Battery System
Part No: TBH100-PDC
Battery Capacity: 100Ah usable
Chemistry: Prismatic LiFePO4
BMS Capacity: 100A (1200W)
IP Rating: IP64
Case Material: ABS
Bluetooth: Yes

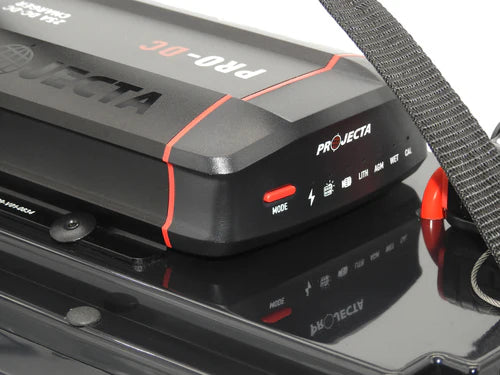

DC Charger – Projecta PDC25
Warranty: 5 Years
Alternator Input: 9 – 32V
Solar Input: Up to 28V
Solar Regulator: MPPT – 25A
Output Current:
• 20A (9–11V input)
• 25A (11–32V input)
Charge Profiles:
• Lithium – 14.2V
• AGM – 14.4V
• Wet – 14.7V
• Calcium – 14.7V
IP Rating: IP64
Dimensions & Weight
Length: 355mm
Width: 190mm
Height: 260mm
Weight: 11.6kg
Operating Temperature Range
Discharge: -23°C ~ 65°C
Charge: -3°C ~ 65°C
Storage: -20°C ~ 45°C
BMS Cut-Off / Reconnect: 80°C / 50°C
Charging Performance
Recommended Charge Current: 25A
Maximum Charge Current: 100A
Recommended Voltage: 14.2V ±0.20V
Maximum Voltage: 14.8V ±0.20V
Discharge Performance
Max Continuous Discharge: 100A (1200W)
Efficiency (Round Trip): >99.5%
Self Discharge: ≤3% per month
📱 Intelligent Bluetooth Monitoring
The Thumper Battery Hub features one of the most advanced Bluetooth monitoring systems available, allowing full control and diagnostics from your smartphone.
Monitor & Control:
✔ Battery capacity
✔ Voltage & current
✔ Charge & discharge loads
✔ Estimated runtime
✔ Charging time remaining
✔ Cell balancing
✔ Temperature monitoring
✔ Output disconnect
✔ Parallel linking & AH reprogramming
FREE Thumper App – available on iOS & Android
🔒 Safety & Battery Protection
✔ Thermal protection
✔ Over & under voltage protection
✔ Internal short-circuit protection
✔ Dual temperature sensors
✔ Shock & vibration resistant
✔ Fully sealed LiFePO4 construction
🔌 Multi-Source Charging – Always Powered
DC Charging (Vehicle Alternator)
The built-in Projecta PDC25 DC charger ensures fast, safe and regulated charging from both conventional and smart alternators.
✔ Automatically activates at correct voltage

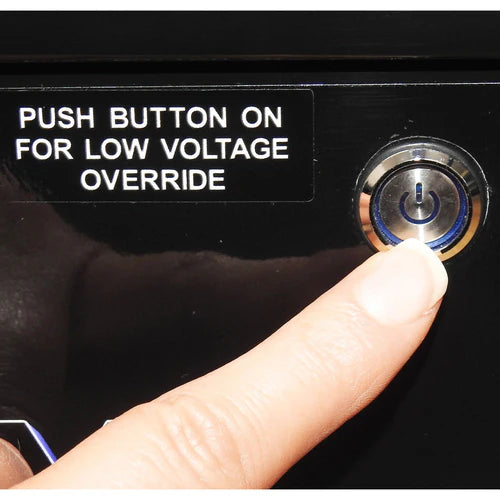

✔ Low voltage override available
✔ Full vehicle wiring loom included
Solar Charging (MPPT)
✔ MPPT regulator built-in
✔ Accepts unregulated solar panels
✔ Supports up to 420W solar input
✔ Voltage range: 9–28V

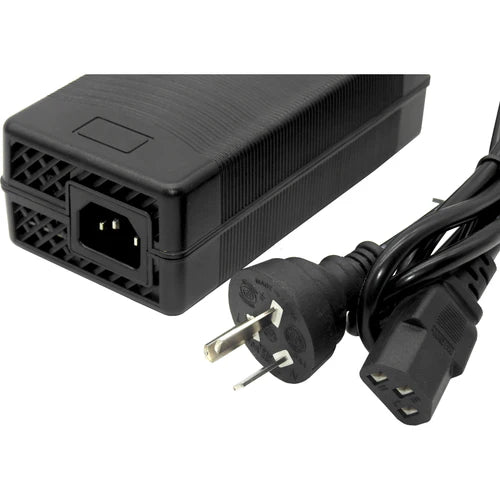

240V Charging
✔ Dedicated 10A LiFePO4 charger included
✔ Fully regulated
✔ Safe long-term maintenance charging
✔ Simple plug & play operation
🛠 Easy Installation & Storage
✔ Secure mounting tray included
✔ Integrated isolation switch for safe storage
✔ Easy access charging ports
✔ Compact footprint
🚙 Perfect For
✔ 4WD Touring
✔ Caravans & Camper Trailers
✔ Off-grid camping
✔ Tradies & mobile work rigs
✔ Remote power applications
✔ Backup power systems
