Thumper Lithium 240AH Standard LiFePO4 Deep Cycle Battery – TL-240

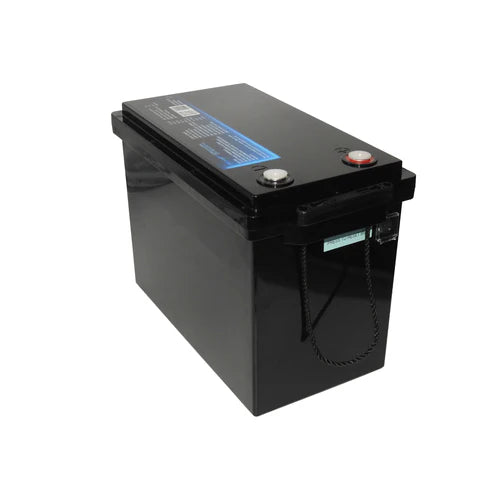

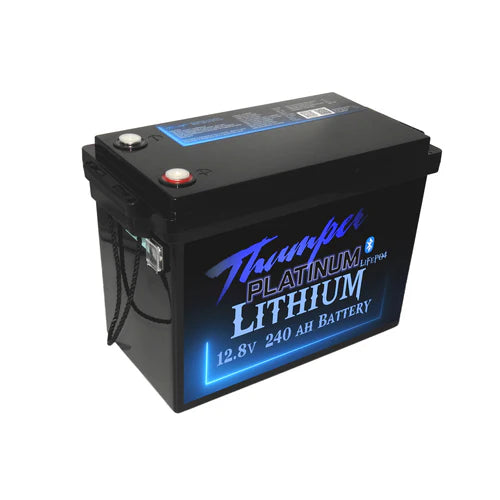

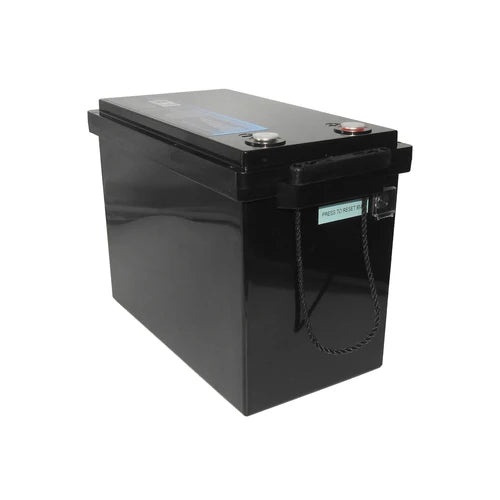

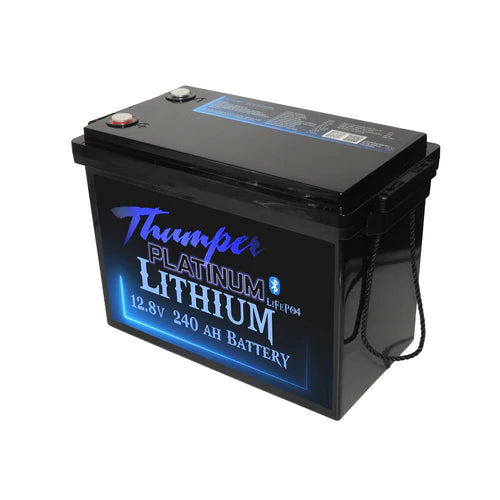

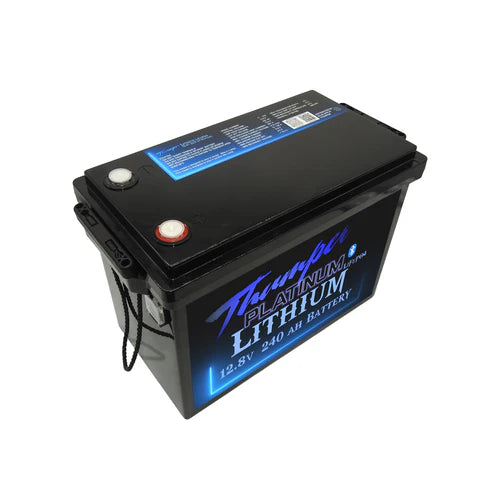

Thumper 240AH Lithium LiFePO4 Battery (Bluetooth)

At Home of 12 Volt Northern, we supply and install premium lithium power solutions designed for serious touring, caravanning and off-grid setups.

The Thumper 240AH Lithium LiFePO4 Battery delivers high-capacity, lightweight, deep-cycle performance with integrated Bluetooth monitoring and a powerful internal BMS for maximum protection.

Built using high-quality prismatic LiFePO4 cells, this battery provides longer run times, deeper usable capacity and significantly less weight than traditional AGM batteries — making it ideal for caravans, campers, 4WD dual battery systems and off-grid applications.

Why Choose Lithium Over AGM?

• Less than half the weight of a comparable AGM battery
• Maintains higher voltage for longer appliance run times
• Greater usable depth of discharge
• Increased cycle life (up to 4,000–5,000 cycles)
• Faster and more efficient charging

If you’re upgrading your caravan or 4WD setup, this battery offers serious performance gains without the bulk.

Key Features

• 240AH Capacity (3,072Wh)
• 12.8V Nominal Voltage
• Integrated 200A BMS (300A upgrade available)
• Built-in Bluetooth connectivity via Thumper App
• Fully sealed design – can be mounted on any angle
• Parallel connection – unlimited
• Series connection – up to 4 batteries (51.2V max)

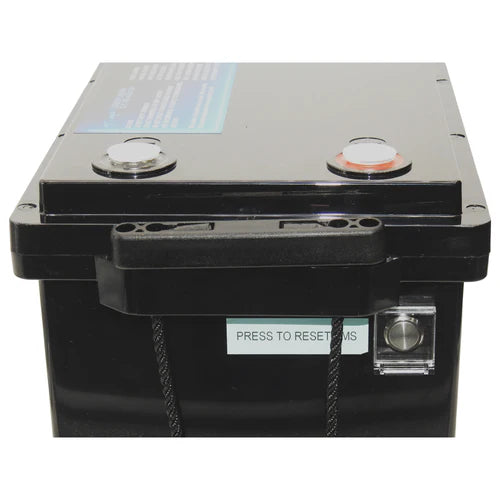

• BMS reset switch fitted
• Compatible with AGM or Lithium charger settings (Lithium charger recommended)
• 5 Year Manufacturer Warranty

Important:
• Not designed for engine starting
• Not suitable for under-bonnet installation

If you're unsure about suitability for your vehicle, our team at Home of 12 Volt Northern can design the right system for you.

Bluetooth Monitoring & Control

Monitor and control your battery directly from your phone using the free Thumper Bluetooth App.

View in real time:

• Battery voltage
• Remaining capacity (%)
• Charge & discharge current
• Estimated time remaining
• AH capacity remaining
• Cell balancing status
• High/low cell voltage
• Charge & discharge disconnect controls

You can remotely isolate charge or discharge loads via the app — perfect for storage or system control while travelling.

Built-In Battery Management System (BMS)

The integrated BMS protects your investment with:

• Over temperature protection
• Low & high voltage cut-off
• Short circuit protection
• Over discharge protection
• Controlled charge input limits

If the battery ever shuts down due to excessive discharge or overload, simply connect a charger or use the fitted BMS reset switch to reactivate.

Technical Specifications

Model: TL-240
Nominal Voltage: 12.8V
Capacity: 240AH (3,072Wh)
Continuous Discharge: 200A (2,400W)
Peak Discharge (1–3 sec): 300A
Cycle Life:
• 4,000 cycles @ 100% DOD
• 5,000 cycles @ 80% DOD

Weight: 20.5kg

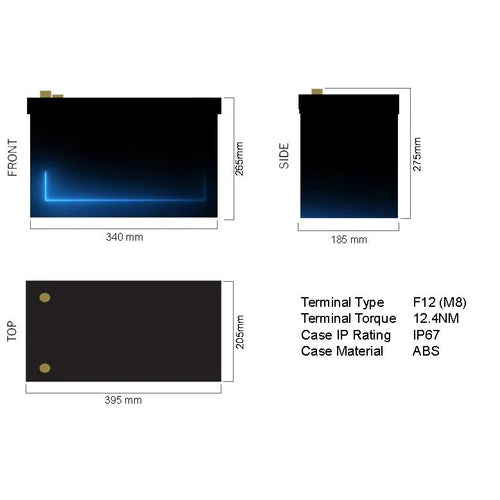

Dimensions (approx):
340mm (L base) | 185mm (W base) | 265mm (H)

Inverter Compatibility Guide

• 150W – 2400W → 1 x 240AH Battery
• 2401W – 4800W → 2 Batteries
• 4801W – 7200W → 3 Batteries

Need help calculating your setup? Our team can size your inverter and battery bank properly to avoid overload issues.

Charging Information

Recommended charge voltage: 14.2 – 14.6V
Max charge current: ≤100A
Float voltage: ≤13.8V

Lithium chargers are recommended for best performance and longevity, although AGM-compatible settings can be used.

Mounting Options

This battery suits the BB-TRAY mounting system.
Handles can be removed and replaced with mounting tray rods for secure installation.
