🔋 Thumper Lithium Battery Hub – Jump Start Edition
120Ah | Bluetooth | DC + Solar Charging | Jump Starter Power
Now this is a game changer.
The Thumper Lithium Battery Hub Jump Start Edition is the world’s first portable lithium power hub that can jump start your vehicle — while powering your entire campsite, caravan or worksite.
Combining 120Ah of true lithium capacity, 200A discharge power, DC + solar + 240V charging, Bluetooth monitoring, and integrated jump-start capability, this is the ultimate all-in-one power system for serious adventurers.
🚨 The Lithium Battery Hub That JUMP STARTS
Flat start battery? No worries.
With 900A jump-start output and spike & surge protected leads, this unit can safely jump start petrol and diesel vehicles — giving you total confidence wherever your journey takes you.
✔ Jump start petrol engines up to 6.0L
✔ Jump start diesel engines up to 4–5L
✔ 900A starting output

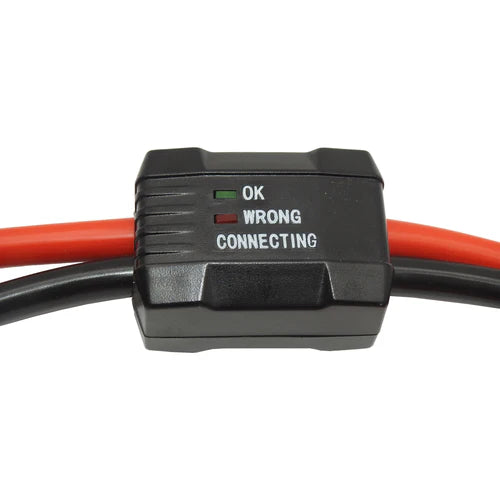

✔ Reverse polarity protection
✔ Surge & spike protected leads

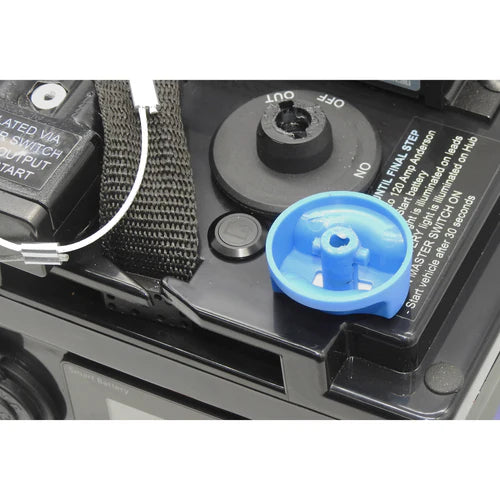

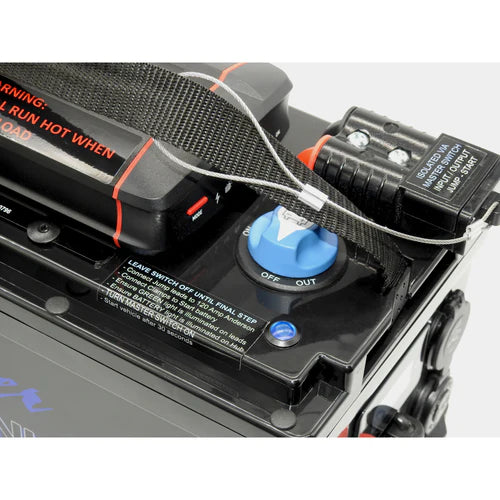

✔ Master jump start control switch
⚡ Massive Power in a Portable Package
The TBH120PDC-JS delivers 100% usable lithium capacity, letting you run heavy appliances, fridges, compressors and inverters with ease.
✔ 120Ah lithium capacity
✔ 200A continuous discharge (2400W)
✔ 2000A peak discharge
✔ 100% usable power down to 12.4V
✔ 6000 cycles @ 80% DOD
✔ 4000 cycles @ 100% DOD
Run a 60L compressor fridge for up to 3–4 days independently.
🔌 Charge Anywhere – Any Vehicle – Any Power Source
Multi-Input Charging System:
✔ Hardwired Projecta PDC25 DC Charger
✔ Charge from any make, model or year vehicle
✔ MPPT Solar charging up to 25A (400–450W)
✔ Included 240V 10A Lithium charger
This system automatically selects the best available power source, ensuring your battery is always optimally charged.
📱 Intelligent Bluetooth Monitoring & Control
Stay fully informed with the FREE Thumper Bluetooth App, giving you real-time system control and monitoring from your phone.
✔ Battery capacity & voltage
✔ Charge & discharge current
✔ Percentage remaining
✔ Estimated runtime
✔ Charge & discharge disconnect
✔ Cell balancing
✔ Temperature monitoring
✔ Parallel linking & capacity reprogramming
🛠 Built Tough – Designed for Australian Conditions
This system is engineered for harsh off-road touring and extreme conditions, using premium lithium cells, rugged ABS casing, and advanced BMS protection.
✔ Thermal protection
✔ Over & under-voltage protection
✔ Short-circuit protection
✔ Dual temperature sensors
✔ IP64 protection rating
✔ Shock & vibration resistant
📦 What’s Included – Complete Power Package

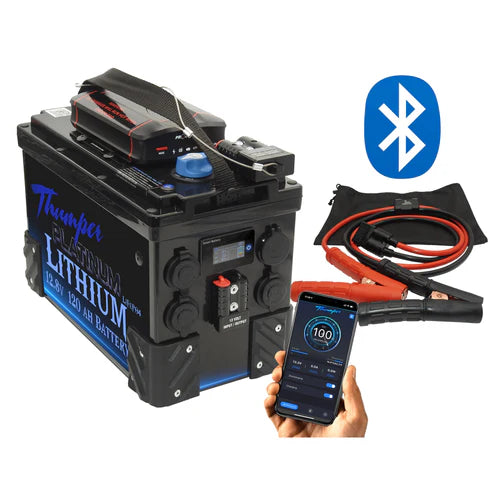

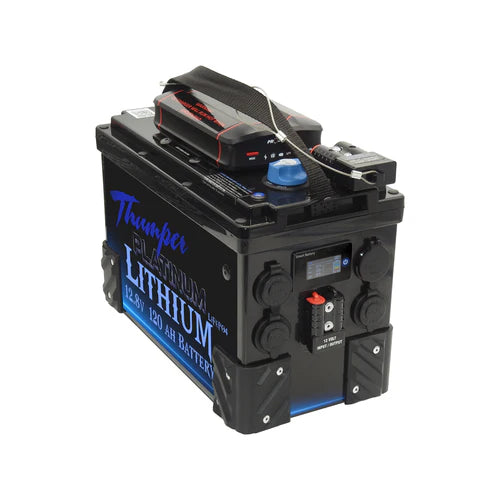

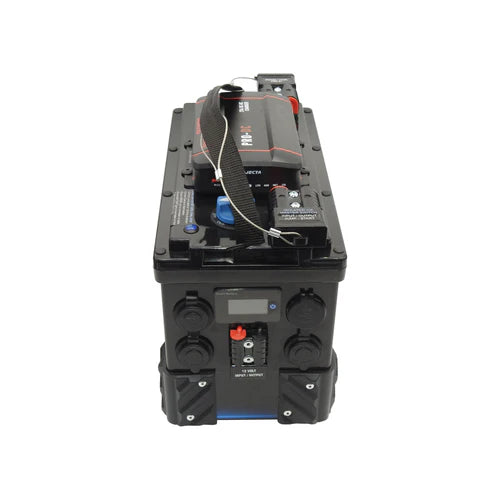

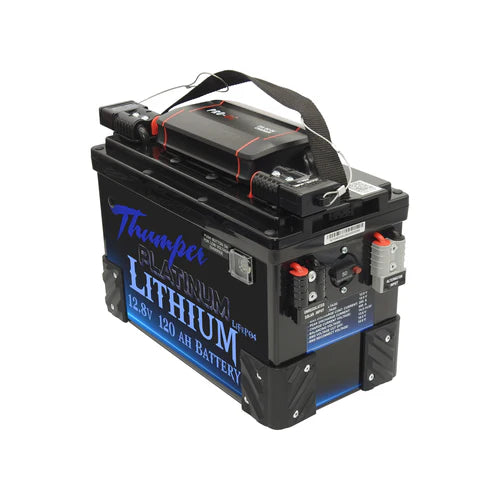

✔ Thumper Lithium Battery Hub – 120Ah Jump Start Edition
✔ Hardwired Projecta PDC25 DC-DC Charger

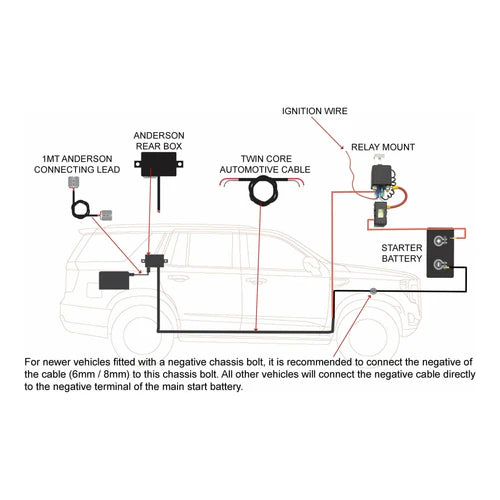

✔ Complete heavy-duty vehicle wiring loom (8 B&S cable)

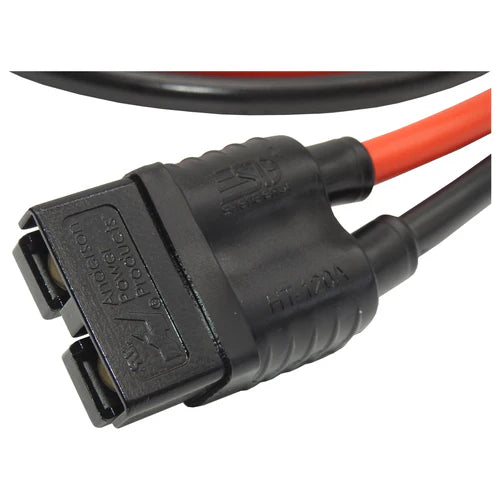

✔ Dedicated 240V 10A LiFePO4 charger (50A Anderson)

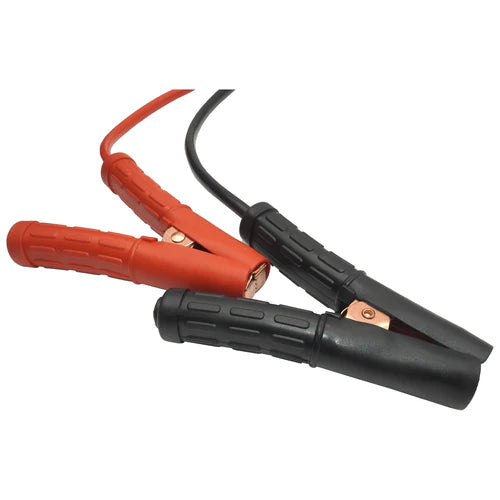

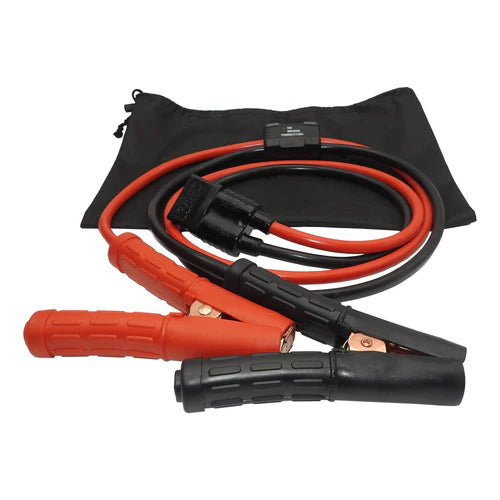

✔ 1.5m Spike Protected Jump Leads with storage pouch

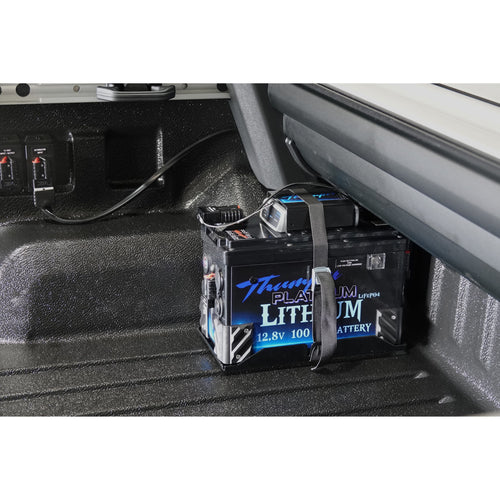

✔ Secure mounting tray & strap
✔ FREE Bluetooth App
✔ 5 Year Warranty – Battery + DC Charger
🚙 Perfect For
✔ Touring & Overlanding
✔ 4WD Adventures
✔ Caravans & Camper Trailers
✔ Remote Work Sites
✔ Tradies & Mobile Workshops
✔ Emergency Backup Power
✔ Off-Grid Camping
📊 Technical Specifications – TBH120PDC-JS
Battery System
Capacity: 120Ah usable
Chemistry: LiFePO4 (Prismatic)
BMS Rating: 200A (2400W continuous)
Peak Discharge: 2000A
Jump Start Output: 900A
IP Rating: IP64
Bluetooth: Yes
Dimensions & Weight
Length: 355mm
Width: 180mm
Height: 260mm
Weight: 13.45kg
Operating Temperature
Discharge: -23°C to 80°C
Charge: -3°C to 80°C
Storage: -20°C to 45°C
BMS Cut-Off: 80°C / Reconnect 70°C
Charging Performance
Recommended Charge Current: 25–50A
Max Charge Current: 200A
Recommended Voltage: 14.2V ±0.2V
Max Voltage: 14.8V ±0.2V
Cycle Life
6000 cycles @ 80% DOD
4000 cycles @ 100% DOD
Efficiency: >99.5%
Self Discharge: ≤3% per month
🔋 Projecta PDC25 DC-DC Charger Specifications
Output: 25A
Solar Input: MPPT up to 25A
Max Solar Power: 400–450W
Input Voltage: 9–32V
Charging Profiles: Lithium / AGM / Wet / Calcium
Warranty: 5 Years
⭐ Why Choose This System?
✔ Jump start + power hub in one
✔ True portable lithium powerhouse
✔ Ultra-safe battery protection
✔ Full vehicle + solar + 240V charging
✔ Bluetooth system control
✔ Massive discharge capability
✔ Australian-designed reliability
