THUMPER

THUMPER LITHIUM 120 AH DC-DC BATTERY PACK

SKU:BATL120-PDC

$1,449.00

~~$1,599.00~~ $1,449.00

Sale Sold out

Taxes included. Shipping calculated at checkout.

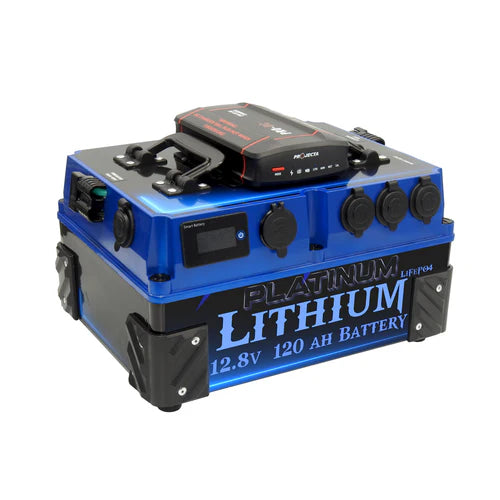

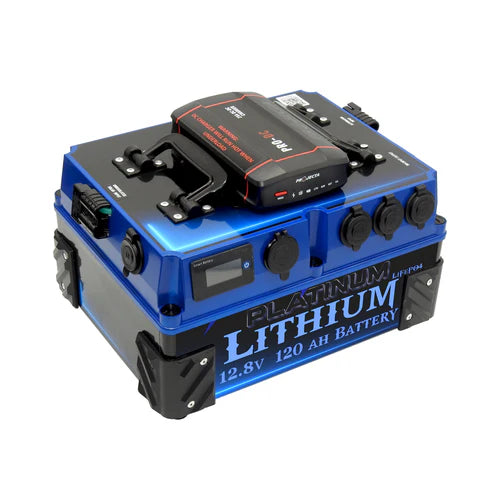

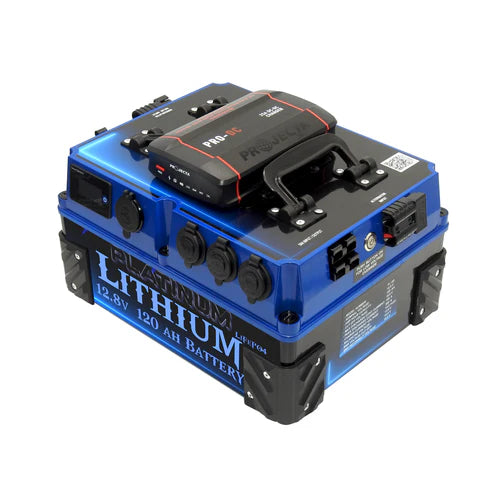

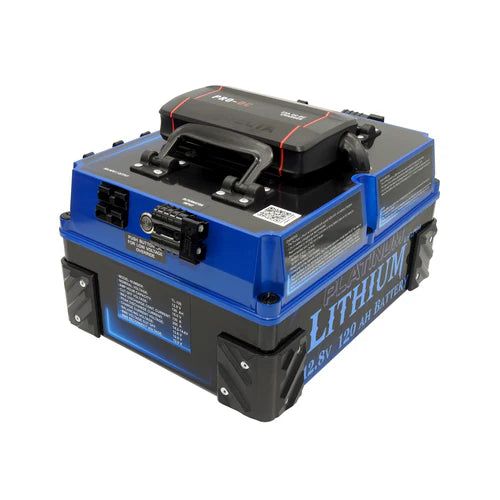

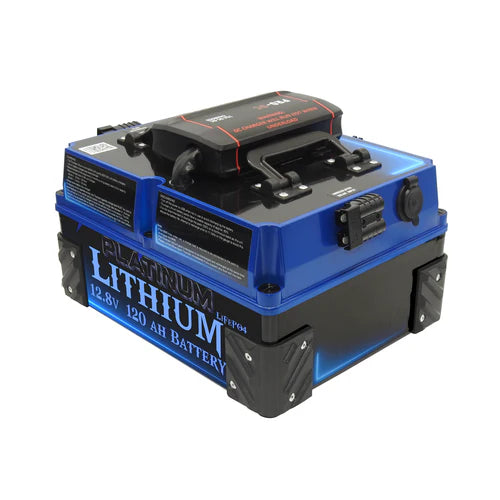

Thumper Lithium 120 AH DC Battery Pack

The Thumper Lithium battery pack is a reliable, compact and lightweight alternative to the standard lead acid portable dual battery system.

Designed with the latest technology of Lithium LiFePo4 cells, the Thumper offers a fully sealed and maintenance free battery pack that can safely be used on any side.

This package includes

1 x Thumper 120 AH Battery Pack (battery included)

1 x Projecta Procharge 25A DC-DC Battery Charger (PDC25)

1 x Vehicle wiring loom for hardwired installation TUR-L(8mm)

1 x 240 Volt Battery Charger 10 Amp - dedicated to Lithium charging

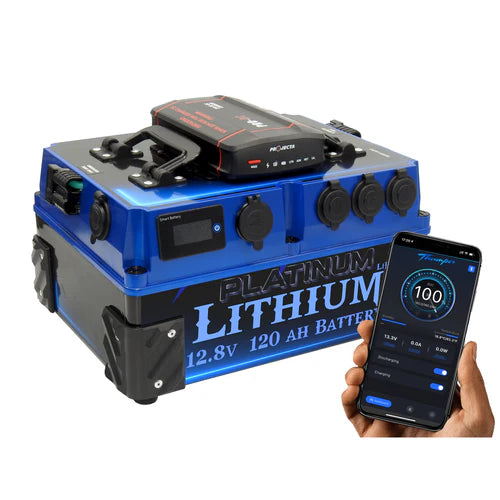

Bluetooth App - THUMPER BATTERIES

The Thumper App can be found in your APP store as a free download.

Note: Some features of the APP are only available with a passcode

Bluetooth App | Control Screen - Explained:

The Bluetooth app offers the ability to control the charge or discharge loads from the battery by remotely switching ON / OFF the power via the Bluetooth App.

To turn either your charge or discharge loads off, simply switch the blue toggle (blue = ON) to instead show a blacked out toggle.

CHARGE SWITCH - to remotely disconnect all charge loads from the battery. Turning this particular switch OFF will prevent the battery from taking a charge load from any charging source, including the DC battery charger.

DISCHARGE SWITCH - to remotely disconnect all discharge loads from the battery. Turning this particular switch OFF will prevent the battery from running any appliance as it disconnects all loads from the battery. This is the perfect option to use when storing the battery.

This particular model Thumper Lithium 120 AH DC Battery Pack is not suitable for Jump-Starting

The Thumper Lithium 120 AH is hardwired to the Projecta PDC25 25 Amp DC charger. This charger offers the perfect charge rate from both vehicle and solar charging, programmed especially for use with Lithium batteries.

The DC charger is wired to two dedicated external 50 Amp Anderson connectors, labelled ‘alternator input’ (vehicle charge) and ‘unregulated solar input’ (solar panel use).

This Battery Pack is the perfect option for the serious off-road enthusiast or anyone looking to run their compressor fridge or other 12 volt appliances for extended times.

Offering an impressive 120 AH of power, this particular pack will allow the user to run the average 50Lt compressor type fridge for over 5 days! This is almost 60% better run time compared to its AGM counterpart!

Equipped with virtually every socket you would ever need, along with a precision digital gauge for monitoring, this pack is one of the best options or a portable dual battery systems available on today's market!

The unit is equipped with:

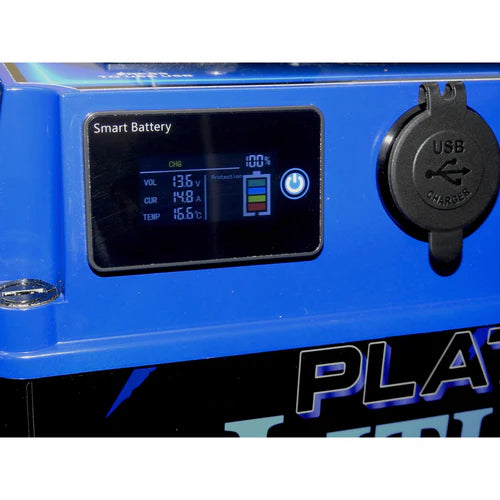

1 x Smart Battery screen	2 x 50Amp Anderson (Max 50A)
2 x Cigarette socket	1 x Dual USB socket (Min. 2.4A)
1 x Engel Fridge socket	1 x Merit type socket
1 x 2.1mm Input / Output	2 x Automatic circuit breaker protection
1 x Low Voltage override switch	1 x Projecta PDC25 25Amp DC Charger
1 x Anderson ‘Unregulated Solar Input’	1 x Anderson ‘Alternator Input’

Specifications:

Product code	BATL120-PDC
Capacity	120 AH
DC Charger capacity	25A
Package Includes	TUR-L (8mm) vehicle wiring loom
MAX Discharge	50 Amps via the 50 Amp Anderson
MAX Input charge	50 Amps via the 50 Amp Anderson
Dimensions	335L x 263W x 215H
Weight	12.2 kg
Warranty	5 years on Battery Pack and Projecta PDC

Specifications of Projecta Procharge 25A DC-DC Battery Charger

Part No.	PDC25
Warranty	5 years from date of purchase
Alternator Input voltage	9 - 32 Volts
Solar Input voltage	28Vdc
Solar Regulator	Yes - MPPT 25 Amp
IP rating	IP67
Output Current	Input 9-11Vdc 20A \| Input 11V-32dc 25A
Charge control	142V(Lithium), 14.4V(AGM), 14.7(WET), 14.7V(CAL)
Smart Alternator	12V Vehicle: Turn On: 12.2 - 20V Turn Off: <11.9V
	24V Vehicle: Turn On >24.4 - 32V, Turn Off <24V

Conventional Alternator	12V Vehicle: Turn On: 13.4 - 20V Turn Off: <12.8V
	24V Vehicle: Turn On >26.8 - 32V, Turn Off <25.6V

Low Voltage override	Yes, available through push button on side of battery Pack Labeled "Push for Low voltage override" Note: When using low voltage override, it is recommended to install the TUR-L under bonnet isolator to ensure isolation from main start battery will occur. Low voltage override removes the isolation feature in the DC battery charger.

Charging:

The Thumper 120 AH includes the complete vehicle wiring loom (TUR-L) - 8mm wiring. The wiring loom is designed to separate the Thumper from the main starter battery when the vehicle ignition is off. It is recommended to still install this loom with models that are fitted with the DC charger.

The TUR-L charging loom has been equipped with an ‘ignition wire’. This ignition wire has been designed to work in conjunction with the Thumper models fitted with a DC charger and a ‘Low Voltage override switch’. This switch is designed for use with vehicles that have a low output voltage. By pressing the ‘Low Voltage override switch’, the switch will illuminate BLUE, and DC charger will begin to charge immediately when the vehicle is running. The DC charger will cease to operate as immediately when the ignition is OFF. This isolation occurs from the TUR-L and not from the DC charger when the ignition wire

If the ‘Low Voltage override switch’ is not illuminated, then the DC charger will be allowed to operate as normal by voltage. This method allows the main starter battery from the vehicle to require a minimum of 13.2 Volts in order to activate the DC charger. When the vehicle is OFF, the main starter battery will need to reach a voltage of 12.7Volts before the DC charger will switch OFF and isolate.

TUR-LOOM

1	Relay mount (100 Amp Relay / Midi Fuse Holder / Midi Fuse)
1	6mt 8mm twin core (8B&S) automotive cable
1	Anderson to rear box (optional to fit)
1	Anderson to Anderson 1mt connecting cable (8mm)
2	Pk5 zip ties
3	Fuse Tap options (Micro / Micro2 / Mini Fuse)
1	Assortment of lugs, cable joiners and screws

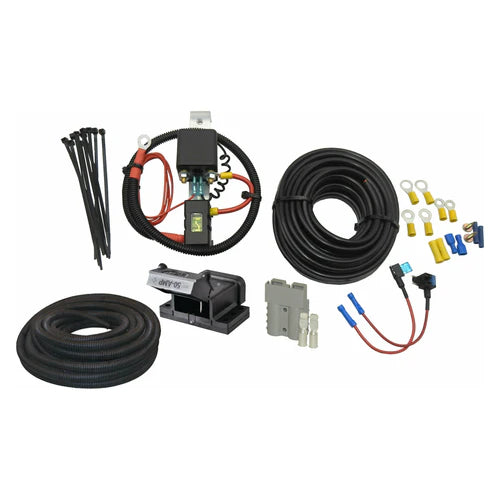

Image of TUR-L vehicle wiring loom

CLICK HERE FOR TUR-L INSTRUCTIONS

Fitting just got easier with a full installation video on the TUR-L here:

Thumper Lithium 120 AH Projecta DC Battery Pack | Dual Battery

Average run - GUIDE

35 - 50Lt Compressor Fridge 0*C at 25*C Ambient Temperature

Capacity	Lithium run time	AGM run time
24 AH	36 HOURS	22 HOURS
40 AH	60 HOURS	37 HOURS
60 AH	90 HOURS	55 HOURS
120 AH	170 HOURS	110 HOURS
	Discharged to 90% capacity at 11.8 Volts	Discharged to 80% capacity at 11.8 Volts
