THUMPER

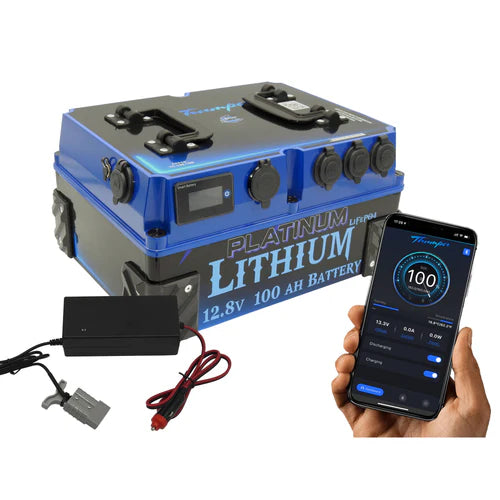

THUMPER LITHIUM 100 AH PORTABLE BATTERY PACK

THUMPER LITHIUM 100 AH PORTABLE BATTERY PACK

BATL-100-LDC-8A

$989.00
$1,099.00 $989.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Thumper Lithium 100 AH DC Battery Pack

The Thumper Lithium battery pack is a reliable, compact and lightweight alternative to the standard lead acid portable dual battery system.

Designed with the latest technology of Lithium LiFePo4 cells, the Thumper offers a fully sealed and maintenance free battery pack that can safely be used on any side.

This package includes

1 x Thumper 100 AH Battery Pack (battery included)
1 x Inline 8A DC-DC charger (Cig to Anderson)
1 x 240 Volt Battery Charger 10 Amp - dedicated to Lithium charging



Now with BLUETOOTH monitoring and 5 year warranty!

  • Safe charging and discharging with over temperature protection
  • Under voltage cut off protection
  • Over voltage cut off protection
  • Internal short circuit protection
  • Smart Battery Gauge for quick battery reading
  • Completely monitored via a FREE Bluetooth app!
  • 100% usable battery capacity

Bluetooth App - THUMPER BATTERIES

The Thumper App can be found in your APP store as a free download.

Note: Some features of the APP are only available with a passcode

  Bluetooth App | Control Screen - Explained:

The Bluetooth app offers the ability to control the charge or discharge loads from the battery by remotely switching ON / OFF the power via the Bluetooth App.

To turn either your charge or discharge loads off, simply switch the blue toggle (blue = ON) to instead show a blacked out toggle.

CHARGE SWITCH  - to remotely disconnect all charge loads from the battery. Turning this particular switch OFF will prevent the battery from taking a charge load from any charging source, including the DC battery charger.

DISCHARGE SWITCH  - to remotely disconnect all discharge loads from the battery. Turning this particular switch OFF will prevent the battery from running any appliance as it disconnects all loads from the battery. This is the perfect option to use when storing the battery.



The Thumper Lithium 100 AH DC Battery Pack is not suitable for Jump-Starting

The Thumper Lithium 100 AH offers an impressive 100 AH of power, this particular pack will allow the user to run the average 50Lt compressor type fridge for over 5 days! This is almost 60% better run time compared to its AGM counterpart!

Equipped with virtually every socket you would ever need, along with a precision digital gauge for monitoring, this pack is one of the best options or a portable dual battery systems available on today's market!

The unit is equipped with:

1 x Smart Battery screen 2 x 50Amp Anderson (Max 50A)
2 x Cigarette socket 1 x Dual USB socket (Min. 2.4A)
1 x Engel Fridge socket 1 x Merit type socket
1 x 2.1mm Input / Output 2 x Automatic circuit breaker protection
1 x Low Voltage override switch 1 x Anderson ‘Alternator Input’
1 x Anderson ‘Unregulated Solar Input’


Specifications:

Product code

BATL-100

Capacity

100 AH
Package Includes

1x Inline 8A DC-DC charger (Cig to Anderson)

1 x 240 Volt Battery Charger 10 Amps

MAX Discharge

50 Amps via the 50 Amp Anderson

MAX Input charge

 50 Amps via the 50 Amp Anderson

Dimensions

335L x 263W x 215H

Weight

 12.8 kg

Warranty

 5 years



Charging:

The Thumper Lithium DC (In vehicle) LiFePO4 Battery charger has been designed with a quick connect Anderson connector to connect directly into your Thumper Lithium battery pack or Battery Box.

This charger is solely designed for the use with LiFePO4 Lithium batteries. The charger has the ability to re-engage Lithium batteries that have shut down the BMS system with a low voltage disconnect.

The battery charger will convert the vehicle's output (as low as 10.5Volts) to charge at the desired 14.6 Volts to suit a Lithium battery.

Note: The 8 Amp charger will produce 8 Amps per every hour of drive time back into the Thumper unit / and will use approx 10 Amps of power from the vehicle's cigarette socket to produce this.

Product code LDC-8A
Rated capacity 8 Amp
Input Voltage 10.5 Volts - 26 Volts
Output voltage 14.6 Volt   8 Amps
Current draw This unit will draw approx 8-10 Amps (up to 120w from socket)
Chemistry Lithium LiFePO4 cells
Connection 50 Amp Anderson connector
Suits Thumper Lithium 30 ~ 100 AH Battery Pack
Warranty 12 months



Thumper Lithium 100 AH Battery Pack

Average run - GUIDE

35 - 50Lt Compressor Fridge 0*C at 25*C Ambient Temperature
 Capacity Lithium run time AGM run time
24 AH 36 HOURS 22 HOURS
40 AH 60 HOURS 37 HOURS
60 AH 90 HOURS 55 HOURS
100 AH 140 HOURS 83 HOURS
  Discharged to 90% capacity at 11.8 Volts Discharged to 80% capacity at 11.8 Volts
