Getaway 240Ah Lithium Battery Hub | 2000W Inverter & REDARC DC-DC

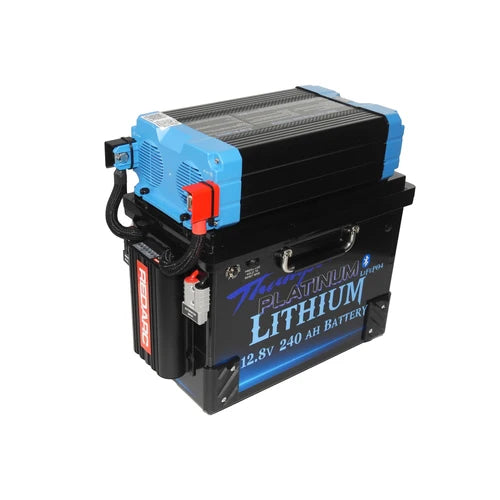

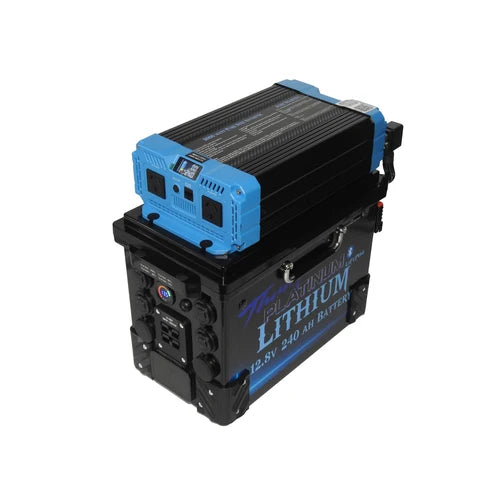

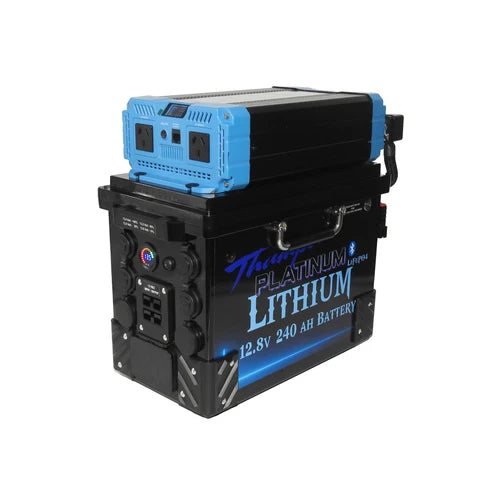

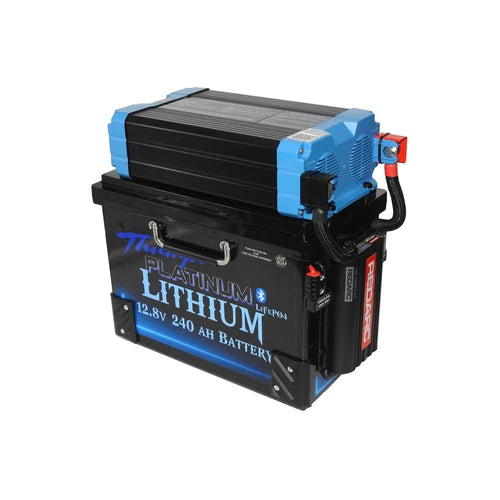

🔋 THUMPER LITHIUM BATTERY HUB GETAWAY 240AH – 2000W INVERTER

240Ah LiFePO4 • Approx. 3,072Wh Storage • 2000W Pure Sine Wave Inverter • REDARC DC-DC Charging • MPPT Solar • Bluetooth Monitoring

The Thumper Lithium Battery Hub Getaway 240Ah combines high-capacity lithium storage, vehicle charging, solar charging and integrated 240V power into one portable off-grid power system.

With 240Ah of usable LiFePO4 capacity, approximately 3,072Wh of stored energy and an integrated 2000W Pure Sine Wave inverter, it is designed for touring, caravanning, camping, canopy systems and remote-work applications where reliable 12V and 240V power is required.

Integrated REDARC DC-DC charging, MPPT solar regulation, a 20A 240V lithium charger, Bluetooth battery monitoring and jump-start capability make the Getaway a versatile all-in-one power solution for serious off-grid travel.

---

⭐ KEY FEATURES

🔋 240Ah LiFePO4 Battery
Provides 240Ah of usable lithium capacity with approximately 3,072Wh of stored energy.

⚡ 2000W Pure Sine Wave Inverter
Integrated 240V AC power for compatible appliances and sensitive electronics including laptops, battery chargers, televisions, coffee machines and suitable power tools.

🚙 REDARC DC-DC Charging
Integrated REDARC charging allows the Battery Hub to be replenished from a compatible vehicle electrical system while travelling.

☀️ MPPT Solar Charging
A dedicated unregulated solar input feeds the integrated MPPT solar regulator for off-grid charging while camped.

🔌 20A 240V Lithium Charger Included
A regulated LiFePO4 mains charger is supplied for convenient charging from suitable 240V AC power.

🚗 Vehicle Charging Loom Included
Supplied with a complete vehicle charging loom for compatible vehicle installations.

🚨 Integrated Jump-Start Capability
Includes 1.5m surge-protected jump leads and reverse-polarity protection, with supplier guidance for petrol engines up to approximately 6.0L and diesel engines up to approximately 4.5L.

📱 Bluetooth Battery Monitoring
Connect to the Thumper Batteries app to monitor state of charge, voltage, charge and discharge current, remaining capacity, runtime estimates and detailed BMS information.

⚡ 200A Continuous BMS
Provides substantial high-current capability, with the supplied specifications stating approximately 2400W of continuous 12V load capacity.

🔩 Heavy-Duty Mounting Tray
A dedicated mounting tray is included for secure touring and vehicle installation.

🇦🇺 Australian Designed & Manufactured
Designed and manufactured in Australia for touring and off-grid applications.

---

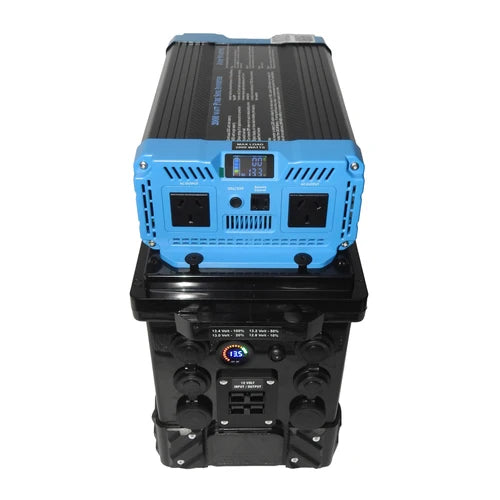

🔌 CONNECTIONS & OUTPUTS

• 2 × 50A Anderson input/output connectors
• 1 × 120A Anderson input/output/jump-start connection
• 1 × 50A Anderson unregulated solar input
• 1 × 50A Anderson alternator input
• 3 × Marine-grade cigarette sockets
• 1 × Engel-style 2-pin socket
• 2 × USB-A ports
• 4 × USB-C ports
• 2 × 240V outlets via inverter
• 1 × Digital LED voltmeter
• 1 × BMS reset switch
• Bluetooth app monitoring

---

⚡ 2000W PURE SINE WAVE 240V POWER

The integrated 2000W Pure Sine Wave inverter provides two 240V outlets for compatible appliances and electronics.

Pure sine wave output is suitable for sensitive equipment as well as everyday touring appliances, provided the connected load remains within the inverter and battery system's operating limits.

---

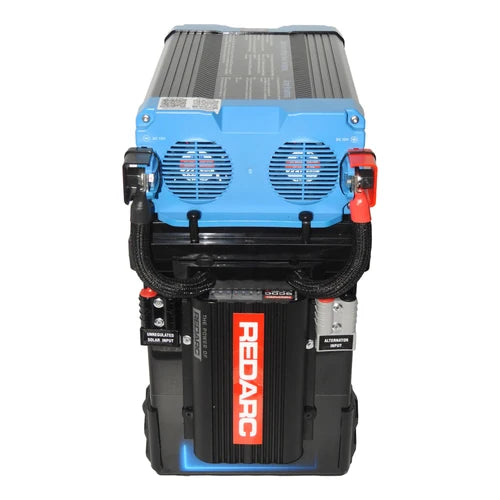

🚙 VEHICLE CHARGING

The Getaway incorporates a REDARC DC-DC charging system for replenishing the lithium battery from a compatible vehicle electrical system.

Alternator Input Voltage: 9–32V

A complete vehicle charging loom is included.

---

☀️ MPPT SOLAR CHARGING

The dedicated solar input is designed for connection to a compatible unregulated solar panel, with solar regulation handled by the Battery Hub's integrated MPPT system.

Solar Input Voltage: 9–32V as listed in the technical charging specifications

Maximum Solar Capacity: 420W as stated in the supplied information

---

🚨 JUMP-START CAPABILITY

The Getaway incorporates a dedicated high-current connection for emergency vehicle starting and is supplied with 1.5m surge-protected jump leads.

Jump-Start Capability: Yes

Maximum Starting Current: 900A

Peak Discharge Current: Up to 4000A

Reverse-Polarity Protection: Yes

Supplier-Stated Engine Guide: Up to approx. 6.0L petrol / 4.5L diesel

---

📱 BLUETOOTH BATTERY MANAGEMENT

The Thumper Batteries app provides access to detailed battery and BMS information from a compatible Bluetooth device.

• Battery capacity & voltage
• Remaining state of charge
• Charging current
• Discharge current
• Estimated runtime
• Estimated charging time
• Remaining amp-hours
• Cell balancing information
• High & low cell voltage monitoring
• Remote charge/discharge control
• Parallel battery capacity adjustment

---

📊 TECHNICAL SPECIFICATIONS

Part Numbers: TBH240-2000-RD25 / TBH240-2000-RD40

Battery Capacity: 240Ah Usable

Stored Energy: Approx. 3,072Wh

Battery Chemistry: LiFePO4

Cell Type: Prismatic

BMS Continuous Capacity: 200A

Stated Continuous 12V Load Capacity: Approx. 2400W

Integrated Inverter: 2000W Pure Sine Wave

Case Material: ABS

BMS: Built In

Recommended Charge Current: 10–100A

Maximum Charge Current: 200A

Recommended Charge Voltage: 14.2–14.6V ±0.20V

Maximum Charge Voltage: 14.8V ±0.20V

Self-Discharge Rate: ≤3% Per Month

---

📐 DIMENSIONS & WEIGHT

Total Length: Approx. 400mm including REDARC DC-DC charger

Lower Base Length: Approx. 360mm

Total Width: Approx. 215mm including handles

Base Width: Approx. 200mm

Total Height: Approx. 373mm including inverter

Weight: Approx. 25.45kg

---

🌡️ OPERATING TEMPERATURES

Discharge Temperature: Approx. -23°C to +65°C

Charge Temperature: Approx. -3°C to +65°C

Storage Temperature: Approx. -20°C to +45°C

BMS High-Temperature Cut-Out: Approx. 80°C

BMS Reconnect Temperature: Approx. 50°C

---

📦 WHAT'S INCLUDED

• 🔋 Thumper 240Ah Lithium Battery Hub Getaway
• ⚡ Integrated 2000W Pure Sine Wave inverter
• 🚙 Integrated REDARC DC-DC charging system
• ☀️ Integrated MPPT solar regulation
• 🔌 240V 20A LiFePO4 battery charger
• 🚗 Complete vehicle charging loom
• 🚨 1.5m surge-protected jump leads
• 🔩 Heavy-duty secure mounting tray

---

🛡️ WARRANTY

Battery Warranty: 5 Years

REDARC DC-DC Charger Warranty: 2 Years

---

🏕️ IDEAL FOR

• 4WD touring
• Ute & canopy systems
• Caravans & camper trailers
• Extended remote camping
• Mobile trades & remote work
• Solar-supported off-grid systems

---

❓ QUICK FAQ

Can it run 240V appliances?

Yes. The Battery Hub incorporates a 2000W Pure Sine Wave inverter with two 240V outlets. Connected appliances must remain within the operating limits of the inverter, battery and complete system.

Can it charge from the vehicle?

Yes. The Hub includes integrated REDARC DC-DC charging and a vehicle wiring loom for compatible installations.

Can I connect solar?

Yes. The dedicated unregulated solar input feeds the integrated MPPT regulator. The supplied information specifies a maximum solar capacity of 420W, with the stated input-voltage figures requiring confirmation near the upper voltage limit.

Can it jump start a vehicle?

Yes. Surge-protected jump leads are included, with supplier guidance listing petrol engines up to approximately 6.0L and diesel engines up to approximately 4.5L.

Can I monitor the battery from my phone?

Yes. The Thumper Batteries Bluetooth app provides battery state of charge, voltage, charge and discharge current, remaining capacity, runtime estimates and detailed BMS information.

---

🔋 APPROX. 3KWH OF PORTABLE 12V & 240V OFF-GRID POWER

With 240Ah of LiFePO4 capacity, approximately 3,072Wh of stored energy, a 2000W Pure Sine Wave inverter, REDARC vehicle charging, MPPT solar, 240V mains charging and integrated jump-start capability, the Thumper Getaway 240Ah combines the major components of a serious touring power system into one integrated package.

Charge it from the vehicle, solar or 240V mains — then take your power wherever the trip leads.
