🔋 THUMPER LITHIUM BATTERY HUB GETAWAY 160AH – REDARC 25A + 2000W INVERTER

160Ah LiFePO4 • 2,048Wh Storage • 2000W Pure Sine Wave Inverter • REDARC BCDC1225D • MPPT Solar • Jump Start

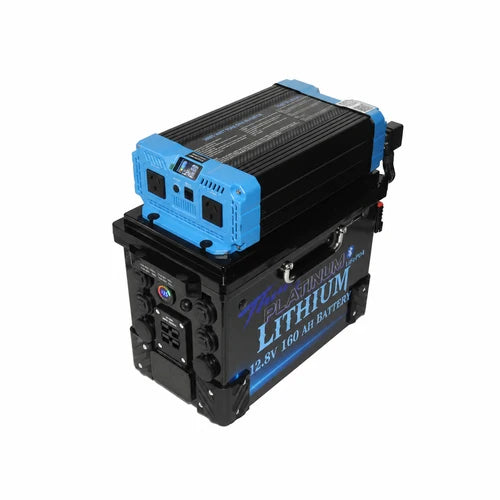

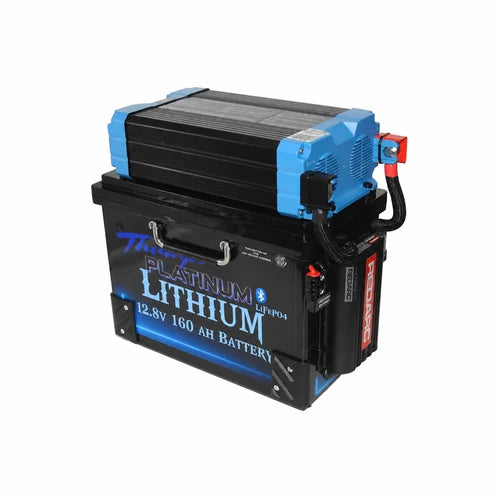

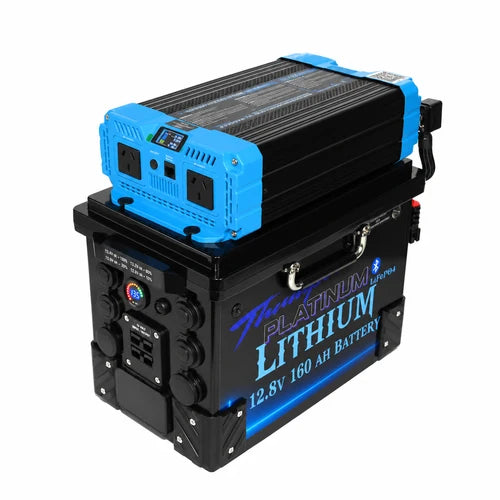

The Thumper Lithium Battery Hub Getaway 160Ah is a complete Australian-made off-grid power system combining lithium battery storage, vehicle charging, solar charging and 240V inverter power into one compact portable unit.

With 160Ah of usable LiFePO4 capacity, approximately 2,048Wh of stored energy and an integrated 2000W Pure Sine Wave inverter, the Getaway is designed for touring, camping, caravanning, overlanding and remote-work applications requiring both 12V and 240V power.

⚡ KEY FEATURES

🔋 160Ah LiFePO4 Battery
Provides 160Ah of usable lithium battery capacity with approximately 2,048Wh of energy storage.

⚡ Integrated 2000W Pure Sine Wave Inverter
Provides clean 240V AC power for compatible appliances and sensitive electronics such as laptops, chargers, televisions, power tools, coffee machines and CPAP equipment.

🚙 REDARC 25A DC-DC Charger
Fitted with a REDARC BCDC1225D for charging from a compatible vehicle electrical system.

☀️ 25A MPPT Solar Regulation
Dedicated unregulated solar input allows compatible solar panels to charge the battery through the REDARC MPPT regulator.

🔌 20A 240V Battery Charger Included
A dedicated regulated LiFePO4 mains charger is supplied for charging the Hub from suitable 240V power.

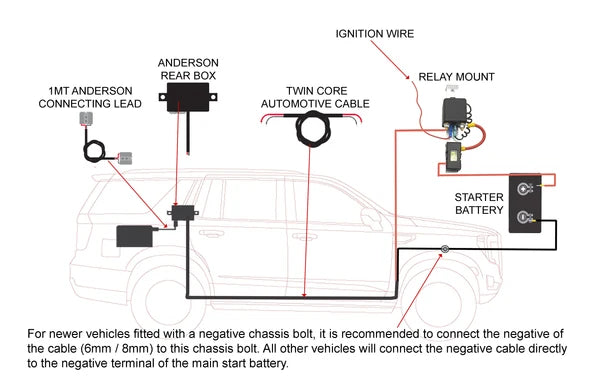

🚗 Complete Vehicle Charging Loom Included
Supplied with the required vehicle-side wiring components for connecting the Hub to a compatible vehicle charging system.

🚨 Integrated Jump Start Capability
Includes surge-protected jump leads and reverse-polarity warning, with supplied starting guidance of up to approximately 6.0L petrol or 4.5L diesel engines.

📱 Bluetooth Monitoring
Monitor battery capacity, voltage, charge and discharge current, estimated runtime, cell information and other system data through the Thumper Batteries app.

⚡ 200A Continuous BMS
Supports up to approximately 200A continuous discharge, equivalent to approximately 2400W of 12V load capacity.

🔩 Mounting Tray Included
A dedicated mounting tray is supplied for secure installation of the Battery Hub.

🇦🇺 Australian Designed & Manufactured
Designed and manufactured in Australia for touring and off-grid applications.

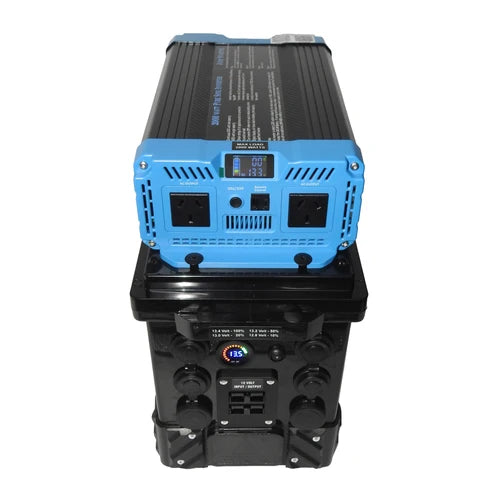

🔌 12V & 240V CONNECTIONS

• 2 × 50A Anderson Input / Output Connectors
• 1 × 120A Anderson Input / Output / Jump Start Connection
• 1 × 50A Anderson Unregulated Solar Input
• 1 × 50A Anderson Alternator Input
• 3 × Marine-Grade Cigarette Sockets
• 1 × Engel-Style 2-Pin Socket
• 2 × USB-A Ports
• 4 × USB-C Ports
• 2 × 240V Outlets via Integrated Inverter
• 1 × Digital LED Voltmeter

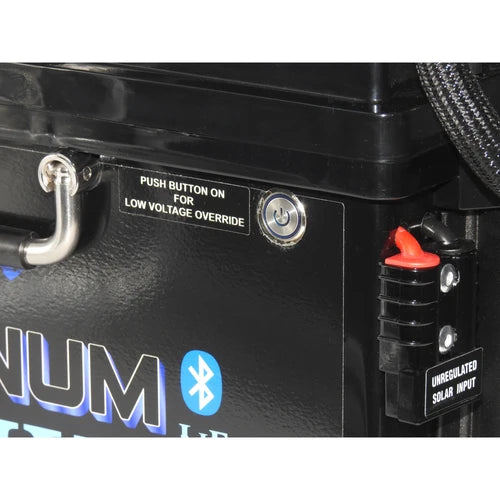

• 1 × BMS Reset Switch
• Bluetooth App Monitoring

☀️ VEHICLE & SOLAR CHARGING

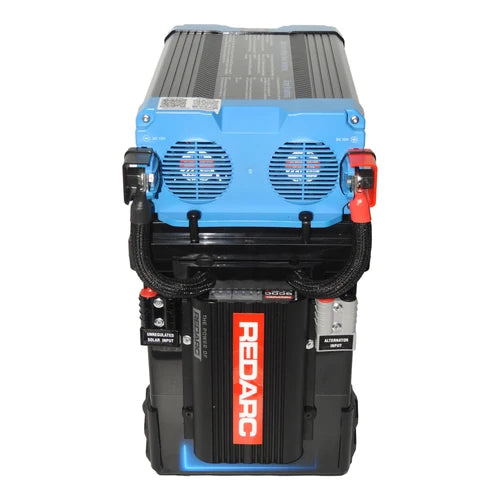

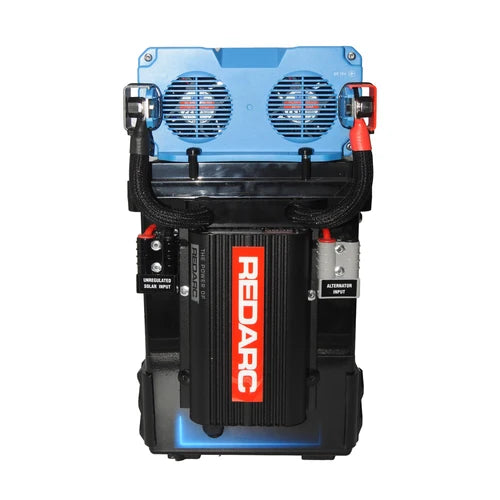

DC-DC Charger: REDARC BCDC1225D

DC-DC Charge Rate: 25A

Alternator Input Voltage: 9–32V

Solar Input Voltage: 9–32V

Solar Regulation: MPPT

MPPT Current: 25A

The dedicated solar input is designed for an unregulated solar panel. The supplied information specifies a compatible panel input between approximately 9V and 33V and a maximum of 420W.

🚨 JUMP START CAPABILITY

Jump Start Capability: Yes

Jump Leads: Included – Surge Protected

Reverse Polarity Protection: Yes

Maximum Starting Current: 900A

Peak Discharge Current: Up to 4000A

Engine Guide: Up to Approximately 6.0L Petrol / 4.5L Diesel

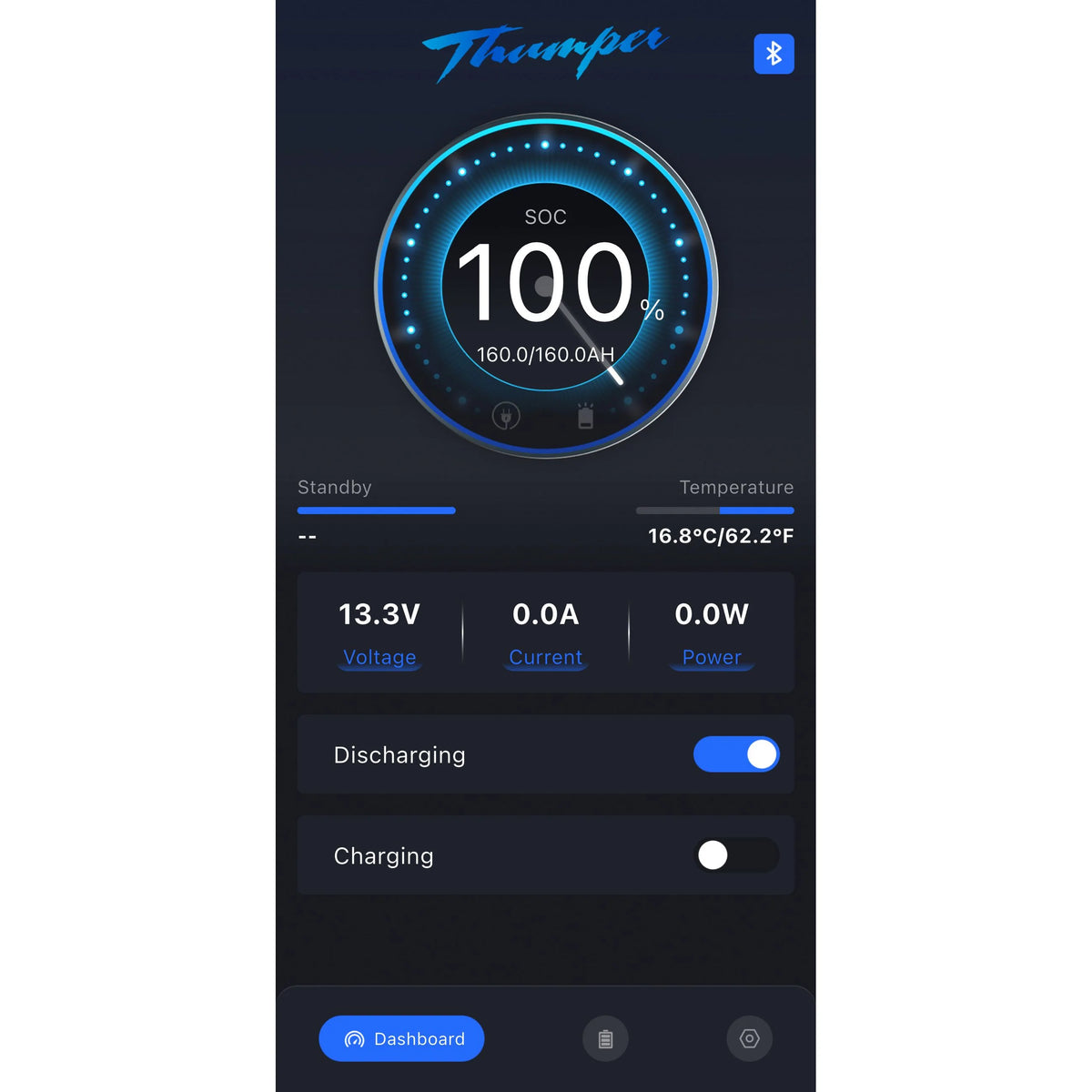

📱 BLUETOOTH BATTERY MONITORING

The Thumper Bluetooth app provides access to battery and BMS information including:

• Battery capacity
• Battery voltage
• Remaining percentage
• Charging current
• Discharge current
• Estimated runtime
• Estimated charging time
• Remaining amp-hours
• Cell balancing information
• High and low cell voltage information
• Battery charge and discharge controls

📋 TECHNICAL SPECIFICATIONS

Part Number: TBH160-RD25-2000

Battery Capacity: 160Ah Usable

Stored Energy: Approximately 2,048Wh

Battery Chemistry: LiFePO4

Cell Type: Prismatic

BMS Capacity: 200A Continuous

12V Continuous Output Capacity: Approximately 2400W

Integrated Inverter: 2000W Pure Sine Wave

Case Material: ABS

BMS: Built In

Recommended Charge Current: 10–100A

Maximum Charge Current: 200A

Recommended Charge Voltage: 14.2–14.6V ±0.20V

Maximum Charge Voltage: 14.8V ±0.20V

Self-Discharge Rate: ≤3% Per Month

📐 DIMENSIONS & WEIGHT

Total Length: Approximately 400mm including REDARC 25A DC-DC Charger

Lower Base Length: Approximately 360mm

Total Width: Approximately 215mm including handles

Base Width: Approximately 200mm

Total Height: Approximately 373mm including inverter

Weight: Approximately 19.7kg

🌡️ OPERATING TEMPERATURES

Discharge Temperature: Approximately -23°C to +65°C

Charge Temperature: Approximately -3°C to +65°C

Storage Temperature: Approximately -20°C to +45°C

BMS High Temperature Cut-Out: Approximately 80°C

BMS Reconnect Temperature: Approximately 50°C

📦 WHAT'S INCLUDED

• 🔋 1 × Thumper 160Ah Lithium Battery Hub Getaway
• ⚡ Integrated 2000W Pure Sine Wave Inverter
• 🚙 REDARC BCDC1225D 25A DC-DC Charger
• ☀️ Integrated 25A MPPT Solar Regulation
• 🔌 1 × 240V 20A LiFePO4 Battery Charger
• 🚗 Vehicle Charging Wiring Loom
• 🚨 1.5m Surge-Protected Jump Leads
• 🔩 Secure Mounting Tray

🛡️ WARRANTY

Battery Warranty: 5 Years

REDARC BCDC1225D Warranty: 2 Years

🏕️ IDEAL FOR

• 🚙 4WD touring
• 🛻 Ute & canopy setups
• 🚐 Caravans & camper trailers
• 🏕️ Remote camping
• 🧰 Mobile trades & remote work
• 💻 12V & 240V electronics
• ☀️ Solar-supported off-grid systems

❓ QUICK FAQ

Can it run 240V appliances?

Yes. The Battery Hub incorporates a 2000W Pure Sine Wave inverter with two 240V outlets. Appliance demand must remain within the inverter and battery system's operating limits.

Can I charge it from the vehicle?

Yes. This model includes a REDARC BCDC1225D 25A DC-DC charger and a vehicle charging loom.

Can I connect a solar panel?

Yes. A dedicated unregulated solar input feeds the integrated 25A MPPT regulator. The supplied specifications state approximately 9–33V solar input with a maximum panel capacity of 420W.

Can it jump start a vehicle?

Yes. Jump start capability and surge-protected leads are included, with the supplied guidance listing engines up to approximately 6.0L petrol or 4.5L diesel.

Can I monitor the battery from my phone?

Yes. The Thumper Batteries Bluetooth app provides battery state-of-charge, voltage, current, runtime estimates and other BMS information.

🔋 ONE BATTERY. ONE SYSTEM. 12V & 240V OFF-GRID POWER.

With 160Ah of LiFePO4 storage, a 2000W Pure Sine Wave inverter, REDARC 25A DC-DC charging, MPPT solar input, 240V charging, Bluetooth monitoring and jump start capability, the Thumper Getaway 160Ah is a complete Australian-made power solution for serious touring and remote applications.
