Stealth S8 Series Driving Lights (Pair) + Wiring Harness

💡 Roadvision S8 Stealth Series 8” LED Driving Lights + Dual Colour DRL Wiring Harness

Upgrade your 4WD, truck, or off-road vehicle with the Roadvision S8 Stealth Series Driving Lights, delivering powerful long-distance illumination, modern stealth styling, and advanced LED technology.

Featuring 24 high-performance LEDs, dual-colour halo DRL, and Roadvision Thermal Management Technology, these lights produce an impressive 7,937 lumens per light with beam penetration reaching up to 768m (1,086m per pair).

Designed for harsh environments, the S8 Stealth Series combines rugged durability with a sleek blackout aesthetic, making them the perfect lighting upgrade for serious off-road performance.

🚗 Why Choose the Roadvision S8 Stealth Series?

✔ Ultra-Powerful Illumination – 24 x 6W LEDs deliver intense daylight-quality light output
✔ Dual Colour HALO DRL – Choose Amber or White daytime running lights
✔ Extreme Distance Beam – Up to 768m per light (1,086m per pair) at 1 lux
✔ Stealth Blackout Design – Stylish bezel-less design with black mounting hardware
✔ Thermal Management Technology – Maintains peak brightness and long LED lifespan
✔ Heavy-Duty Construction – Die-cast aluminium housing with polycarbonate lens
✔ IP68 & IP69K Waterproof Rating – Built for dust, water, and extreme conditions
✔ Multi-Voltage Compatible – Works with 10–30V vehicles

✨ Key Features

🔆 24 x 6W High Performance LEDs – Super bright daylight output
🌗 Amber or White Halo DRL – Dual-colour daytime running light
⚡ Multi-Volt 10–30V – Suitable for 12V & 24V vehicles
🛡 Polycarbonate Lens – Impact resistant for off-road durability
🌡 Thermal Management Technology – Maximum performance & longevity
💧 IP68 / IP69K Rated – Waterproof and dustproof
🔌 Deutsch Connectors – Reliable waterproof electrical connections
🔄 Reverse Polarity Protection – Prevents electrical damage
🔋 Over & Under Voltage Protection – Stable operation in all conditions
🏁 Class 3 Approved
🛠 7 Year Warranty

🔦 Lighting Performance

Maximum Lumens:
7,937 lm per light (15,874 lm per pair)

Beam Distance:
• 768m per light @ 1 lux
• 1,086m per pair @ 1 lux
• 1,086m per light @ 0.5 lux
• 1,536m per pair @ 0.5 lux

Beam Pattern: Combination Beam (Spot + Spread)

📏 Specifications

Part Number: RDL8800C
Light Size: 8” LED Driving Light
Power Consumption: 132W
Input Voltage: 10–30V DC
LED Type: 24 x 6W High Performance LEDs
Current Draw: 9.6A @ 13.8V

Construction

• Housing: Die-Cast Aluminium
• Lens: Polycarbonate
• Waterproof Rating: IP68 / IP69K

Dimensions

A=232 × B=83 × C=218mm

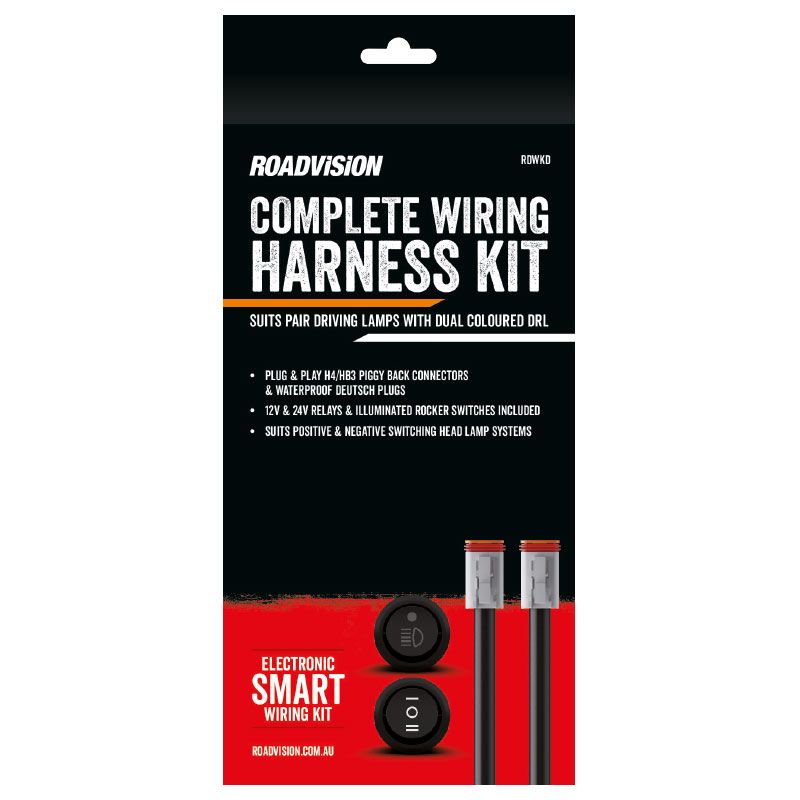

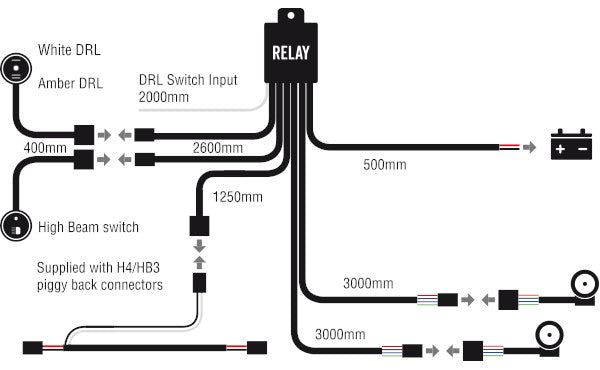

🔌 Included DRL Wiring Harness

Professional installation made easy with the Roadvision Dual Colour DRL Wiring Harness.

Designed for quick DIY installation, this harness provides plug-and-play compatibility with most vehicles and Roadvision lighting systems.

🔧 Wiring Harness Features

✔ Plug & Play Installation – No complex wiring required
✔ Works with 12V & 24V Vehicles
✔ Smart Electronics – Detects both positive & negative headlamp systems
✔ Compatible with Halogen, HID & LED Headlights
✔ Waterproof Deutsch Connectors
✔ Includes Relays & Illuminated Rocker Switches

⚙ Harness Specifications

Model: RDWKD
Type: Universal Driving Light Wiring Harness

Includes:

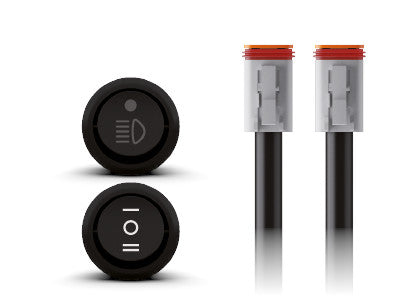

• 2 × 4-Pin Deutsch connectors
• Driving light rocker switch
• DRL rocker switch
• Relays and connectors

Designed to power a pair of driving lights with dual-colour DRL.

🛠 Built for Serious Off-Roaders

The Roadvision S8 Stealth Series combines rugged construction, exceptional beam distance, and modern stealth styling to deliver one of the most powerful and stylish driving lights available.

Whether you're tackling remote outback tracks, night highway driving, or extreme off-road adventures, these lights ensure maximum visibility and confidence behind the wheel.

🛒 Upgrade Your Night Driving

Unlock longer visibility, safer driving, and aggressive off-road style with the Roadvision S8 Stealth Series 8” Driving Lights.
