RANGE FEATURES
ROADVISION
7 SERIES SIDEWINDER LED COMBO BEAM WORK LIGHTS
7 SERIES SIDEWINDER LED COMBO BEAM WORK LIGHTS
SKU:RWL7924C

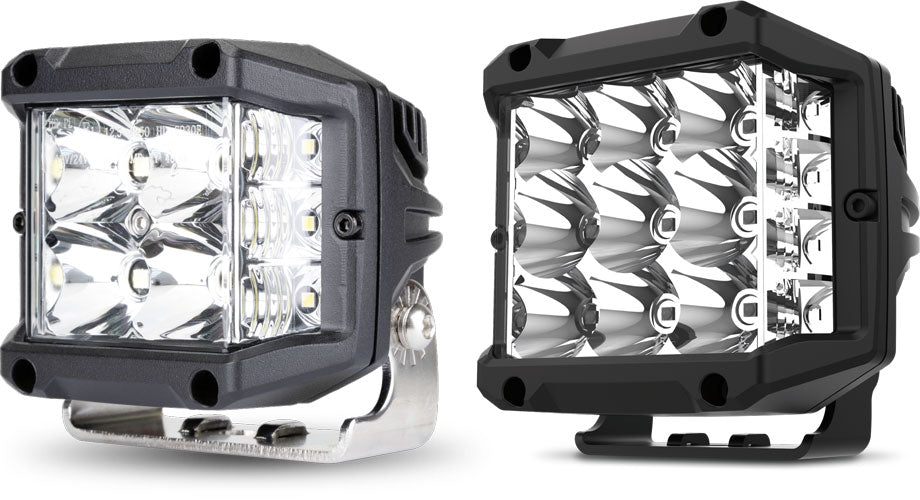

ROADVISION’s RWL7 Series Sidewinder Combo LED work lamps offer uncompromised spot and spread performance from a single lamp. The RWL7 Series feature long range spot LED’s plus additional Sidewinder flood LED’s delivering a 115 deg. spread beam. This results in a perfect combination of spot and flood without the need to install 2 separate lamps. Available in 4 or 9 LED configurations, they deliver the perfect light beam patterns for any application. Water and dust proof to IP67, the RWL7 Series feature a super durable light weight diecast housing and polycarbonate lens, allowing for worry free operation in even the toughest conditions.
- RWL7 Series LED work lamps produce up to 4500lm of instant light output
- Multi-volt 10-30V DC input
- 50,000 hour LED lifespan with solid state technology
- Light weight tough die-cast aluminium housing & polycarbonate lens
- Water & dust proof IP67 rated
- Simple 2 wire installation
- Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved
24W 1500 LUMENS (RWL7924C) & 29W 2100 LUMENS (RWL7429C)
- Available in 4 or 9 LED spot beams with 6 unique side angle 115° flood LED’s
- 9 x 1.6W Osram or 4 x 5W Osram P8 LED’s
- 6 additional 1.6W Osram side angled LED’s
- Super low current draw
55W 4500 LUMENS (RWL7955C)
- 9 x 5W Osram LED’s
- 8 additional 1.2W Osram side angled LED’s
- Thermal Management Technology
24W 1500 LUMENS BEAM PATTERN – RWL7924C
29W 2100 LUMENS BEAM PATTERN – RWL7429C
55W 4500 LUMENS BEAM PATTERN – RWL7955C
Part Number | RWL7924C | RWL7429C | RWL7955C |
---|---|---|---|
Description | Sidewinder Work Lamp LED 24W Square | Sidewinder Work Lamp LED 29W Square | Sidewinder Work Lamp LED 55W Square |
Beam Type | Combo Beam | Combo Beam | Combo Beam |
Lumens Light Output (Effective) | 1500lm | 2100lm | 4500lm |
Power Watts | 24W | 29W | 55W |
Lux @10m | 122 Lux | 490 Lux | 1166 Lux |
Input Voltage | 10-30V | 10-30V | 10-30V |
Current Draw Amps | 1.8A @ 13.8V DC | 1.88A @ 13.8V DC | 4.2 A @13.8V DC |

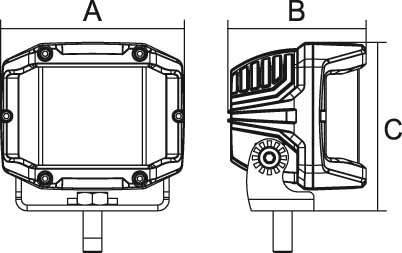

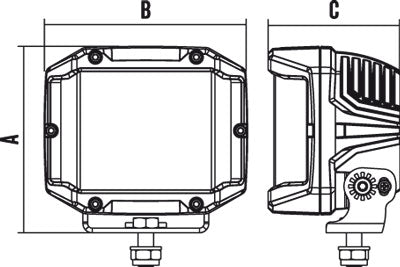

Dimensions AxBxC | 97x73x89mm | 97x73x89mm | 118x136x90mm |
Wiring | 2 Pin Deutsch Plug | 2 Pin Deutsch Plug | 2 Pin Deutsch Plug |
