RANGE FEATURES
ROADVISION

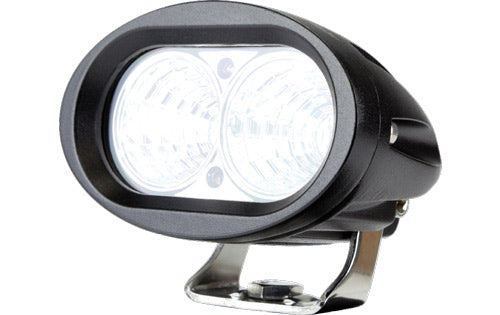

92 SERIES 20W LED WORK LIGHTS
92 SERIES 20W LED WORK LIGHTS
SKU:RWL9220F
ROADVISION’s RWL92 Series oval work lamps offer uncompromising performance and energy efficiency in a compact, easy to install package. The RWL92 Series features 2 x 10W Cree XML LED’s and is available in either flood, or spot beam. Roadvision’s compact work lamps are perfect for applications where space is limited. Water and dust proof to IP67, the RWL92 Series feature a super durable light weight die-cast housing and polycarbonate lens, allowing for worry free operation in even the toughest conditions.
- RWL92 Series LED work lamps produce 1600lm of instant light output
- Available in flood or spot beams
- 2 x 10W Cree XML LED’s produce super white light close to daylight
- Multi-volt 10-30V DC input & super low current draw
- 50,000 hour LED lifespan with solid state technology
- Light weight tough die-cast aluminium housing & polycarbonate lens
- Water & dust proof IP67 rated
- Simple 2 wire installation
- Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved.
MULTI-VOLT 10-30 VDC
POLYCARB LENS
COLOUR TEMP
WATER & DUST PROOF
OVER/UNDER VOLTAGE PROTECTION
DEUTSCH CONNECTOR
REVERSE POLARITY PROTECTION
10W CREE XML LEDS
RADIO INTERFERENCE APPROVED
5 YEAR WARRANTY
FLOOD BEAM PATTERN
SPOT BEAM PATTERN
Part Number | RWL9220F | RWL9220S |
---|---|---|
Description | 92 Series LED Work Lamp 20W Flood | 92 Series LED Work Lamp 20W Spot |
Beam Type | Flood Beam | Spot Beam |
Lumens Light Output (Effective) | 1600lm | 1600lm |
Beam Distance | 114m | 297m |
Total Watts | 20W | 20W |
Light Source | 2 x 10W CREE XML LED's | 2 x 10W CREE XML LED's |
Input Voltage | 10-30V DC | 10-30V DC |
Current Draw Amps | 1.5A @ 13.8V DC | 1.5A @ 13.8V DC |

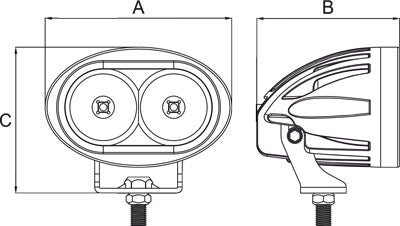

Dimensions | 98x75x77mm | 98x75x77mm |
Wiring | 2 Pin Deutsch Plug | 2 Pin Deutsch Plug |
Lux @ 10m | 58 Lux | 396 Lux |
Meters @ 1 Lux | 76m | 198m |
Meters @ 0.5 Lux | 114m | 297m |
