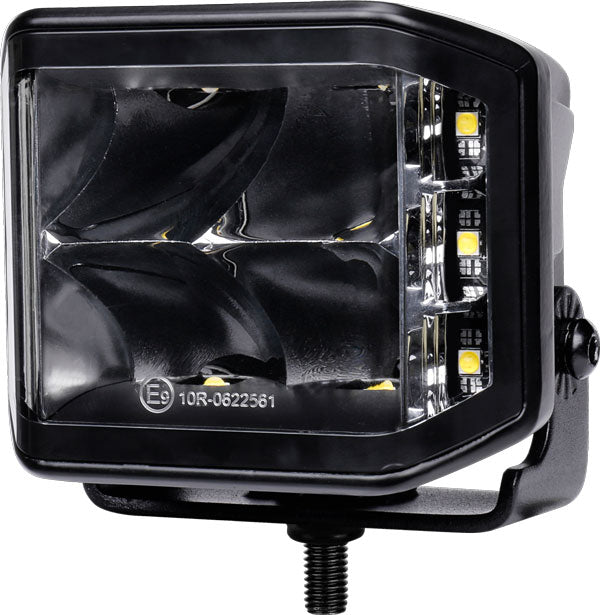

74 SERIES 70W LED COMBO BEAM WORK LIGHT

Roadvison’s RWL74 Stealth Series Combo LED work lamp offers the perfect combination of spot and flood beams in a single lamp. Featuring 4 x 10W long range LED’s plus an additional 6 x 5W flood LED’s the RWL74 boast a very impressive 257mts @ 1 LUX but still offering a 115 deg spread beam. Built to go the distance the RWL74 Stealth Series Combo LED work lamp features a light weight diecast housing with a modern bezel less polycarbonate lens. With Roadvison’s RWL74 work lamp you get the “BEST OF BOTH WORLDS”.

• RWL7470C Series LED work lamps produce a light output of up to 3445 max lumens
• Combo Beam Pattern
• 4 x 10W + 6 5W Osram LED’s produce super white light close to daylight.
• Multi-volt 10-30V DC input & super low current draw
• 50,000 hour LED lifespan with solid state technology
• Light weight tough die-cast aluminium housing & polycarbonate lens
• Simple 2 wire installation
• Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved.

MULTI-VOLT 10-24 VDC

POLYCARB LENS

ALUMINIUM HOUSING

WATER & DUST PROOF

DEUTSCH CONNECTOR

THERMAL MANAGEMENT

COLOUR TEMP

5 YEAR WARRANTY

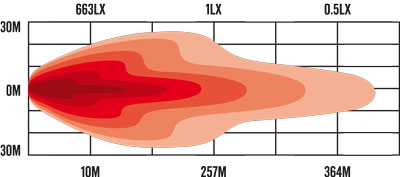

BEAM PATTERN

Part Number	RWL7470C
Description	LED Work Light 10-30V Square 70W Combo
Beam Pattern	Combination
Maximum Lumens	3445lm
Input Voltage	10-30 VDC
Maximum Watts	70W
Number Of Leds	4 x 10W + 6 x 5W
Current Draw @ 13.8V	2.9 - 5 Amps
Maximum Lux @ 10M	663LX
Maximum Distance @ 1 Lux	257m
Lens Construction	Polycarbonate
Housing Construction	Die Cast Aluminium

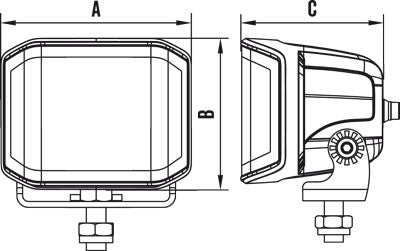

Dimensions Axbxc	97 x 77 x 75mm
Wiring	2 Pin Deutsch Plug
