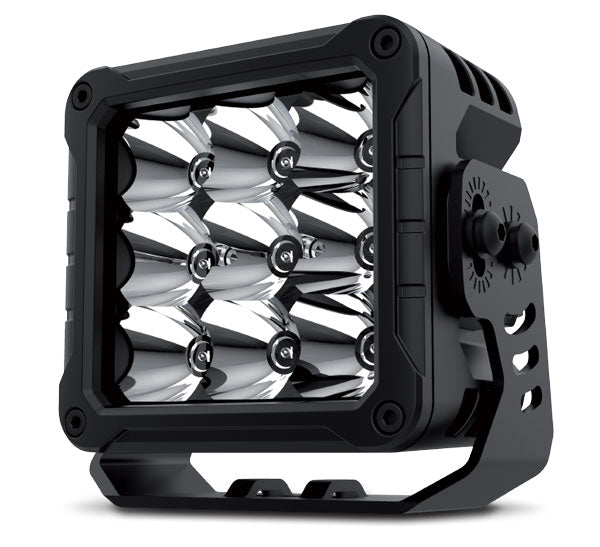

52 SERIES LED SQUARE WORK LIGHTS

ROADVISION’s RWL52 Series work lamps offer uncompromised performance and energy efficiency whilst being compact and easy to install. The RWL52 Series
work lamp feature a lightweight die-cast housing and polycarbonate lens, allowing for worry free operation in even the toughest conditions.

• RWL52 Series LED work lamps produces a light
  output of up to 9831 max lumens
• Thermal Management Technology
• Multi-volt 10-30V DC input & super low current draw
• 50,000 hour LED lifespan with solid state technology
• Light weight tough die-cast aluminium housing &
  polycarbonate lens
• Simple 2 wire installation
• Over/under voltage, reverse polarity protection & EMI/
  EMC radio interference approved.

MULTI-VOLT 10-30 VDC

POLYCARB LENS

ALUMINIUM HOUSING

WATERPROOF

DEUTSCH CONNECTOR

THERMAL MANAGEMENT TECHNOLOGY

7 YEAR WARRANTY

45W SPOT BEAM PATTERN – RWL5246S

45W FLOOD BEAM PATTERN – RWL5246F

120W FLOOD BEAM PATTERN – RWL5280F

Part Number	RWL5246S	RWL5246F	RWL5280F
Description	Work Lamp LED 45W Square Spot Beam	Work Lamp LED 45W Square Flood Beam	Work Lamp LED 120W Square Flood Beam
Beam Type	Spot	Flood	Flood
Maximum Lumens	3756lm	3756lm	9831lm
Maximum Watts	45W	45W	120W
Number of LED's	9 x 5W Osram LED's	9 x 5W Osram LED's	36 x 5W Osram LED's
Lux @10m	1340 Lux	40 Lux	110 Lux
Lens Construction	Polycarbonate	Polycarbonate	Polycarbonate
Housing Construction	Aluminium	Aluminium	Aluminium
Input Voltage	10-30V	10-30V	10-30V
Current Draw Amps	3.8A @ 13.8V DC	3.8A @ 13.8V DC	10.0A @ 13.8V DC

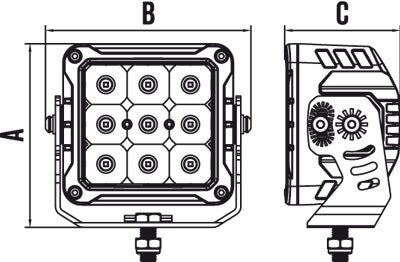

Dimensions AxBxC	118x132x74mm	118x132x74mm	118x132x74mm
Wiring	2 Pin Deutsch Plug	2 Pin Deutsch Plug	2 Pin Deutsch Plug
