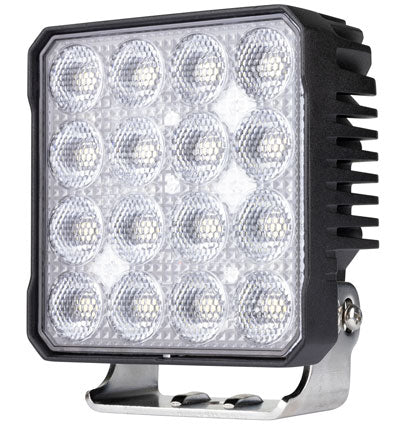

41 SERIES 94W LED FLOOD BEAM WORK LIGHT

ROADVISION’s RWL41 Series work lights offer uncompromised performance and energy efficiency whilst being compact and easy to install. The RWL41 Series are equipped with thermal management technology – smart adjusting to the environmental temperature to balance optimal performance and overheating prevention. Featuring a lightweight die-cast housing and polycarbonate lens, the RWL41 Series provide worry free operation in even the toughest conditions.

• RWL41 Series LED work lamps produces a light output of 7400 max lumens
• Thermal Management Technology
• Multi-volt 10-30V DC input & low current draw
• 50,000 hour LED lifespan with solid state technology
• Light weight tough die-cast aluminium housing & polycarbonate lens
• Simple 2 wire installation
• Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved.

MULTI-VOLT 10-30 VDC

POLYCARB LENS

COLOUR TEMP

WATER & DUST PROOF

OVER/UNDER VOLTAGE PROTECTION

DEUTSCH CONNECTOR

REVERSE POLARITY PROTECTION

OSRAM LEDS

RADIO INTERFERENCE APPROVED

7 YEAR WARRANTY

BEAM PATTERN

Part Number	RWL4196F
Description	Work Lamp LED 94W Square
Beam Pattern	Flood Beam
Maximum Lumens	7400lm
Maximum Watts	94W
Number of LED's	16 x 6W
Maximum Lux @10m	80 Lux
Lens Construction	Polycarbonate
Housing Construction	Aluminium
Input Voltage	10-30V
Current Draw Amps	7.7A @ 13.8V DC
Wiring	2 Pin Deutsch Plug

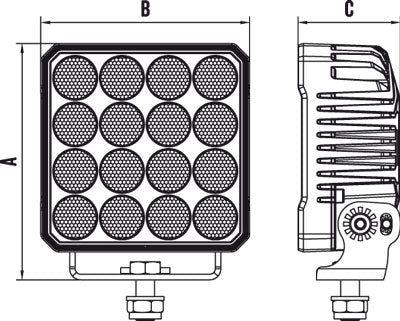

Dimensions AxBxC	127x112x55mm
