ROADVISION

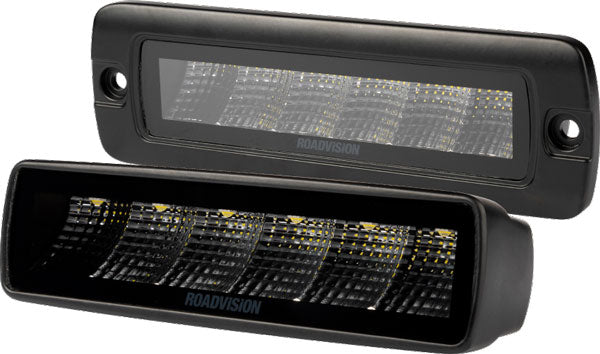

2835 SERIES 35W LED WORK LIGHTS
2835 SERIES 35W LED WORK LIGHTS
SKU:RWL2835FFM
ROADVISION’s RWL2835 Stealth Series work lamps suit the most demanding work environments. Water and dust proof to IP67, the RWL2835 Stealth Series feature a super durable light weight diecast housing and polycarbonate lens, allowing for worry free operation in Australia’s toughest conditions. Available with a cleverly designed low profile mounting bracket or sleek flush mount and simple two wire installation, the RWL2835 Stealth Series provide a high quality, low fuss solution to your lighting requirements.
- RWL2835 Series LED work lamps produce a light output of up to 1976 max lumens
- Flood Beam Pattern
- 6 x 5W Osram LED’s produce super white light close to daylight.
- Multi-volt 10-30V DC input & super low current draw
- 50,000 hour LED lifespan with solid state technology
- Light weight tough die-cast aluminium housing & polycarbonate lens
- Simple 2 wire installation
- Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved.
MULTI-VOLT 10-30 VDC
POLYCARB LENS
ALUMINIUM HOUSING
WATER & DUST PROOF
DEUTSCH CONNECTOR
COLOUR TEMP
THERMAL MANAGEMENT
OSRAM LED’S
5 YEAR WARRANTY

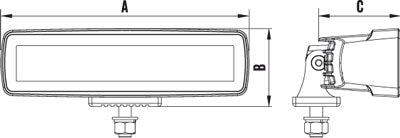

STANDARD MOUNT BEAM PATTERN – RWL2835F

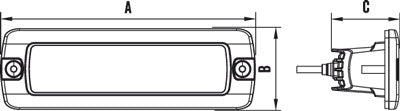

RECESSED MOUNT BEAM PATTERN – RWL2835FFM
Part Number | RWL2835F | RWL2835FFM |
---|---|---|
Beam Pattern | 160° Flood | 160° Flood |
Maximum Lumens | 1975lm | 1986lm |
Input Voltage | 10-30 VDC | 10-30 VDC |
Maximum Watts | 35W | 35W |
Number Of LEDs | 6 x 5W Osram | 6 x 5W Osram |
Current Draw @ 13.8V | 1.7 - 2.9 Amps | 1.7 - 2.9 Amps |
Maximum Lux @ 10M | 33LX | 40LX |
Maximum Distance @ 1 Lux | 57m | 63m |
Lens Construction | Polycarbonate | Polycarbonate |
Housing Construction | 2 Pin Deutsch Plug | 2 Pin Deutsch Plug |
Dimensions AxBxC | 157 x 50 x 60mm | 196 x 62 x 53mm |
Cut Out | N/A | 158 x 46mm |
