IL280P Amazon 12V In-Line & Submersible Pump | 18LPM

💧 RULE 12V IL280P “AMAZON” IN-LINE & SUBMERSIBLE PUMP – 18LPM

High-Flow Dual-Purpose 12V Transfer Pump for Water, Diesel, Boating, Caravans & Portable Applications

💦 The Rule IL280P “Amazon” Deluxe Pump is a versatile 12V centrifugal transfer pump designed for applications where higher flow, compact size and flexible installation are important.

Delivering up to 18 litres per minute, with a listed maximum pressure of 14 PSI and maximum head of 9 metres, the IL280P is suitable for transferring fresh water or diesel in boating, caravan, camping, agricultural, industrial and general portable applications.

Its dual-purpose design allows the pump to operate either fully submerged with the clip-on strainer fitted or as an in-line pump using 13mm / 1/2" hose once the strainer is removed.

Unlike the smaller intermittently rated models in the range, the IL280P features a continuously rated motor, making it better suited to longer transfer jobs. It also includes 4 metres of wiring cable with alligator battery clips for convenient portable connection to a suitable 12V battery.

---

⚡ KEY FEATURES

💦 Up to 18LPM Flow
Provides substantially higher transfer capacity for filling tanks, transferring diesel, moving fresh water and other suitable applications.

🔄 Dual Submersible & In-Line Operation
Use it fully submerged with the strainer fitted or remove the strainer to connect the pump into a suitable 13mm / 1/2" hose system.

⏱️ Continuously Rated Motor
Designed for continuous-duty transfer applications, although prolonged dry running should still be avoided.

⛽ Water or Diesel Transfer
Suitable for transferring fresh water or diesel fuel when used within the manufacturer's stated application limits.

📏 Up to 9 Metre Head
Offers a listed maximum head of 9 metres for applications requiring greater vertical lift.

💧 Up to 14 PSI
Provides a listed maximum pressure of approximately 14 PSI.

🧺 Removable Clip-On Strainer
The strainer can be fitted for submerged pumping or removed to expose the in-line hose connection.

🔌 4 Metre Power Lead
Includes approximately 4 metres of wiring cable for greater flexibility around tanks, drums, vehicles and boats.

🔋 Alligator Battery Clips Included
Allows convenient temporary connection to a suitable 12V battery for portable transfer applications.

🪶 Slimline 38mm Body
The narrow cylindrical design allows the pump to fit through small openings, including many 20-litre drum filler necks.

---

🔄 SUBMERSIBLE OR IN-LINE – ONE PUMP, TWO CONFIGURATIONS

The IL280P can be configured to suit different transfer jobs without requiring two separate pumps.

💧 Submersible Operation

With the clip-on strainer fitted, the pump can be fully immersed in a compatible liquid source.

This configuration is useful for:

• 💧 Fresh water transfer
• 🛢️ Pumping from 20L drums
• ⛽ Diesel transfer
• 🏕️ Camping water systems
• 🚤 Marine transfer applications
• 🚿 Suitable deck wash or shower arrangements

🔧 In-Line Operation

Remove the clip-on strainer and a 13mm / 1/2" hose connection is exposed for suitable in-line use.

Because the IL280P is not self-priming, the pump inlet must remain flooded through gravity feed or an appropriately configured one-way valve system.

---

⚠️ NOT SELF-PRIMING

The IL280P is a centrifugal pump and does not self-prime an empty suction line.

For correct operation it must be:

• 💧 Fully submerged in the liquid being transferred, or
• ⬇️ Supplied by a gravity-fed inlet, or
• 🔄 Used in a correctly configured in-line arrangement that maintains prime

⚠️ IMPORTANT: Do not mount the pump above a tank with an empty suction hose and expect it to draw liquid up to itself. The inlet must already have liquid available.

---

💦 18 LITRES PER MINUTE TRANSFER CAPACITY

The IL280P offers a listed flow capacity of up to 18 litres per minute, making it well suited to faster transfer jobs.

This can be particularly useful when:

• 🚐 Filling caravan water tanks
• 🛢️ Emptying portable water drums
• ⛽ Transferring diesel between suitable containers
• 🚤 Moving water aboard a boat
• 🏕️ Transferring larger quantities of water at camp

Actual flow will decrease as vertical lift, hose length, fittings and other restrictions increase.

---

📏 9 METRE MAXIMUM HEAD

The Amazon has a listed maximum head of 9 metres, giving it greater lift capability than smaller models in the range.

Maximum head and maximum flow are not available simultaneously. As the pump works against greater vertical lift or pressure, the available litres per minute will decrease.

⚠️ A 9 metre head rating does not mean the pump will deliver 18LPM at a 9 metre vertical lift.

---

⏱️ CONTINUOUSLY RATED MOTOR

The IL280P uses a continuously rated motor, making it better suited to longer transfer jobs than an intermittently rated pump.

This can be particularly useful when moving larger volumes of water or diesel.

⚠️ DRY-RUN WARNING: Although the motor is continuously rated, the pump should not be run dry for extended periods. Maintain liquid at the pump inlet during operation.

---

⛽ SUITABLE FOR DIESEL TRANSFER

The IL280P is specifically listed for diesel fuel transfer, making it useful for suitable agricultural, boating, vehicle and portable refuelling applications.

Its 38mm slimline body can fit through the opening of many fuel drums, while the 4 metre lead and alligator clips make temporary battery-powered operation practical.

⚠️ NOT FOR PETROL: The IL280P is listed for diesel transfer but must not be assumed suitable for petrol or other highly volatile fuels.

---

🚐 IDEAL FOR CARAVAN & CAMPING WATER TRANSFER

The IL280P is particularly useful when transferring fresh water from portable containers into caravan, camper or 4WD tanks.

Its 18LPM capacity can significantly reduce transfer time compared with smaller portable pumps, while the slim body allows it to be dropped directly into many water drums.

Typical touring uses include:

• 🚐 Filling caravan water tanks
• 🏕️ Transferring water at camp
• 🚙 Moving water into 4WD tanks
• 🛢️ Pumping from drums or portable containers
• 🚿 Portable fresh-water delivery

---

🚤 USEFUL FOR MARINE APPLICATIONS

The Rule in-line/submersible pump range is designed for a variety of boating applications.

Potential uses include:

• 💧 In-line fresh water transfer
• 🚿 Suitable salt-water deck wash arrangements
• 🚿 Portable shower applications
• ⛽ Diesel transfer
• 🚤 Suitable emergency pumping applications

---

🪶 SLIM ENOUGH FOR MANY 20L DRUMS

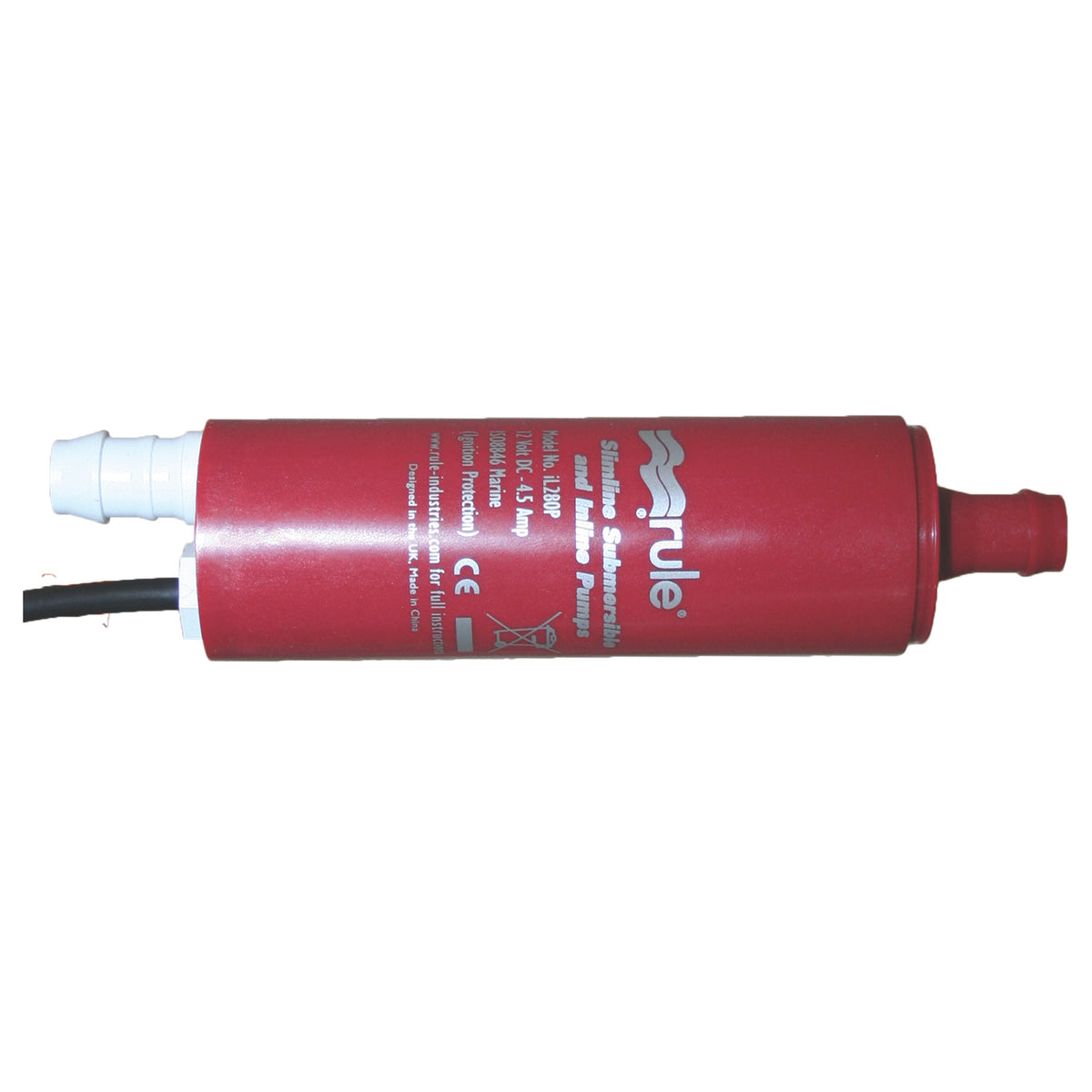

The pump measures approximately 166mm long × 38mm diameter.

Its narrow body is designed to fit through restricted openings and is specifically suited to applications involving standard-style 20 litre drums.

Always measure the actual opening of your container before purchase, as drum designs vary.

---

🔌 4 METRE LEAD WITH ALLIGATOR CLIPS

The IL280P includes approximately 4 metres of electrical cable fitted with alligator battery clips.

This makes the pump particularly convenient as a portable transfer tool because it can be connected temporarily to a suitable 12V battery without permanently wiring the pump into the vehicle or boat.

---

📋 TECHNICAL SPECIFICATIONS

Brand: Rule

Model: IL280P “Amazon”

Product Type: Deluxe In-Line / Submersible Transfer Pump

Voltage: 12V DC

Pump Type: Centrifugal

Maximum Flow Capacity: 18 Litres Per Minute

Maximum Pressure: 14 PSI

Maximum Head: 9 Metres

Motor Rating: Continuous Duty

Dry Running: Not Recommended for Long Periods

Self-Priming: No

Submersible Operation: Yes

In-Line Operation: Yes

In-Line Hose Size: 13mm / 1/2"

Strainer: Clip-On / Clip-Off

Stated Transfer Liquids: Water or Diesel

Electrical Cable Length: Approximately 4 Metres

Battery Connection: Alligator Clips Included

Body Length: Approximately 166mm

Body Diameter: Approximately 38mm

Applications: Boating, Caravan, Camping, Diesel Transfer, Industrial, Agricultural & General Transfer

---

🔧 INSTALLATION & OPERATING CONSIDERATIONS

• Operate from a suitable 12V DC supply
• Remember that the pump is not self-priming
• Fully submerge the pump for submerged applications
• Use a flooded or gravity-fed inlet for in-line operation
• Use an appropriate one-way valve arrangement where required
• Use suitable 13mm / 1/2" hose for in-line applications
• Do not run the pump dry for extended periods
• Do not use for petrol
• Confirm chemical compatibility before transferring chemicals
• Confirm electrical current and fuse requirements before permanent wiring
• Protect electrical connections appropriately for the installation environment

---

❓ FREQUENTLY ASKED QUESTIONS

Can I use this to transfer water from a 20L jerry can into my caravan?

Yes. That is one of the IL280P's strongest applications. Its 38mm slimline body is designed to fit into restricted container openings, and the 18LPM maximum flow makes it useful for quickly transferring water into a caravan or camper tank.

How quickly could it empty a 20L drum?

At the theoretical maximum flow of 18LPM, 20 litres would take a little over one minute. Real-world transfer time will be longer because hose length, vertical lift, fittings and restrictions reduce actual flow.

Is this better than the Rule IL200 Niagara?

The IL280P is the stronger choice where you want higher flow, longer continuous operation or diesel-transfer capability. It offers up to 18LPM and a 9 metre head, while the smaller IL200 is an economy water-transfer model with lower flow and an intermittently rated motor.

Can I leave the Amazon running continuously?

The motor is continuously rated, so it is designed for longer operating periods than an intermittent-duty pump. It should still remain supplied with liquid, and prolonged dry running should be avoided.

Can I run it dry?

Not for long periods. The pump should normally have liquid available at the inlet during operation. Continuous-duty motor rating does not mean unlimited dry-running capability.

Is it self-priming?

No. The IL280P must be submerged, gravity fed or used in an arrangement that keeps its inlet primed.

Can I mount it above my caravan water tank?

Not if the pump would need to pull water up through an empty suction line. Because it is not self-priming, the preferred in-line arrangement keeps the inlet flooded or gravity fed.

Can it replace a normal automatic caravan pressure pump?

Usually not if you want the pump to automatically start and stop whenever a tap is opened. The IL280P is primarily a centrifugal transfer pump and no automatic pressure-demand switch is specified.

Can I use it for a portable camping shower?

It can be used in suitable water-delivery applications, including portable shower arrangements, provided the flow and 14 PSI maximum pressure suit the shower head and plumbing arrangement.

Can I use it for diesel?

Yes. Diesel transfer is specifically listed as an application for the IL280P.

Can I drop it straight into a diesel drum?

The pump is specifically listed for diesel transfer and its slim design is intended to fit into many drum openings. Confirm the particular container opening and ensure the complete transfer arrangement is appropriate for diesel handling.

Can I use it to refuel my diesel vehicle or machinery?

Diesel refuelling and transfer are listed applications for this pump. Use appropriate diesel-compatible hose, containers and safe handling practices.

Can I use it for petrol?

No. The information specifically identifies diesel transfer and states not petrol. Do not use this pump for petrol.

Can I use it for AdBlue or other chemicals?

Do not assume compatibility. The wider pump range is described as handling various chemicals, but no specific compatibility list has been provided for the IL280P. Confirm material compatibility with the exact fluid before use.

Can it pump salt water?

Salt-water deck wash and shower use is included among the stated applications of the pump range. If this will be a regular application, follow the manufacturer's care and flushing requirements and confirm suitability for your exact installation.

Can I use it as a bilge pump?

The wider Rule range includes emergency bilge pumping among its boating applications. If the pump will be relied upon as safety equipment, confirm the IL280P's exact suitability and required installation method before using it as a primary or emergency bilge solution.

Will it pump 18LPM up a 9 metre hill?

No. Maximum flow and maximum head are separate ends of the pump's performance range. As vertical height and pressure increase, available flow decreases.

Can I use a long hose with it?

Yes, but longer hose creates additional resistance and reduces flow. Using the correct 13mm / 1/2" hose size and minimising unnecessary bends and restrictions will help maintain performance.

What is the advantage of the 4 metre electrical lead?

It allows the pump to reach containers or tanks some distance from the battery without immediately needing extension wiring. This is particularly convenient for portable camping, boating and diesel-transfer use.

Does it come ready to clip onto a battery?

Yes. The supplied 4 metre wiring cable includes alligator battery clips for connection to a suitable 12V battery.

Can I permanently wire the pump instead?

Potentially, but a permanent installation should use appropriately sized wiring, switching and circuit protection. The pump's exact current and fuse requirements should be confirmed before modifying the supplied portable lead.

Will it work from a 12V lithium battery?

Yes, provided the battery provides a suitable 12V supply and the circuit is correctly configured for the pump's electrical requirements.

Will it work from an AGM or vehicle starting battery?

Yes, it can operate from a suitable 12V battery. For portable transfer jobs, the included alligator clips make temporary connection straightforward.

What should I check before buying?

Confirm that you need a transfer pump rather than an automatic pressure pump, check whether the pump will be submerged or gravity fed, make sure 13mm / 1/2" hose suits your system, confirm the 166 × 38mm body fits your container opening and verify compatibility if you intend to transfer anything other than water or diesel.

---

💦 MORE FLOW, MORE FLEXIBILITY – WATER OR DIESEL TRANSFER FROM 12V

The Rule IL280P Amazon combines high-flow 18LPM performance, continuous-duty operation and dual submersible/in-line functionality in a compact 38mm-wide pump.

With a 9 metre maximum head, 14 PSI rating, removable strainer, 13mm hose connection and 4 metre battery lead with alligator clips, it is a highly versatile option for caravans, boating, camping, diesel transfer and general portable pumping applications.

Whether you're filling the caravan water tank, transferring diesel from a drum or moving water around camp, the IL280P provides significantly more capability than a basic portable transfer pump while remaining compact enough to take almost anywhere.
