IL200 Niagara 12V In-Line & Submersible Water Pump | 12LPM

💧 RULE 12V IL200 “NIAGARA” IN-LINE & SUBMERSIBLE WATER PUMP – 12LPM

Compact Dual-Purpose 12V Water Transfer Pump for Caravans, Camping, Boats & Portable Fresh Water Systems

💦 The Rule IL200 “Niagara” is a compact 12V centrifugal water pump designed for simple fresh water transfer applications where space, portability and flexibility matter.

Its clever dual-purpose design allows the pump to be used either fully submerged in water with the clip-on strainer fitted, or as an in-line pump using 13mm / 1/2" hose once the strainer is removed.

Delivering up to 12 litres per minute with a listed maximum pressure of 14 PSI and 7.5 metre head, the IL200 is ideal for transferring fresh water from tanks, drums and other suitable water sources in caravans, camping setups, boats and general portable applications.

At only 130mm long × 36mm diameter, its extra-slim body can fit through the opening of many 20-litre drums and into other confined spaces where a conventional pump may be too large.

---

⚡ KEY FEATURES

💧 12 Litres Per Minute Flow
Provides useful fresh water transfer performance for tanks, drums, camping systems and other portable water applications.

🔄 Dual Submersible & In-Line Operation
Use the pump submerged with its clip-on strainer fitted, or remove the strainer to reveal the 13mm / 1/2" hose connection for suitable in-line installations.

📏 Up to 7.5 Metre Head
Provides a listed maximum head of 7.5 metres for suitable water-transfer applications.

💦 Up to 14 PSI
Compact centrifugal design provides a maximum listed pressure of approximately 14 PSI.

🪶 Extra-Slim 36mm Body
The narrow pump body allows it to fit through small tank and drum openings, including many 20-litre containers.

🧺 Clip-On Strainer
The removable strainer helps protect the pump inlet during submerged operation and can be quickly removed for in-line use.

🔌 1 Metre Wiring Lead Included
Supplied with approximately one metre of electrical cable for connection into a suitable 12V circuit.

🏕️ Ideal for Portable Water Transfer
Well suited to caravan, camping, boating and general fresh water transfer applications.

---

🔄 TWO PUMPS IN ONE – SUBMERSIBLE OR IN-LINE

One of the biggest advantages of the Rule IL200 is its ability to operate in two different configurations.

💧 Submersible Operation

With the strainer fitted, the IL200 can be lowered directly into a suitable fresh water source.

This makes it useful for:

• 💧 Transferring water from portable tanks
• 🛢️ Pumping from suitable drums
• 🏕️ Camping water transfer
• 🚐 Caravan water applications
• 🚤 Compatible marine fresh water systems

🔧 In-Line Operation

Remove the clip-on strainer and the end of the pump can be connected into a suitable 13mm / 1/2" hose system.

When used in-line, the pump must receive water by gravity feed or through an appropriately configured system because the IL200 is not self-priming.

---

⚠️ NOT SELF-PRIMING

The Rule IL200 is a centrifugal pump and is specifically listed as not self-priming.

For the pump to operate correctly it must either:

• 💧 Be fully submerged in water, or
• ⬇️ Receive water through a gravity-fed inlet, or
• 🔄 Be used in an appropriately configured in-line system with a one-way valve where required to maintain prime

⚠️ IMPORTANT: This is not a self-priming diaphragm pressure pump. Do not install it above a water tank and expect it to pull water up through an empty suction hose.

---

💦 12LPM WATER TRANSFER CAPACITY

The IL200 has a listed water transfer capacity of up to 12 litres per minute.

This provides useful flow for transferring fresh water without the size and complexity of a larger pressure pump.

Actual flow at the outlet will depend on factors including:

• 📏 Hose length
• 📐 Vertical lift
• 🔧 Hose diameter
• ↪️ Number of fittings and bends
• 🚰 Outlet restrictions
• 🔋 Available supply voltage

The 12LPM figure should therefore be treated as the pump's stated capacity rather than guaranteed flow at every installation point.

---

📏 7.5 METRE MAXIMUM HEAD

The pump is listed with a maximum head of 7.5 metres.

Head describes the maximum vertical water column the pump can work against under the stated conditions. As vertical lift and system resistance increase, available flow decreases.

⚠️ A 7.5 metre head rating does not mean the pump will still deliver 12LPM at a 7.5 metre vertical lift. Maximum flow and maximum head occur under different operating conditions.

---

🪶 EXTRA-SLIM 36MM DESIGN

Measuring approximately 130mm long × 36mm diameter, the IL200 is especially useful where the pump needs to fit through a narrow opening.

Its slim body can fit through the filler opening of many 20-litre water drums, making it convenient for portable camping and water-transfer setups.

---

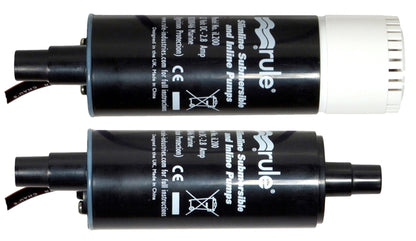

🧺 CLIP-ON / CLIP-OFF STRAINER

The removable strainer gives the IL200 its dual-purpose functionality.

Leave the strainer attached when using the pump submerged in a suitable water source.

Remove it and the pump reveals a hose connection suitable for 13mm / 1/2" in-line plumbing.

This makes one compact pump suitable for multiple fresh water transfer configurations.

---

🏕️ GREAT FOR CARAVAN & CAMPING WATER TRANSFER

The IL200 is particularly useful in portable touring setups where you need to move water rather than maintain an automatic household-style pressure system.

Typical applications include:

• 🚐 Transferring water into caravan tanks
• 🏕️ Pumping water from portable camping containers
• 🛢️ Emptying suitable 20L water drums
• 💧 Moving fresh water between tanks
• 🚤 Fresh water transfer on boats
• 🌾 General portable water-transfer duties

---

⏱️ INTERMITTENT DUTY

The IL200 uses an intermittently rated motor.

It is designed for water-transfer applications where the pump operates for periods as required rather than running continuously for extended periods.

⚠️ IMPORTANT: Do not treat the IL200 as a continuous-duty circulation pump. Its motor is specifically listed for intermittent operation.

---

💧 WATER ONLY

The IL200 Niagara Economy Pump is specified for water only.

⚠️ IMPORTANT: Do not use the pump for fuel, oils, chemicals or other liquids unless specifically approved by the manufacturer. This model is listed as a water-transfer pump.

---

🔌 SIMPLE 12V POWER

The pump operates from a 12V DC electrical supply and includes approximately one metre of wiring cable.

This makes it straightforward to incorporate into suitable caravan, boat or portable auxiliary-battery systems.

⚠️ A specific current draw, recommended fuse size and required cable size have not been provided here. Confirm these electrical requirements before selecting circuit protection or extending the supplied cable.

---

📋 TECHNICAL SPECIFICATIONS

Brand: Rule

Model: IL200 “Niagara”

Product Type: In-Line / Submersible Water Transfer Pump

Voltage: 12V DC

Pump Type: Centrifugal

Flow Capacity: Up to 12 Litres Per Minute

Maximum Pressure: 14 PSI

Maximum Head: 7.5 Metres

Self-Priming: No

Submersible Operation: Yes

In-Line Operation: Yes

In-Line Hose Size: 13mm / 1/2"

Strainer: Removable Clip-On / Clip-Off

Fluid Compatibility: Water Only

Motor Duty: Intermittent

Electrical Cable: Approximately 1 Metre Included

Body Length: Approximately 130mm

Body Diameter: Approximately 36mm

Applications: Boating, Caravan, Camping & General Fresh Water Transfer

---

🔧 INSTALLATION CONSIDERATIONS

• Use only with a suitable 12V DC supply
• Use for water-transfer applications only
• Remember that the pump is not self-priming
• Fully submerge the pump when using the strainer configuration
• Use gravity feed or an appropriate one-way valve arrangement for suitable in-line applications
• Use compatible 13mm / 1/2" hose for in-line operation
• Confirm fuse and wiring requirements before installation
• Protect electrical connections from water ingress
• Avoid unnecessary hose restrictions and sharp bends
• Do not operate beyond its intermittent-duty rating

---

❓ FREQUENTLY ASKED QUESTIONS

Can I drop this pump straight into a water tank or 20L drum?

Yes. That is one of the IL200's most useful applications. With the clip-on strainer fitted, the pump can be fully submerged in a suitable fresh water source. Its slim 36mm body allows it to fit through many relatively small openings.

Will it fit through the opening of a 20-litre water drum?

The pump body is approximately 36mm in diameter and is specifically described as slim enough to fit through the filler hole of a 20-litre drum. Check the actual opening on your particular container before purchase because drum designs vary.

Can I use it to transfer water from a jerry can into my caravan tank?

Yes. This is exactly the type of portable water-transfer job the IL200 is suited to. Submerge it in the water container and use suitable hose and wiring to transfer water to the caravan tank.

Can I use it permanently in-line with my caravan water tank?

Potentially, provided the inlet remains flooded or gravity fed. The IL200 is not self-priming, so it cannot be installed above the tank with an empty suction line and expected to pull water up to itself.

Can it replace my caravan's automatic pressure pump?

Usually not if you need automatic tap operation. The IL200 is a centrifugal water-transfer pump and no automatic pressure switch is specified. A self-priming diaphragm demand pump is generally a better choice for a normal caravan sink or shower system that needs to automatically start when a tap opens.

Does the pump automatically switch on when I open a tap?

No automatic demand pressure switch is specified for the IL200. It should not be assumed to operate like a conventional caravan pressure pump. A separate switching arrangement would be required for normal control.

Is it self-priming?

No. The IL200 is specifically listed as not self-priming. It must be submerged, gravity fed or used with an appropriate system arrangement that keeps water at the pump inlet.

Why would I need a one-way valve?

In certain in-line installations, a one-way valve can help prevent water draining back out of the suction line when the pump stops. This can help maintain water at the pump inlet because the IL200 cannot self-prime an empty line.

Can I use it to draw water up from a creek while camping?

The pump can be fully submerged in a suitable water source, but any water intended for drinking must be appropriately treated and filtered. Pumping water does not make untreated creek or stream water safe to consume.

Can it pump water uphill?

Yes, within its performance limits. The pump has a listed maximum head of 7.5 metres, but available flow decreases as vertical lift and hose resistance increase.

Will it still pump 12 litres per minute at a 7.5m lift?

No. The 12LPM figure is the listed maximum flow capacity, while 7.5 metres is the maximum head. As the pump works against increasing height and pressure, the flow rate falls.

Is 12LPM enough for filling a caravan water tank?

For portable water transfer, 12LPM is a useful capacity. In ideal conditions, a 20-litre container could theoretically be transferred in under two minutes, although real-world hose length, lift and restrictions will reduce the actual rate.

Can I use 13mm garden-style hose?

The in-line connection is specified for 13mm / 1/2" hose. The actual hose should also be suitable for the intended fresh water application and securely attached to the pump.

Do I have to remove the strainer for in-line use?

Yes. The clip-on strainer is removed to expose the hose connection used for the 13mm / 1/2" in-line configuration.

Can it run continuously all day?

No. The IL200 is specified with an intermittently rated motor. It is intended for water-transfer jobs where the pump runs as required and is then switched off, rather than continuous 24/7 operation.

Can I use it with a lithium battery?

Yes, it can operate from a suitable regulated 12V lithium auxiliary system. Confirm the pump's electrical current and fuse requirements before completing the installation.

Can I run it from an AGM battery?

Yes. A suitable 12V AGM auxiliary system can power the pump when wired and protected correctly.

Can I use it on a boat?

Yes, the Rule in-line/submersible pump range is designed for various boating applications. For this IL200 model, the specific specification supplied identifies it as a water-only transfer pump, so the installation should remain within those stated limits.

Can I use it as an emergency bilge pump?

The wider Rule pump range is described as having emergency bilge applications, but the IL200 specification here specifically identifies this model as an economy water-transfer pump suitable for water only. If emergency bilge use is required, confirm that the IL200 itself is approved for that exact application before relying on it for vessel safety.

Can I use it for diesel or fuel transfer?

No. The IL200 is listed for water only and should not be used to transfer diesel, petrol or other fuels.

Can I use it for drinking water?

It is described for fresh water applications, but no specific potable-water certification has been provided here. If the pump will be used in a drinking-water system, confirm the applicable certification and use compatible food-grade hose and fittings.

What should I check before buying?

Decide whether you will use the pump submerged or in-line, confirm that 12LPM and 14 PSI are suitable for your application, check that a non-self-priming pump will work with your tank layout, confirm the 13mm hose connection suits your plumbing and remember that this model is intended for intermittent water-transfer duty rather than automatic continuous pressure supply.

---

💧 SIMPLE, COMPACT 12V WATER TRANSFER ALMOST ANYWHERE

The Rule IL200 Niagara is a practical solution when you need to move fresh water without installing a large pressure-pump system.

With up to 12LPM flow, 7.5 metres of head, dual submersible or in-line operation, a removable strainer and an extra-slim 36mm body, it is particularly well suited to caravans, camping setups, boats and portable water-transfer applications.

Drop it into a suitable water container, or incorporate it into a gravity-fed 13mm hose system, and the compact IL200 provides a simple and versatile way to move water from one place to another.
