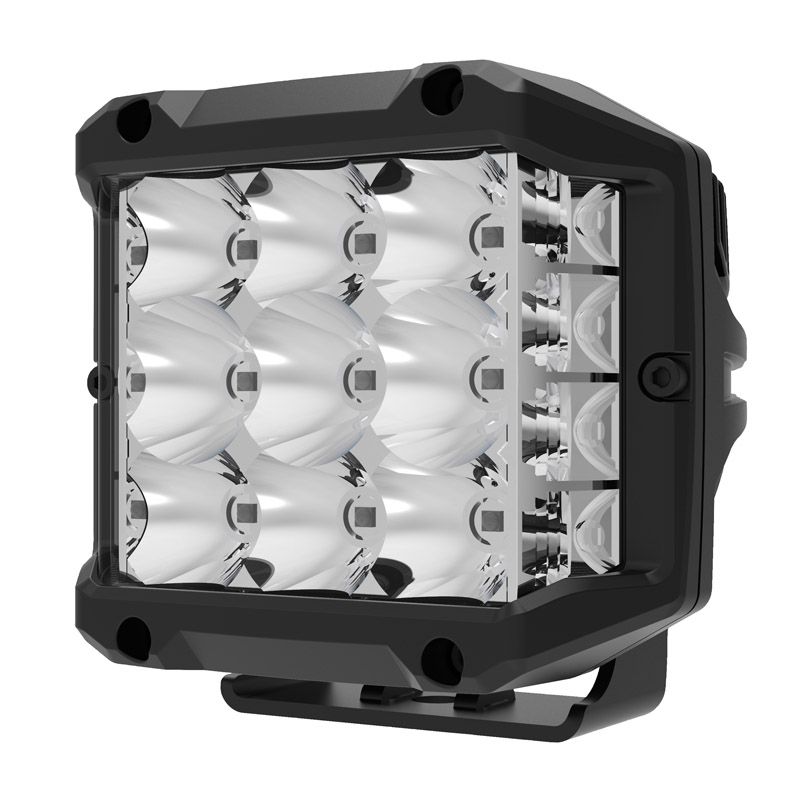

RWL7955C 55W Sidewinder LED Work Light | Combo Beam

💡 ROADVISION RWL7955C SIDEWINDER 55W LED WORK LIGHT – COMBO BEAM

4500 Lumens • 9 × 5W Spot LEDs + 8 Side Flood LEDs • 115° Spread • IP67 • 10–30V DC

The Roadvision RWL7955C Sidewinder delivers powerful forward lighting and wide side illumination from a single heavy-duty 55W LED work light.

Featuring 9 × 5W Osram P8 forward LEDs together with 8 × 1.2W side-angled Osram LEDs, it produces an effective 4500 lumens with an impressive 1166 lux at 10 metres and a broad 115° Sidewinder flood spread.

⚡ KEY FEATURES

🎯 Spot + Flood Combo Beam
Combines strong forward-focused lighting with wide side illumination, giving you distance and broad surrounding coverage from one lamp.

↔️ 115° Sidewinder Flood Spread
Eight dedicated side-angled LEDs illuminate a much wider area around the main forward beam.

💡 4500 Lumen Effective Output
High-output illumination suited to machinery, commercial vehicles, work utes and demanding utility applications.

🔭 1166 Lux @ 10m
Strong centre-beam intensity provides useful forward lighting while the side LEDs increase surrounding visibility.

⚙️ Osram Hi-Lux LED Technology
Uses 9 × 5W Osram P8 LEDs for the primary beam plus 8 × 1.2W Osram side LEDs for the wide Sidewinder spread.

🌡️ Thermal Management Technology
Designed to manage operating temperature and support reliable LED performance under demanding conditions.

🔋 Multi-Volt 10–30V DC
Suitable for compatible 12V and 24V vehicle and machinery electrical systems.

💧 IP67 Water & Dust Protection
Designed for tough outdoor and mobile applications where exposure to dust and weather is expected.

🛡️ Die-Cast Aluminium Housing
Lightweight, durable housing paired with a tough polycarbonate lens.

🔌 2-Pin Deutsch Plug
Provides a robust electrical connection for vehicle and machinery installations.

⚡ Electrical Protection
Features over-voltage, under-voltage and reverse-polarity protection.

📻 EMI / EMC Approved
Designed to minimise radio-frequency interference in compatible vehicle electrical systems.

🕒 Up to 50,000 Hour LED Lifespan
Solid-state LED technology is designed for long service life.

🛡️ 5 Year Warranty
Backed by Roadvision's supplied 5-year warranty.

🔦 SIDEWINDER COMBO BEAM

The RWL7955C is designed for applications where both forward reach and wide surrounding illumination are required.

• 🎯 9 × 5W Osram P8 LEDs provide the main forward beam
• ↔️ 8 × 1.2W side-angled LEDs provide a 115° flood spread
• 💡 4500 lumens effective output
• 🔭 1166 lux measured at 10 metres
• 🔧 Reduces the need for separate spot and flood work lamps

📋 TECHNICAL SPECIFICATIONS

Part Number: RWL7955C

Description: Sidewinder LED Work Lamp – 55W Square

Beam Type: Combo Beam

Effective Light Output: 4500lm

Power: 55W

Primary Spot LEDs: 9 × 5W Osram P8

Side Flood LEDs: 8 × 1.2W Osram

Side Flood Spread: 115°

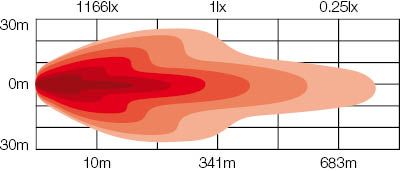

Lux @ 10m: 1166lx

Input Voltage: 10–30V DC

Current Draw @ 13.8V: 4.2A

Thermal Management Technology: Yes

Protection Rating: IP67

Housing: Die-Cast Aluminium

Lens: Polycarbonate

Wiring: 2-Pin Deutsch Plug

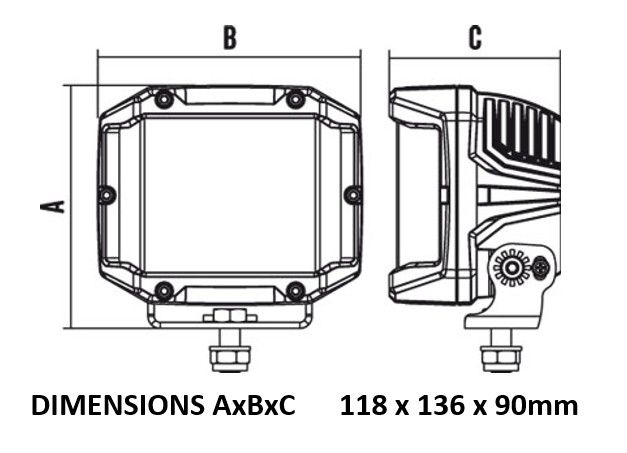

Dimensions: Approximately 118 × 136 × 90mm

LED Lifespan: Up to 50,000 Hours

Warranty: 5 Years

🚜 IDEAL FOR

• 🛻 Work utes & service vehicles
• 🚜 Agricultural machinery
• 🚚 Trucks & commercial vehicles
• 🏗️ Construction equipment
• 🚙 4WD & touring vehicles
• 🧰 Utility & maintenance vehicles
• 🌙 Night-time work areas

❓ QUICK FAQ

What makes the RWL7955C a combo beam?

It uses nine forward-facing Osram P8 LEDs for the primary beam together with eight side-angled LEDs that create a wide 115° flood spread.

How bright is the RWL7955C?

Roadvision specifies an effective output of 4500 lumens and 1166 lux at 10 metres.

Can it operate on both 12V and 24V systems?

Yes. Its specified operating range is 10–30V DC.

Is it suitable for harsh outdoor conditions?

Yes. The lamp is rated IP67 for dust-tight protection and protection against temporary immersion under the applicable test conditions.

💡 SERIOUS FORWARD LIGHT + 115° SIDE COVERAGE FROM ONE LAMP

With 4500 lumens, 1166 lux at 10 metres, a 115° Sidewinder flood spread and rugged IP67 construction, the Roadvision RWL7955C delivers powerful all-round work lighting for vehicles and machinery that need both distance and wide-area coverage.
