RWL7924C 24W Sidewinder LED Work Light | Combo Beam

💡 ROADVISION RWL7 SIDEWINDER 24W LED WORK LIGHT – COMBO BEAM

1500 Lumens • Spot + 115° Side Flood • 24W • Thermal Management • IP67 • 10–30V DC

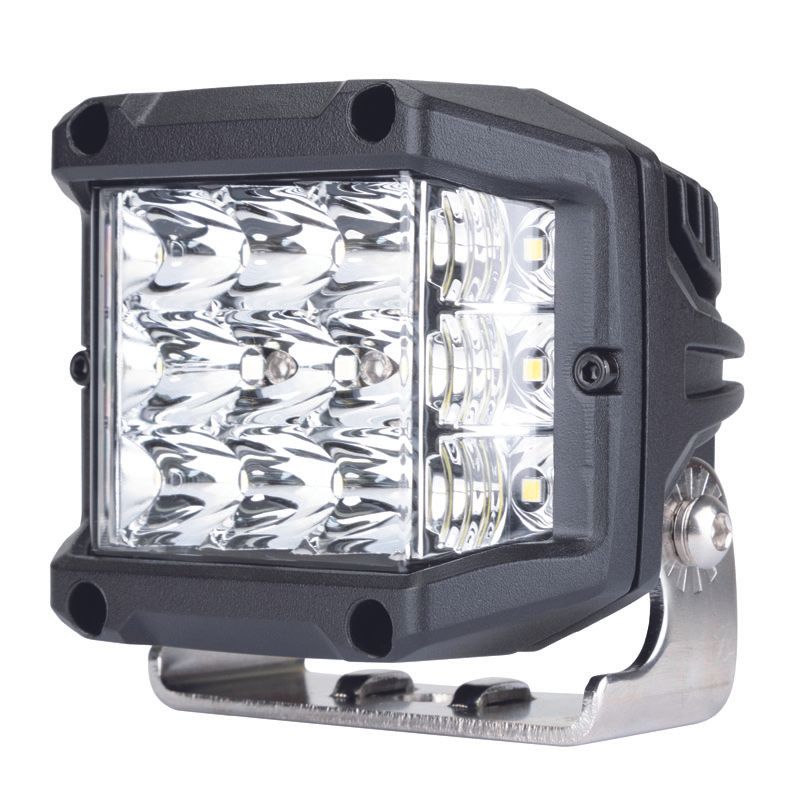

The Roadvision RWL7 Sidewinder 24W LED Work Light combines forward spot lighting with wide-angle side illumination from a single compact lamp.

Roadvision's unique Sidewinder design uses dedicated side-angled LEDs to produce a 115° flood spread around the forward beam, giving you useful distance and broad work-area coverage without needing separate spot and flood lights.

⚡ KEY FEATURES

🎯 Spot + Flood Combo Beam
Combines long-range forward lighting with wide side illumination for a versatile all-round beam pattern.

↔️ 115° Sidewinder Flood Spread
Dedicated side-angled LEDs project light across a wide area around the main forward beam.

💡 1500 Lumen Effective Output
Provides practical illumination for work vehicles, machinery and utility applications.

🌡️ Thermal Management Technology
Designed to manage operating temperature and support reliable LED performance in demanding conditions.

⚙️ Osram Hi-Lux LEDs
High-performance Osram LEDs produce a bright white light designed to closely resemble daylight.

⚡ Low Power Consumption
The 24W lamp draws approximately 1.8A at 13.8V DC.

🔋 Multi-Volt 10–30V DC
Suitable for compatible 12V and 24V vehicle and machinery electrical systems.

💧 IP67 Water & Dust Protection
Designed for tough outdoor and mobile applications where exposure to dust and weather is expected.

🛡️ Die-Cast Aluminium Housing
Lightweight, durable aluminium housing paired with a tough polycarbonate lens.

🔌 2-Pin Deutsch Plug
Provides a robust electrical connection for vehicle and machinery installations.

⚡ Electrical Protection
Features over-voltage, under-voltage and reverse-polarity protection.

📻 EMI / EMC Approved
Designed to minimise radio-frequency interference in compatible electrical installations.

🕒 Up to 50,000 Hour LED Lifespan
Solid-state LED technology provides long-term service life with no conventional globe to replace.

🛡️ 5 Year Warranty
Backed by Roadvision's supplied 5-year warranty.

🔦 SIDEWINDER COMBO BEAM – SPOT & FLOOD IN ONE

The RWL7 Series is designed to provide the benefits of both beam types from one compact work lamp.

• 🎯 Forward-focused LEDs provide useful distance
• ↔️ Dedicated side LEDs create a 115° flood spread
• 💡 Better illumination around the sides of the work area
• 🔧 Reduces the need to install separate spot and flood lamps

This makes the Sidewinder particularly useful on work vehicles and machinery where both forward visibility and broad surrounding illumination are required.

📋 TECHNICAL SPECIFICATIONS

Description: Sidewinder LED Work Lamp – 24W Square

Beam Type: Combo Beam

Effective Light Output: 1500lm

Power: 24W

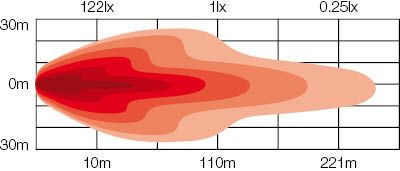

Maximum Lux @ 10m: 122lx

Input Voltage: 10–30V DC

Current Draw @ 13.8V: 1.8A

Side Flood Spread: 115°

LED Type: Osram Hi-Lux

Thermal Management Technology: Yes

Protection Rating: IP67

Housing: Die-Cast Aluminium

Lens: Polycarbonate

Wiring: 2-Pin Deutsch Plug

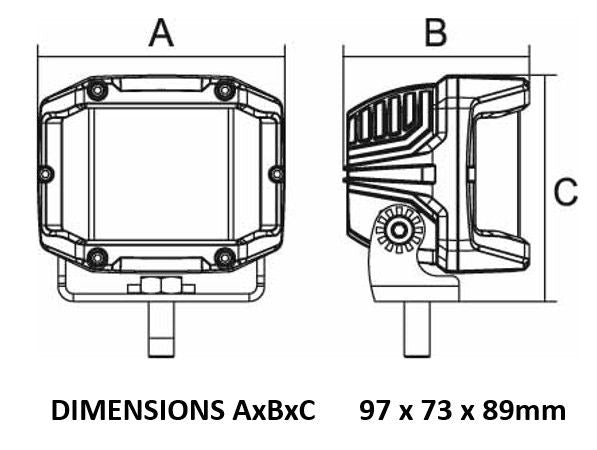

Dimensions: Approximately 97 × 73 × 89mm

LED Lifespan: Up to 50,000 Hours

Warranty: 5 Years

🚜 IDEAL FOR

• 🛻 Work utes & service vehicles
• 🚜 Agricultural machinery
• 🚚 Trucks & commercial vehicles
• 🏗️ Construction equipment
• 🚙 4WD & touring vehicles
• 🧰 Utility & maintenance vehicles
• 🌙 Night-time work areas

❓ QUICK FAQ

Is the RWL7 a spot or flood light?

It is a combination beam work light, providing forward spot illumination together with a wide 115° side flood spread.

How bright is the 24W model?

The supplied specification lists an effective output of 1500 lumens and 122 lux at 10 metres.

What is Sidewinder lighting?

Roadvision's Sidewinder design incorporates additional side-angled LEDs to spread light out to approximately 115°, complementing the forward-focused portion of the beam.

Can it operate on both 12V and 24V systems?

Yes. The specified operating voltage range is 10–30V DC.

Is it weather resistant?

Yes. The lamp is rated IP67 for dust-tight protection and protection against temporary immersion under the applicable test conditions.

💡 SPOT DISTANCE + 115° SIDE LIGHTING FROM ONE COMPACT LAMP

With its Sidewinder combo beam, 1500-lumen output, thermal management technology and rugged IP67 construction, the Roadvision RWL7 24W is a versatile work light for vehicles and machinery that need both forward reach and wide surrounding illumination.
