RWL5280F 120W LED Work Light | Flood Beam 9831lm

💡 ROADVISION RWL5280F 120W LED WORK LIGHT – FLOOD BEAM

9831 Lumens • 120W • 36 × 5W Osram LEDs • 10–30V DC • Deutsch Connection

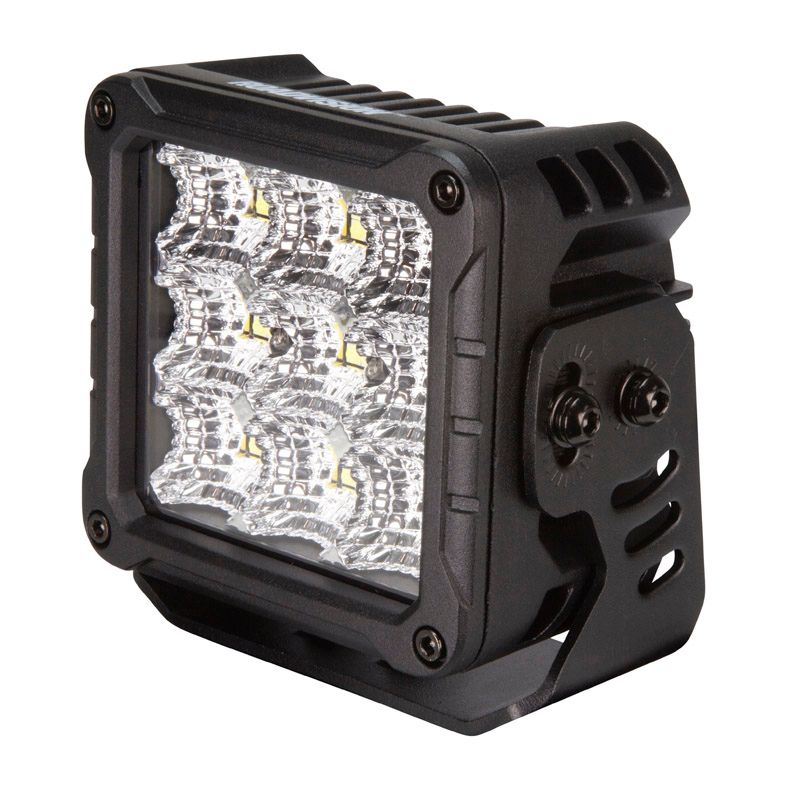

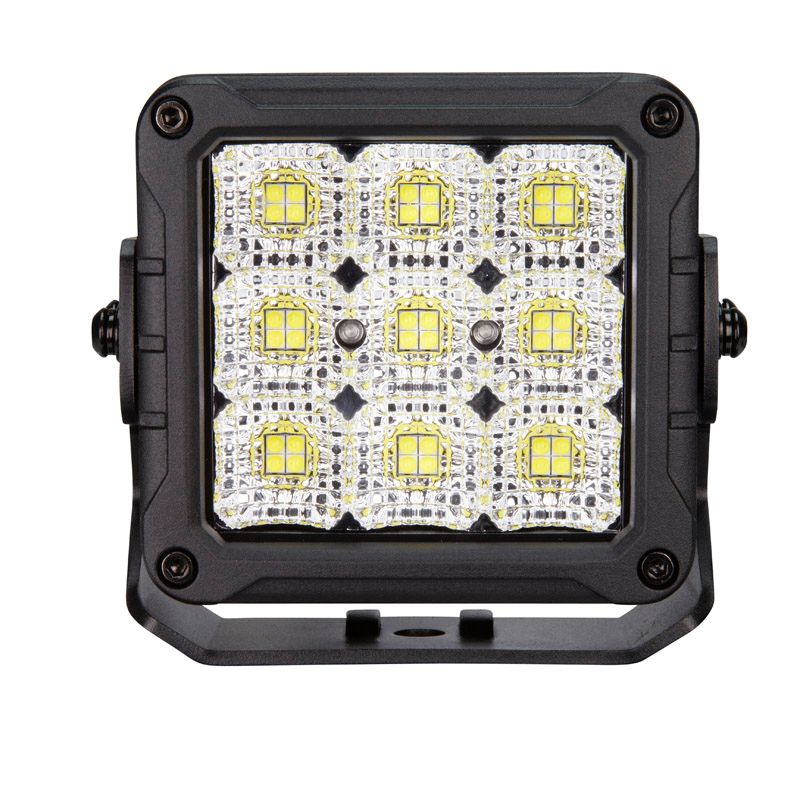

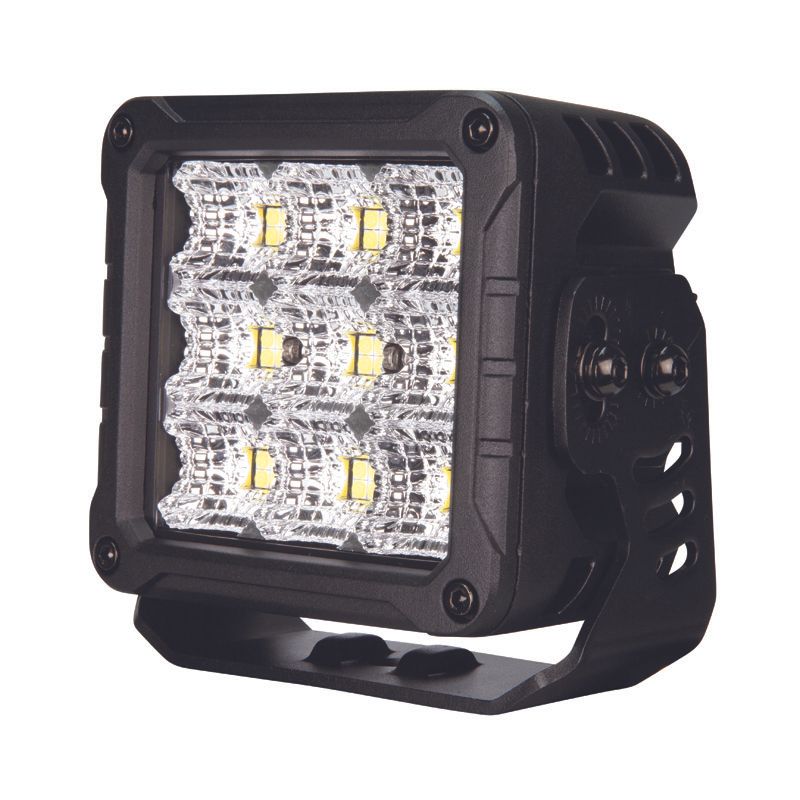

The Roadvision RWL5280F is a compact high-output LED work light designed to deliver powerful flood-beam illumination for work vehicles, machinery and demanding outdoor applications.

Producing up to 9831 lumens, the RWL5280F combines 36 Osram LEDs with thermal management technology, multi-volt operation and a lightweight die-cast aluminium housing.

⚡ KEY FEATURES

💡 9831 Lumen Output
Provides powerful LED illumination for demanding work and machinery applications.

🔦 Flood Beam
Designed to spread light across a broad work area rather than concentrate it into a narrow long-distance beam.

⚙️ 36 × 5W Osram LEDs
Uses 36 Osram LEDs with a maximum lamp power of 120W.

🌡️ Thermal Management Technology
Helps manage operating temperature to support reliable LED performance.

🔋 Multi-Volt 10–30V DC
Suitable for compatible 12V and 24V vehicle and machinery electrical systems.

🛡️ Aluminium Housing & Polycarbonate Lens
Lightweight die-cast aluminium construction with a durable polycarbonate lens for demanding environments.

🔌 2-Pin Deutsch Plug
Provides a robust electrical connection for vehicle and machinery installations.

⚡ Electrical Protection
Features over-voltage, under-voltage and reverse-polarity protection.

📻 EMI / EMC Approved
Designed to minimise radio-frequency interference in compatible electrical installations.

🛡️ 5 Year Warranty
Backed by Roadvision's supplied 5-year warranty.

📋 TECHNICAL SPECIFICATIONS

Part Number: RWL5280F

Description: LED Work Lamp – 120W Square Flood Beam

Beam Type: Flood

Maximum Lumens: 9831lm

Maximum Power: 120W

LEDs: 36 × 5W Osram

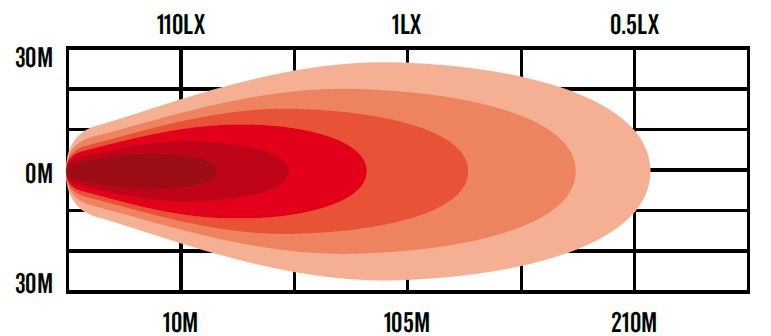

Lux @ 10m: 110lx

Input Voltage: 10–30V DC

Current Draw @ 13.8V: 10.0A

Lens: Polycarbonate

Housing: Aluminium

Wiring: 2-Pin Deutsch Plug

LED Lifespan: Up to 50,000 Hours

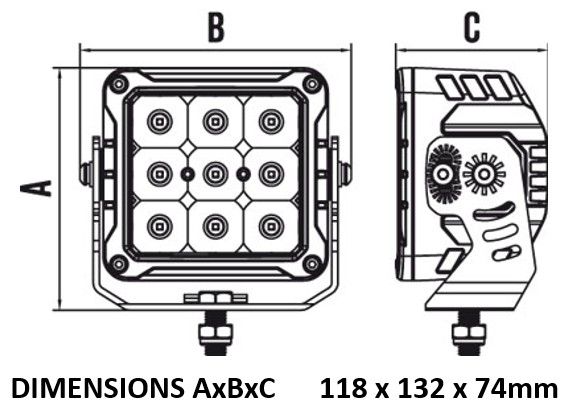

Dimensions: Approximately 118 × 132 × 74mm

Warranty: 5 Years

🛠️ COMPACT HIGH-OUTPUT DESIGN

The RWL5280F combines substantial flood-light output with a compact housing, making it suitable for installations where mounting space is limited but strong area lighting is required.

Roadvision describes the RWL52 Series as waterproof; however, no specific IP rating is provided in the supplied specifications.

🚜 IDEAL FOR

• 🚜 Agricultural machinery
• 🚚 Trucks & heavy vehicles
• 🏗️ Construction equipment
• 🛻 4WDs & work utes
• 🧰 Service vehicles
• 🌙 Night-time work areas

❓ QUICK FAQ

How bright is the RWL5280F?

The supplied specification lists a maximum output of 9831 lumens and 110 lux at 10 metres.

Is it a spot or flood beam?

It uses a flood beam designed to illuminate a broad working area.

Can it run on 12V and 24V systems?

Yes. Its specified operating range is 10–30V DC.

What connector does it use?

The lamp uses a 2-pin Deutsch plug.

💡 COMPACT SIZE. 9831 LUMENS OF FLOOD LIGHT.

With 120W output, 36 Osram LEDs, thermal management technology and a compact aluminium housing, the Roadvision RWL5280F delivers powerful broad-area lighting for demanding work vehicle and machinery applications.
