RWL5246F 45W LED Work Light | Flood Beam 3756lm

💡 ROADVISION RWL5246F 45W LED WORK LIGHT – FLOOD BEAM

3756 Lumens • 45W • 9 × 5W Osram LEDs • 10–30V DC • Deutsch Connection

The Roadvision RWL5246F is a compact 45W LED work light designed to provide broad flood-beam illumination for work vehicles, machinery and demanding outdoor applications.

Producing up to 3756 lumens, it combines 9 Osram LEDs with thermal management technology, multi-volt operation and a lightweight die-cast aluminium housing.

⚡ KEY FEATURES

💡 3756 Lumen Output
Provides strong LED illumination in a compact work-light format.

🔦 Flood Beam
Designed to spread light across a broad working area rather than concentrate it into a narrow long-distance beam.

⚙️ 9 × 5W Osram LEDs
Uses nine 5W Osram LEDs with a maximum lamp power of 45W.

🌡️ Thermal Management Technology
Helps manage operating temperature and support reliable LED performance.

🔋 Multi-Volt 10–30V DC
Suitable for compatible 12V and 24V vehicle and machinery electrical systems.

🛡️ Tough Aluminium Housing
Lightweight die-cast aluminium construction with a durable polycarbonate lens.

🔌 2-Pin Deutsch Plug
Provides a robust electrical connection for vehicle and machinery installations.

⚡ Electrical Protection
Includes over-voltage, under-voltage and reverse-polarity protection.

📻 EMI / EMC Approved
Designed to minimise radio-frequency interference in compatible electrical installations.

🛡️ 5 Year Warranty
Backed by Roadvision's supplied 5-year warranty.

📋 TECHNICAL SPECIFICATIONS

Part Number: RWL5246F

Description: LED Work Lamp – 45W Square Flood Beam

Beam Type: Flood

Maximum Lumens: 3756lm

Maximum Power: 45W

LEDs: 9 × 5W Osram

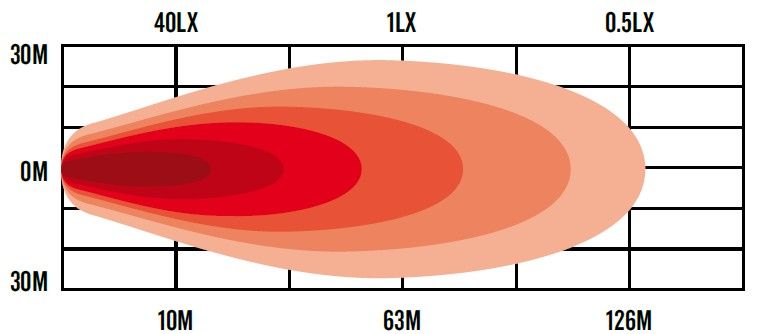

Lux @ 10m: 40lx

Input Voltage: 10–30V DC

Current Draw @ 13.8V: 3.8A

Lens: Polycarbonate

Housing: Aluminium

Wiring: 2-Pin Deutsch Plug

LED Lifespan: Up to 50,000 Hours

Dimensions: Approximately 118 × 132 × 74mm

Warranty: 5 Years

🛠️ COMPACT & EASY TO INSTALL

The RWL5246F combines a compact footprint with useful flood-light output, making it suitable for installations where mounting space is limited.

Roadvision describes the RWL52 Series as waterproof and suitable for demanding conditions; however, no specific IP rating is provided in the supplied specification.

🚜 IDEAL FOR

• 🚜 Agricultural machinery
• 🚚 Trucks & heavy vehicles
• 🛻 4WDs & work utes
• 🏗️ Construction equipment
• 🧰 Service vehicles
• 🌙 Work-area lighting

❓ QUICK FAQ

How bright is the RWL5246F?

The supplied specification lists a maximum output of 3756 lumens and 40 lux at 10 metres.

Is it a spot or flood beam?

It uses a flood beam designed to provide broad-area illumination.

Can it run on 12V and 24V systems?

Yes. Its specified operating voltage is 10–30V DC.

What connector does it use?

The lamp uses a 2-pin Deutsch plug.

💡 COMPACT FLOOD LIGHTING FOR TOUGH WORK ENVIRONMENTS

With 3756 lumens, 9 Osram LEDs, thermal management technology and a compact aluminium housing, the Roadvision RWL5246F delivers practical flood lighting for work vehicles, machinery and equipment.
