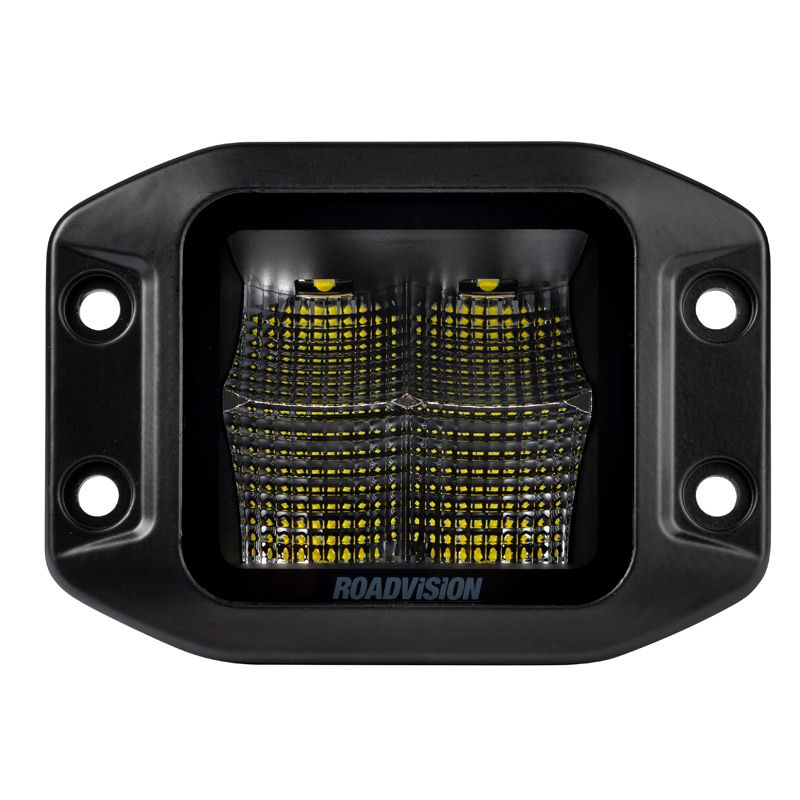

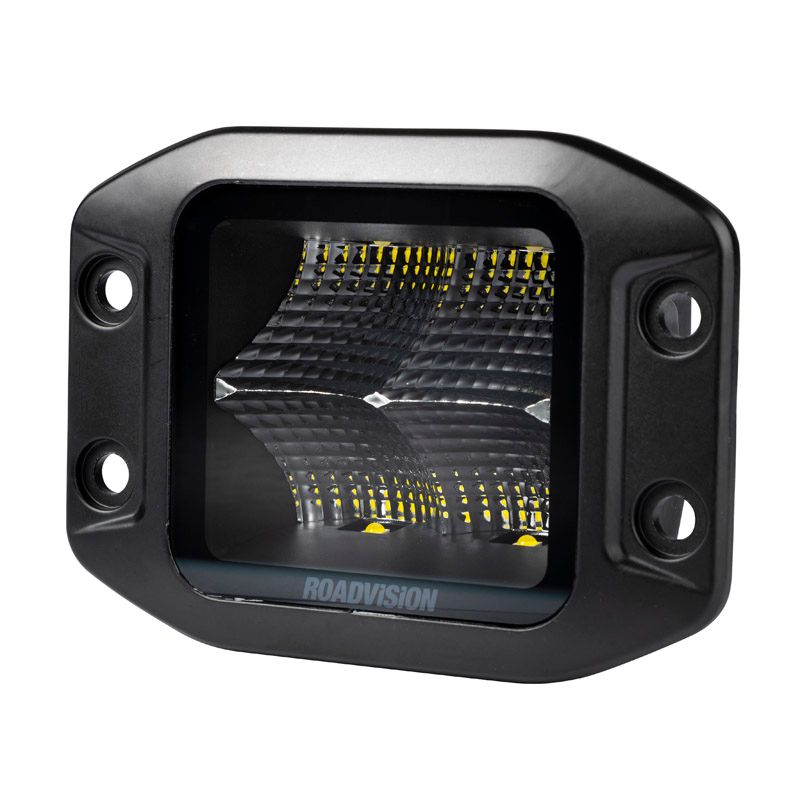

RWL4840FFM 40W Flush Mount LED Work Light | 110° Flood

💡 ROADVISION RWL4840FFM 40W FLUSH MOUNT LED WORK LIGHT – 110° FLOOD BEAM

3016 Lumens • Flush Mount • 4 × 9W OSRAM LEDs • 10–30V DC • 5 Year Warranty

The Roadvision RWL4840FFM Stealth LED Work Light delivers powerful wide-area lighting in a clean flush-mount design suited to canopies, service bodies, rear panels and other installations where a low-profile finish is preferred.

Producing up to 3016 lumens from four 9W OSRAM LEDs, the RWL4840FFM uses a broad 110° flood beam to illuminate work areas, campsites and the surrounding vehicle area.

Its smoked-look lens and blackout finish provide Roadvision's distinctive Stealth appearance, while the die-cast aluminium housing, polycarbonate lens and integrated thermal management system are designed for demanding vehicle and equipment applications.

---

⭐ KEY FEATURES

🛠️ Flush Mount Installation
Designed to sit neatly into a panel for a cleaner, lower-profile installation than a conventional surface-mounted work light.

💡 Up To 3016 Lumens
Provides strong illumination from a compact 40W LED work-light package.

🌐 110° Flood Beam
Wide beam spread makes it ideal for lighting work areas, campsites, canopy surrounds and loading zones.

🔆 4 × 9W OSRAM LEDs
High-quality OSRAM LEDs produce a bright white light designed to closely resemble daylight.

🚙 Multi-Volt 10–30V DC
Suitable for a wide range of 12V and 24V vehicle and equipment electrical systems.

🌡️ Thermal Management
Automatically adjusts performance according to environmental temperature to balance light output with overheating prevention.

🛡️ Die-Cast Aluminium Housing
Lightweight and durable construction designed for demanding automotive and commercial applications.

🔍 Polycarbonate Lens
Tough lens construction suited to vehicle-mounted work-light applications.

🔌 2-Pin Deutsch Connector
Provides a secure and convenient electrical connection for installation.

⚡ Electrical Protection
Includes over-voltage, under-voltage and reverse-polarity protection.

📻 EMI / EMC Approved
Designed to minimise electrical interference with vehicle radio and electronic systems.

⏱️ 50,000 Hour LED Lifespan
Solid-state LED technology provides long service life with minimal maintenance.

🛡️ 5 Year Warranty
Backed by Roadvision's stated 5-year warranty.

---

🛠️ CLEAN FLUSH-MOUNT INSTALLATION

The RWL4840FFM is designed for applications where a conventional protruding work light is not ideal.

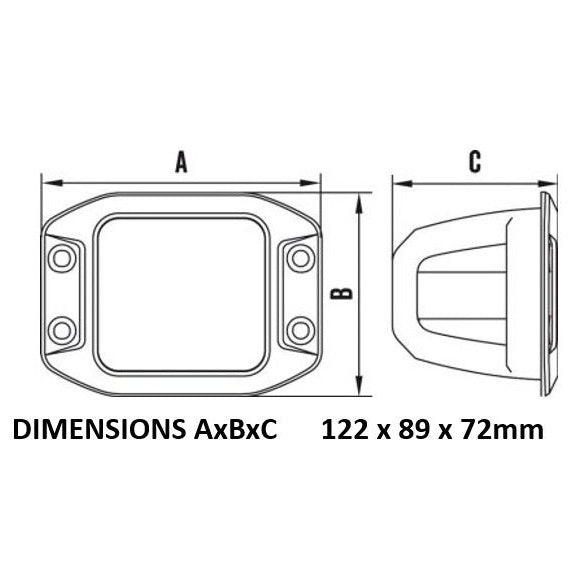

With a required cut-out of 82 × 75mm and overall dimensions of 122 × 89 × 72mm, it can be integrated neatly into suitable canopies, service bodies, rear panels and equipment housings.

This makes it particularly useful for permanent side or rear work-light installations where a tidy factory-style finish is preferred.

---

📊 TECHNICAL SPECIFICATIONS

Model: RWL4840FFM

Mounting Type: Flush Mount

Beam Pattern: 110° Flood

Maximum Lumens: 3016lm

Maximum Power: 40W

LEDs: 4 × 9W OSRAM

Input Voltage: 10–30V DC

Current Draw @ 13.8V: 1.4–3.3A

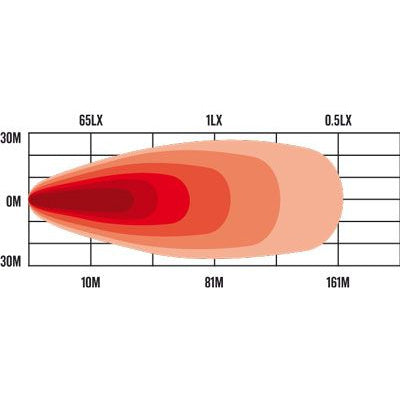

Maximum Lux @ 10m: 65lx

Maximum Distance @ 1 Lux: 81m

Lens Construction: Polycarbonate

Housing Construction: Die-Cast Aluminium

Cut-Out: 82 × 75mm

Electrical Connection: 2-Pin Deutsch Plug

Dimensions: 122 × 89 × 72mm

LED Lifespan: 50,000 Hours

Warranty: 5 Years

⚠️ The supplied product information references IP protection and colour temperature but does not specify an exact IP rating or colour-temperature value. These have therefore not been stated as numerical specifications.

---

🚙 SUITABLE APPLICATIONS

• 4WD canopies
• Service bodies
• Toolboxes
• Utes & work vehicles
• Caravans & camper trailers
• Rear work lighting
• Side-area lighting
• Agricultural & construction equipment

---

❓ QUICK FAQ

What is the difference between the RWL4840FFM and RWL4840F?

The RWL4840FFM is the flush-mount version, designed to install into a panel for a more integrated finish. The light output and supplied beam specifications are otherwise very similar.

What size cut-out is required?

The specified panel cut-out is 82 × 75mm.

Is it a spot or flood beam?

It uses a wide 110° flood beam, designed for illuminating a broad area rather than long-distance projection.

Can it be used on 12V and 24V vehicles?

Yes. The RWL4840FFM has a 10–30V DC multi-volt operating range.

What connector does it use?

The light uses a 2-pin Deutsch plug connection.

---

💡 POWERFUL FLOOD LIGHTING WITH A CLEAN FLUSH-MOUNT FINISH

With 3016 lumens, a 110° flood beam, OSRAM LEDs, thermal management and a compact flush-mount design, the Roadvision RWL4840FFM is a practical choice for canopies, service bodies and vehicle installations where strong area lighting and a tidy finish are equally important.
