RWL4823F 23W Stealth LED Work Light | 90° Flood

💡 ROADVISION RWL4823F 23W LED WORK LIGHT – 90° FLOOD BEAM

1439 Lumens • 4 × 5W OSRAM LEDs • 10–30V DC • Compact Stealth Design • 5 Year Warranty

The Roadvision RWL4823F Stealth LED Work Light delivers practical wide-area lighting from a compact housing, making it ideal for vehicles and equipment where mounting space is limited.

Producing up to 1439 lumens from four 5W OSRAM LEDs, the RWL4823F uses a 90° flood beam to provide broad illumination around work vehicles, canopies, campsites and equipment.

Its smoked-look lens and blackout mounting hardware give it Roadvision's distinctive Stealth appearance, while the die-cast aluminium housing, polycarbonate lens and thermal management system are designed for reliable operation in demanding environments.

---

⭐ KEY FEATURES

💡 Up To 1439 Lumens
Provides useful work-area illumination from a compact 23W LED housing.

🌐 90° Flood Beam
Designed to spread light over a wide area rather than concentrate it into a long-distance spot beam.

🔆 4 × 5W OSRAM LEDs
High-quality OSRAM LEDs produce a bright white light designed to closely resemble daylight.

🚙 Multi-Volt 10–30V DC
Suitable for a wide range of 12V and 24V vehicle and equipment electrical systems.

📐 Compact 69 × 72 × 59mm Housing
A strong option where installation space is limited or a discreet work light is preferred.

🌡️ Thermal Management
Automatically adjusts performance according to environmental temperature to help balance light output and overheating prevention.

🛡️ Die-Cast Aluminium Housing
Lightweight and durable construction designed for demanding vehicle and equipment applications.

🔍 Polycarbonate Lens
Tough lens construction suited to automotive and work-light use.

🔌 2-Pin Deutsch Connector
Provides a secure and convenient connection for installation.

⚡ Electrical Protection
Includes over-voltage, under-voltage and reverse-polarity protection.

📻 EMI / EMC Approved
Designed to minimise electrical interference with vehicle radio and electronic systems.

⏱️ 50,000 Hour LED Lifespan
Solid-state LED technology provides long service life with minimal maintenance.

🛡️ 5 Year Warranty
Backed by Roadvision's stated 5-year warranty.

---

🔦 COMPACT STEALTH WORK LIGHTING

The RWL4823F is part of Roadvision's Stealth range, combining a smoked-look lens with blackout mounting hardware for a clean, low-profile appearance.

At only 69 × 72 × 59mm, it is especially useful on canopies, service bodies, utes, caravans and machinery where space is limited but effective flood lighting is still required.

---

📊 TECHNICAL SPECIFICATIONS

Model: RWL4823F

Beam Pattern: 90° Flood

Maximum Lumens: 1439lm

Maximum Power: 23W

LEDs: 4 × 5W OSRAM

Input Voltage: 10–30V DC

Current Draw @ 13.8V: 1.1–1.9A

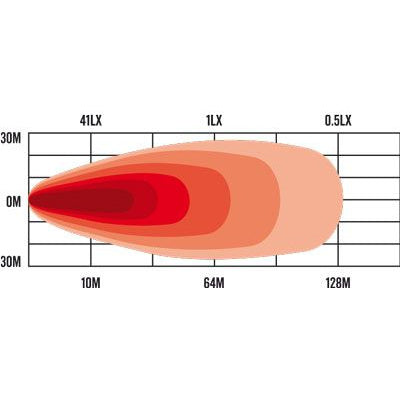

Maximum Lux @ 10m: 41lx

Maximum Distance @ 1 Lux: 64m

Lens Construction: Polycarbonate

Housing Construction: Die-Cast Aluminium

Electrical Connection: 2-Pin Deutsch Plug

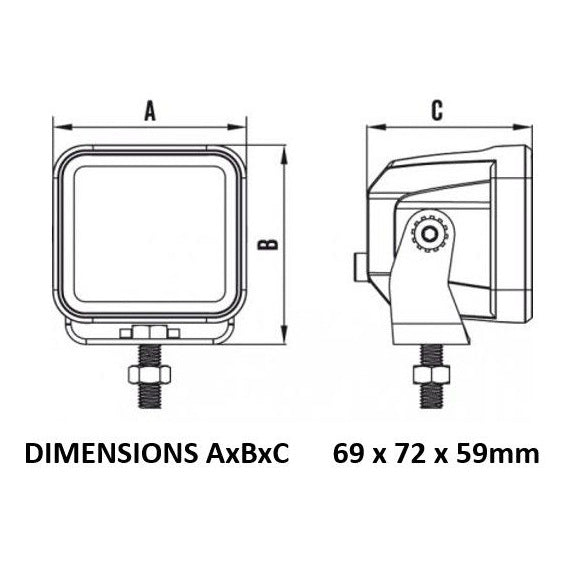

Dimensions: 69 × 72 × 59mm

LED Lifespan: 50,000 Hours

Warranty: 5 Years

⚠️ The supplied product information references IP protection and colour temperature but does not specify an exact IP rating or numerical colour-temperature value. These have therefore not been stated as specific specifications.

---

🚙 SUITABLE APPLICATIONS

• 4WDs & touring vehicles
• Canopies & service bodies
• Utes & work vehicles
• Caravans & camper trailers
• Agricultural machinery
• Construction equipment
• Camp lighting
• Rear or side work lighting

---

❓ QUICK FAQ

Is the RWL4823F a spot or flood light?

It uses a 90° flood beam, designed to illuminate a broad work area rather than project a narrow long-distance beam.

How bright is the RWL4823F?

It produces up to 1439 lumens with a maximum intensity of 41 lux at 10 metres.

Can it be used on 12V and 24V vehicles?

Yes. The light has a multi-volt operating range of 10–30V DC.

What connector does it use?

The RWL4823F uses a 2-pin Deutsch plug connection.

What warranty does it have?

Roadvision lists a 5-year warranty for this model.

---

💡 COMPACT SIZE. WIDE FLOOD BEAM. BUILT FOR WORK.

With 1439 lumens, a 90° flood beam, OSRAM LEDs, thermal management and a compact die-cast aluminium housing, the Roadvision RWL4823F is a practical work-light solution for touring, trade and commercial vehicle applications.
