RWL2835FFM 35W Stealth LED Work Light | 160° Flood

💡 ROADVISION RWL2835FFM STEALTH 35W LED WORK LIGHT – 160° FLOOD BEAM

1986 Lumens • 6 × 5W Osram LEDs • 160° Flood • IP68 / IP69K • 10–30V DC

The Roadvision RWL2835FFM Stealth Series is a compact rectangular LED work light designed for demanding work vehicles, machinery and utility applications where wide-area illumination and a low-profile installation are required.

Producing up to 1986 lumens from 6 × 5W Osram LEDs, it delivers an ultra-wide 160° flood beam while combining rugged aluminium construction with IP68 and IP69K protection.

⚡ KEY FEATURES

↔️ Ultra-Wide 160° Flood Beam
Designed to spread light across a very broad work area, making it ideal for close-range vehicle, machinery and utility lighting.

💡 1986 Lumen Output
Provides strong broad-area illumination without requiring a large work-light housing.

⚙️ 6 × 5W Osram LEDs
High-performance LEDs produce a bright white light designed to closely resemble daylight.

🌡️ Thermal Management
Designed to manage operating temperature and support reliable LED performance in demanding applications.

💧 IP68 & IP69K Protection
Designed for harsh environments with strong protection against dust, water ingress and high-pressure cleaning conditions.

⬛ Stealth Low-Profile Design
Compact rectangular housing suits installations where available mounting space is limited or a discreet appearance is preferred.

🔋 Multi-Volt 10–30V DC
Suitable for compatible 12V and 24V vehicle and machinery electrical systems.

🛡️ Die-Cast Aluminium Housing
Lightweight, durable construction with a polycarbonate lens for demanding mobile applications.

🔌 2-Pin Deutsch Connection
Provides a robust electrical connection for vehicle and machinery installations.

⚡ Electrical Protection
Includes over-voltage, under-voltage and reverse-polarity protection.

📻 EMI / EMC Approved
Designed to minimise radio-frequency interference in compatible electrical systems.

🕒 Up to 50,000 Hour LED Lifespan
Solid-state LED technology is designed for long service life.

🛡️ 5 Year Warranty
Backed by Roadvision's supplied 5-year warranty.

🛠️ LOW-PROFILE WORK LIGHTING

The RWL2835FFM is designed for installations where a conventional work lamp may be too bulky. Roadvision offers the series with a low-profile mounting arrangement or flush-mount style, making it well suited to service bodies, canopies, machinery and other compact installations.

📋 TECHNICAL SPECIFICATIONS

Series: RWL2835FFM

Beam Pattern: 160° Flood

Maximum Lumens: 1986lm

Maximum Power: 35W

LEDs: 6 × 5W Osram

Input Voltage: 10–30V DC

Current Draw @ 13.8V: 1.7–2.9A

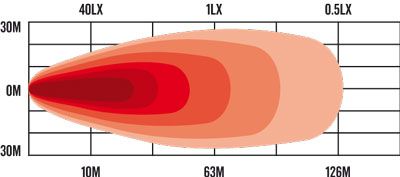

Maximum Lux @ 10m: 40lx

Maximum Distance @ 1 Lux: 63m

Protection Rating: IP68 / IP69K

Lens: Polycarbonate

Housing: Die-Cast Aluminium

Connection: 2-Pin Deutsch Plug

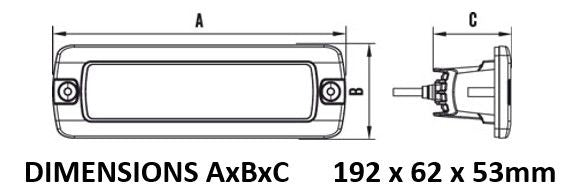

Dimensions: Approximately 196 × 62 × 53mm

Cut-Out: Approximately 158 × 46mm

LED Lifespan: Up to 50,000 Hours

Warranty: 5 Years

🚜 IDEAL FOR

• 🛻 Work utes & service bodies
• 🧰 Canopies & toolboxes
• 🚜 Agricultural machinery
• 🚚 Trucks & commercial vehicles
• 🏗️ Construction equipment
• 🌙 Wide work-area lighting

❓ QUICK FAQ

How wide is the beam?

The RWL2835FFM uses an ultra-wide 160° flood beam designed for broad close-range illumination.

How bright is it?

Roadvision specifies up to 1986 lumens, 40 lux at 10 metres and approximately 63 metres at 1 lux.

Can it run on both 12V and 24V systems?

Yes. Its specified input range is 10–30V DC.

What does IP69K mean?

IP69K indicates protection against close-range, high-pressure, high-temperature water spray under the applicable test conditions, making it well suited to demanding vehicle and machinery environments.

💡 ULTRA-WIDE FLOOD LIGHTING IN A TOUGH LOW-PROFILE HOUSING

With a 160° flood beam, 1986-lumen output, IP68/IP69K protection and compact Stealth Series design, the Roadvision RWL2835FFM is a strong choice for work vehicles and machinery that need broad, reliable illumination in demanding environments.
