RWL2835F 35W Stealth LED Work Light | 160° Flood

💡 ROADVISION RWL2835F STEALTH 35W LED WORK LIGHT – 160° FLOOD BEAM

1976 Lumens • 6 × 5W Osram LEDs • 160° Flood • IP68 / IP69K • 10–30V DC

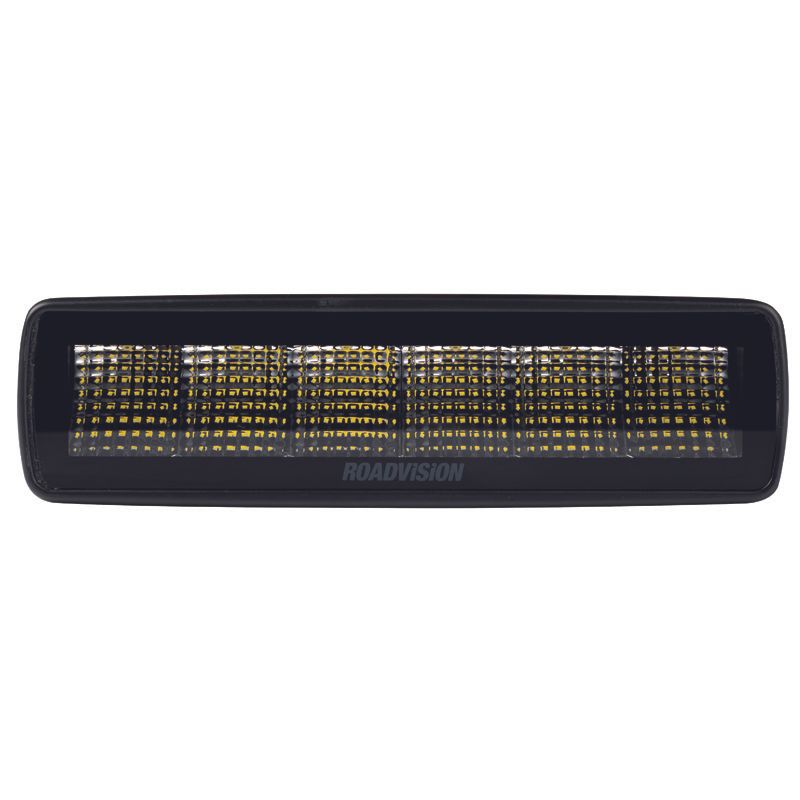

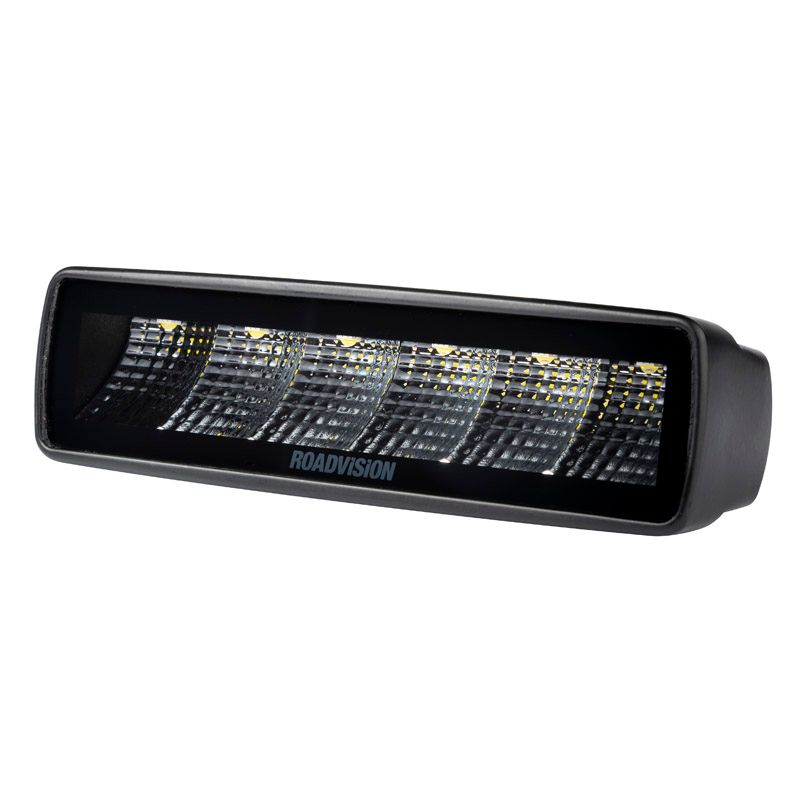

The Roadvision RWL2835F Stealth Series 35W LED Work Light is a compact, low-profile lighting solution designed for demanding work vehicles, machinery, canopies and utility applications.

Producing up to 1976 lumens from 6 × 5W Osram LEDs, the RWL2835F delivers an ultra-wide 160° flood beam for broad close-range illumination. Its rugged die-cast aluminium housing, polycarbonate lens and IP68 / IP69K protection make it well suited to harsh Australian working conditions.

⚡ KEY FEATURES

↔️ Ultra-Wide 160° Flood Beam
Designed to spread light across a broad work area, making it ideal for close-range vehicle, machinery and canopy lighting.

💡 1976 Lumen Output
Provides strong area lighting from a compact rectangular housing.

⚙️ 6 × 5W Osram LEDs
High-performance Osram LEDs produce bright white illumination close to daylight.

🌡️ Thermal Management
Designed to manage operating temperature and support reliable LED performance in demanding environments.

💧 IP68 & IP69K Protection
Built for harsh conditions with strong protection against dust, water ingress and high-pressure wash-down environments.

⬛ Stealth Low-Profile Design
Compact housing and discreet styling make the RWL2835F well suited to clean, low-profile vehicle installations.

🔋 Multi-Volt 10–30V DC
Suitable for compatible 12V and 24V vehicle and machinery electrical systems.

🛡️ Die-Cast Aluminium Housing
Lightweight but tough aluminium construction paired with a durable polycarbonate lens.

🔌 2-Pin Deutsch Plug
Provides a robust electrical connection for vehicle and machinery installations.

⚡ Electrical Protection
Includes over-voltage, under-voltage and reverse-polarity protection.

📻 EMI / EMC Approved
Designed to minimise radio-frequency interference in compatible electrical systems.

🕒 Up to 50,000 Hour LED Lifespan
Solid-state LED technology is designed for long service life.

🛡️ 5 Year Warranty
Backed by Roadvision's supplied 5-year warranty.

🛠️ COMPACT WIDE-AREA WORK LIGHTING

The RWL2835F is designed for applications where a conventional work lamp may be too bulky. Its slim rectangular housing and 160° flood beam make it particularly useful for service bodies, canopies, machinery and other installations where broad illumination is required from a compact lamp.

📋 TECHNICAL SPECIFICATIONS

Series: RWL2835F

Beam Pattern: 160° Flood

Maximum Lumens: 1976lm

Maximum Power: 35W

LEDs: 6 × 5W Osram

Input Voltage: 10–30V DC

Current Draw @ 13.8V: 1.7–2.9A

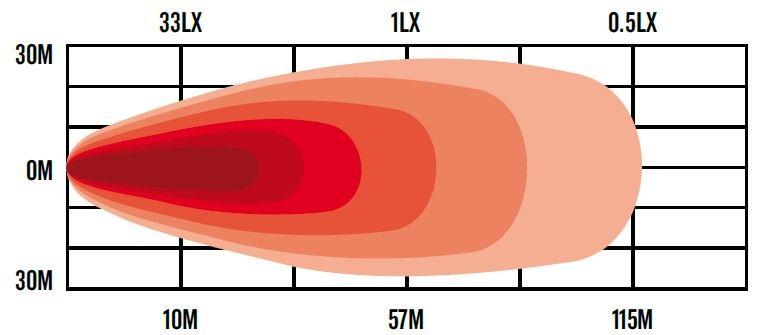

Maximum Lux @ 10m: 33lx

Maximum Distance @ 1 Lux: 57m

Protection Rating: IP68 / IP69K

Lens: Polycarbonate

Housing: Die-Cast Aluminium

Connection: 2-Pin Deutsch Plug

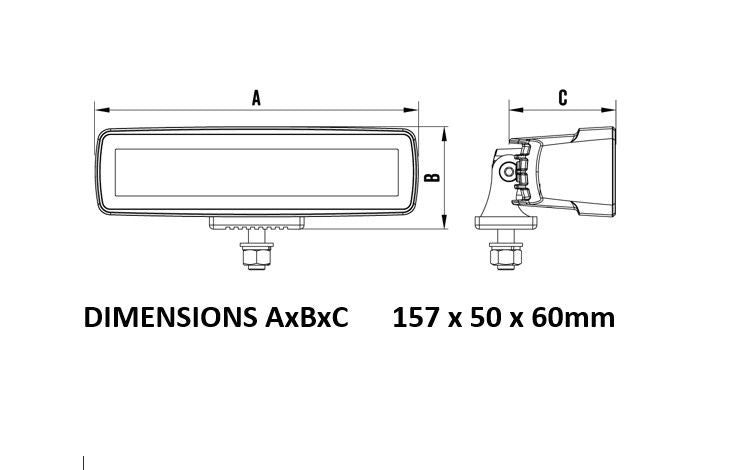

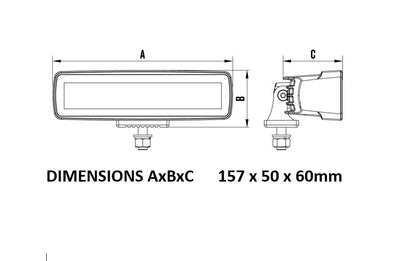

Dimensions: Approximately 157 × 50 × 60mm

LED Lifespan: Up to 50,000 Hours

Warranty: 5 Years

🚜 IDEAL FOR

• 🛻 Work utes & service vehicles
• 🧰 Canopies & service bodies
• 🚜 Agricultural machinery
• 🚚 Trucks & commercial vehicles
• 🏗️ Construction equipment
• 🚙 4WD & touring setups
• 🌙 Wide work-area lighting

❓ QUICK FAQ

How wide is the beam?

The RWL2835F uses an ultra-wide 160° flood beam designed for broad close-range illumination.

How bright is the RWL2835F?

Roadvision specifies a maximum output of 1976 lumens, 33 lux at 10 metres and approximately 57 metres at 1 lux.

Can it operate on both 12V and 24V systems?

Yes. Its specified operating voltage range is 10–30V DC.

What does IP69K mean?

IP69K indicates protection against close-range, high-pressure, high-temperature water spray under the applicable test conditions, making it well suited to demanding vehicle and machinery environments.

💡 ULTRA-WIDE LIGHTING IN A COMPACT STEALTH HOUSING

With a 160° flood beam, 1976-lumen output, IP68/IP69K protection and a compact 157mm-wide housing, the Roadvision RWL2835F is a strong choice for work vehicles and machinery requiring broad, reliable illumination without a bulky lamp.
