Australian Touring Package | 150Ah Lithium, 40A DC-DC, 180W Solar & 350W Inverter

REDARC AUSTRALIAN TOURING PACKAGE – THE AUSSIE SYSTEM

150Ah Lithium • 40A REDARC DC-DC Charging • 180W Solar • 350W Pure Sine Wave Power

If you've got around $2,000 to put into your 12V setup, this is where you can start building a complete touring power system rather than simply adding a bigger battery or charger.

The REDARC Australian Touring Package – The Aussie System combines a Thumper 150Ah lithium battery with REDARC's Australian-made BCDC Core 40A charger, REDARC 180W fixed solar panel and REDARC 350W pure sine wave inverter.

Battery storage. Charging while you drive. Solar charging at camp. And clean 240V power for selected appliances and electronics.

📦 PACKAGE INCLUDES

• 🔋 Thumper TLS-150 150Ah LiFePO4 Lithium Battery
• ⚡ REDARC BCDC Core 40A In-Cabin DC-DC Battery Charger
• ☀️ REDARC 180W Monocrystalline Fixed Solar Panel
• 🔌 REDARC 350W 12V Pure Sine Wave Inverter

🔥 IT'S NOT JUST ABOUT A BIGGER BATTERY

A capable touring system is about getting each component working together.

• 🔋 The lithium battery stores your power.
• ⚡ The BCDC charger replenishes it while you drive.
• ☀️ Solar continues charging when you're parked at camp.
• 🔌 The inverter gives you access to selected 240V appliances and chargers.

Keep the fridge cold. Keep the lights on. Keep your devices charged. And spend longer away from mains power.

⚡ KEY FEATURES

🔋 150Ah / 1920Wh Lithium Storage
The Thumper TLS-150 provides substantial deep-cycle capacity with Bluetooth monitoring and an integrated 150A BMS.

⚡ 40A REDARC DC-DC Charging
The BCDC Core provides up to 40A charging output and supports both 12V and 24V standard and smart alternator vehicles.

☀️ Built-In MPPT Solar Controller
Solar regulation is built into the BCDC Core, allowing alternator and solar charging to work through the one charger.

🌱 Green Power Priority™
The BCDC Core prioritises available solar input to help reduce alternator load.

☀️ 180W REDARC Fixed Solar
A rugged monocrystalline panel with tempered glass, black anodised aluminium frame and MC4-style connectors.

🔌 350W Pure Sine Wave Power
Provides clean 240V AC power for compatible lower-power equipment such as laptops, chargers, GPS units and other electronics.

🇦🇺 Australian-Made Charging
The REDARC BCDC Core is designed, tested and manufactured in Australia.

🔋 THUMPER TLS-150 150Ah LiFePO4 BATTERY

The Thumper TLS-150 provides 150Ah / 1920Wh of lithium deep-cycle capacity for fridges, lighting, accessories and inverter loads.

Nominal Voltage: 12.8V

Capacity: 150Ah / 1920Wh

Chemistry: LiFePO4 Prismatic Cells

Bluetooth: Yes – Thumper App

BMS: 150A

Recommended Charge Current: 10–50A

Maximum Charge Current: 100A

Recommended Charge Voltage: 14.2–14.6V

Maximum Continuous Discharge: 150A

Peak Discharge: 300A for 1–3 Seconds

Dimensions: 328 × 172 × 220mm

Weight: 13.55kg

Warranty: 3 Years

⚠️ The TLS-150 is not designed for engine starting or under-bonnet installation.

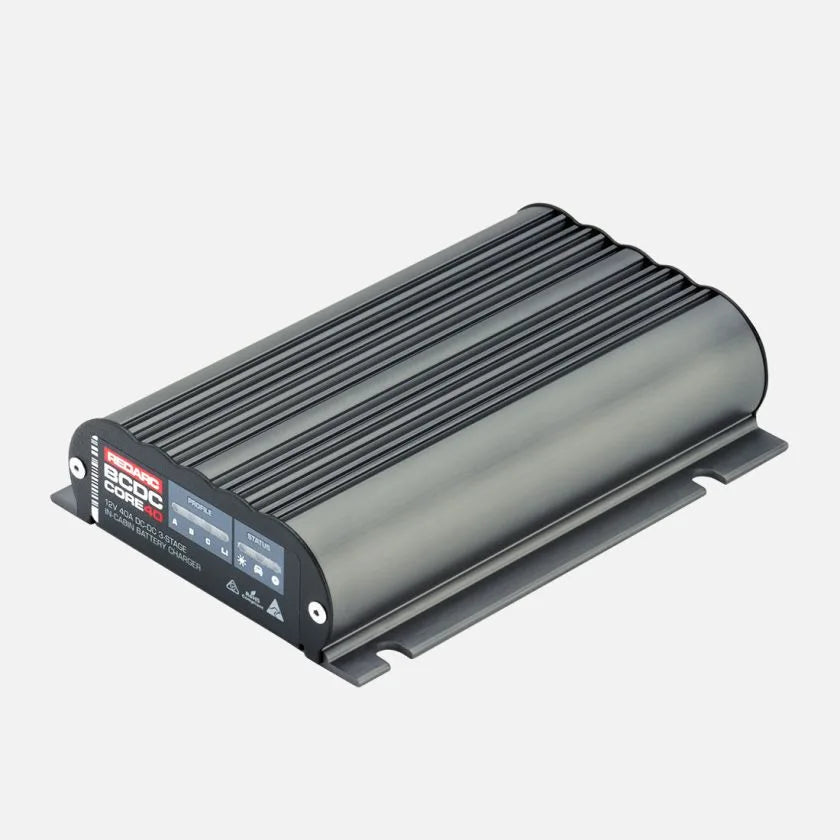

⚡ REDARC BCDC CORE 40A DC-DC CHARGER

The REDARC BCDC Core 40A provides high-output auxiliary battery charging from the vehicle alternator and solar in one compact unit.

Maximum Output Current: 40A

Nominal Output Power: 600W

Input Voltage: 9–32V

Output Voltage: 12V DC

Maximum Charging Voltage: 15.3V

Solar Input: 9–32V

Solar Controller: Built-In MPPT

Green Power Priority™: Yes

Battery Types: LiFePO4 / AGM / Gel / Calcium / Standard Lead Acid

Smart Alternator Compatible: Yes

Vehicle Systems: 12V & 24V Input

Input Fuse Rating: 60A

Output Fuse Rating: 60A

Dimensions: 165 × 120 × 37mm

Weight: 900g

Warranty: 2 Years

The 40A charger sits comfortably within the TLS-150 battery's recommended 10–50A charge-current range.

⚠️ The BCDC Core is designed for in-cabin, canopy and battery-box installations. It is not designed for under-bonnet installation or locations requiring full dust and weather protection.

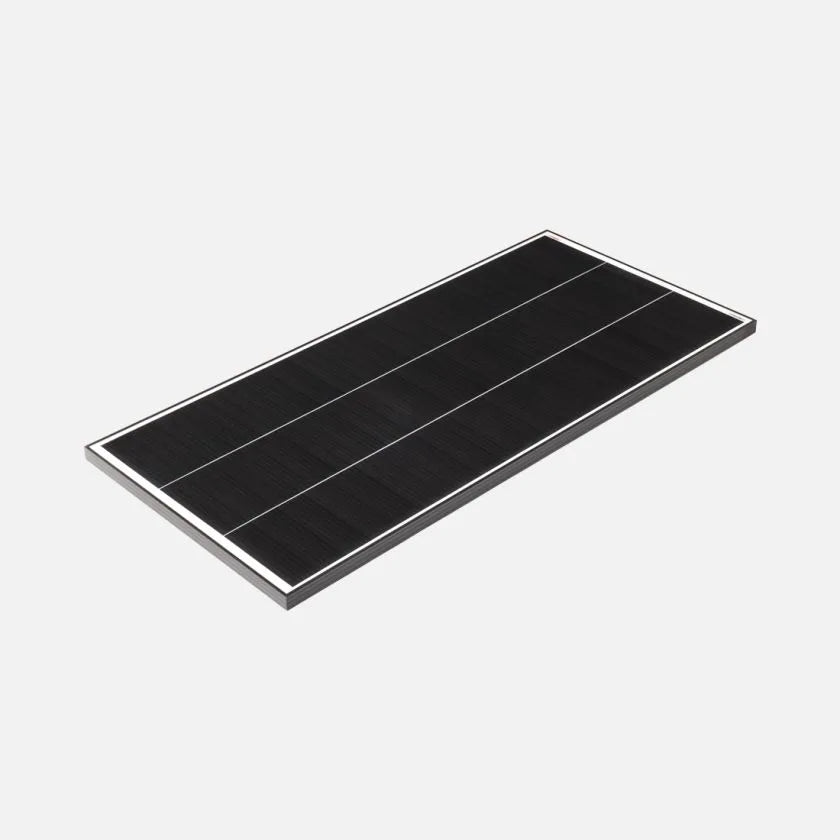

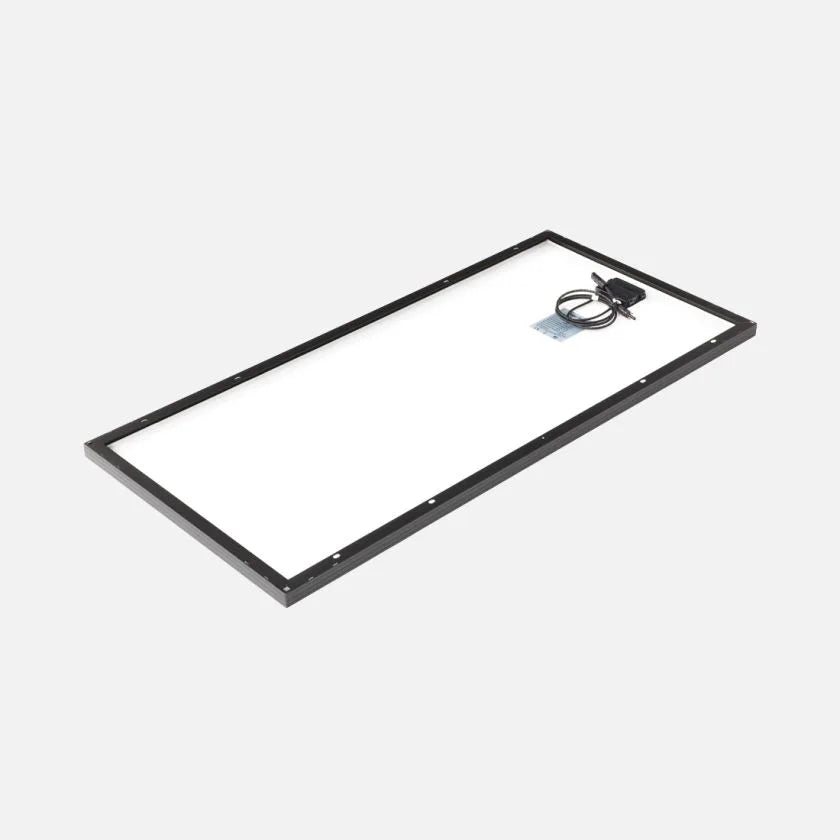

☀️ REDARC 180W MONOCRYSTALLINE SOLAR PANEL

The REDARC 180W fixed panel provides additional charging while you're parked, helping extend your time away from powered sites.

Power: 180W

Cell Type: Monocrystalline

Maximum Power Voltage: 23.4V

Maximum Power Current: 7.7A

Open-Circuit Voltage: 27.6V

Short-Circuit Current: 8.2A

Frame: Black Anodised Aluminium

Surface: Tempered Glass

Connector: MC4-Style

Cable Length: 900mm

Dimensions: 1430 × 670mm

Weight: 10.4kg

Operating Temperature: -40°C to +85°C

Warranty: 2 Years

With an open-circuit voltage of 27.6V, the supplied panel falls within the BCDC Core's stated 9–32V solar input range.

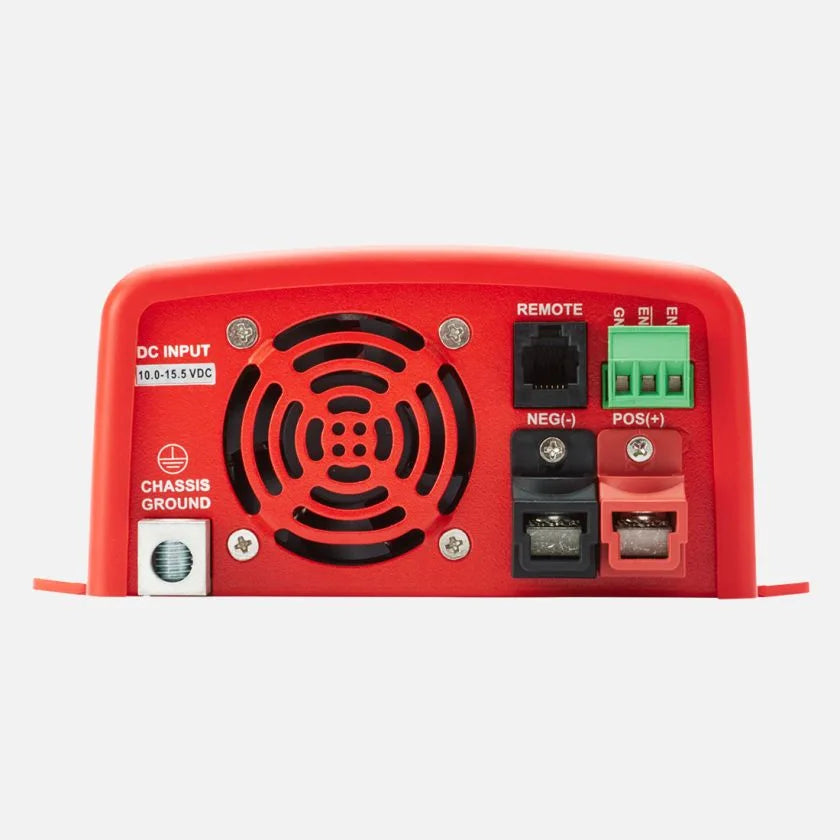

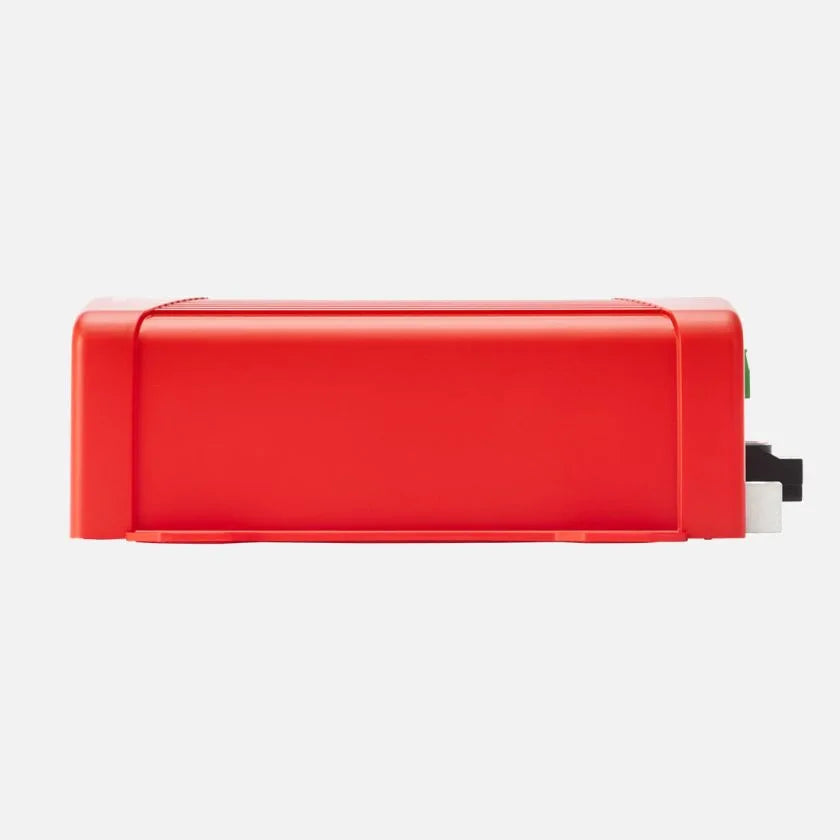

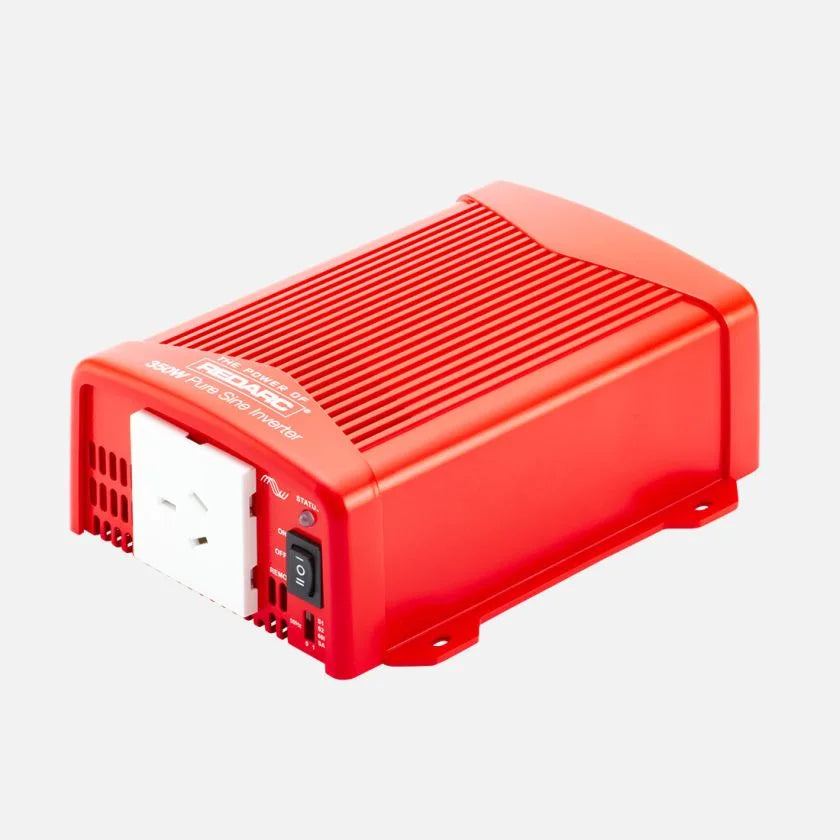

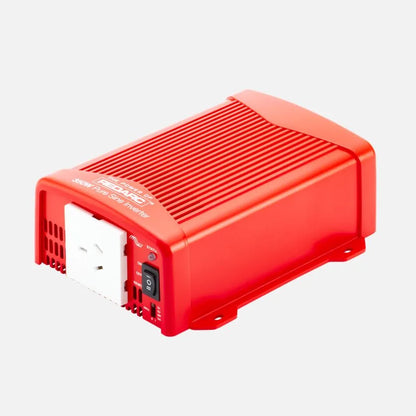

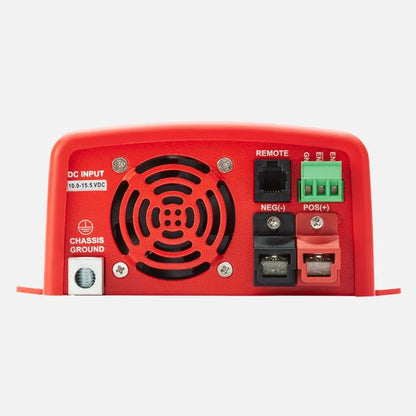

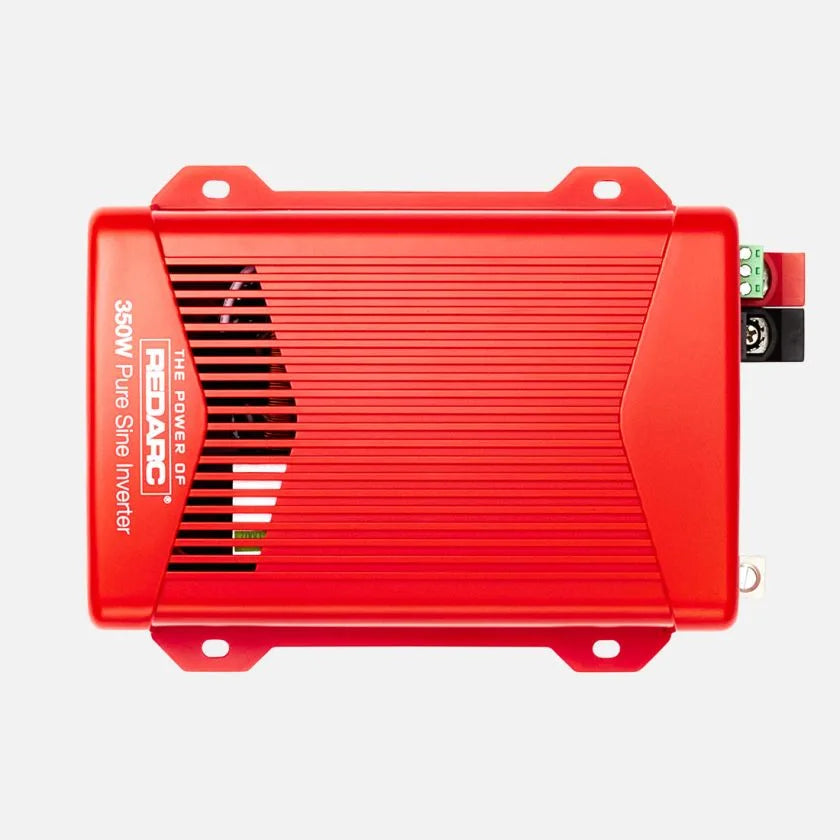

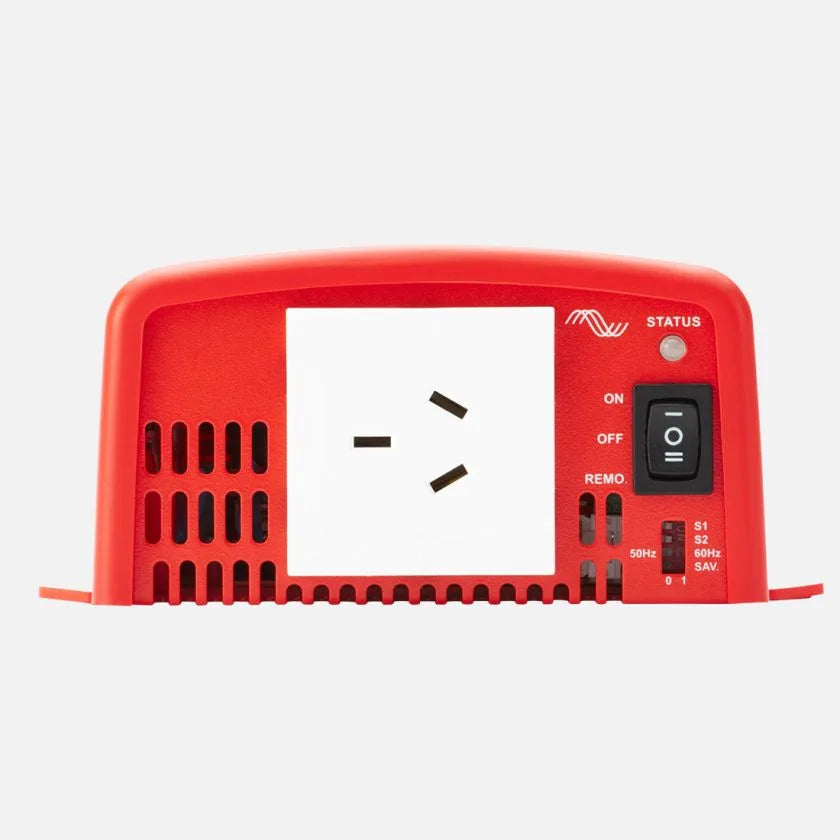

🔌 REDARC 350W PURE SINE WAVE INVERTER

The REDARC 350W inverter adds convenient 240V power for compatible lower-power appliances and electronics while you're travelling or camped away from mains power.

Continuous Output: 350W

Nominal Input: 12V

Input Voltage: 10.5–15.5V DC

Output Voltage: 240V AC

Waveform: Pure Sine Wave

Protection: Overload / Short Circuit / Over-Temperature

Cooling: Load-Controlled Fan

Input & Output: Fully Isolated

Dimensions: 188 × 150 × 68mm

Weight: 1.6kg

Warranty: 2 Years

Ideal for equipment such as phone and camera chargers, laptops, GPS units and other compatible appliances within the inverter's capacity.

⚠️ Check the continuous and start-up power requirements of any appliance before connecting it. Equipment requiring more than the inverter's available output will require a larger inverter.

🚙 IDEAL FOR

• 🚙 4WD touring systems
• 🛻 Ute canopy electrical setups
• 🚐 Caravans & camper trailers
• 🏕️ Camping & off-grid touring
• ❄️ Fridges, lighting & 12V accessories
• 💻 Laptops, chargers & smaller 240V devices
• 🇦🇺 Customers wanting REDARC charging, solar and inverter equipment

❓ QUICK FAQ

Will it charge while I'm driving?

Yes. The REDARC BCDC Core charges the auxiliary battery from the vehicle alternator and supports both standard and variable-voltage smart alternators.

Can solar and the alternator charge together?

Yes. The BCDC Core supports alternator and solar input, with Green Power Priority™ giving priority to available solar energy.

Is the 40A charger suitable for the 150Ah Thumper battery?

Yes. The TLS-150 has a recommended charge-current range of 10–50A, placing the supplied 40A REDARC charger within that range.

What can the 350W inverter run?

It is intended for compatible lower-power 240V equipment such as laptops, phone and camera chargers, GPS equipment and similar devices. Always check the appliance wattage before use.

Is this a complete installation kit?

The package includes the four major power-system components. Vehicle-specific battery cable, solar cable, fuses, circuit protection, mounting hardware, connectors and other installation components may still be required depending on the vehicle and installation layout.

A SERIOUS AUSTRALIAN TOURING POWER PACKAGE

150Ah lithium storage. 40A REDARC charging. 180W REDARC solar. 350W pure sine wave power.

The Aussie System brings together a practical combination of lithium storage and REDARC charging, solar and inverter equipment for a capable touring setup built around the way Australians travel.

Keep the fridge cold. Keep the lights on. Keep your devices charged. Get Outback and Stay There!
