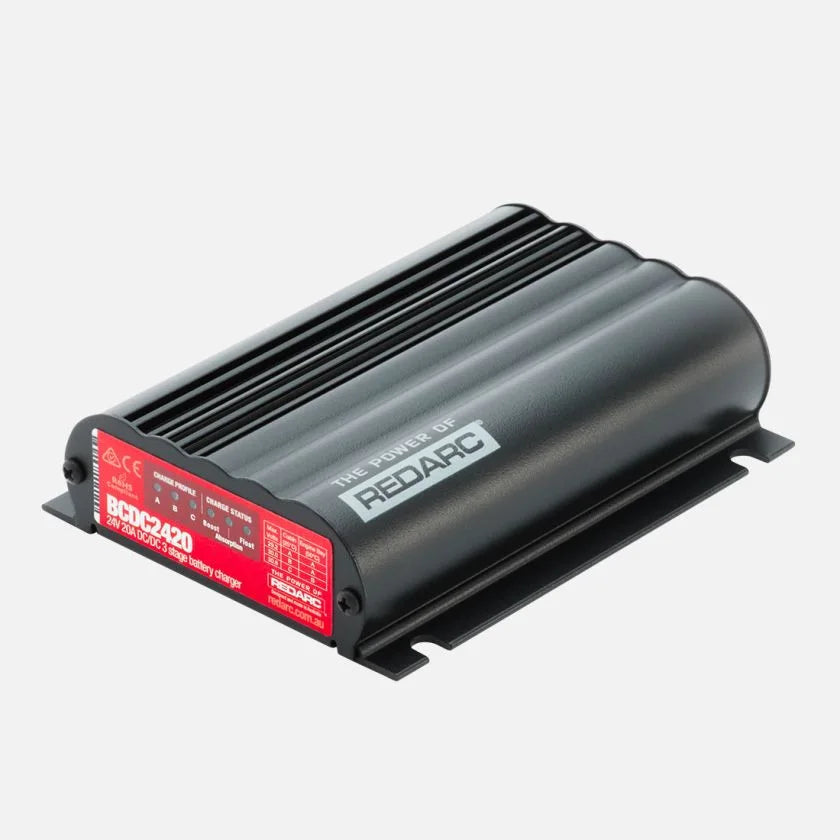

The REDARC BCDC2420 is a robust 24V 20A DC-DC charger engineered for demanding under-bonnet environments.
Operating from vehicle inputs between 9-32V DC, it delivers intelligent three-stage charging tailored to your battery's chemistry for optimal performance and longevity.
Its potted and sealed construction withstands extreme heat, moisture, dust, and vibration ensuring reliable charging wherever your journey takes you.
Perfect for caravan, truck, and marine applications requiring dependable auxiliary battery management.
This is your go-to solution for professional trucking operations.
This 24V 20A DC-DC charger features intelligent multi-stage charging algorithms designed to keep auxiliary battery banks powering tailgate lifters, side curtains, and other essential equipment.
What sets it apart is the integrated MPPT solar regulator—allowing you to harness 12V solar panels to charge your 24V system with maximum efficiency.
The advanced MPPT algorithm continuously optimises power extraction from your panels, giving you reliable auxiliary power whether you're relying on vehicle charging or renewable energy.
Features
- Multi-Stage DC to DC Battery Charger
- MPPT Solar Regulator
- Start Battery Isolator
- Sealed electronics
- No fan for super-quiet operation
- Charges AGM, Gel, Calcium content, VRLA and Standard Lead Acid batteries
| Continuous Rating |
20A |
| Power Type |
DC TO DC |
| Nominal Output Power |
600W |
| Input Fuse Rating |
60A (Not supplied) |
| Solar Switch On Voltage |
17.5V |
| Suitable For 12V Systems |
Yes |
| Suitable For 24V Systems |
Yes |
| Solar Input Voltage |
9 - 32V |
| MPPT Solar Regulator |
Yes |
| Cabin / Canopy Install |
Yes |
| No Load Current |
<100mA |
| Trailer Install |
Yes |
| Engine Bay Install |
Yes |
| Max. Charging Voltage |
30.6V |
| Output Fuse Rating |
40A (Not supplied) |
| Operating Temperature |
−20°C to +80°C |
| Output Voltage |
24V DC |
| Max. Rated Output Current |
20A |
| Input Voltage |
9 - 32V |
| Standby Current |
<8mA |
| Connector Type |
Bare wire |
| Length |
150 mm |
| Width |
120 mm |
| Height |
37 mm |
| Weight |
650 g |
| Warranty |
2 Years |
