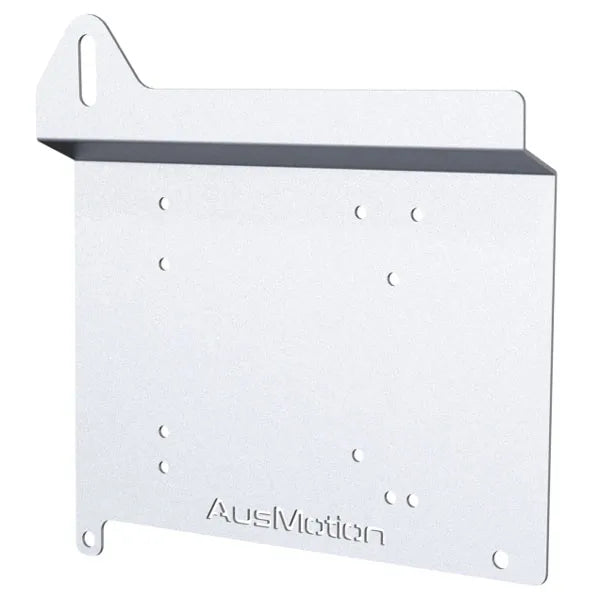

FORD RANGER (RA) DC-DC BEHIND SEAT MOUNT

The perfect companion product for our Ranger (RA) behind seat battery mounts, this bracket allows installation of a DCDC dual battery charger on the back wall of the cab, keeping the length of cable between the charger and battery to a minimum.

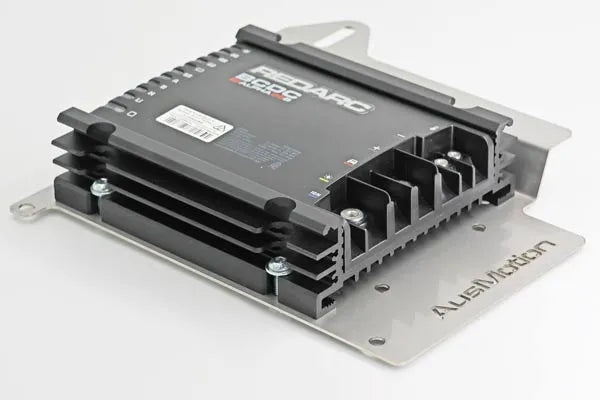

As seen here, the charger sits neatly above the Ford audio amplifier (where fitted). The carpet panel doesn’t have to be cut to fit the bracket and charger, but many installer prefer to do so, allowing them to clearly see the LED indicators on Redarc chargers.

Unlike many other Next-Gen Ranger accessories, this product is not compatible with the 2023+ VW AMarok.

In vehicles with the premium audio system the carpet panel includes a cutout for the amplifier which can be easily extended upward as seen below. In vehicles without the premium audio system, the charger is installed in the same position and the carpet can be trimmed as desired.

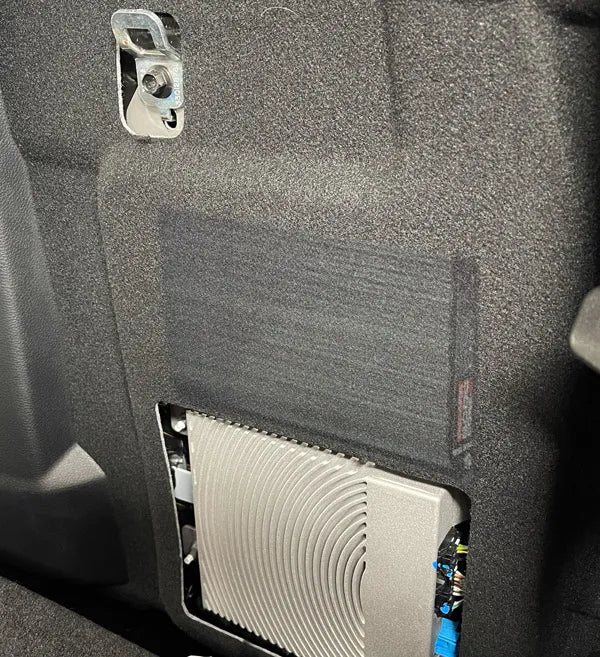

Whilst many prefer to trim the carpet panel, it’s personal preference only and the charger will continue to operate as intended totally concealed behind the carpet as seen in the photo below – If you look closely you can just about see the top mounting point of the AusMotion charger bracket between the child-seat anchor point and the bodywork.

Suitable for mounting the following products:

Your charger bracket will be suitable for all of the following battery chargers.

When ordering please select the charger you will be fitting to help us better understand how our products are being used.

Redarc

• Redarc BCDC “Classic” battery charger BCDC1225D
• Redarc BCDC “Classic” battery charger BCDC1240D
• Redarc BCDC “Classic” battery charger BCDC1250D
• Redarc BCDC “Core” Charger range

Victron

• Orion-Tr Smart DC-DC 220/280W
• Orion-Tr Smart DC-DC 360/400W

Optional Victron Display Mounting

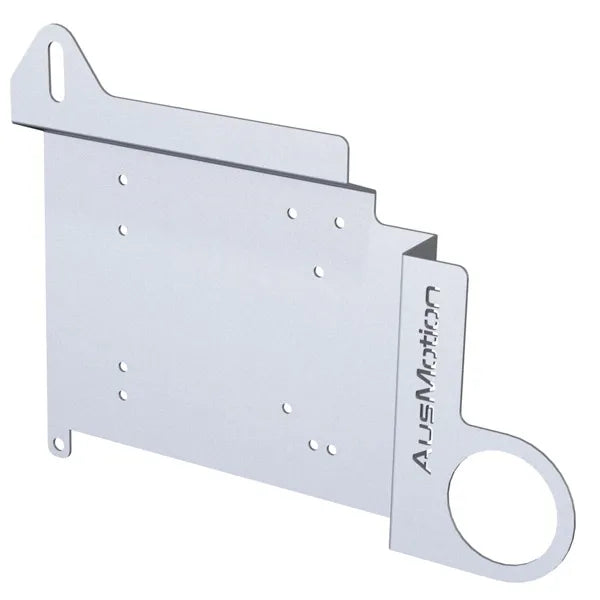

The battery charger bracket is available either with or without an optional mounting position for the BMV7xx Victron battery monitor. Simply select the appropriate option from the drop-down lists above before ordering.

Vehicle Compatibility

Suitable for RA model Rangers from July 2022 onward (Commonly known as “Next-Gen Ranger”).

Suitable for vehicles with and without the behind seat amplifier and speaker.
