FORD RANGER (RA) BEHIND SEAT MOUNT FOR CUSTOM LITHIUM 100AH

Made to order – Please allow 2 weeks.

Battery Compatibility

This product has been designed to mount the 100Ah Ultra-Slim metal case Lithium battery from Custom Lithium or the super-slim 100Ah battery from iTech World (SKU: ITECH100SS)

(Battery not included)

Vehicle Compatibility

Suitable for RA model Rangers from July 2022 onward (Commonly known as “Next-Gen Ranger”).

Not suitable for vehicles that have a behind-seat speaker such as Raptor and most Wildtrak vehicles.

Installation Notes

The vehicle jack will need to be relocated elsewhere in the vehicle.

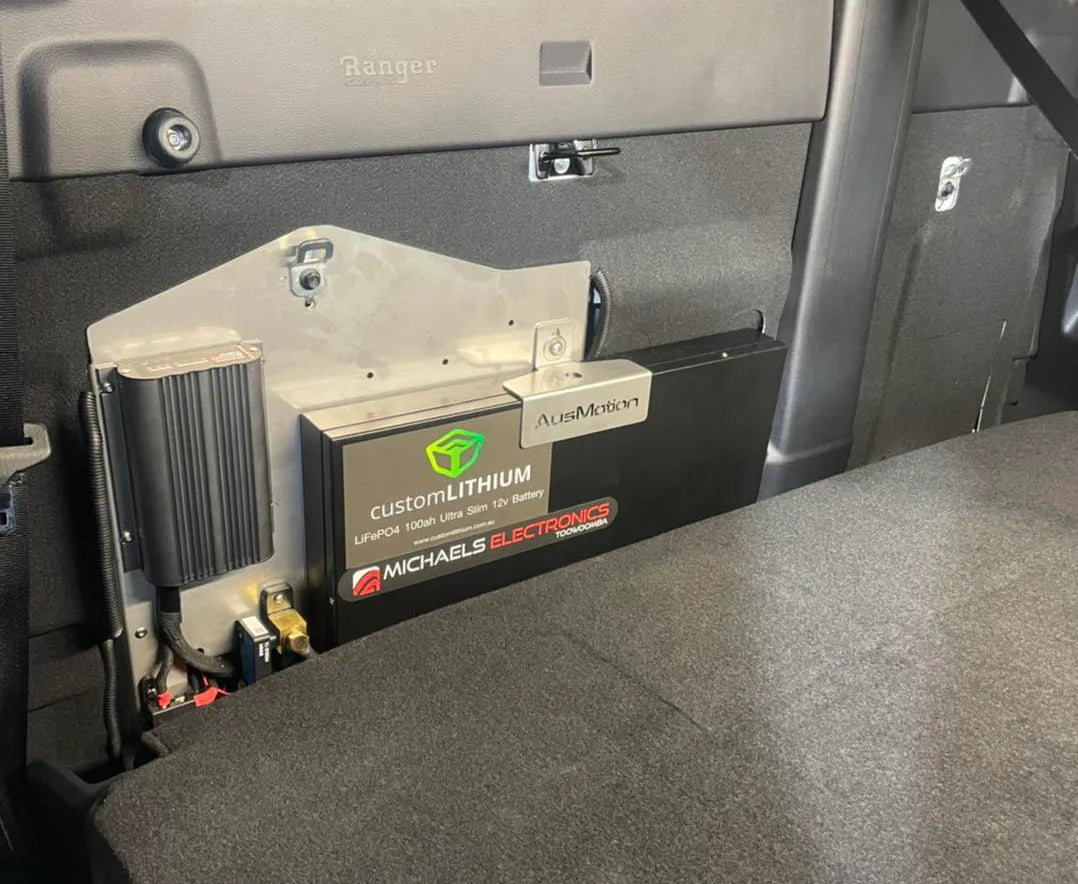

Installed on the driver-side of the cab back wall.

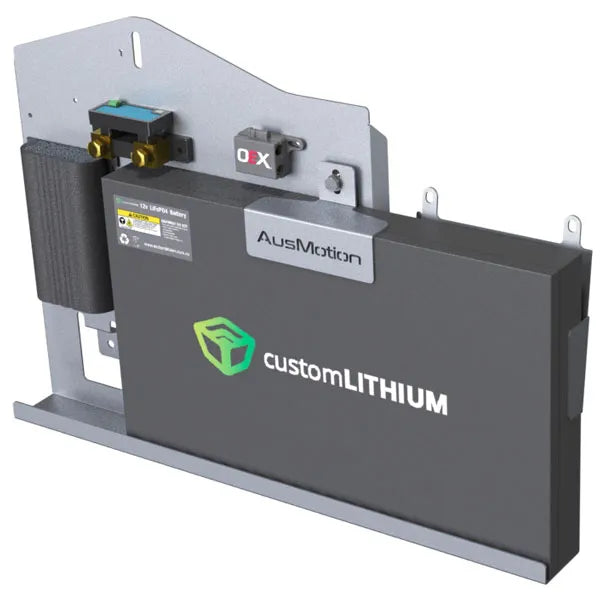

The back plate includes pre-cut holes for a twin-midi fuse holder, Vistron Smart Shunt and Redarc BCDC battery charger.

No-drill installation, using original thread inserts and holes in the vehicle cab wall. No cutting of metalwork is necessary.

The contoured carpet panel on the back wall must be removed for installation. Once the battery is mounted you may decide to cut the panel and re-fit the remaining parts, but there will be little remaining.

Installation of the battery mounting bracket takes around 30 minutes.

New bolts included.

Jack Relocation

When installing a battery behind the rear seats of a next-gen Ranger you will need to remove the jack. We offer a relocation kit which provides a secure and easily accessible alternative mounting position for the jack in the rear corner of the tub – See further details here.
