⚡ PROJECTA VALUE TOURING PACKAGE – THE ALL-ROUNDER

150Ah Lithium • 25A DC-DC Charging • 200W Solar • 1600W Pure Sine Wave Power

If you've got around $2,000 to put into your 12V setup, this is where you can start doing much more than simply replacing a battery or adding a charger.

The Projecta Value Touring Package – The All-Rounder brings together the core components of a complete touring power system — lithium battery storage, DC-DC charging, solar charging and 240V inverter power.

It's designed for 4WDs, canopies, caravans and touring setups where you want to keep the fridge cold, keep the lights on, keep your devices charged and stay away longer.

📦 THE PACKAGE INCLUDES

• 🔋 Thumper TLS-150 150Ah LiFePO4 Lithium Battery
• ⚡ Projecta PDC25 Pro-Charge 25A DC-DC Charger with Built-In MPPT Solar Controller
• ☀️ Exotronic 200W Fusion N-Type TOPCon Fixed Solar Panel
• 🔌 Projecta Pro-Wave 1600W Pure Sine Wave Inverter

🔥 IT'S NOT JUST ABOUT A BIGGER BATTERY

A good touring electrical system is about getting everything working together.

• 🔋 Your battery stores the power.
• ⚡ Your DC-DC charger replaces it while you drive.
• ☀️ Your solar keeps charging when you stop.
• 🔌 Your inverter gives you access to 240V power when you need it.

The result is a much more capable setup for extended touring, camping and off-grid use.

⚡ KEY FEATURES

🔋 150Ah / 1920Wh Lithium Battery
The Thumper TLS-150 provides serious usable battery capacity while weighing just 13.55kg and includes Bluetooth monitoring through the Thumper App.

⚡ 25A DC-DC Charging
The Projecta PDC25 provides up to 25A of charging from your vehicle and is compatible with both standard and smart alternators.

☀️ Built-In MPPT Solar Charging
The PDC25 accepts both alternator and solar input, allowing the system to continue charging while driving or when parked at camp.

☀️ 200W N-Type TOPCon Solar
The Exotronic Fusion panel uses high-efficiency 25.2% N-Type TOPCon cells to produce 200W from a compact 1320 × 670mm panel.

🔌 1600W Pure Sine Wave Inverter
The Projecta Pro-Wave provides clean 240V pure sine wave power for compatible appliances, chargers, tools and electronics.

📱 Bluetooth Battery Monitoring
Monitor the Thumper lithium battery through the Thumper App on a compatible smart device.

🛡️ Built for Touring
A combination of LiFePO4 battery technology, IP67 DC-DC charging, fixed solar generation and pure sine wave inverter power makes this a strong all-round touring package.

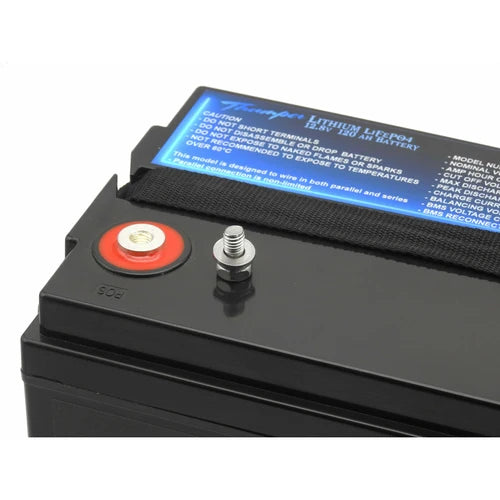

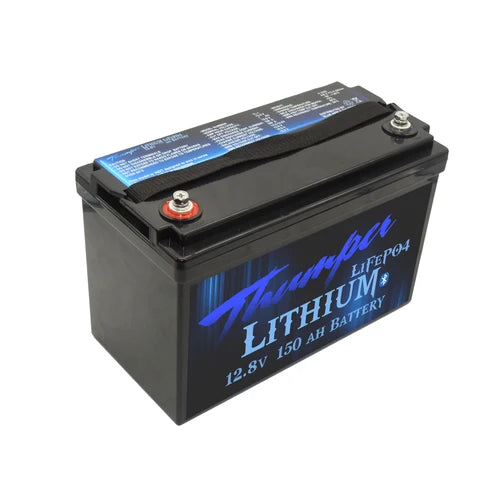

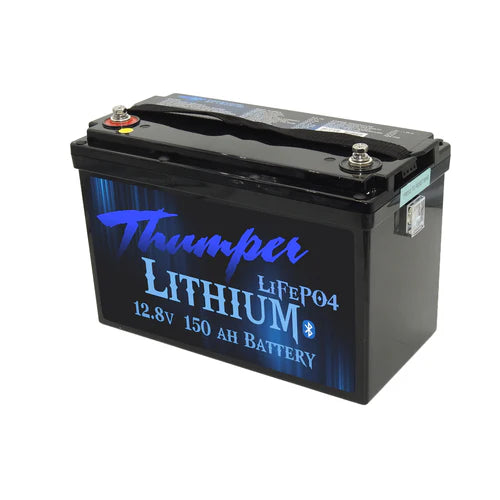

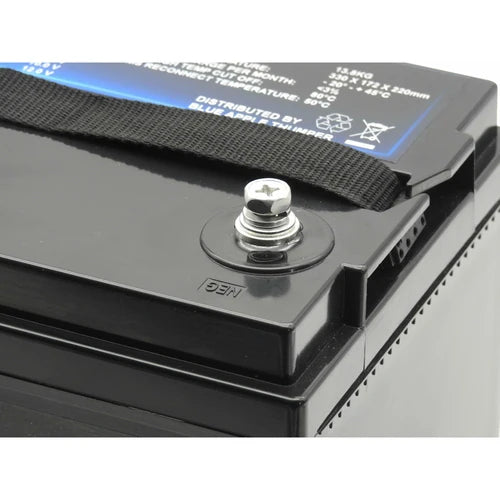

🔋 THUMPER TLS-150 150Ah LiFePO4 BATTERY

The Thumper TLS-150 is a 12.8V 150Ah lithium battery with 1920Wh of rated capacity, designed for deep-cycle auxiliary power applications.

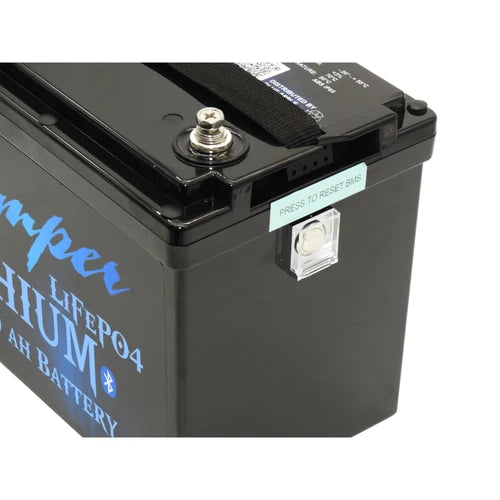

Its integrated 150A BMS provides protection against over-temperature, under-voltage, over-voltage and internal short-circuit conditions. A built-in BMS reset switch is also provided to assist with recovery following excessive discharge or overload conditions.

Nominal Voltage: 12.8V

Capacity: 150Ah / 1920Wh

Chemistry: LiFePO4

Bluetooth: Yes – Thumper App

BMS: 150A

Recommended Charge Current: 10–50A

Maximum Charge Current: 100A

Recommended Charge Voltage: 14.2–14.6V

Maximum Continuous Discharge: 150A

Peak Discharge: 300A for 1–3 Seconds

Dimensions: 328 × 172 × 220mm

Weight: 13.55kg

Warranty: 3 Years

⚠️ The TLS-150 is not designed for engine starting or under-bonnet installation.

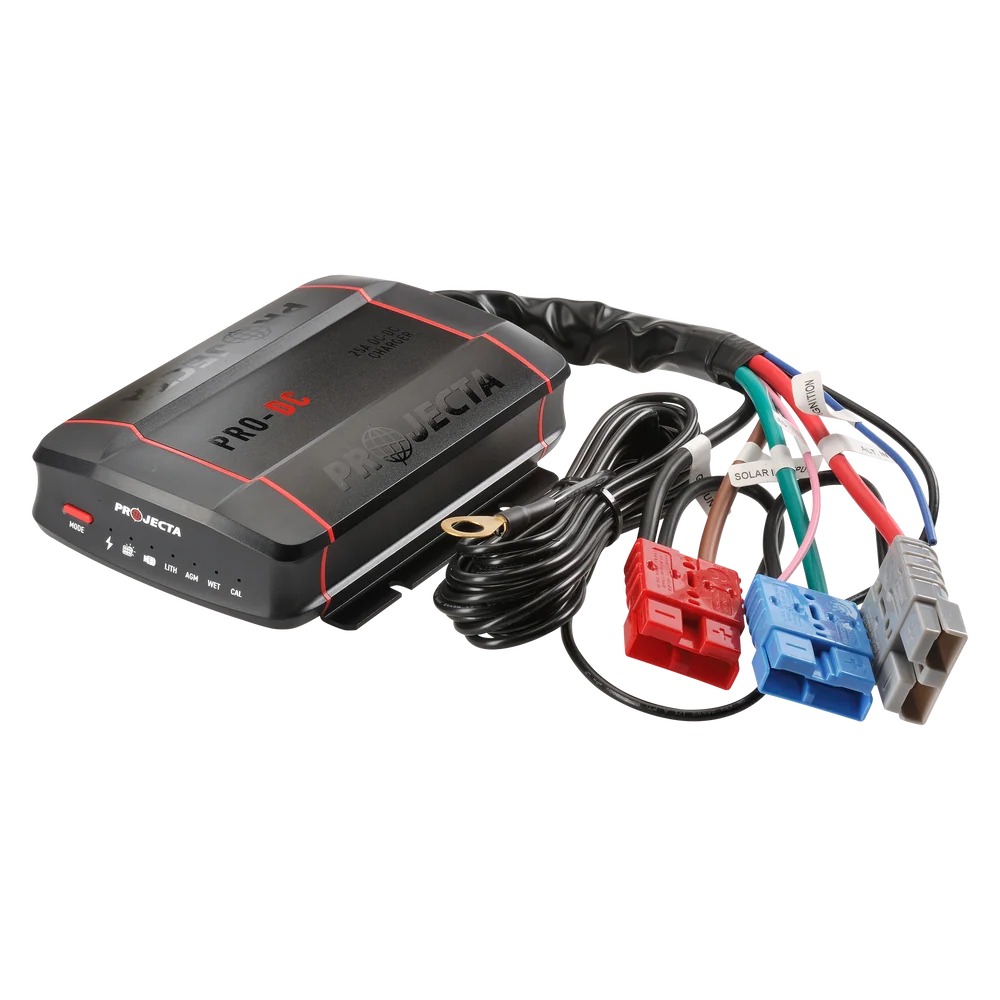

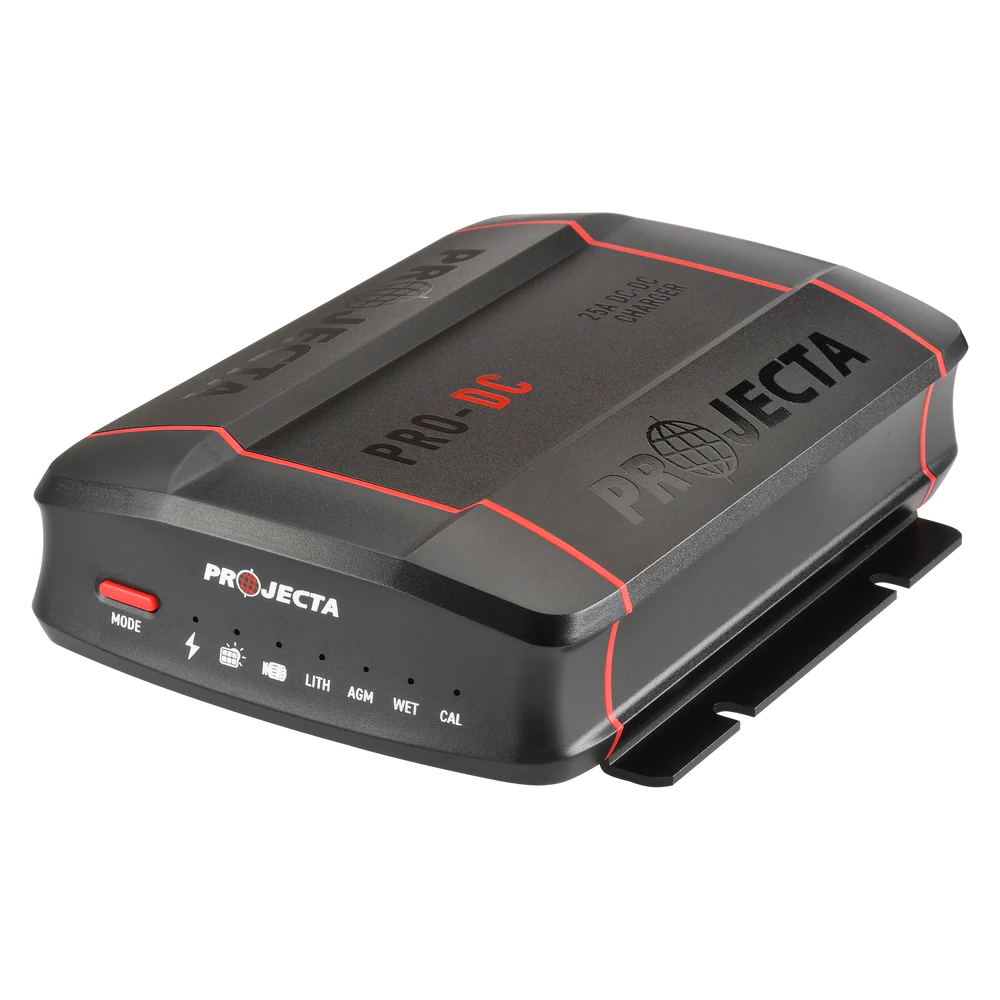

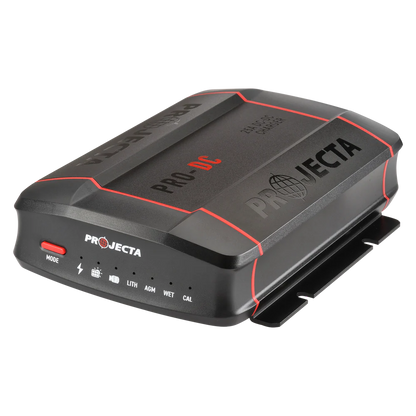

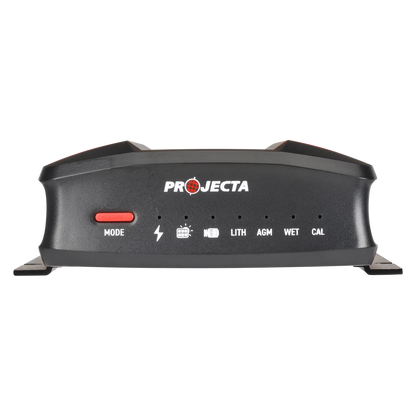

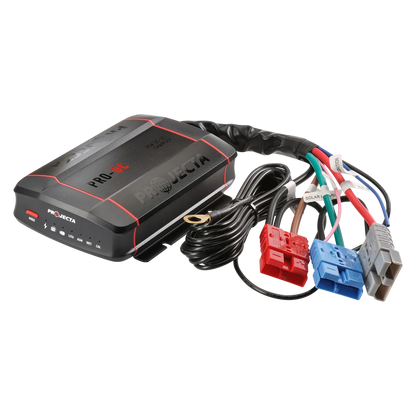

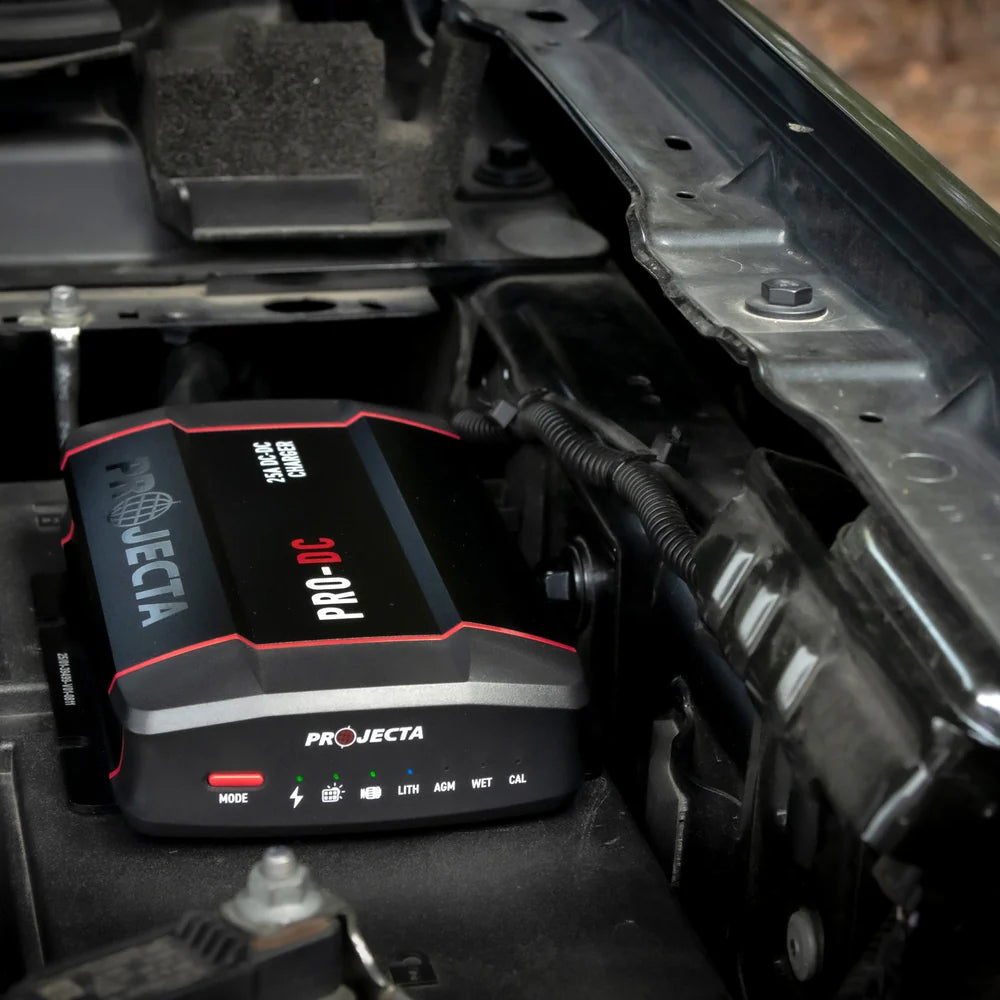

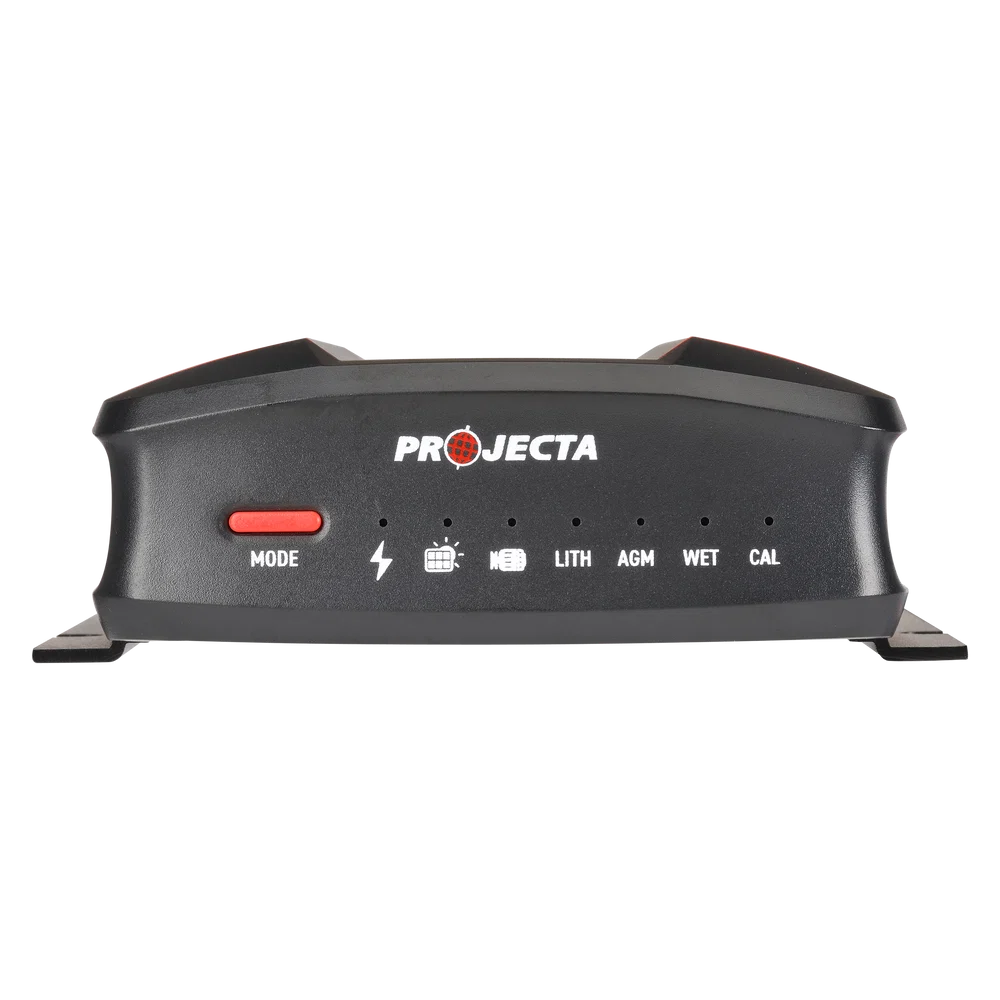

⚡ PROJECTA PDC25 PRO-CHARGE DC-DC CHARGER

The Projecta PDC25 provides auxiliary battery charging from both the vehicle alternator and solar, helping keep the lithium battery replenished while travelling or camping.

Maximum Output: 25A

Alternator Input: 9–32V DC

Maximum Solar Input: 28V DC

Charge Stages: 3 Stage

Battery Chemistries: Lithium / AGM / Wet / Calcium

Smart Alternator Compatible: Yes

Dual Input: Alternator + Solar

Environmental Rating: IP67

Connections: Pre-Wired Colour-Coded 50A Heavy-Duty Connectors

Also supplied with a temperature compensation loom, mounting equipment and installation hardware.

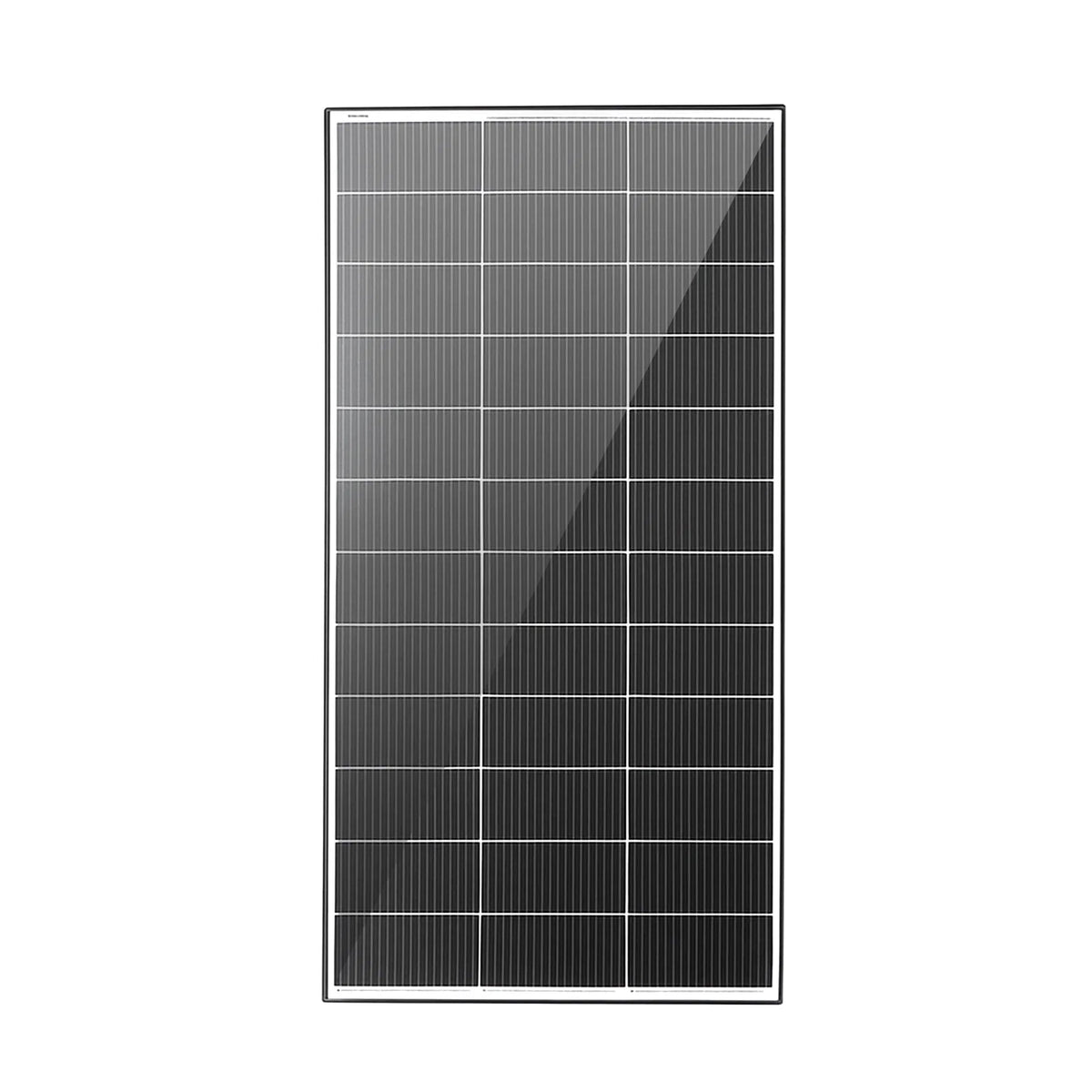

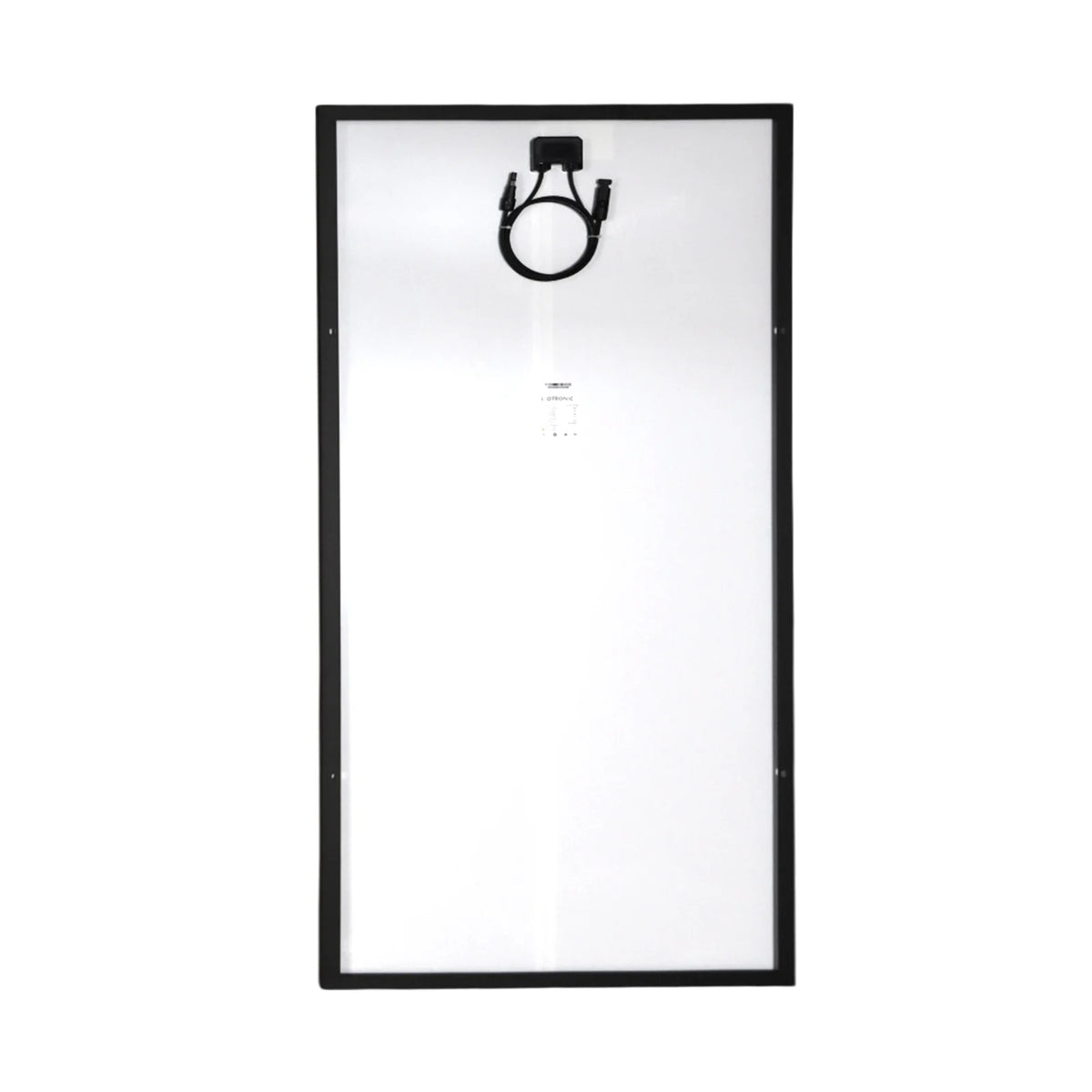

☀️ EXOTRONIC 200W FUSION TOPCon SOLAR PANEL

The Exotronic Fusion Series provides 200W of fixed solar generation using N-Type TOPCon cell technology in a compact format suited to caravans, campers and touring vehicles.

Power: 200W

Cell Technology: N-Type TOPCon

Cell Efficiency: 25.2%

Vmp: 21.6V

Imp: 9.26A

Voc: 25.2V

Isc: 10.1A

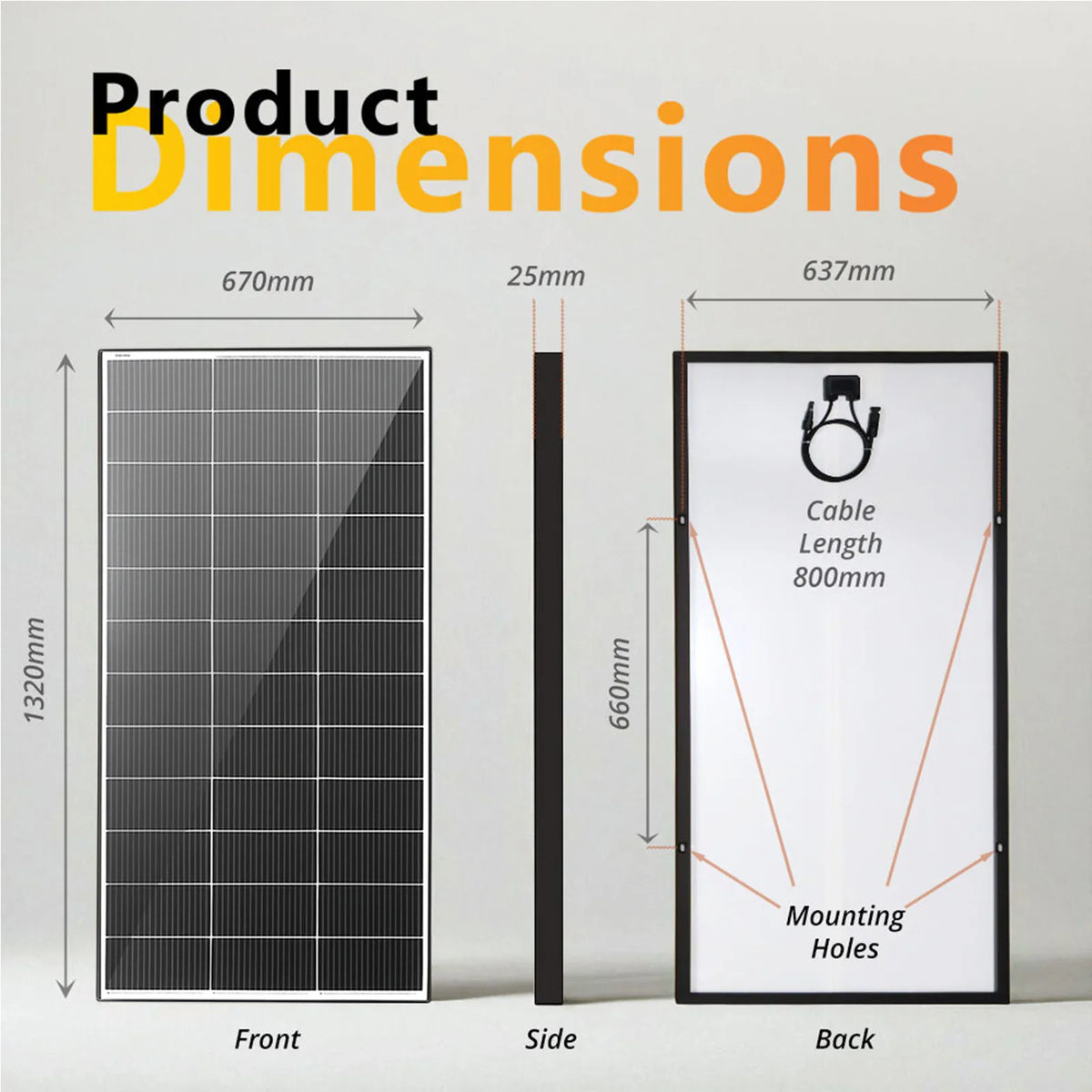

Dimensions: 1320 × 670 × 25mm

Weight: 8.9kg

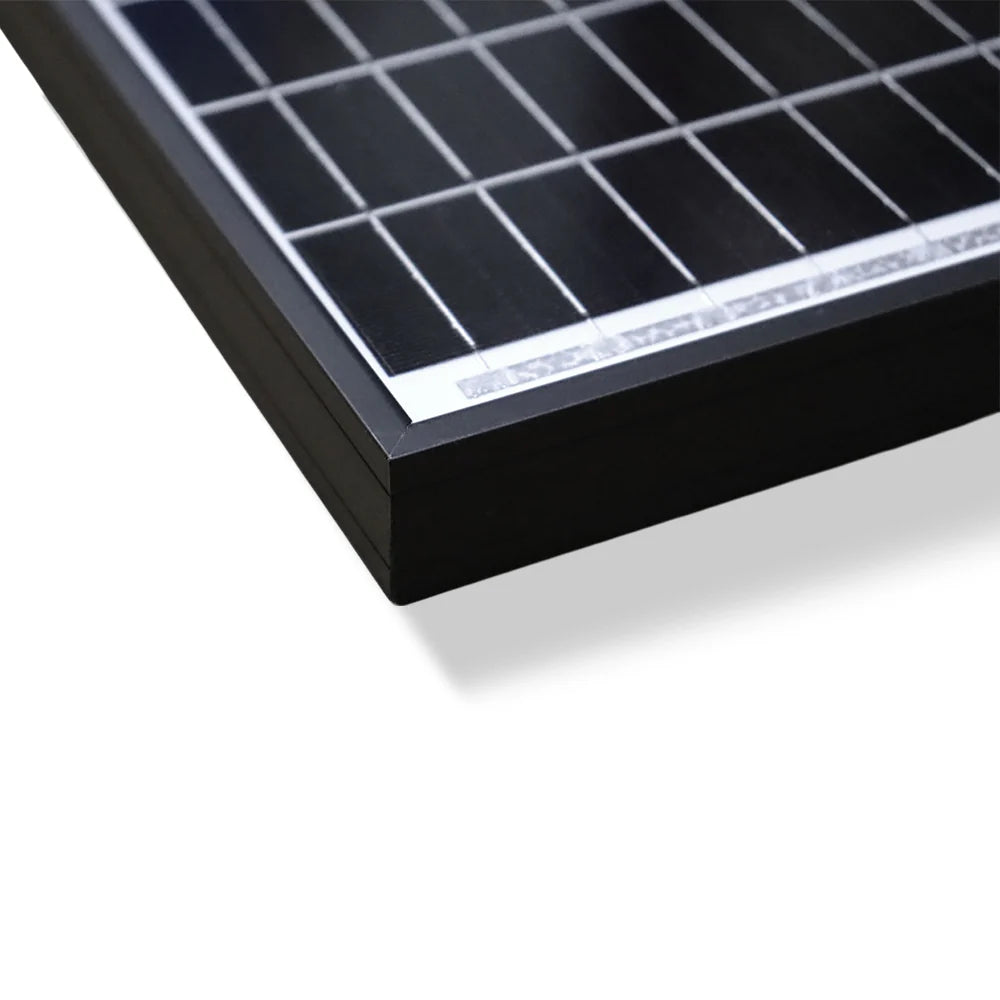

Frame: Black Anodised Aluminium

Front: 3.2mm Tempered Glass

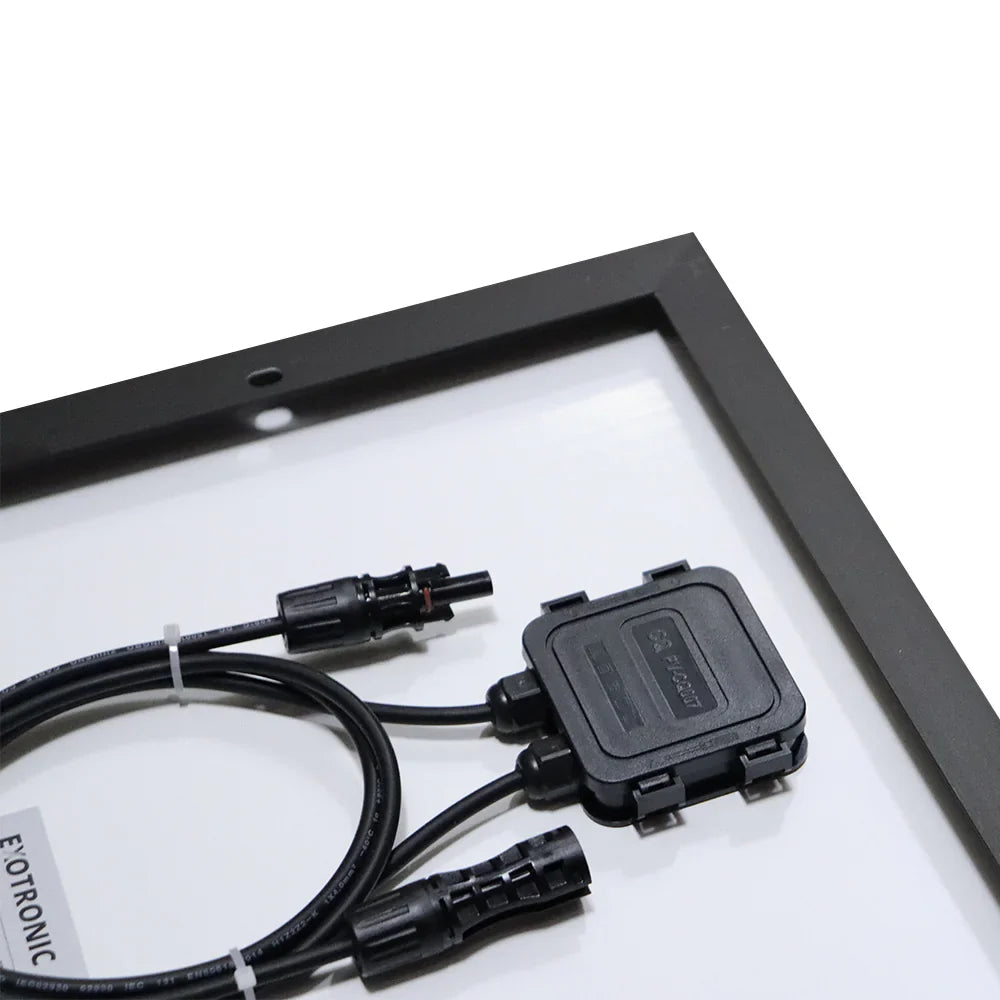

Junction Box: IP65

Connectors: MC4 Compatible

Fly Lead: 800mm

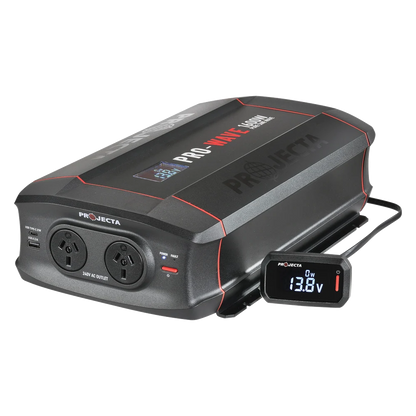

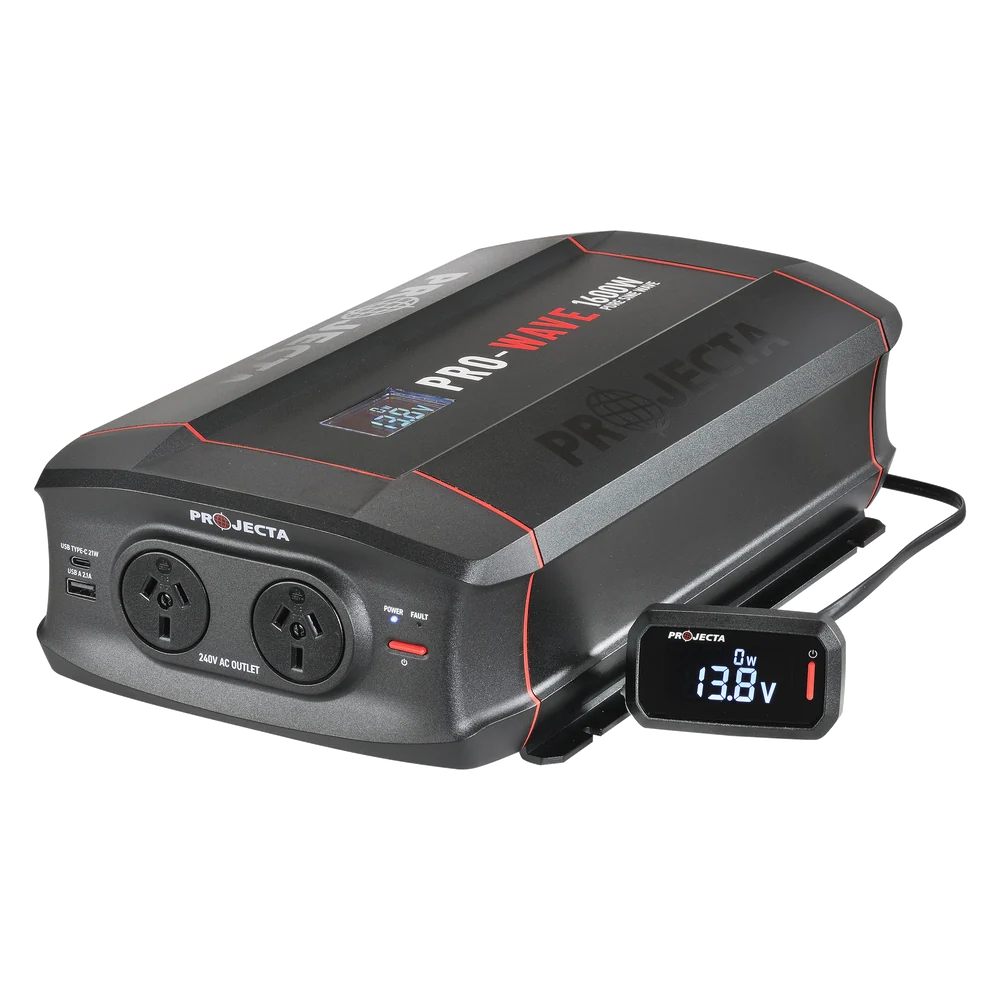

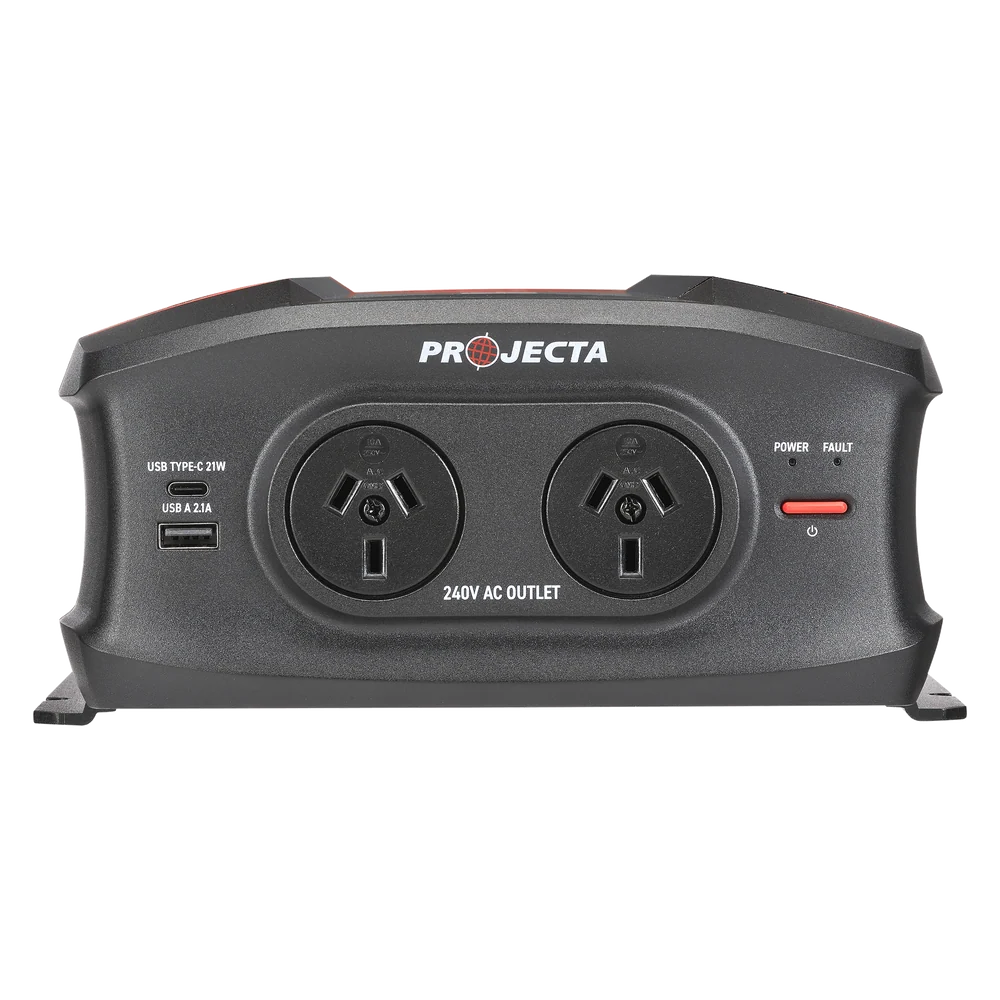

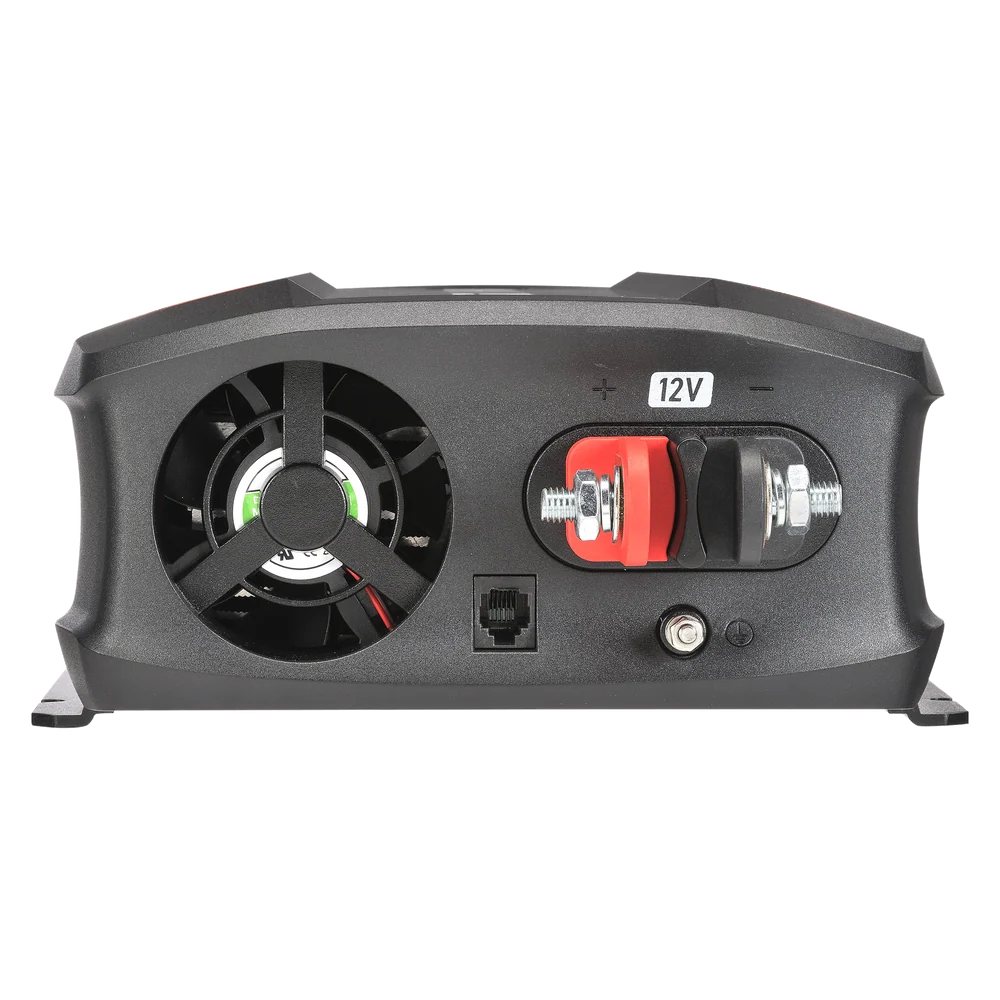

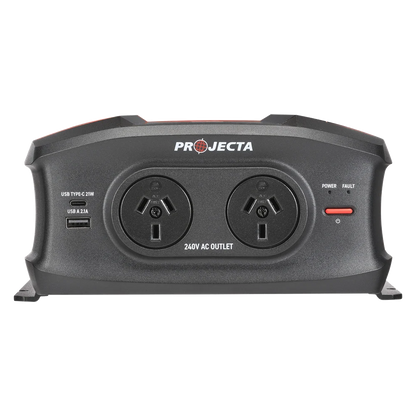

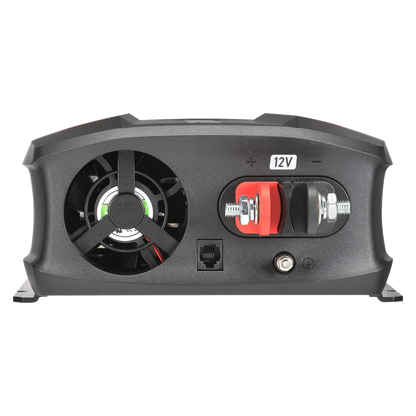

🔌 PROJECTA PRO-WAVE 1600W PURE SINE WAVE INVERTER

Add usable 240V power to your touring system with the Projecta Pro-Wave 1600W pure sine wave inverter.

Continuous Output: 1600W

120% Surge: 1920W for Up to 10 Minutes

Peak Surge: 3200W for Up to 1 Second

Output: 240VAC / 50Hz Pure Sine Wave

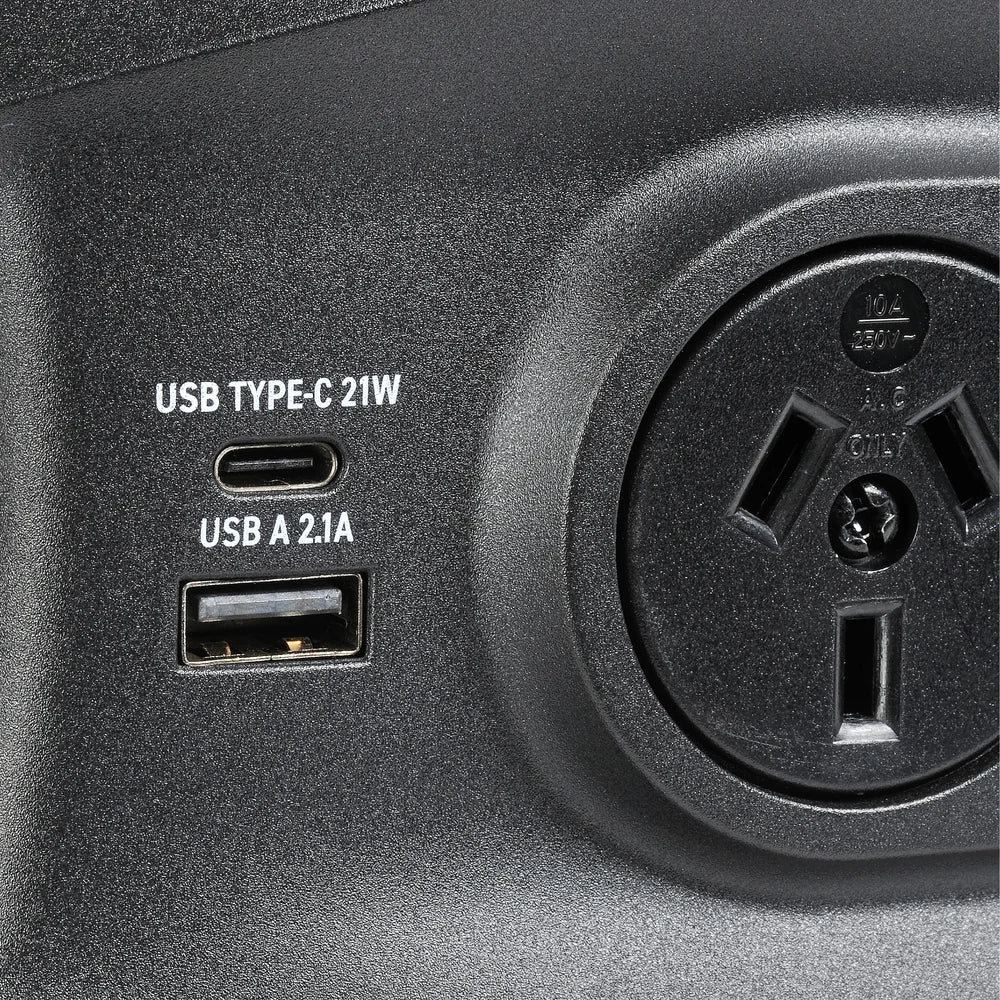

USB-C: 21W

USB-A: 2.1A

Display: Battery Voltage / Power Usage / Load Capacity

Remote: Included

Battery Cable: 1100mm 25mm² Cable with Battery Lugs

Recommended External Fuse: 175A

Dimensions: 419 × 220 × 103mm

Weight: 4.9kg

Warranty: 3 Years

🚙 IDEAL FOR

• 🚙 4WD touring setups
• 🛻 Ute canopy electrical systems
• 🚐 Caravans & camper trailers
• 🏕️ Camping & extended off-grid touring
• ❄️ Fridges, lighting & 12V accessories
• 💻 Charging laptops, cameras & electronics
• 🔌 Running selected 240V appliances and tools

❓ QUICK FAQ

Will it charge while I'm driving?

Yes. The Projecta PDC25 charges the auxiliary battery from the vehicle alternator and is suitable for both conventional and smart alternator systems.

Can it also charge from solar while camping?

Yes. The PDC25 includes solar input and can charge the battery from the supplied Exotronic 200W panel.

Can I run 240V appliances?

Yes. The Projecta inverter provides up to 1600W continuous pure sine wave output. Always confirm the appliance's running and start-up requirements before use.

Can the battery go under the bonnet?

No. The Thumper TLS-150 is specifically listed as unsuitable for under-bonnet installation.

Is everything needed for installation included?

The package includes the four major system components. Vehicle-specific cabling, fuses, circuit protection, solar cable, mounting hardware and other installation components may still be required depending on the vehicle and installation layout.

⚡ BUILD A COMPLETE TOURING POWER SYSTEM

Battery storage. Charging while you drive. Solar when you're parked. 240V power when you need it.

With 150Ah of lithium, 25A DC-DC charging, 200W solar and a 1600W pure sine wave inverter, The All-Rounder gives you the foundation for a capable touring electrical system without jumping straight into a large premium build.

Keep the fridge cold. Keep the lights on. Keep your devices charged. And stay away longer.
