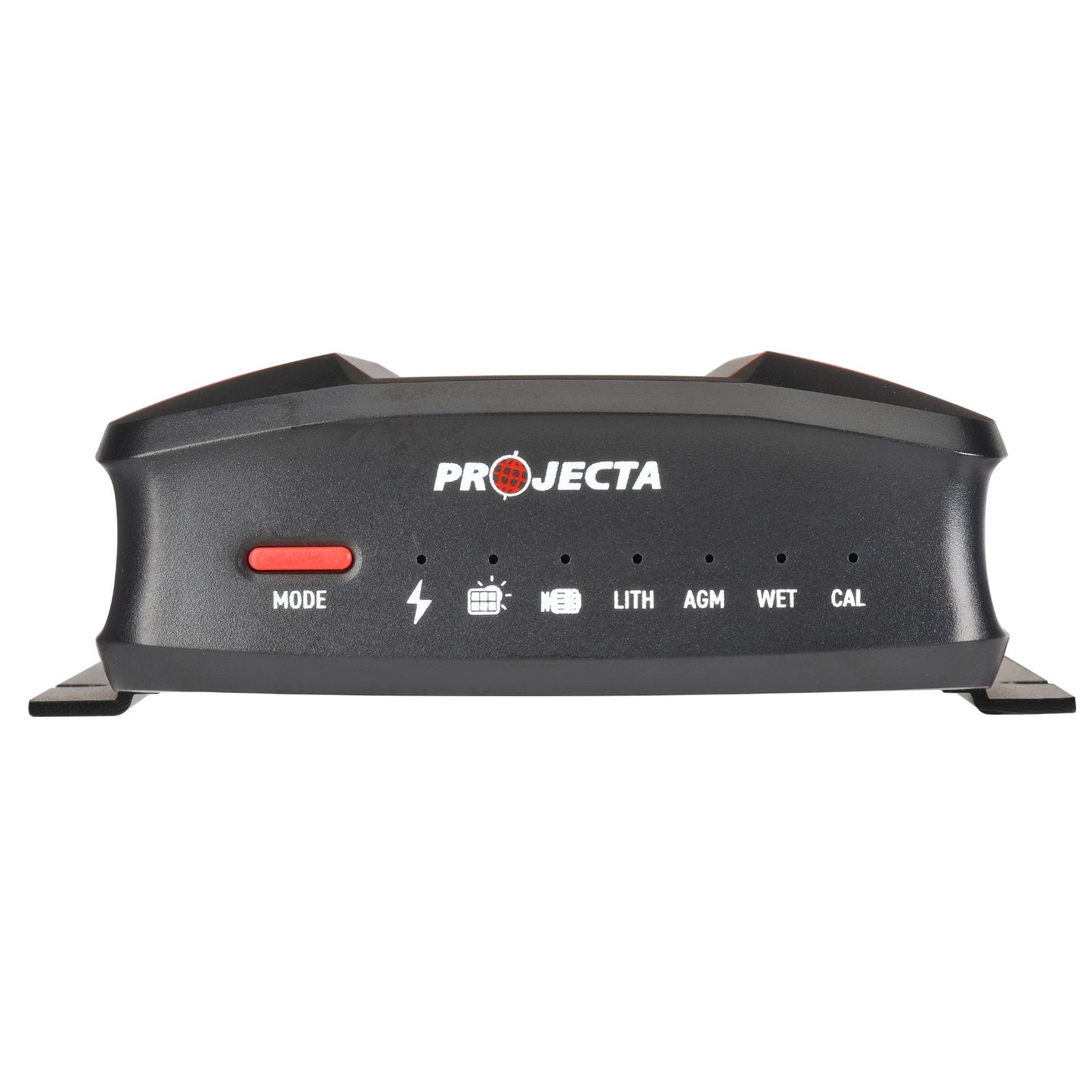

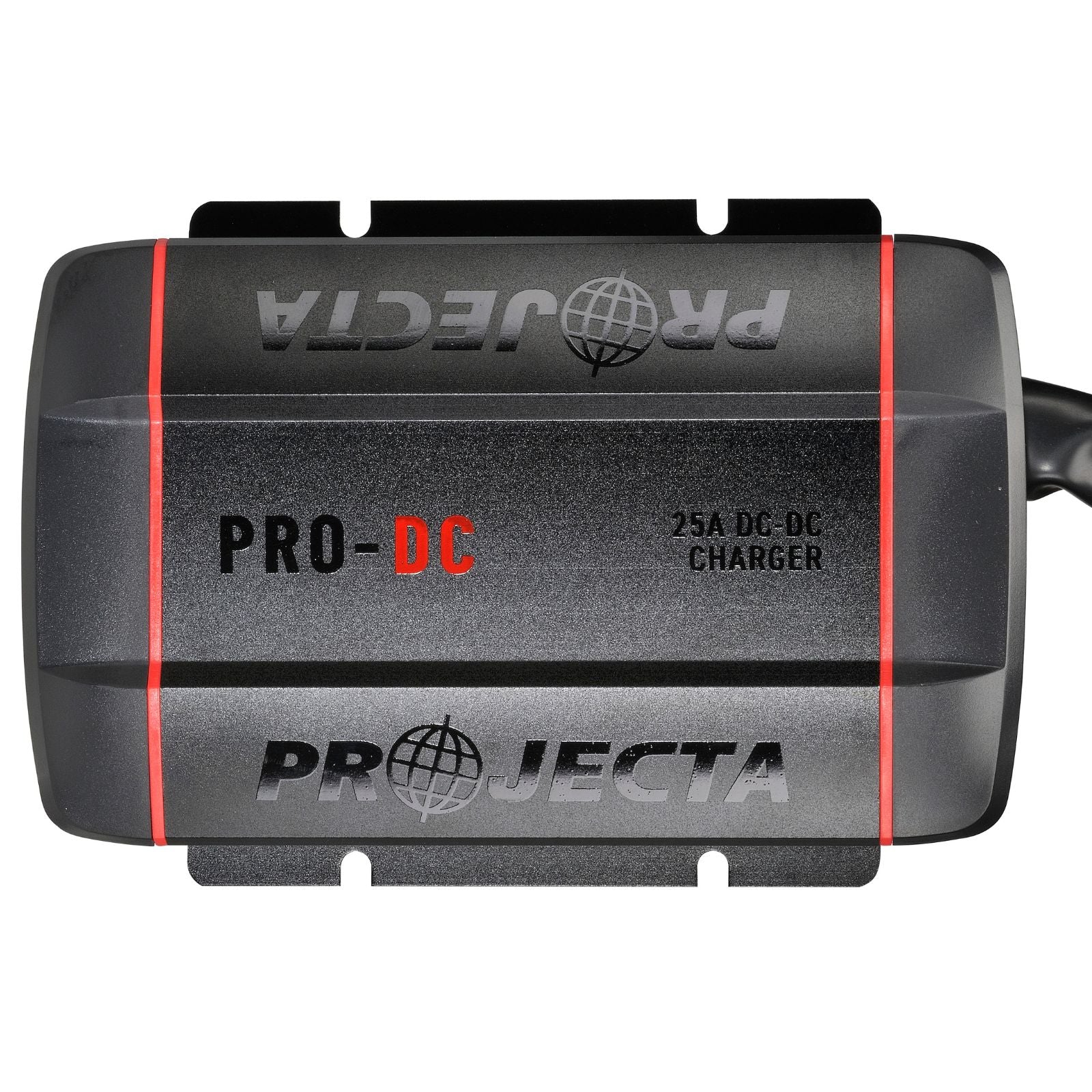

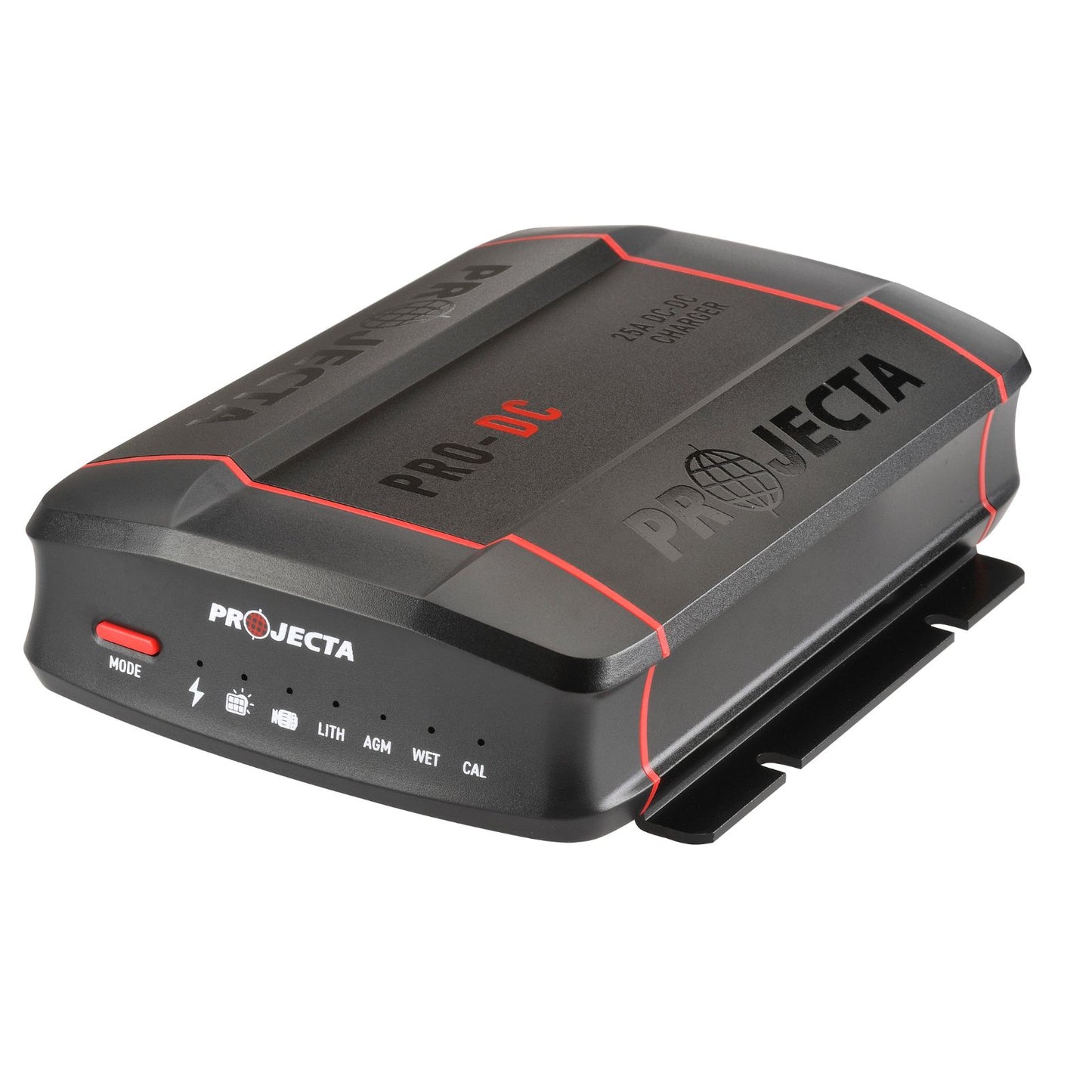

PROCHARGE 25A DC-DC BATTERY CHARGER

PROCHARGE 25A DC-DC BATTERY CHARGER

PDC25

$349.00
$349.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

MANUALS & APPS

PDC25 MANUAL

The PDC25 converts your vehicle's 12VDC/24VDC alternator power or Solar power to the required voltage level allowing your batteries to be fully charged, prolonging battery life.

TOTAL ENVIRONMENTAL PROTECTION

Fully sealed to IP67 and resistant to dust, water and heat, making PDC25 ideal for mounting anywhere

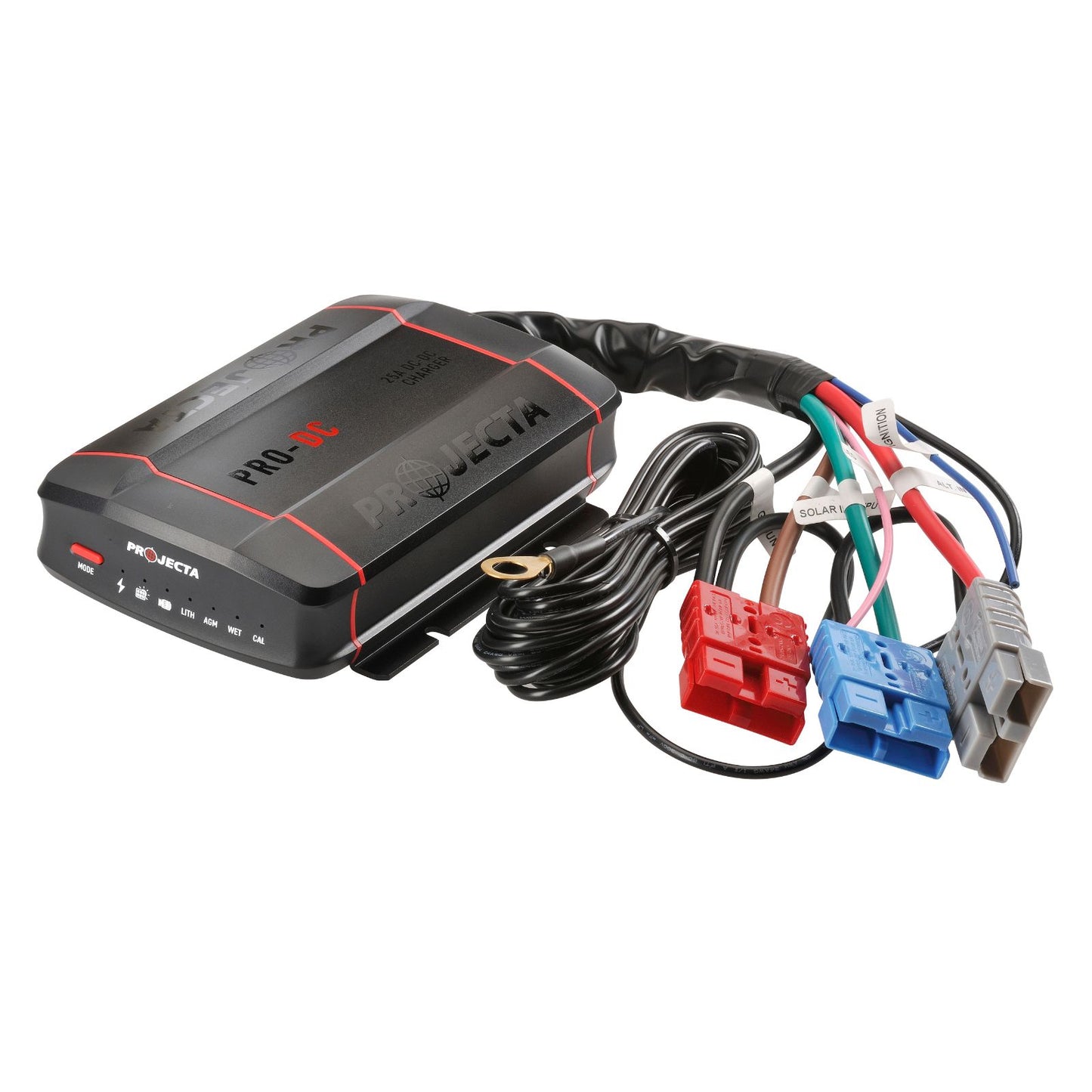

PLUG AND PLAY

Pre-wired, colour-coded 50A HD Connectors for easy installation. Includes extra 50A connectors for input/output wires

DUAL INPUT OPERATION

Simultaneous dual battery charging from both solar and alternator inputs

TOTAL SAFEGUARD PROTECTION

Over temperature, reverse connection, over/under and spark-free protection

Operating Conditions
Alternator Input Voltage 11.9 – 32Vdc
Maximum Solar Input Voltage 28Vdc
Maximum Input Current 40A
Input Current (No Load) 20mA
Back Drain on Auxiliary Battery 9.5 – 10.5mA
External LED Output – Constant Current 4 mA
Maximum Output Current

Input 9–11Vdc:

Input 11V-32dc:

20A

25A
Input Fuse Rating 50A (Not supplied)
Output Fuse Rating 50A (Not supplied)
Maximum Output Power 385W
Solar Input Turn On Voltage 11V
Size 173 x 122 x 42.5 mm
Weight 920g
Operating Temperature (Derated from 55oC)  -10 to +80oC  (Ambient Temperature)
Charge Control
Charge Type 3 Stage
Bulk *20A at 9-11Vdc, 25A at 11-32Vdc  *Constant Current up to:
  LITHIUM AGM WET CALCIUM

14.2V 14.4V 14.7V 14.7V
Absorption Constant Voltage until current drop to 3.8A

LITHIUM AGM WET CALCIUM

14.2V 14.4V 14.7V 14.7V
Float Keep Constant Voltage at 13.7V

Equalisation

(Calcium mode and periodic use only)

3.8A Constant Current Charge up to 16V

then hold for 1 hour (5 hour timeout)
Battery Range
Battery Capacity 75-300Ah
Type of Batteries Supported LITHIUM, AGM, WET & CALCIUM
Operating Mode
  12V Vehicle 24V Vehicle
VSR Mode – Default (Ignition Override Not Connected)

Turn on

13.4-20V

Turn off

<12.8V

Turn on

26.8-32V

Turn off

< 25.6V
Low Voltage Mode – Ignition Override cable connected to ignition switch (ignition on)

Turn on

12.2-20V

Turn off

<11.9V

Turn on

24.4-32V

Turn off

<24V
Standards
EMC C-Tick, CISPR 11, ECE R10
IP Rating IP67
