PRADO 150 3L TURBO DIESEL (JAN 2010- AUG 2016) SMARTSTART UNDER BONNET DUAL BATTERY PACKAGE
PRADO 150 3L TURBO DIESEL (JAN 2010- AUG 2016) SMARTSTART UNDER BONNET DUAL BATTERY PACKAGE
SKU:DBUB-PRADO1503LTDSSPK
Couldn't load pickup availability

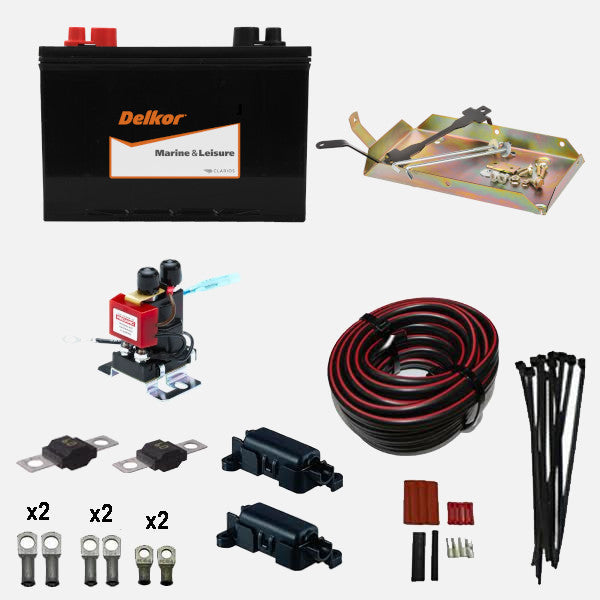

This Package Includes: |
1 x DELKOR M27 MARINE & LEASURE BATTERY |
1 x PROJECTA HDBT112 BATTERY TRAY |
1 x REDARC SBI1212 ISOLATOR 100A |
3 Meters 25sq SINGLE CORE RED CABLE |
2 Meters 25sq SINGLE CORE BLACK CABLE |
6 Meters 8MM TWINCORE CABLE |

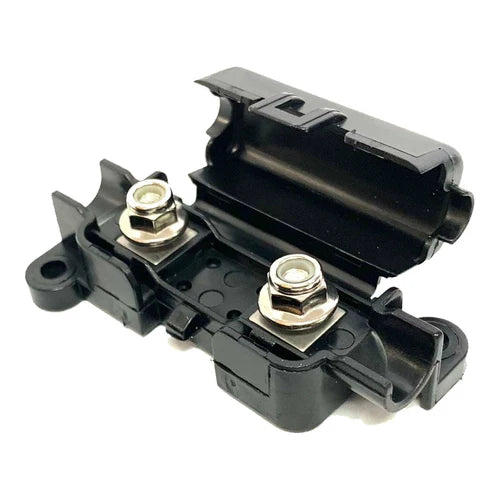

1 x MIDI FUSE HOLDER |

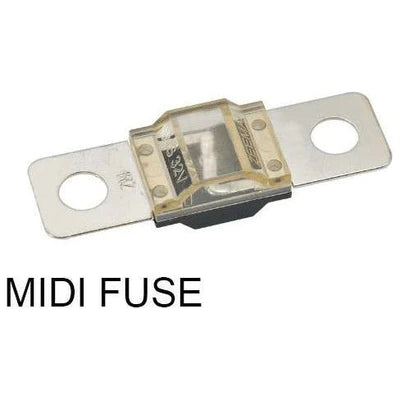

1 x 60A MIDI FUSE |
2 x 10-6mm CABLE LUGS |
4 x 25-8mm CABLE LUGS |
4 x 25-10mm CABLE LUGS |
1 x DUAL BATTERY ZIP TIE AND HEATSHRINK PACK |
Suits: Prado 150 Diesel 1KD–FTV, 3.0Lt Turbo Diesel
Models: Auto/Manual
Years: January 2010–August 2016
Location: Engine Bay
Max Battery Size (mm): L300 x W174 x H220
Max Battery Weight: 23Kg
Suits Battery: N70

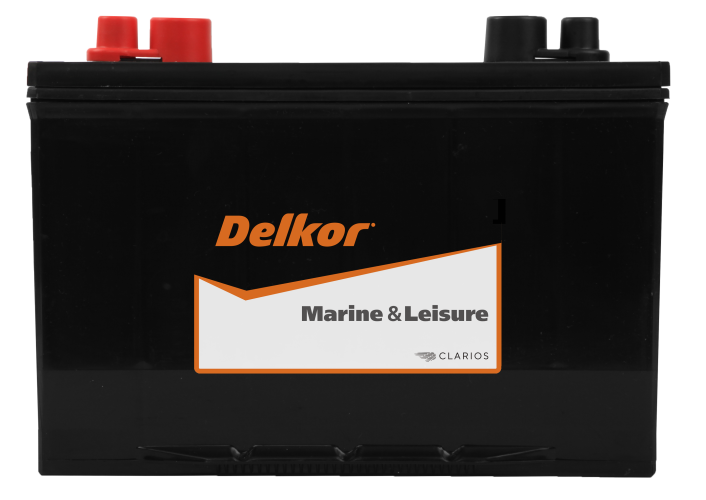

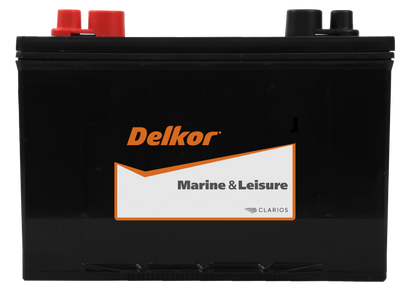

Delkor Marine & Leisure M27
Developed with cutting-edge technology, they power up your fun adventures, offering steadfast power over long journeys and in all kinds of weather.
Perfect for recreational vehicles and dual battery setups. Perfect for the well-deserved leisure time you've been waiting for.
Key Benefits
- Convenient maintenance-free battery, no topping up of fluid required
- Reliable electrical performance with wrought grid plates
- Added strength and vibration resistance with anchor bonding
- Increased durability with high-strength polypropylene case
- Enhanced safety with heat-sealed covers and built-in spark arrestor
- Ideal for dual-power applications
MODEL | M27 |
CCA | 680 |
AH(20HR) | 97 |
LENGTH | 305 |
WIDTH | 172 |
HEIGHT | 225 |
VOLTAGE | 12v |

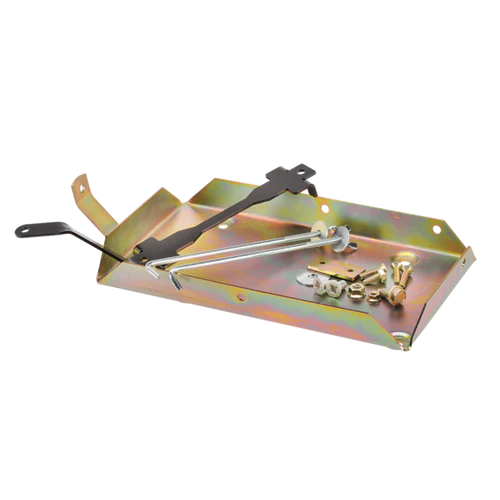

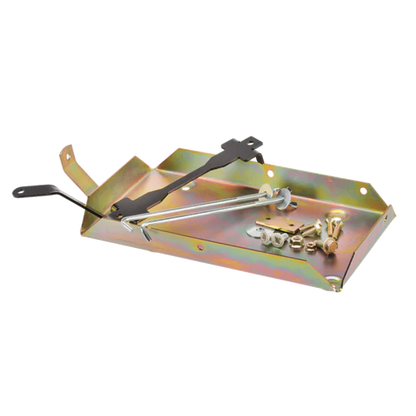

PROJECTA HEAVY DUTY BATTERY TRAY (HDBT112)
Projecta latest heavy-duty battery trays provide the ideal solution when mounting an auxiliary battery into a vehicle engine bay. The range has been engineered to fit specific vehicle types meaning the battery trays can be installed without the inconvenience of having to modify the battery tray or parts of the vehicle.

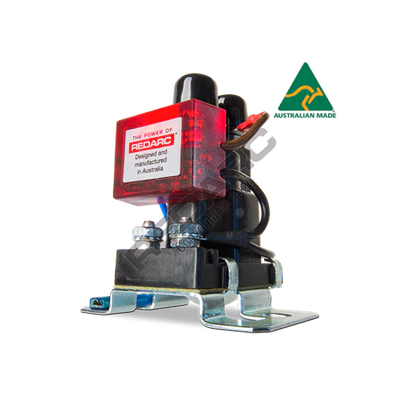

REDARC SMART START ISOLATOR (SBI12)
The REDARC Smart Start SBI12 100A is a 12V DC 100A microprocessor-controlled, dual battery isolator designed to protect the start battery from excessive discharge while allowing the auxiliary battery to supply charge to non-essential loads.
FEATURES
- Overmould design
- Compact in size and easy to install
- Silver contacts for longer life and suitable for marine applications
- Power saving technology
- Fault indication
- Fully surge protected
MAX. INRUSH CURRENT | 400A |
MAX. CONTINOUS CURRENT | 100A |
TURN ON VOLTAGE | 13.2V |
TURN OFF VOLTAGE | 12.7V |
TURN ON DELAY | 5 seconds |
TURN OFF DELAY | 10 seconds |
STANDBY CURRENT | <5mA |
WEIGHT | 200 g |
HEIGHT | 70mm |
WIDTH | 75mm |
DEPTH | LENGTH | 80mm |
SYSTEM VOLTAGE | 12V |
OUTPUT VOLTAGE | 12V DC |
INPUT FUSE RATING | 100A |
OUTPUT FUSE RATING | 100A |
WARRANTY | 2 Years |
