THUMPER

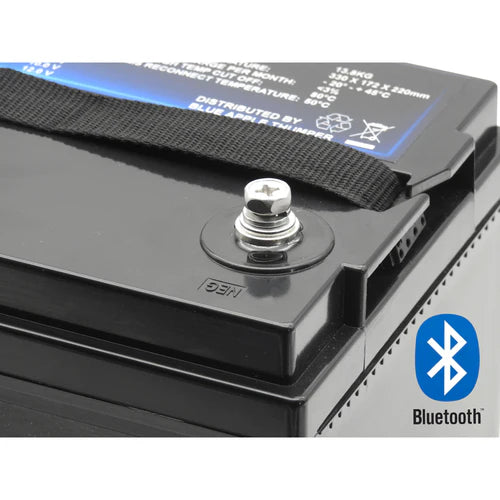

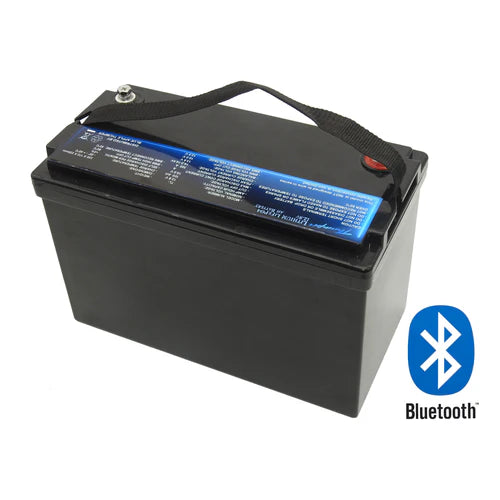

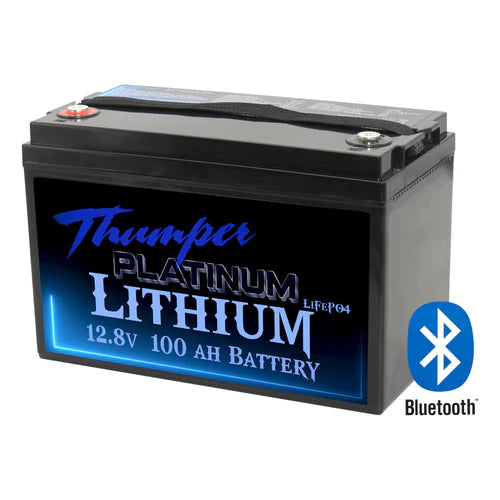

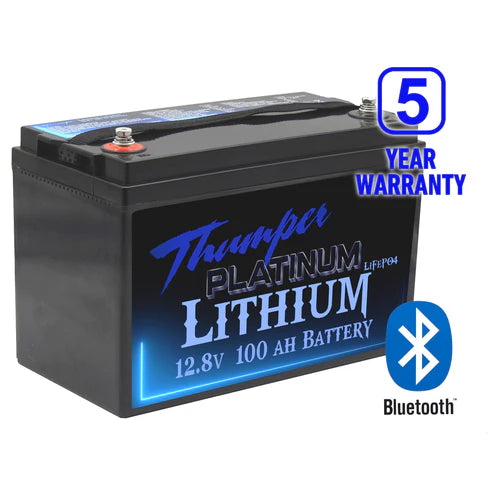

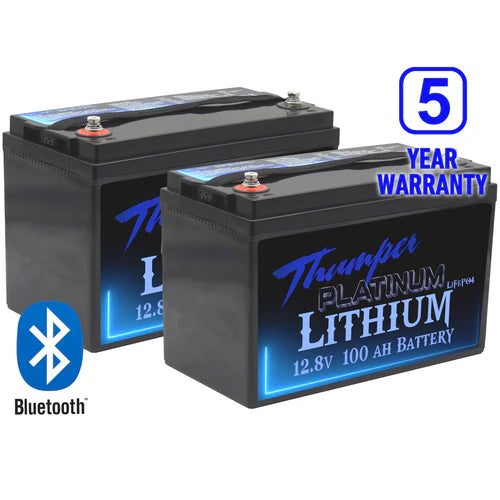

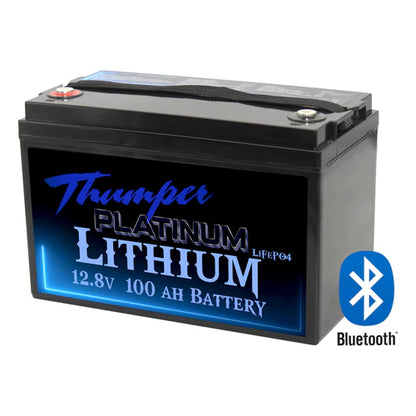

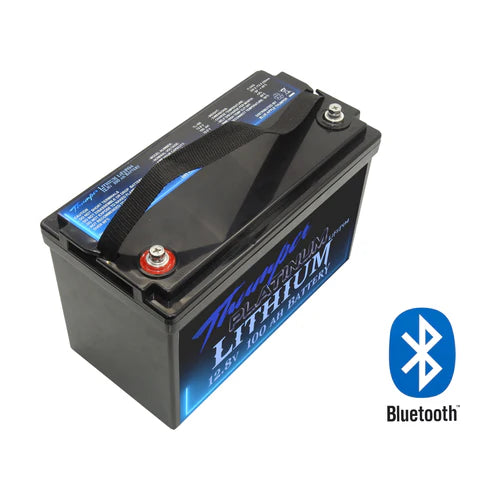

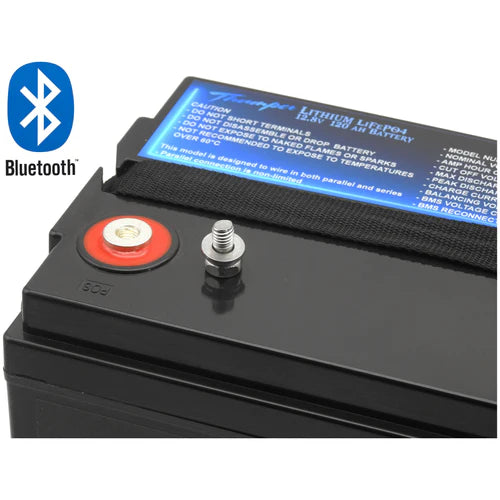

Platinum Lithium 100Ah LiFePO4 Bluetooth Battery Twin Pack
Platinum Lithium 100Ah LiFePO4 Bluetooth Battery Twin Pack
SKU:TL-100BT-100A-BMS-TWINPACK
Couldn't load pickup availability
🔋 Platinum Lithium 100Ah LiFePO4 Bluetooth Battery Twin Pack — 100A BMS Each
Twin pack of 12.8V 100Ah LiFePO4 Bluetooth batteries with 100A BMS per battery, 200Ah parallel capacity, built-in app monitoring, and 5-year warranty.
The Platinum Lithium 100Ah LiFePO4 Bluetooth Battery Twin Pack provides a reliable dual-battery lithium solution for caravans, 4WDs, RVs, marine systems, camping setups, and off-grid auxiliary power applications.
Each battery delivers 100Ah of LiFePO4 deep cycle capacity with a 100A Battery Management System, giving the twin pack a combined 200Ah capacity when wired in parallel. In a parallel setup, the twin pack provides a combined 200A BMS capacity, making it suitable for systems requiring up to a 2400W inverter, subject to correct installation, cable sizing, fusing, and load requirements.
Built with prismatic LiFePO4 cells, these batteries are fully sealed, lightweight, and designed to be mounted on any angle for flexible installation. With built-in Bluetooth monitoring, internal BMS protection, high discharge capability, and expandable connection options, this twin pack is ideal for dependable lithium power on the road or off-grid.
✅ Key Benefits
🔋 Twin 100Ah Lithium Battery Pack
Includes two 100Ah LiFePO4 Bluetooth batteries for a combined 200Ah battery system.
⚡ 100A BMS Per Battery
Each battery includes a 100A Battery Management System, supporting up to 100A continuous discharge per battery.
🔌 200A Parallel BMS Capacity
When wired in parallel, the twin pack provides up to 200A combined BMS capacity, suitable for up to a 2400W inverter when correctly installed.
📱 Built-In Bluetooth Monitoring
Monitor battery capacity, voltage, charging current, discharge current, estimated runtime, and more through the Thumper Batteries App.
🧠 Internal Battery Management System
Provides battery protection for safe charging, discharging, temperature control, voltage protection, excessive discharge protection, and short circuit protection.
🚀 300A Peak Discharge Per Battery
Supports short peak loads of up to 300A for 1–3 seconds per battery.
⚖️ Lightweight Lithium Design
Less than half the weight of a traditional lead acid battery while still offering heavy-duty deep cycle performance.
🔋 Higher Voltage for Longer Runtime
Maintains terminal voltage higher throughout the discharge cycle, helping appliances run longer and more efficiently.
🔗 Parallel Connection Supported
Parallel connection is non-limited, making the batteries suitable for expandable lithium power systems.
🔋 Series Connection Supported
Designed to run from 12V to 48V, with a maximum of 4 batteries in series.
🧰 Flexible Mounting
Fully sealed construction allows the batteries to be mounted on any angle.
🔌 Lithium Charger Recommended
Compatible with suitable lithium charging systems, with a dedicated lithium charger recommended for best performance.
🛠️ 5-Year Warranty
Backed by a 5-year warranty from date of purchase.
🔧 Suitable Applications
🚐 Caravan lithium battery systems
🚙 4WD auxiliary battery setups
🏕️ Camping and off-grid power systems
🚍 Motorhomes and RVs
🛥️ Marine auxiliary systems
☀️ Solar battery storage
🧊 Fridges and freezers
📡 Starlink and communications equipment
⚡ Inverter power systems
🔋 Parallel lithium battery banks
🔌 12V to 48V lithium systems
🔋 Twin Pack Capacity
| Battery Setup | Capacity |
|---|---|
| Single Battery Capacity | 100Ah |
| Twin Pack Capacity in Parallel | 200Ah |
| Single Battery BMS | 100A / 1200W guide |
| Twin Pack BMS in Parallel | 200A / 2400W guide |
| Nominal Voltage | 12.8V |
| Battery Chemistry | Prismatic LiFePO4 |
| Bluetooth Monitoring | Yes |
| Parallel Connection | Non-limited |
| Series Connection | 12V–48V, maximum 4 batteries in series |
This twin pack is commonly used in a parallel 12V lithium battery system, while series configurations up to 48V should only be installed after confirming charger, inverter, BMS, and system compatibility.
📱 Bluetooth App Monitoring
The Thumper Batteries App is available as a free download and allows each battery to be monitored and controlled from your smartphone.
| Bluetooth App Feature | Details |
|---|---|
| Battery Capacity | View available battery capacity |
| Battery Voltage | Monitor live battery voltage |
| Percentage Remaining | View remaining battery level from 0–100% |
| Charging Current | Monitor charge input current |
| Discharge Current | Monitor load output current |
| Battery Output Disconnect | Remotely disconnect discharge loads |
| Battery Charge Disconnect | Remotely disconnect charging inputs |
| Auto Cell Calibration | Supports automatic cell calibration |
| Auto Cell Protection | Helps protect internal cells |
| Estimated Time Remaining | View estimated runtime |
| Estimated Charging Time | View estimated recharge time |
| Ah Capacity Remaining | Monitor remaining amp hour capacity |
| Total Cell Balancing | View cell balancing data |
| High Cell Voltage | Monitor high cell voltage condition |
| Low Cell Voltage | Monitor low cell voltage condition |
| Cell Voltage Difference | View cell voltage variation |
| Dual Battery Sensor Monitoring | Supports dual battery sensor monitoring |
| Parallel Link Reprogramming | Ability to parallel link and reprogram Ah capacity, passcode required |
Some advanced app features may require a passcode.
🔄 Bluetooth Charge & Discharge Control
The Bluetooth App allows remote control of charge and discharge functions.
| App Control | Function |
|---|---|
| Charge Switch | Remotely disconnects all charge loads from the battery |
| Discharge Switch | Remotely disconnects all discharge loads from the battery |
| Storage Use | Discharge switch can be turned off when storing the battery |
| Remote Isolation | Allows charge or discharge control through the app |
Turning the charge switch OFF prevents the battery from accepting charge from any charging source, including a DC battery charger.
Turning the discharge switch OFF prevents the battery from running appliances by disconnecting all loads from the battery. This is useful when storing the batteries.
🧠 Internal Battery Management System
The built-in BMS manages battery safety, performance, and protection.
| BMS Protection / Function | Details |
|---|---|
| Safe Charging Control | Helps manage charge input |
| Safe Discharge Control | Helps manage output loads |
| Over Temperature Protection | Protects against excessive temperature |
| Under Voltage Cut-Off | Helps prevent excessive discharge |
| Over Voltage Cut-Off | Helps protect against overcharging |
| Short Circuit Protection | Built-in internal protection |
| Bluetooth Capability | Enables app-based monitoring and control |
| Protection Parameters | Controls safe battery operation |
📏 Technical Specifications
| Specification | Details |
|---|---|
| Product | Platinum Lithium 100Ah LiFePO4 Bluetooth Battery Twin Pack |
| Model No. | TL-100BT-100A |
| Battery Type | LiFePO4 Lithium Deep Cycle |
| Cell Type / Chemistry | Prismatic / LiFePO4 |
| Nominal Voltage | 12.8V |
| Rated Capacity Per Battery | 100Ah |
| Twin Pack Capacity in Parallel | 200Ah |
| Bluetooth | Yes |
| Single Battery BMS | 100A |
| Twin Pack BMS in Parallel | 200A |
| Parallel Connection | Non-limited |
| Series Connection | 12V–48V, maximum 4 batteries in series |
| BMS Upgrade Option | Available |
| Warranty | 5 years from date of purchase, as of June 2023 |
📐 Dimensions & Weight
| Measurement | Per Battery |
|---|---|
| Length | 328mm |
| Width | 172mm |
| Height | 220mm |
| Weight | 9.75kg |
🌡️ Operating Temperature Range
| Operating Condition | Rating |
|---|---|
| BMS High Temperature Cut-Out | 80°C |
| BMS Reconnect Temperature | 50°C |
| Discharge Temperature | -20°C to 60°C |
| Charge Temperature | -20°C to 45°C |
| Storage Temperature | -5°C to 35°C |
🔌 Charging Specifications
| Charging Specification | Details |
|---|---|
| Recommended Charge Current Per Battery | 10A – 50A |
| Maximum Charge Current Per Battery | 70A |
| Recommended Charger Type | Lithium charger |
| Compatible Charger Setting | Lithium setting |
For best performance and battery life, use a charger with a dedicated lithium charging profile.
⚡ Discharge Specifications
| Discharge Specification | Per Battery |
|---|---|
| Maximum Continuous Discharge Current | 100A, upgrade available |
| Peak Discharge Current | 300A for 1–3 seconds |
| BMS Current Cut-Off | >100.5A for 10 seconds |
| BMS Current Cut-Off | >120A for 3 seconds |
| BMS Current Cut-Off | >150A for 1 second |
| BMS Voltage Cut-Off | 10.0V |
| BMS Voltage Reconnect | 12.0V |
| Self Discharge Per Month | ≤3% |
⚡ Inverter Guide
The number of batteries required depends on the inverter size and the battery BMS rating.
| Inverter Size | Recommended Battery Setup With Current Package |
|---|---|
| 150W – 1200W inverter | 1x 100Ah batteries with 100A BMS |
| 150W – 2400W inverter | 2x 100Ah batteries with 100A BMS (200Ah 200A BMS Total) |
| 150W – 4800W inverter | 4x 100Ah batteries with 100A BMS (400Ah 400A BMS Total) |
Batteries take up a lot of space, it is recommended for larger inverters to select a bigger battery and BMS combo
Always confirm inverter load, surge draw, cable sizing, fuse protection, BMS rating, and installation requirements before use.
❓ What Happens If the Discharge Rating Is Exceeded?
The Thumper lithium battery is protected internally by a Battery Management System. The BMS helps protect the battery against overcharge, low voltage, and excessive discharge drain.
For example, if a 3000W inverter draws approximately 250A, this twin pack package wired in parallel has a 200A BMS. If the load exceeds the 200A discharge rating, the BMS will disconnect and stop providing power to protect the battery.
Once the load is disconnected, the BMS will normally reconnect within a few seconds and the battery will be ready to use again.
⚠️ Important Usage Notes
Please confirm your required battery capacity, charging system, cable sizing, fuse protection, parallel wiring setup, series wiring setup, inverter size, BMS rating, mounting space, and system compatibility before purchase or installation.
Important:
✅ Includes two 100Ah Bluetooth LiFePO4 batteries
✅ Each battery includes a 100A BMS
✅ Twin pack provides 200Ah capacity when wired in parallel
✅ Twin pack provides 200A BMS capacity when wired in parallel
✅ Designed for parallel lithium battery systems
✅ Parallel connection is non-limited
✅ Series connection supported from 12V to 48V, maximum 4 batteries in series
✅ Fully sealed and can be mounted on any angle
✅ Lithium charger recommended for best results
✅ Built-in Bluetooth monitoring system
⛔ Not designed for engine starting
⛔ Not designed for under-bonnet installation
🔎 Why Choose the Platinum Lithium 100Ah Bluetooth Twin Pack?
The Platinum Lithium 100Ah LiFePO4 Bluetooth Battery Twin Pack is designed for users who want expandable lithium storage, app-based monitoring, and reliable deep cycle performance.
With two sealed 100Ah lithium batteries, built-in Bluetooth, prismatic LiFePO4 cells, BMS protection, lightweight construction, 200Ah parallel capacity, and up to 48V series configuration support, this twin pack is a strong choice for caravan, 4WD, RV, marine, and off-grid power systems.
📦 What’s Included
🔋 2 x Platinum Lithium 100Ah LiFePO4 Bluetooth Batteries — TL-100BT-100A
🛒 Order with Confidence
Choose the Platinum Lithium 100Ah LiFePO4 Bluetooth Battery Twin Pack for reliable lithium power, Bluetooth monitoring, expandable parallel capacity, BMS protection, lightweight construction, and dependable performance for touring and off-grid power systems.
