VICTRON ENERGY

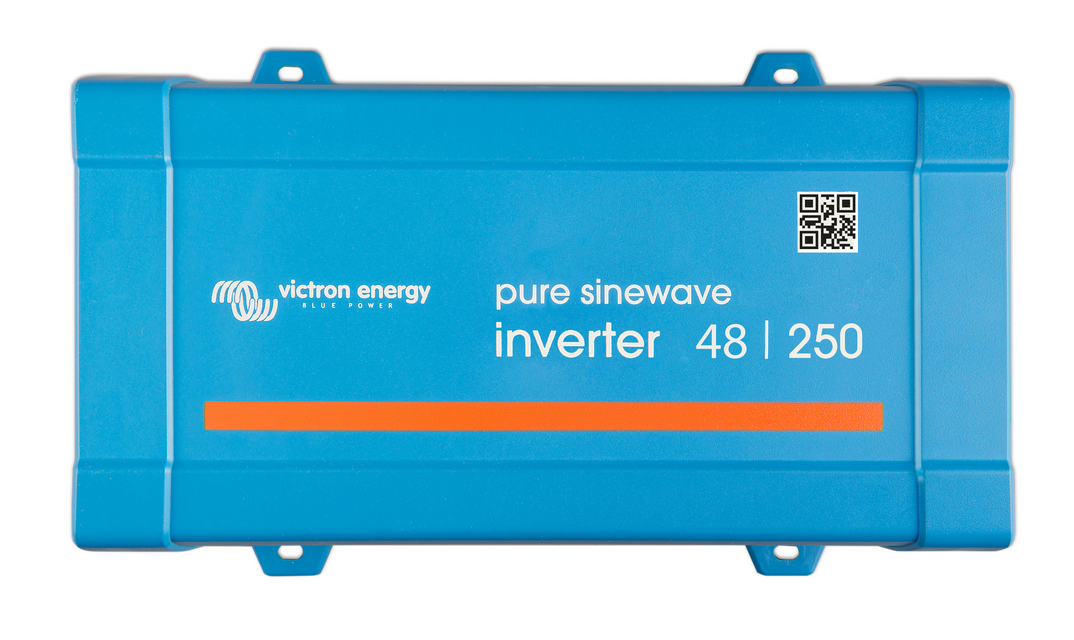

PHOENIX INVERTER 48V/250VA VE.DIRECT

PHOENIX INVERTER 48V/250VA VE.DIRECT

SKU:PIN481251300

Regular price $149.50
Regular price Sale price $149.50
Sale Sold out
Taxes included. Shipping calculated at checkout.

Inverters allow you to power domestic equipment - requiring 230V/120V AC - using 'leisure' or 'automotive' batteries.

VE.Direct communication port

The VE.Direct port can be connected to:
• A computer (VE.Direct to USB interface cable needed)
• Apple and Android smartphones, tablets, MacBook’s and other devices (VE.Direct Bluetooth Smart dongle needed)
Fully configurable:
• Low battery voltage alarm trip and reset levels
• Low battery voltage cut-off and restart levels
• Dynamic cut-off: load dependent cut-off level
• Output voltage 210 - 245V
• Frequency 50 Hz or 60 Hz
• ECO mode on/off and ECO mode sense level
Monitoring:
• In- and output voltage, % load and alarms

Proven reliability

The full bridge plus toroidal transformer topology has proven its reliability over many years.
The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.

High start-up power

Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.

ECO mode

When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level,
the inverter will remain on.

Remote on/off

A remote on/off switch can be connected to a two-pole connector, or between battery plus and the left-hand contact of the two-pole connector.

LED diagnosis

Please see manual for a description.

To transfer the load to another AC source: the automatic transfer switch

For our low power inverters, we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption.

DC connection with screw terminals

No special tools needed for installation

Cont. power at 25°C / 40°C 200 / 175W
Peak power  400W
Output AC voltage 230VAC +/- 3%
Input voltage range 36,8 - 62,0V
DC low shut down (adjustable) 37,2V
DC low restart and alarm (adjustable) 43,6V
Battery charged detect (adjustable) 56,0V
Max. efficiency 88%
Zero-load power 7,9W
Default zero-load power in ECO mode
(default retry interval: 2,5 s, adjustable)
2,5W
ECO mode stop and start power setting Adjustable
Protection
  • output short circuit
  • overload
  • battery voltage too high/low
  • temperature too high
  • DC ripple too high
Operating temperature range -40 to +65°C (fan assisted cooling)

ENCLOSURE
Material & Colour Steel chassis and plastic cover (blue Ral 5012)
Battery-connection Screw terminals
Maximum cable cross-section 10mm² / AWG8
Standard AC outlets AU/NZ (AS/NZS 3112)
Protection category IP 21
Weight 2,4kg
Dimensions (H x W x D, mm) 86 x 165 x 260
