VICTRON ENERGY

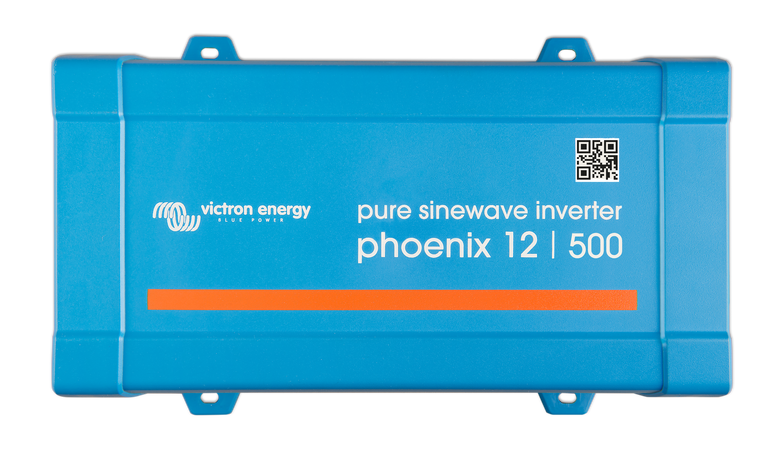

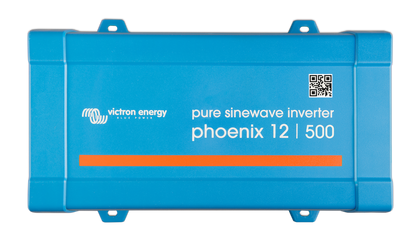

PHOENIX INVERTER 12V/500VA VE.DIRECT

PHOENIX INVERTER 12V/500VA VE.DIRECT

SKU:PIN121501300

Regular price $240.50
Regular price Sale price $240.50
Sale Sold out
Taxes included. Shipping calculated at checkout.

Inverters allow you to power domestic equipment - requiring 230V AC - using 'leisure' or 'automotive' batteries rated at 12V.

VE.Direct communication port

The VE.Direct port can be connected to:
• A computer (VE.Direct to USB interface cable needed)
• Apple and Android smartphones, tablets, MacBook’s and other devices
(VE.Direct Bluetooth Smart dongle needed)

Fully configurable:

• Low battery voltage alarm trip and reset levels
• Low battery voltage cut-off and restart levels
• Dynamic cut-off: load dependent cut-off level
• Output voltage 210 - 245V
• Frequency 50 Hz or 60 Hz
• ECO mode on/off and ECO mode sense level

Monitoring:

• In- and output voltage, % load and alarms

Proven reliability:

The full bridge plus toroidal transformer topology has proven its reliability over many years.
The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.

High start-up power:

Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.

ECO mode:

When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once in
standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level,
the inverter will remain on.

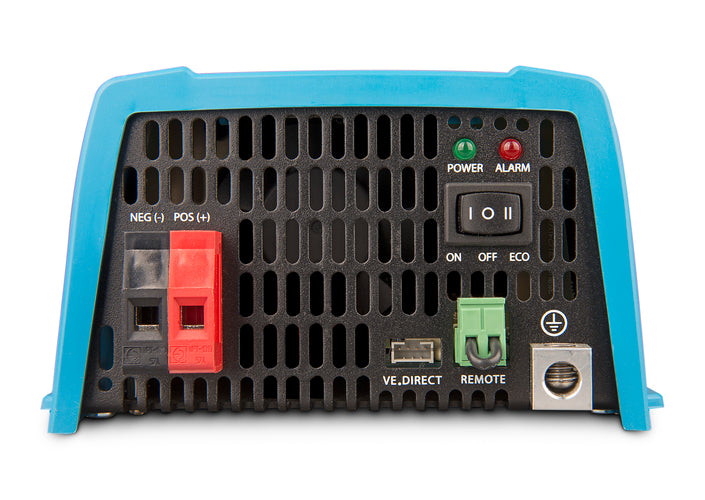

Remote on/off:

A remote on/off switch can be connected to a two-pole connector, or between battery plus and the left-hand contact of the
two-pole connector.

To transfer the load to another AC source: the automatic transfer switch

For our low power inverters, we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time
(less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption.

Cont. power at 25°C / 40°C 400 / 350W
Peak power 900W
Output AC voltage / frequency (adjustable) 230VAC or 120VAC +/- 3% 50Hz or 60Hz +/- 0,1%
Input voltage range 9,2 - 17V
DC low shut down (adjustable) 9,3V
Battery charged detect (adjustable) 14,0V
Max. efficiency 90%
Zero-load power 6W
Default zero-load power in ECO mode
(default retry interval: 2,5 s, adjustable)
1W
ECO mode stop and start power setting Adjustable
Protection output short circuit, overload, battery voltage too high, battery voltage too low, temperature too high, DC ripple too high
Operating temperature range -40 to +65°C (fan assisted cooling) Derate 1,25% per °C above 40°C
Weight 3,9kg
Dimensions (h x w x d, mm)
86 x 172 x 275
